Cuisinart DCC-5570 5-Cup Coffee Maker

IMPORTANT SAFEGUARDS

When using electrical appliances, especially when children are present, basic safety precautions should always be taken to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

READ ALL INSTRUCTIONS.
Unplug from the outlet when either the appliance or display clock is not in use, and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
Do not touch hot surfaces. Use handles and knobs.
To protect against electric shock, do not place cord, plug, or base unit in water or other liquids.
This appliance should not be used by or near children or individuals with certain disabilities.
Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to the nearest Cuisinart Repair Center for examination, repair, and electrical or mechanical adjustment.
The use of accessory attachments not recommended by Cuisinart may cause injuries.
Do not use outdoors.
Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a heated oven.
Always fill the water reservoir first, then plug the cord into the wall outlet. To disconnect, push the ON/OFF button, then remove the plug from the wall outlet.
Do not use the appliance for anything other than its intended use.
Scalding may occur if the lid is removed during the brewing cycle.
The stainless steel carafe is designed for use with this coffeemaker only. It must never be used on the range top.

IMPORTANT UNPACKING INSTRUCTIONS

Place the box on a large, sturdy, flat surface.
Remove the instruction book and any other literature.
Turn the box so that the back side of the coffeemaker is down and slide the coffeemaker from the box.
After the coffeemaker has been removed, place the box out of the way and lift off the packing material.
Grasp the carafe by its handle, remove it from the heating plate, and remove the polybag.
Remove the polybag covering from the coffeemaker and lift the coffeemaker off the remaining inserts. Save all packing materials in case you have to ship the machine in the future.

KEEP ALL PLASTIC BAGS AWAY FROM CHILDREN.

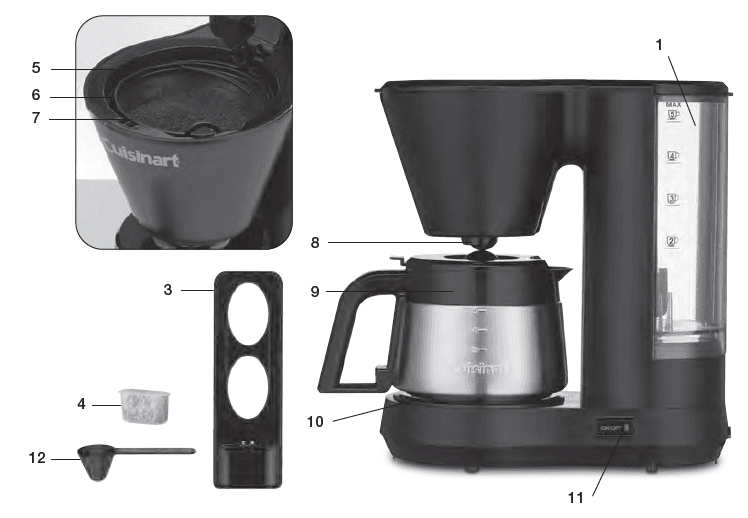

FEATURES AND BENEFITS

Removable Water Reservoir
Removable 26 oz. Water reservoir for easy filling.
Showerhead (not shown)
Distributes water evenly over coffee, reducing temperature loss as water passes through the grounds.
Charcoal Water Filter Holder
Holds filter firmly in place.
Charcoal Water Filter (shown on page 6)
Eliminates chlorine, calcium, and bad tastes and odors from tap water.
Filter Basket Holder
Filter Basket
Holds a 1×2 paper filter or a permanent filter.
Permanent Nylon Filter
Commercial-style filter eliminates the need for paper filters. NOTE: Some fine grounds may flow through the filter and appear as sediment in the carafe.
Brew Pause™
Stops flow of coffee from the basket when the carafe is removed (20 seconds max) from the heater plate, so a cup can be poured mid-brew.
5-Cup Stainless Steel Carafe
The easy-pour, no-drip, 5-cup carafe has an ergonomic handle and brewed coffee markings for 3 to 5 cups.
Auto-Off Plate
Scratch resistant with black, nonstick coating
ON/OFF Power Button
Measuring Scoop

CHARCOAL WATER FILTER

Your coffeemaker comes with a charcoal water filter that eliminates chlorine, bad tastes, and odors from tap water.

Inserting the Water Filter

Remove the filter from the polybag and soak it, fully immersed, in cold tap water for 15 minutes.
Lift the water filter holder out of the water reservoir (see diagram, page 5).
Press down on the filter compartment and pull toward you to open.
Place the filter into the holder and snap it closed. Be careful – improper placement can tear the filter skin.
Flush the filter by running cold tap water through the holes in the bottom of the compartment for 10 seconds.
Allow the filter to drain completely.
Slide the water filter holder back into the channel in the water reservoir, pushing it down to the base of the unit.

NOTE: We recommend changing the water filter every 60 days or after 60 uses, and more often if you have hard water.

Replacement filters can be purchased in stores, by calling Cuisinart Consumer Service, or at www.cuisinart.com.

BEFORE BREWING YOUR FIRST POT OF COFFEE

We recommend flushing out the system before brewing your first pot of coffee. Simply fill the reservoir and power on the unit, following steps #2, #4, #5, and #6 in the BREWING COFFEE instructions on this page.

DO NOT ADD COFFEE!

Once you’ve done that, brew a pot of coffee and get ready to enjoy Cuisinart at its best!

BREWING COFFEE

Before your first brew, please follow the instructions above BEFORE BREWING YOUR

FIRST POT OF COFFEE.

Insert a charcoal water filter.
Follow the directions for the preparation and insertion of the filter on this page.

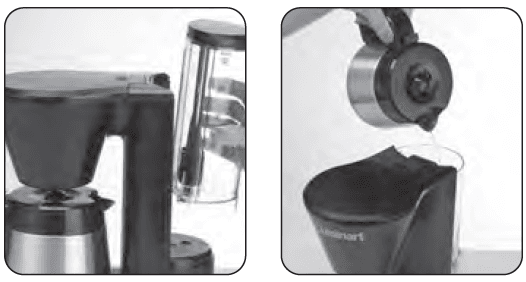

Fill the water reservoir.r
Remove the water reservoir from the unit and fill it with the desired amount of water. Place the reservoir back on the unit.
Insert the filter and add the ground coffee.
Remove the filter basket by grasping the handle and lifting straight up. Insert a 1×2 paper filter or permanent nylon filter. Be sure that a paper filter is completely open and fully inserted in the basket. It may help to fold and flatten the seams of a paper filter beforehand.
Add 1 level scoop (1 tablespoon) of ground coffee per cup. Adjust the amount according to taste.NOTE: The maximum capacity for ground coffee is 5 scoops (5 tablespoons) for this coffeemaker. Exceeding this amount may cause overflow if the coffee is too finely ground.
Replace the filter basket in the filter basket holder and press firmly on cover to be sure it closes securely.
Before brewing coffee
Make sure the carafe is in position on the heating plate and the top cover is closed.
Begin brewing
Press the ON/OFF button, and the blue indicator light will turn on. While brewing, the blue indicator light will flash.
NOTE: Press and release the ON/OFF button again to turn off brewing at any time.
When the brewing cycle is complete, the blue indicator light will stop flashing and remain on. Coffee will continue to stream from the filter for several seconds.
After brewing cycle is complete, coffeemaker will enter Keep Warm function. The heating plate will keep carafe warm for up to 30 minutes. The blue indicator light will turn off after Keep Warm is complete.
NOTE: Reservoir cover may be hot during and directly after brewing. Wait at least 10 minutes before opening.

BREW PAUSE™ FEATURE

This feature interrupts the flow of coffee from the basket to let you pour that first cup mid-brew. Because the flavor profile of coffee brewed at the start of a cycle differs from that brewed toward the end, be aware that using this feature will weaken the flavor strength of the finished pot.

NOTE: Removing the carafe for more than 20 seconds may cause the filter basket to overflow.

CLEANING AND MAINTENANCE

Always turn the coffeemaker off and remove the plug from the electrical outlet before cleaning.

Remove and discard the paper filter and ground coffee. The filter basket can be washed in warm, soapy water and rinsed thoroughly, or cleaned in the upper rack of the dishwasher. Dry all parts after use.

Do not put any water in the unit once the filter basket has been removed. Wipe the area under the filter basket with a damp cloth.

Remove the carafe from the heating plate. Discard any remaining coffee. The carafe and lid can be washed in warm, soapy water and rinsed thoroughly, or placed in a dishwasher. The carate should be placed on the upper rack. If hand- washing the carafe, carefully hand-dry or air-dry the carafe in an upright position.

Never immerse the base unit in water or other liquids. To clean the base, simply wipe with a clean, damp cloth and dry before storing. Fingerprints and other blemishes on the housing can be washed off with soap and water or a nonabrasive cleaning solution.

Wipe the heating plate with a clean, damp cloth. Never use rough, abrasive materials or cleansers to clean the heater plate or any part of the coffeemaker.

The nylon filter may have some discoloration after a few uses even if rinsed thoroughly. This will not impact taste and quality of coffee.

CLEANING THE WATER RESERVOIR

It is normal over time for discoloration, spotting or staining to appear in the water reservoir. Results will vary depending on the mineral content of the water used, but will not affect the operation of the brewer. However, be sure to clean the water reservoir regularly to minimize buildup. Clean inside the water reservoir with a damp, lint-free cloth as necessary.

MAINTENANCE

Any other servicing should be performed by an authorized service representative.

DECALCIFICATION

Decalcification refers to the removal of calcium deposits that form over time on the metal parts of the coffeemaker.

For best performance from your coffeemaker, decalcify the base unit from time to time. The frequency depends upon the hardness of your tap water and how often you use the coffeemaker.

NOTE: Before decalcifying your coffeemaker, remember to remove the charcoal water filter from the water filter holder located in the water reservoir.

Turn the coffeemaker on by pressing the ON/ OFF button. To decalcify, fill the water reservoir with a mixture of ½ white vinegar and ⅔ water.

One cycle should be sufficient to adequately clean the coffeemaker. When the cycle is complete, the coffeemaker will enter Keep warm mode. Press the ON/OFF button to turn off your coffeemaker.

If your coffeemaker begins to brew slowly or there is residual water left over in the reservoir after a brew cycle, be sure to use the decalcification process above.

Warranty

Limited Three-Year Warranty

This warranty is available only to U.S. consumers who purchase products directly from Cuisinart or an authorized Cuisinart® reseller. You are a consumer if you own a Cuisinart® 5-Cup Coffeemaker that was purchased at retail for personal, family, or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners, so consumers who purchase from unauthorized Cuisinart® resellers.

We warrant that your Cuisinart® 5-Cup Coffeemaker will be free of defects in materials and workmanship under normal home use for 3 years from the date of original purchase. We recommend that you visit our website, https://cuisinart.registria.com, for a fast, efficient way to complete your product registration. However, product registration does not eliminate the need for the consumer to maintain the original proof of purchase to obtain the warranty benefits. If you do not have proof of purchase date, the purchase date for purposes of this warranty will be the date of manufacture.

CALIFORNIA RESIDENTS ONLY

California law provides that for In-Warranty Service, California residents have the option of returning a nonconforming product (A) to the store where it was purchased or (B) to another retail store that sells Cuisinart products of the same type. The retail store shall then, according to its preference, either repair the product, refer the consumer to an independent repair facility, replace the product, or refund the purchase price less the amount directly attributable to the consumer’s prior usage of the product.

If neither of the above two options results in the appropriate relief to the consumer, the consumer may then take the product to an independent repair facility, if service or repair can be economically accomplished. Cuisinart and not the consumer will be responsible for the reasonable cost of such service, repair, replacement, or refund for nonconforming products under warranty.

California residents may also, according to their preference, return nonconforming products directly to Cuisinart for repair or, if necessary, replacement by calling our Consumer Service Center toll-free at 1-800-726-0190. Cuisinart will be responsible for the cost of the repair, replacement, and shipping and handling for such nonconforming products under warranty.

HASSLE-FREE REPLACEMENT WARRANTY

Your ultimate satisfaction in Cuisinart products is our goal, so if your Cuisinart® 5-Cup Coffeemaker should fail within the generous warranty period, we will repair it or, if necessary, replace it at no cost to you. To obtain a return shipping label, visit us at https://www.cuisinart.com/customer- care/product-assistance/product-inquiry/. Or call our toll-free Consumer Service Center at 1-800-726-0190 to speak with a representative.

Your Cuisinart® 5-Cup Coffeemaker has been manufactured to the strictest specifications and has been designed for use only in 120-volt outlets and only with authorized accessories and replacement parts. This warranty expressly excludes any defects or damages caused by attempted use of this unit with a converter, as well as use with accessories, replacement parts, or repair service other than those authorized by Cuisinart.

This warranty does not cover any damage caused by accident, misuse, shipment, or anything other than ordinary household use. This warranty excludes all incidental or consequential damages. Some states do not allow the exclusion or limitation of these damages, so these exclusions may not apply to you. You may also have other rights, which vary from state to state.

IMPORTANT:

If the nonconforming product is to be serviced by someone other than Cuisinart’s Authorized Service Center, please remind the servicer to call our Consumer Service Center at 1-800-726-0190 to ensure that the problem is properly diagnosed, the product is serviced with the correct parts, and the product is still under warranty.
