Cuisinart SS-16 Coffee Maker Instruction Booklet

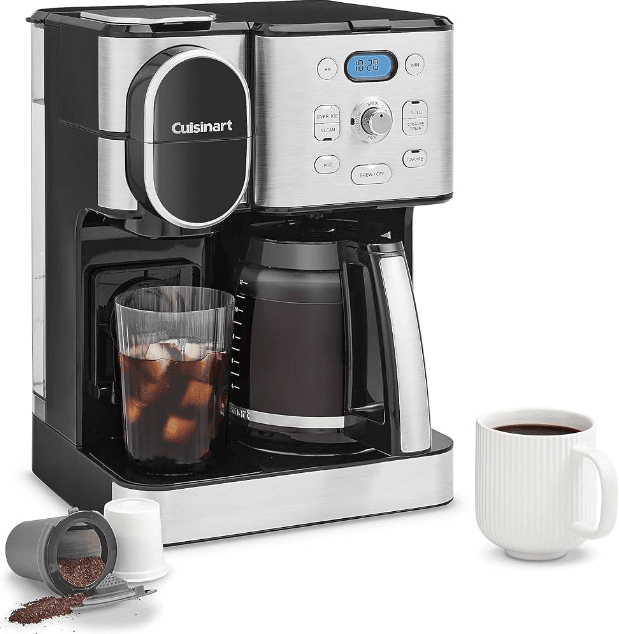

Cuisinart SS-16 Coffee Maker

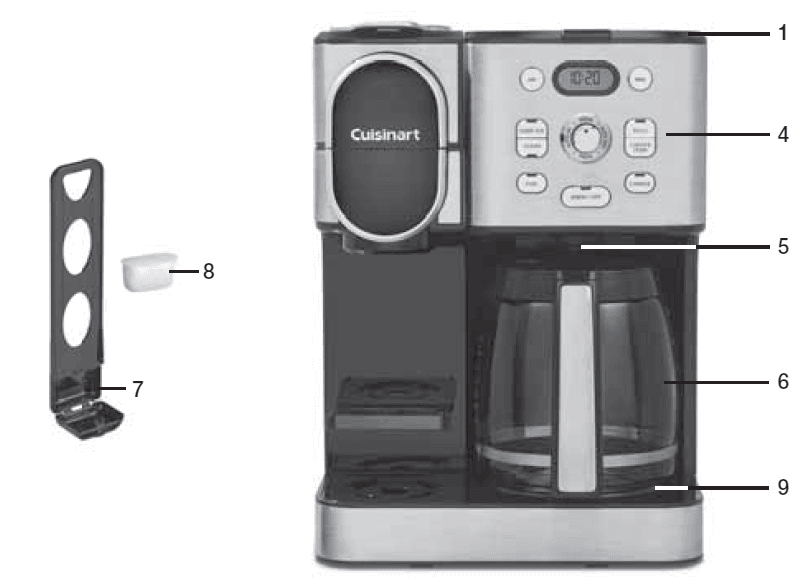

12-CUP COFFEEMAKER FEATURES AND BENEFITS

1. Coffeemaker Reservoir Cover
   Flips back for easy filling.
2. Coffeemaker Water Reservoir (not shown)
   With a water-level indicator window.
3. Showerhead (not shown)
   Distributes water evenly over coffee, reducing temperature loss as water passes through the grounds.
4. Coffeemaker Control Panel
   See the detailed illustration, page 7.
5. Brew PauseTM
   Stops the flow of coffee from the basket when the carafe is removed from the heater plate, so a cup can be poured mid-brew.
6. Carafe
   The easy-pour, no-drip, 12-cup carafe has an ergonomic handle and brewed coffee markings.
7. Charcoal Water Filter Holder
   Holds filter firmly in place.
8. Charcoal Water Filter
   Eliminates chlorine, bad tastes, and odors from tap water.
9. 9. Adjustable Heater Plate
   Keeps brewed coffee at the desired temperature. Scratch resistant with nonstick coating.
10. Filter Basket (not shown)
    Holds a #4 paper filter or a permanent filter.
11. Filter Basket Holder (not shown)
12. Ready Tone (not shown)
    Signals the end of the brew cycle with five beeps.
13. Power Loss Backup System (not shown)
    One-minute protection if a breaker trips, the unit is unplugged, or power fails. Holds all programmed information, including time of day, AUTO ON time, and AUTO OFF time.SINGLE-SERVE COFFEEMAKER FEATURES AND BENEFITS

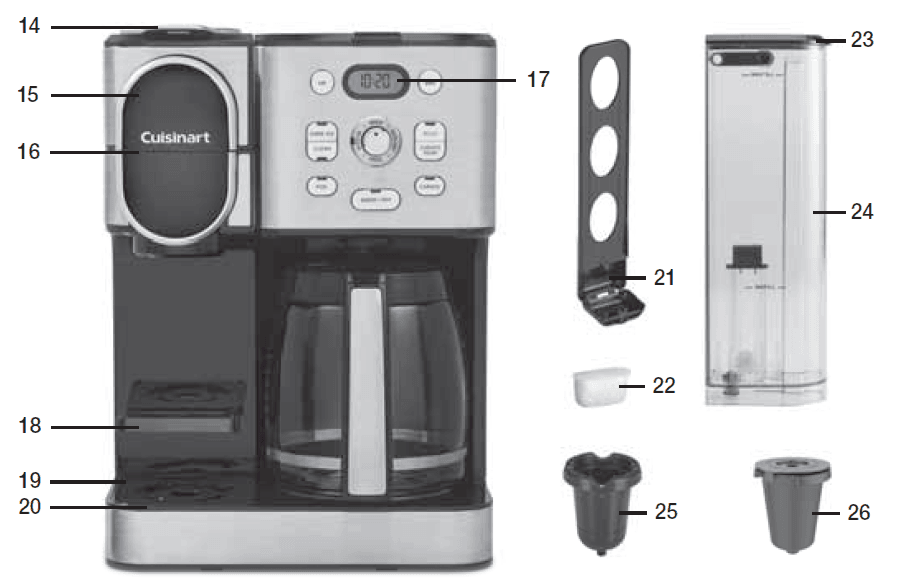

14. Brewer Handle
15. Brew Head
16. Brewing Chamber
    Holds Removable Capsule Holder or reusable filter cup.
17. Display
    Displays brew size (4 oz, 6 oz, 8 oz, 10 oz, or 12 oz) when in POD mode, and the ADD WATER Indicator.
18. Flip-Down Shelf
19. Removable Drip-Tray Plate
20. Removable Drip-Tray
21. Charcoal Water Filter Holder
22. Charcoal Water Filter
23. Reservoir Lid
24. 42-Oz Removable Water Reservoir
25. Removable Capsule Holder
26. HomeBarista® Reusable Filter Cup
27. Power Cord (not shown)
28. Energy-Saving Mode (not shown)
    Unit lights will dim after 30 minutes of being idle. To reactivate, press any button.

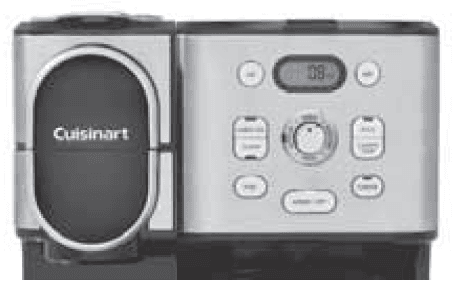

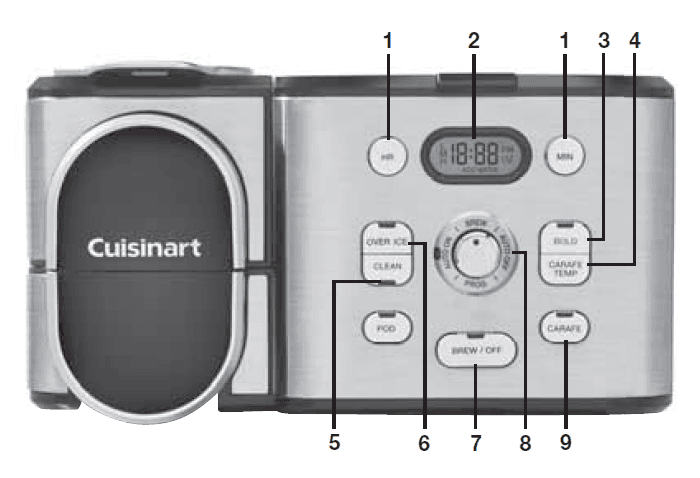

GETTING TO KNOW YOUR CONTROL PANEL

12-CUP COFFEEMAKER CONTROLS

Detailed programming and use instructions are on pages 9–11.

1. HR and MIN Buttons
   Use to set hours and minutes for time of day, AUTO ON, and AUTO OFF times.
2. Blue Backlit Display
   Displays time of day, AUTO ON, and AUTO OFF times.
   1. Low, Medium, and High (L, M, H) warming plate indicators.
   2. The backlit display can be turned on or off. Press and hold HR and MIN at the same time.
3. BOLD Cup Setting with Indicator
   Use to select a bolder coffee flavor strength.
4. CARAFE TEMP Button
   Set the heater plate to Low (L), Medium (M), or High (H) to keep coffee in the carafe at the temperature you prefer.
5. CLEAN Indicator
   Indicates time to clean the coffeemaker to remove calcium buildup.
6. OVER ICE Button
   Adjusts brew process to maximize coffee flavor, ideal for making iced coffee.
7. BREW/OFF Button
   Turns the coffeemaker on and off for brewing. Activates and deactivates the AUTO ON feature.
8. Function Knob
   1. PROG
      Select to program AUTO ON time. Coffeemaker brew time can be programmed up to 24 hours in advance.
   2. AUTO ON
      Select to automatically start brewing coffee at the time you’ve programmed.
   3. AUTO OFF
      Select to program your coffeemaker to automatically shut off Keep Warm mode up to four hours after brewing. The default time is two hours.
   4. BREW
      Select to begin the brew cycle when the BREW/OFF button is pressed.
9. CARAFE Button
   Press to activate Carafe Brew mode.SINGLE-SERVE COFFEEMAKER CONTROLS
   Detailed use instructions are on pages 12–15.
10. POD Button
    Press once to activate the single-serve side. Use to select desired size of single-serve brew (4, 6, 8, 10, or 12 oz..).
11. OVER ICE Button
    Adjusts the brew process to maximize coffee flavor, ideal for iced coffee.
12. Blue Backlit Display
    When in POD Brew mode:
    1. Will display the last brew size selected. To change the brew size, press the POD button continuously to scroll through size options.
    2. The Add Water icon indicates the need to add water to the reservoir.

CHARCOAL WATER FILTER

INSERTING THE WATER FILTER

1. Remove the filter from the polybag and soak, fully immersed, in cold tap water for 15 minutes.

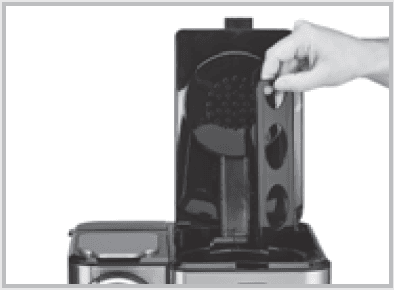

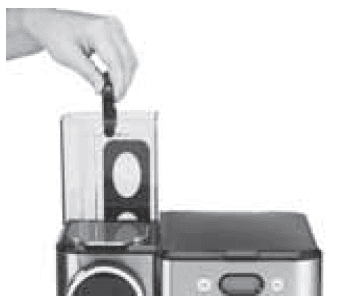

2. Lift the water filter holder out of the water reservoir on the 12-cup coffeemaker side.

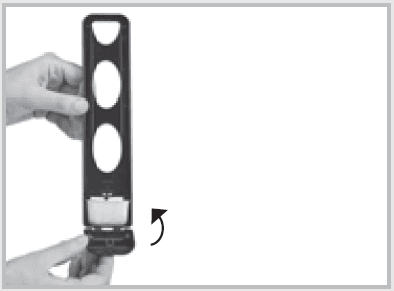

3. Press down on the filter compartment and pull toward you to open.
4. Place the filter into the holder and snap closed. Be careful: Improper placement can tear the filter skin.
5. Flush the filter by running cold tap water through the holes in the bottom of the compartment for 10 seconds.
6. Allow the filter to drain completely.
7. Slide the water filter holder back into the channel in the water reservoir, pushing down to the base of the unit.

NOTE: Repeat steps 1-7 above on the single-serve side.

NOTE: We recommend changing the water filter every 60 days or after 60 uses, and more often if you have hard water.

Replacement filters can be purchased in stores, by calling Cuisinart Consumer Service, or at www.cuisinart.com.

SETTING UP YOUR 12-CUP COFFEEMAKER

INITIAL CLEANING

Perform an initial cleaning before making your first beverage. Follow these instructions, without adding coffee.

1. Insert a charcoal water filter if you haven’t already. Instructions at left.
2. Fill the water reservoir.
3. Make sure the carafe is in place.
4. If you haven’t already, plug the power cord into an independent outlet.
5. Turn the function knob to BREW.
6. Press the BREW/OFF button and allow the brew cycle to run.
7. The one-time cleaning process is complete. Discard the hot water. Your coffeemaker is ready to use.

PROGRAMMING YOUR 12-CUP COFFEEMAKER

SETTING THE CLOCK

When the coffeemaker is plugged in,noon0 will flash, indicating the unit is in Time Set mode. If the noon stops flashing, simply press and hold the HR or MIN button to return to flashing Time Set mode. Hold buttons down to scroll through the digits, or press and release to advance one digit at a time. When scrolling, the numbers will advance slowly and then speed up. When the number displayed approaches the desired time, press and release to advance one digit at a time. Be sure the PM indicator is on if a PM time is desired.

NOTE: To change the time of day, the function knob must be on the Brew setting.

To finish setting the clock, turn the function knob to any other setting or simply wait until the numbers stop blinking.

SETTING THE AUTO ON TIME

When you turn the function knob to PROG, the previously selected AUTO ON time or theThe default time (1noon will flash.

1. Turn the function knob to PROG.
   Use the HR and MIN buttons as above to program your start-brew time.
2. Turn the function knob to AUTO ON.
   Press the BREW/OFF button to activate the program. When you press BREW/OFF, the AUTO ON light will illuminate, indicating the AUTO ON function has been activated. LCD will display the current time.

AUTO ON brew cycle begins.

The CARAFE button indicator light will come on, and the BREW/OFF button indicator light will flash slowly when the brew cycle begins at the time you have selected. When the brew cycle ends, the CARAFE button indicator light will go off, and the BREW/OFF button indicator light will remain solid, indicating the unit is in Keep Warm mode. Lights will turn off when the Keep Warm cycle ends, indicating the coffeemaker is ready for the next brew.

NOTE: To start brew time at the same time the next day, simply make sure the function knob is at AUTO ON, and press and release BREW/OFF once more. The AUTO ON light will turn on.

SETTING THE AUTO-OFF TIME

Turn the function knob to AUTO OFF.

Use the HR and MIN buttons as above to program your coffeemaker to shut off up to four hours after brew cycle is finished. Default time is set to two hours.

SETTING THE CARAFE TEMPERATURE

Use this feature to control the temperature of the coffee in the pot. Press the CARAFETEMP button to set your desired temperature: Low (L), Medium (M), or High (H).

BREWING COFFEE

Follow the instructions in Setting Up Your 12-Cup Coffeemaker on page 9.

1. Insert the charcoal water filter.r
   Follow the directions for the preparation and insertion of the filter on page 9.
2. Fill the water reservoir.ir

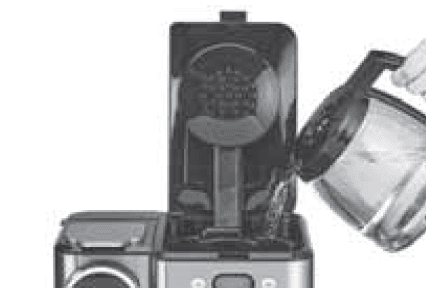

   Open the coffeemaker reservoir cover by lifting it. Pour in the desired amount of water, using the water level indicator located at the side of the coffeemaker.
3. Before brewing
   Make sure the glass carafe is in position on the heater plate and the top cover is closed. Plug the cord into an electrical outlet.
4. Set preferences
   1. Push the BOLD button if you would like a stronger brew. The BOLD button indicator light will illuminate.
      NOTE: This feature can only be activated when brewing hot coffee in CARAFE mode.
   2. Press the CARAFE TEMP button to choose Low (L), Medium (M), or High (H), and the heater plate will keep coffee at the temperature you select.
   3. Activate the OVER ICE function to prepare iced coffee. See page 11 for detailed instructions.
      NOTE: BOLD and CARAFE TEMP will be disabled when in OVER ICE mode.
5. Add ground coffee
   Remove the filter basket by grasping the handle and lifting straight up. Insert a #4 paper filter or permanent filter. Be sure that a paper filter is completely open and fully inserted in the basket. It may help to fold and flatten the seams of a paper filter beforehand. Add 1 level scoop of ground coffee per cup. Adjust the amount according to taste.
   NOTE: The maximum capacity for ground coffee is 12 tablespoons for this coffeemaker. Exceeding this amount may cause overflow if the coffee is too finely ground.
   Replace the filter basket in the filter basket holder, and press firmly on the cover to be sure it closes securely.
6. Brewing coffee
   Turn the function knob to BREW, and press the CARAFE button and BREW/OFF button; the CARAFE button indicator light will go on and the BREW/OFF button indicator light will flash slowly. Or set the AUTO ON function (above left) and the AUTO ON indicator will light.
7. After brewing
   When the brewing cycle has been completed, coffee will continue to stream from the filter for several seconds. When streaming completely stops, five beeps will sound, and you can now enjoy your coffee.
   NOTE: Reservoir cover may be hot during and directly after brewing. Wait at least 10 minutes before opening.

BREWING OVER ICE

The OVER ICE feature adjusts the brew process to maximize coffee flavor, ideal for making iced coffee. Either brew coffee directly over ice or add ice to coffee after it is brewed.

1. Fill the water reservoir.
   Open the Coffeemaker reservoir cover by lifting it. Pour in the desired amount of water, using the water level indicator located at the side of the coffee maker.
2. Add ice
   Fill the glass carafe with ice. Make sure the glass carafe is in position on the heater plate and the top cover is closed.
   NOTE: Adjust the amount of ice based on personal preference. Adding too much ice could impact the overall flavor of the coffee.
3. Choose preferences
   Press CARAFE and OVER ICE. The LED indicator lights will illuminate, indicating the function is active.
   NOTE: The BOLD and CARAFE TEMP functions will be inactive in OVER ICE brew mode.
4. Brewing
   Follow steps 5 through 7 in Brewing Coffee on page 10 to complete over-ice brewing.
5. After brewing
   The coffeemaker will automatically shut off after brewing is complete.

BREW PAUSE™ FEATURE

This feature interrupts the flow of coffee from the basket to let you pour that first cup mid-brew. Because the flavor profile of coffee brewed at the start of a cycle differs from that brewed toward the end, be aware that using this feature will weaken the flavor strength of the finished pot.

NOTE: Removing the carafe for more than 30 seconds may cause the filter basket to overflow.

12-CUP COFFEEMAKER CLEANING AND MAINTENANCE

Always turn the unit off and remove the plug from the electrical outlet before cleaning.

Lift the coffeemaker reservoir cover. Remove and discard the paper filter and ground coffee. The filter basket can be washed in warm, soapy water and rinsed thoroughly, or cleaned in the upper rack of the dishwasher. Dry all parts after use.

Do not put any water in the unit once the filter basket has been removed. Wipe the area under the filter basket with a damp cloth.

Remove the carafe from the heating plate. Discard any remaining coffee. The carafe and lid can be washed in warm, soapy water and rinsed thoroughly, or placed in a dishwasher. The carafe and carafe lid should be placed on the upper rack only.

Do not use any scouring agents or harsh cleansers on any part of the coffeemaker.

Never immerse the base unit in water or other liquids. To clean the base, simply wipe with a clean, damp cloth and dry before storing. Fingerprints and other blemishes on the housing can be washed off with soap and water or a nonabrasive cleaning solution. Wipe the heater plate with a clean, damp cloth. Never use rough, abrasive materials or cleansers to clean the heater plate. Do not dry the inside of the water reservoir with a cloth, as lint may remain.

DESCALING

Descaling refers to the removal of calcium deposits that form over time on the metal parts of the coffeemaker.

To Descale Your Coffeemaker

Depending on the mineral content of water in your area, calcium deposits (scale) may build up in your coffeemaker. Though scale is not toxic, it can affect performance. Descaling the coffeemaker when the indicator signals it is time to do so will help protect the heating element and other parts that come into contact with water.

For optimal performance, descale the coffeemaker every three to six months. If calcium deposits build up faster, the CLEAN button indicator light will illuminate, indicating the coffeemaker should be descaled.

To clean:

1. Fill the water reservoir with a mixture of ⅓ white vinegar and ⅔ water.
2. Turn the function knob to BREW, and press and hold the CLEAN button. When the CLEAN LED indicator flashes, the coffeemaker is in CLEAN mode. Release the button.
3. When the cycle is completed, five beeps will sound and the coffeemaker will shut off.
4. If the CLEAN indicator illuminates once more, repeat the cleaning procedure with a fresh solution of vinegar and water.
   NOTE: One cleaning cycle is usually sufficient.
5. When the CLEAN indicator remains off, run one cycle with a full reservoir of fresh cold water to rinse the unit.
6. Return the charcoal water filter to the holder inside the water reservoir, and your coffeemaker is ready to brew!

MAINTENANCE

Any other servicing should be performed by an authorized service representative.

SETTING UP YOUR SINGLE-SERVE COFFEEMAKER

INITIAL CLEANING

Perform an initial cleaning before making your first beverage. Follow these instructions, without inserting a capsule.

1. Insert the charcoal water filter if you haven’t already. Instructions on page 9.
2. Remove the water reservoir from the unit.
3. Fill the reservoir in the sink and put it back on the unit.
4. If you haven’t already, plug the power cord into an independent outlet.
5. Open and close the brew head. Do not add a capsule.
6. Place a mug on the drip tray.
7. Press the POD button and toggle through brew sizes to get to a 10-oz cup. Press the BREW/OFF button. The indicator light will flash slowly, and the hot water will start to dispense momentarily.
8. The one-time cleaning process is complete. Discard the hot water. Your brewer is ready to use.

USING THE SINGLE-SERVE COFFEEMAKER

Follow the instructions in Setting Up Your Single-Serve Coffeemaker above.

BREWING

1. Remove the water reservoir to fill.
2. Add water to the 42-oz water reservoir. Replace the unit.
3. Place a mug on the drip tray.
   NOTE: Adjust the positioning of the mug depending on size and the selected brew amount. The shelf flips down to accommodate shorter mugs, and the drip tray can be removed to accommodate most travel mugs.

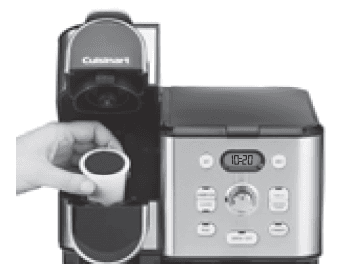

4. Select a capsule.
   NOTE: Do not remove the foil lid or puncture the capsule.

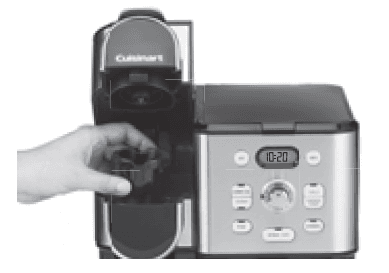

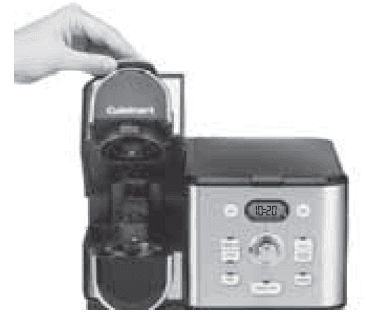

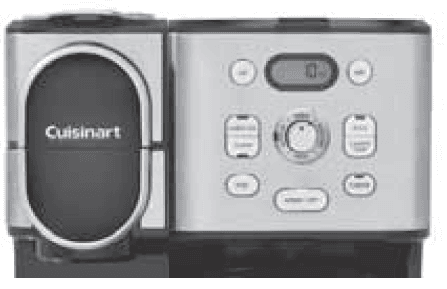

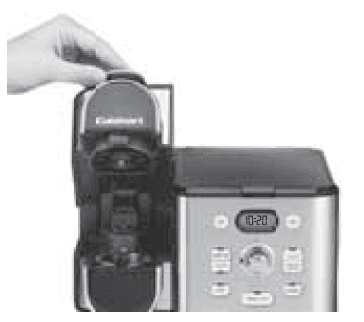

5. Open the brew head and place a capsule in the brewing chamber. Make sure to press the capsule down completely in place. Close the brew head.
   CAUTION: There are two sharp needles in the brewing chamber that puncture the capsule, one above and one below. To avoid the risk of injury, do not put your fingers in the capsule brewing chamber.
6. Press the POD button once to enter single-serve mode. The POD button indicator light will turn on, and the LCD will show the default brew size, 8 oz, or the previously used setting.
   NOTE: The ADD WATER indicator will appear on the LCD when the water level is below 10.5 oz, and no brewing can be done. To activate the single-serve mode, simply fill the water reservoir and press the POD button to continue to brew as usual.

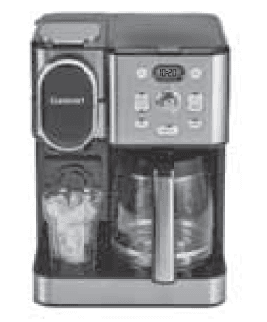

   1. OVER ICE
      For OVER ICE brewing, add ice to a mug or iced coffee cup of your choice. Press the OVER ICE button after choosing the pod size, and the OVER ICE indicator will illuminate.
7. To change the brew size, press the POD button continuously to scroll through size options until the desired cup size setting is displayed on the LCD display (4, 6, 8, 10, or 12 oz).
8. Press the BREW/OFF button to begin the brewing process. The beverage will start to dispense momentarily.
   NOTE: To cancel brewing, simply press the BREW/OFF once again and the brewing process will be stopped.
   CAUTION: There is very hot water in the capsule chamber during the brewing process. To avoid risk of injury, do not lift the handle or open the capsule chamber during the brewing process.
9. Once fully dispensed, all of the lights will go off and the LCD will display the current time. Lift the handle, then remove and dispose of the used capsule. Close the brew head.
   CAUTION: Capsule will be hot.
10. Enjoy your cup of coffee! Your brewer is ready to use again.
    NOTE: When Add Water appears in Clock Display, no brewing can be done. After you refill the reservoir, your unit is ready to brew.

BREWING WITH THE HOMEBARISTA® REUSABLE FILTER CUP

The single-serve coffeemaker can be used with a reusable coffee capsule, which allows you to use your ground coffee.

Try the Cuisinart® HomeBarista® Reusable Filter Cup included with your brewer for your favorite coffee or tea.

1. Fill the filter basket within the reusable capsule with ground coffee, making sure not to fill past the max indicator. Adjust the amount to your personal preference. Do not tamp the grounds. Make sure no grounds are remaining on the upper rim of the filter basket. Close the lid.
   NOTE: Max fill is 2.5 scoops or 15 grams.

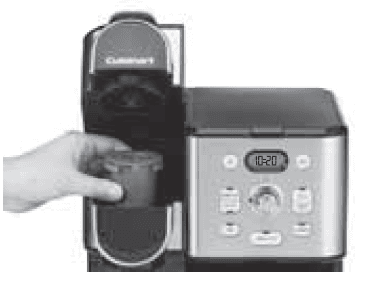

2. Remove the capsule holder from the brewing chamber by pulling toward you.
   • Drop the reusable coffee capsule into the brewing chamber. There is no need to snap it into place.
   • Follow brewing instructions on pages 13–14 to begin the brew cycle.
     NOTE: To cancel brewing, simply press the BREW/OFF button once again and the brewing process will be stopped.
     CAUTION: There are two sharp needles in the brewing chamber that puncture the capsule, one above and one below. To avoid the risk of injury, do not put your fingers in the brewing chamber.
3. After brewing, raise the handle and remove the reusable coffee capsule. Use caution as the reusable coffee capsule will be hot.
4. Replace the capsule holder, ensuring that the arrow on the capsule rim aligns with the arrow on the brewing chamber. Gently push the capsule holder to snap into place.
   NOTE: This coffeemaker is compatible with most reusable coffee capsules.

SINGLE-SERVE COFFEEMAKER CLEANING AND MAINTENANCE

CLEANING EXTERNAL PARTS

We recommend regular cleaning of the coffeemaker’s external components.

1. Never immerse the coffeemaker in water or other liquids. The housing and other external components may be cleaned with a soapy, damp, nonabrasive cloth.
2. To remove the drip tray, simply lift it toward you, keeping it level at all times in order to prevent spills. The drip tray and drip-tray plate are dishwasher safe. Do not clean the drip-tray with cleansers, steel wool pads, or other abrasive materials.

TROUBLESHOOTING

The machine will not brew.

SOLUTION:

• Turn off and unplug the machine for 1 minute or more.
• Make sure there is water in the reservoir.
• Make sure the removable reservoir is properly installed.
• Make sure the brew head is completely closed.

The machine turned off by itself.

SOLUTION:

• The machine’s energy-saving mode puts the unit to sleep after 30 minutes of nonuse. Simply turn the function knob or press any button to “wake up” the unit.

The coffee basket is overflowing.

SOLUTION:

• If the basket is overfilled with ground coffee or if the coffee is too finely ground, the coffee ground basket can overflow. See “The Quest for the Perfect Cup of Coffee” on page 4 for suggestions on how to find the right grind and portion.
• Make sure the paper filter is not used with a gold-tone filter. Either one or the other should be used, not both.

The single-serve function is not working while brewing coffee in the carafe.

SOLUTION:

• The POD function cannot be used while the 12-cup coffeemaker is brewing coffee. Once the brew is complete and in Keep Warm mode, the single-serve functions can be used.

LIMITED THREE-YEAR WARRANTY

Limited Three-Year Warranty

This warranty is available to U.S. consumers who purchase products directly from Cuisinart® or an authorized Cuisinart® reseller only. You are a consumer if you own a Cuisinart® Coffee Center® that was purchased at retail for personal, family, or household use.

Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners, or consumers who purchase from unauthorized Cuisinart® resellers. We warrant that your Cuisinart® Coffee Center® will be free of defects in materials and workmanship under normal home use for 3 years from the date of original purchase.

We recommend that you visit our website, https://cuisinart.registria.com, for a fast, efficient way to complete your product registration. However, product registration does not eliminate the need for the consumer to maintain the original proof of purchase to obtain the warranty benefits. If you do not have proof of purchase date, the purchase date for purposes of this warranty will be the date of manufacture.

For more manuals by Cuisinart, visit ManualsLibraryy

Cuisinart SS-16 Coffee Maker
