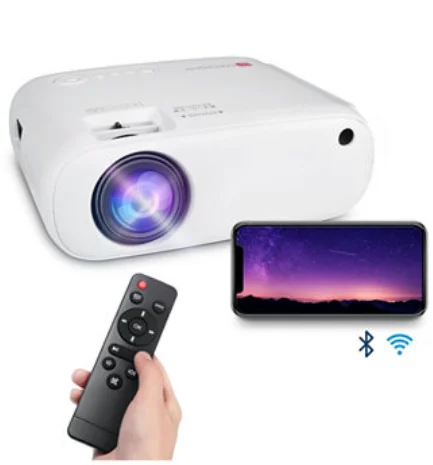

Dartwood Portable Premium Projector
In the Box

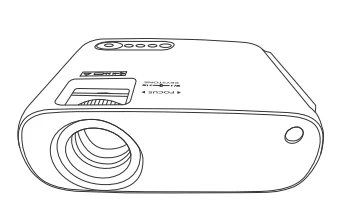

1 x projector

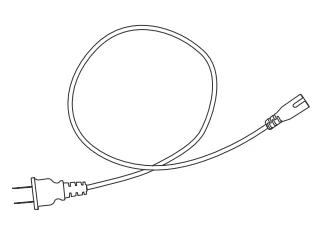

1 x power cord
1 x HDMI cable
1 x RCA / AV connector
1 x remote control
Safety Instructions
- Please read this guide carefully before operating the machine.
- For future reference, please keep this guide in a safe place.
- Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.
- Please connect the cable that matches the cable port. Do not insert it forcibly.
- Please do not use it in a place with water or where it gets wet, including showers, kitchen sinks, swimming pools, hot tubs, etc.
- Contact a skilled professional for any wall or ceiling installation.
- Keep the machine away from heaters, stoves, and other heating devices.
- Do not let water, debris, or materials get inside the machine.
- Handle with care. Dropping this device can result in damage.
- Only connect the cable that matches the terminal. Never jam or force a cable that doesn’t match.

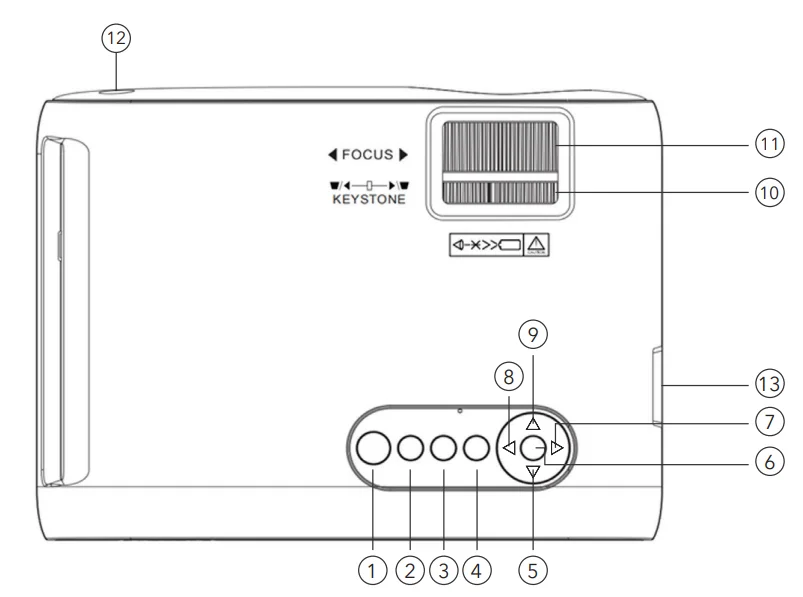

Introduction to Parts
Functions:
- Power button
- Return key
- Signal source
- Menu
- Down key
- OK
- Right key
- Left key
- Up key
- Keystone correction
- Zoom adjustment
- Remote control signal receiver
- Power socket
- Video input panel

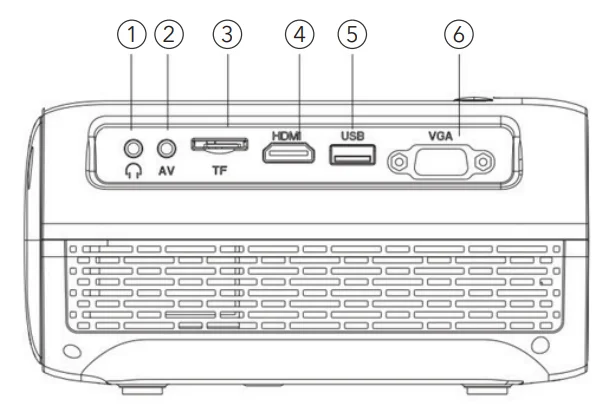

Video input:
- 3.5 mm headphone jack
- AV input jack
- MicroSD card slot
- HDMI port
- USB port
- VGA connector

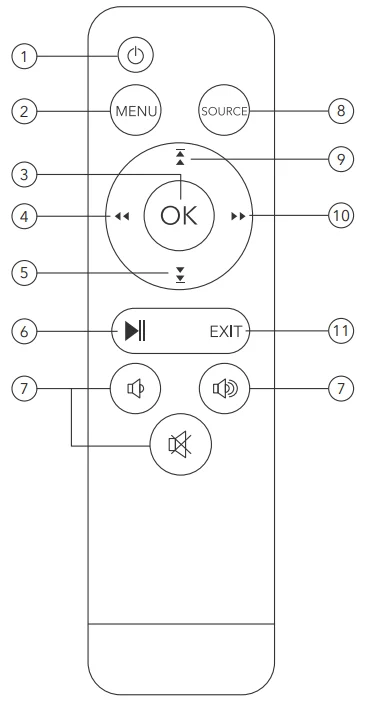

Remote:
- Power on / off
- Menu
- OK
- Left / back
- Down / next file
- Play/pause
- Volume control/mute
- Video source
- Up / previous file
- Right / fast forward
- Exit
Setup

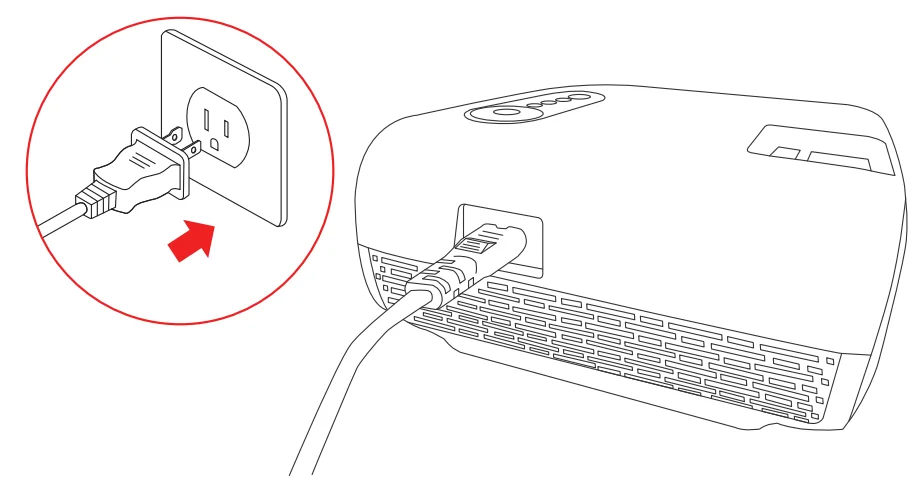

- Connect the power cord to the projector and a power outlet.

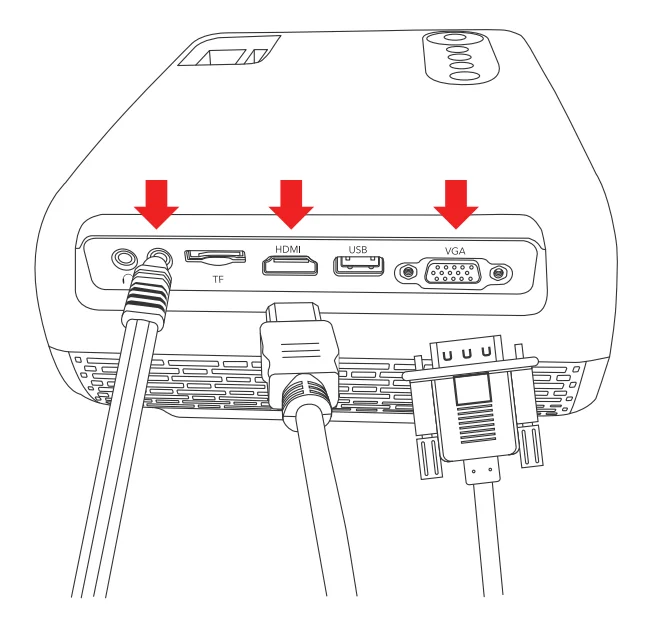

- Connect the projector to your video source, such as a Blu-ray player, TV, game console, or other devices.

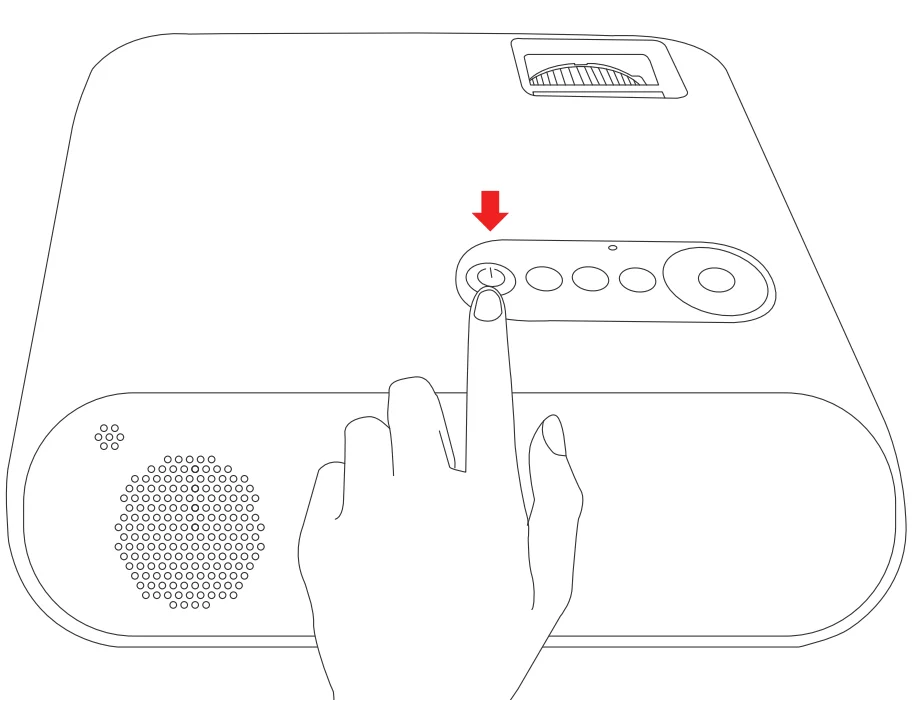

- Press and hold the power button until the power indicator turns green. Wait 10 seconds for it to warm up.

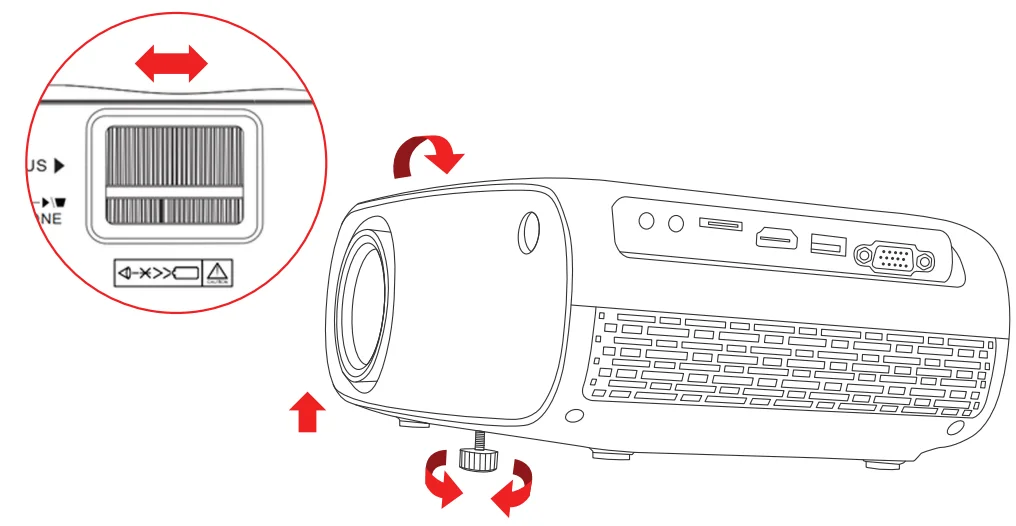

- Adjust the projector angle by lifting the leg, and adjust the focus using the focus wheel and keystone adjustment.
Using the Projector

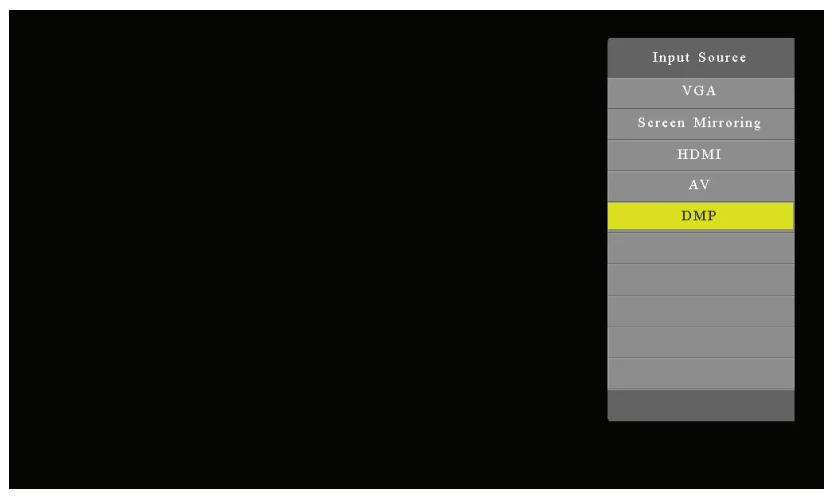

- Switch the input source to “DMP” to browse media files and select the video source using the remote or navigation buttons at the top of the projector.
- To adjust the input source, press the source button on the remote control. Press “OK” to select your source.

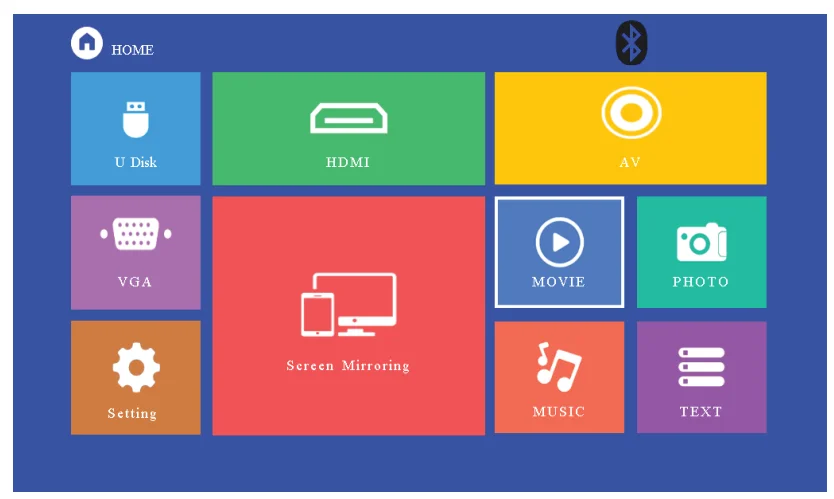

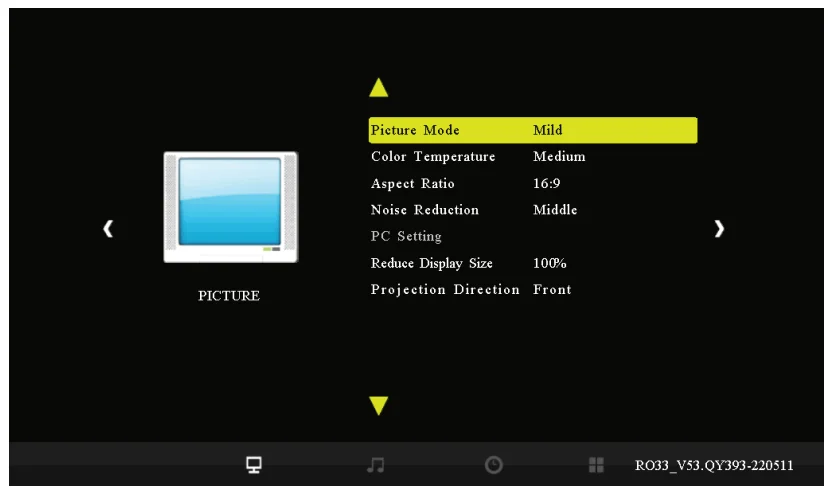

- To adjust the Sound, Picture, and System settings, select “SETTINGS” from the main menu
Screen Mirroring Mode

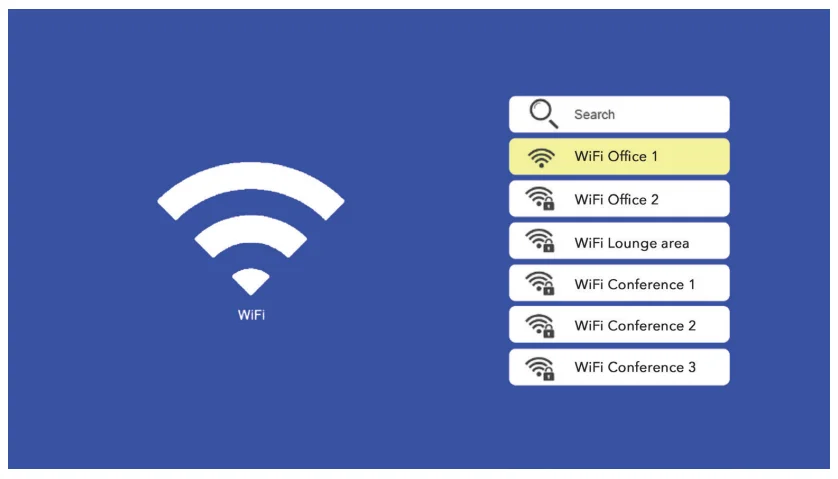

- Select the “Screen Mirroring” from the input source, the following page will show up. Connect the projector to the same Wi-Fi network as the mirroring device

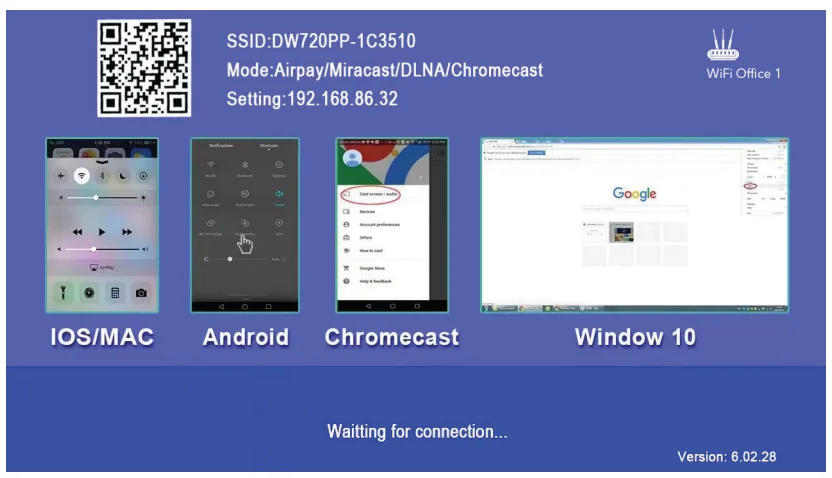

- Once connected, the following screen will be displayed (you can go back to the Wi-Fi settings page by pressing “OK” again). Follow the corresponding steps to continue screen mirroring
Via AirPlay (Apple OS device)
- Connect your iPhone, iPad, or iPod Touch to the same Wi-Fi network as your projector.

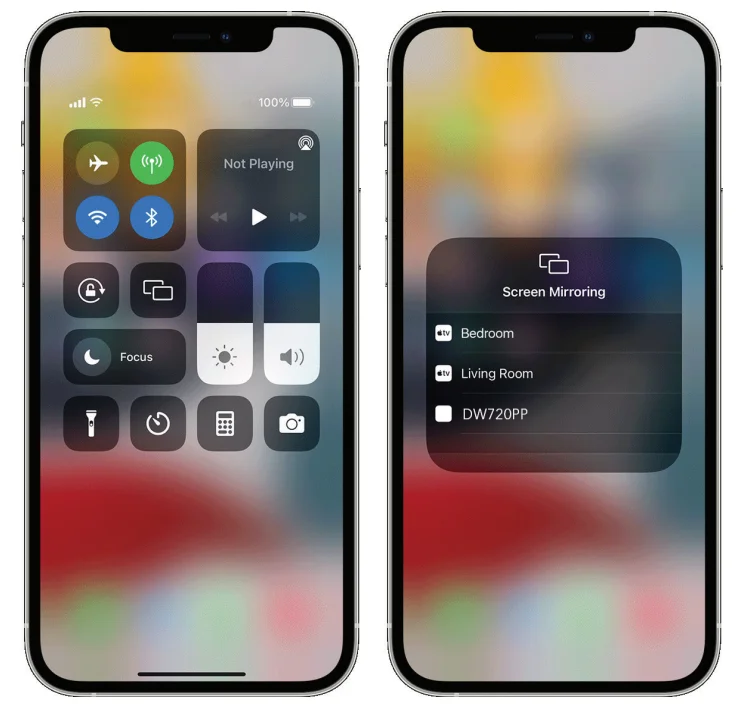

- Open Control Center:
- a. On iPhone X or later or iPad with iPadOS 13 or later: Swipe down from the upper-right corner of the screen.
- b. On iPhone 8 or earlier or iOS 11 or earlier: Swipe up from the bottom edge of the screen.
- Tap Screen Mirroring
- Select “DW720PP-xxxxxxx” from the list. Wait until your screen shows up.
- To stop mirroring your iOS or iPadOS device, open Control Center, tap “Screen Mirroring”, then tap “Stop Mirroring”.

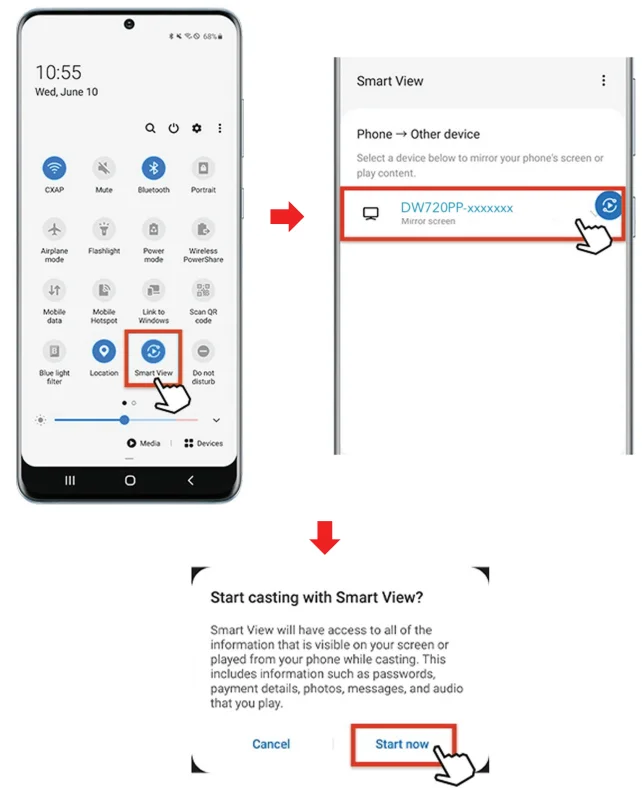

Via Smart View (Android)
- Swipe down from the top screen to open the “Quick panel”, then, tap on the Smart View icon.
- Select “DW720PP-xxxxxxx” from the list of available devices. (If you cannot find the projector from the list, make sure you have connected to the same Wi-Fi network.)
- Select “Start now” on the pop-up message that says “Start casting with Smart View
Specifications
- Model no.: PremProjectorUS
- Native resolution: 720p (1080p supported)
- Image brightness: 4400 lumens
- ANSI lumens: 140 lumens
- Projection size: 40 up to 200 in
- Projection distance: 3.9 – 19.6 ft
- Video input: HDMI, VGA, USB, micro SD card, AV-in, and AUX Bluetooth, built-in Wi-FI
- Connectivity: AC 100 – 240 V, 50 – 60 Hz
- Power input: Max 60 W
- Dimensions: 9.5 x 7 x 3.5 in
- Net weight: 2.7 lb
The actual product and specifications are subject to change without notice due to product enhancement.
FOR MORE MANUALS BY DARTWOOD, VISIT MANUALSLIBRARYY
Dartwood Portable Premium Projector-FAQs
How does a portable projector work?
Portable projectors use a light source, lenses, and a chip or mirror to project images from a device like a laptop or phone onto a wall or screen.
How do I set up the projector?
Place it on a stable surface or mount it. Connect your device via HDMI, USB, or wirelessly. Adjust brightness, contrast, resolution, and aspect ratio for the best picture.
Can I use my projector as a TV?
Yes, connect it to cable boxes, streaming devices, or gaming consoles. You can watch shows, movies, or live TV on a blank wall or screen.
Can I connect my phone or laptop?
Yes. Use a USB-to-HDMI, Type-C-to-HDMI, or wireless options like Miracast, AirPlay, or Chromecast depending on your device.
Do I need a projector screen?
Not necessarily. You can project onto a plain white wall for casual use, but a dedicated screen improves image clarity and brightness.
Can I watch Netflix or other streaming apps?
Yes. Connect via a streaming device, Miracast, Wi-Fi Display, or built-in smart projector apps to stream content.
Are portable projectors bright enough for daytime use?
Most work best in dim or dark rooms. For bright environments, choose a projector with at least 450 lumens for clear images.
How long do portable projectors last?
Average lifespan is 4,000–6,000 hours. High-end models can last up to 10,000 hours with proper care.
Can I use it every day?
Yes, portable projectors are generally safe for daily use. Ensure proper ventilation and avoid prolonged continuous operation to prevent overheating.
Are there disadvantages compared to TVs?
Portable projectors usually have lower brightness and image quality than TVs, may require setup, and depend on room lighting for optimal viewing.
