Della 048GM48183 Portable Automatic Ice Maker User Manual

Della 048GM48183 Portable Automatic Ice Maker

IMPORTANT SAFETY INSTRUCTIONS FOR REPAIRING YOUR ICE MAKER FOR USE

• Do not operate this， or any other appliance, with a damaged cord. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or a similarly qualified person, in order to avoid a hazard. This ice-maker must be positioned so that the plug is accessible. Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.
• Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep the cord away from traffic areas, and do not submerge it in water.
• We do not recommend the use of an extension cord, as it may overheat and pose a risk of fire risk. If you must use an extension cord, use No.14AWG minimum size and rated no less than 1875 watts.
• Unplug the ice maker before cleaning or making any repairs, or servicing.
• Exercise caution and use reasonable supervision when the appliance is used near children.
• Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure that there is at least 4 inches of space between the back of your unit and the wall. Keep a minimum distance of 4 inches on each side of your unit.
• Do not use a liquid other to make the ice-cube other than water.
• Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or an explosion.
• Do not tip over.
• If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to room temperature before plugging it in.

GETTING TO KNOW YOUR UNIT

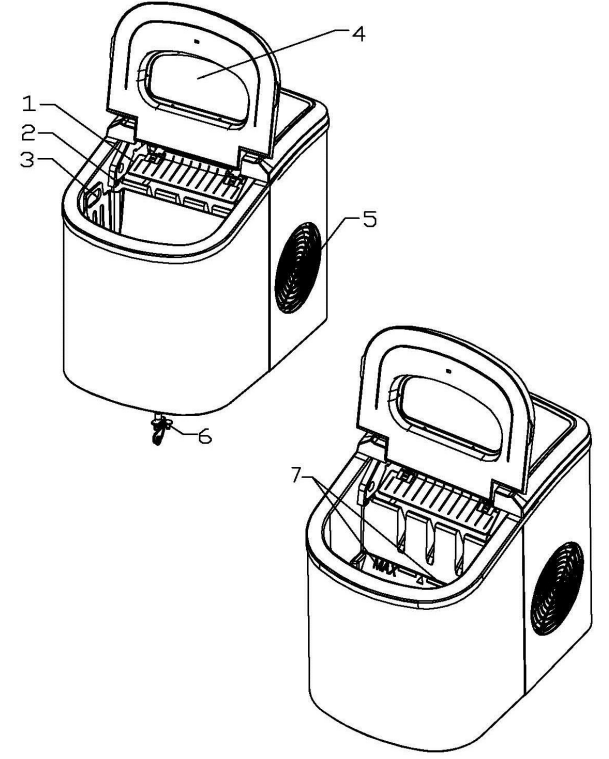

General instruction

1. Ice scoop.
2. Ice full sensor
3. Ice basket
4. Top cover with transparent window
5. Air outlet
6. Water drain cap: at the front bottom side of the unit.
7. MAXIMUM WATER LEVEL: ▲ Remove the ice basket, and you can see the water level mark.

OPERATING PROCEDURES & MAINTENANCE

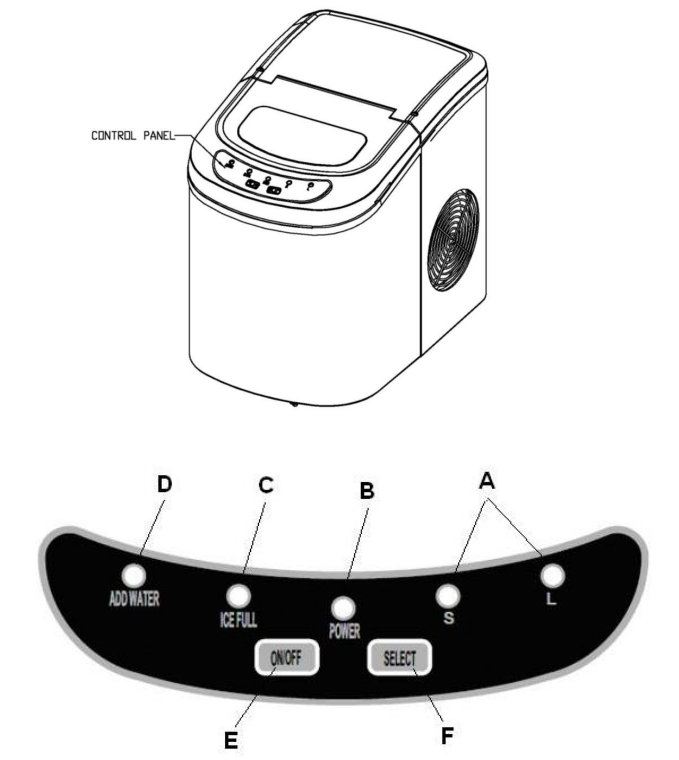

Position of the control panel & function
Control Panel: Easy to use, visible functions, touch display settings.

• A. Selected ice size displaying: Small and Large.
• B. Power indicator
• C. Ice-Full indicator
• D. Water shortage indicator
• E. Button to turn on/off the unit.
• F. Button to select ice cube size.

UNPACKING YOUR ICE MAKER

1. Remove the exterior and interior packaging. Check if the ice basket and ice scoop are inside. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing the ice shovel, ice basket & ice scoop. Clean the tank & ice basket.
3. Put the ice maker on a level & flat countertop without direct sunlight and other sources of heat (i.e., stove, furnace, radiator). Make sure that there is at least 4 4-inch gap between the back & LH/RH sides with the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
5. The appliance must be positioned so that the plug is accessible.

CONNECTING YOUR ICE MAKER

1. This unit should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug, which mates with standard three-prong wall outlets to minimize the possibility of electric shock.
2. Plug your appliance into an exclusive, properly installed, grounded wall outlet. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician.
3. This appliance requires a standard 110- 120 volt, 60Hz electrical outlet with a three-prong ground.

CLEANING AND MAINTAINING YOUR ICE MAKER

Before using your ice maker, it is strongly recommended to clean it thoroughly.

1. Take out the ice basket.
2. Clean the interior with diluted detergent, warm water, and a soft cloth.
3. Then use the water to rinse the inside parts, and drain out the water by unplugging the drain cap on the front bottom side.
4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.
5. Dry the interior and exterior with a clean, soft cloth.
6. When the machine is not to be used for a long time, drain water completely & dry the interior. or

USING YOUR ICE MAKER

1. Open the cover, remove the ice base, ket, and pour water into the tank. Keep the water level below the water level mark.
2. Press the “Power” button on the control panel to begin the ice-making cycle.
3. Select the ice cube size by pressing the “Select” button. If the room temperature is lower than 60℉, it is recommended to select a small ice cube to avoid ice sticking together.
4. The ice-making cycle lasts approximately. 6 to 13 minutes, depending on the selection of ice cube size and the room temperature. The recommended room temperature is 50℉ to 105℉.
5. If the water pump can’t inject water, the ice maker will stop automatically, and the “Add Water” indicator will be on. Press the “Power” button, fill water up to the max. Water level mark and press the “Power” button again to turn the unit again. Allow the refrigerant liquid inside the compressor at least 3 minutes to settle before restarting.
6. The ice maker stops when the ice basket is full, and the “Ice” indicator will be on. Warning: Direct sunlight or sunlight reflection may cause the infrared ssensortoalmalfunctionIf the unit doesn’t stop even if ice cubes obstruct the sensor, move the unit where no sunlight.
7. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level. If the unit isn’t to be used, drain all the water and dry the tank.

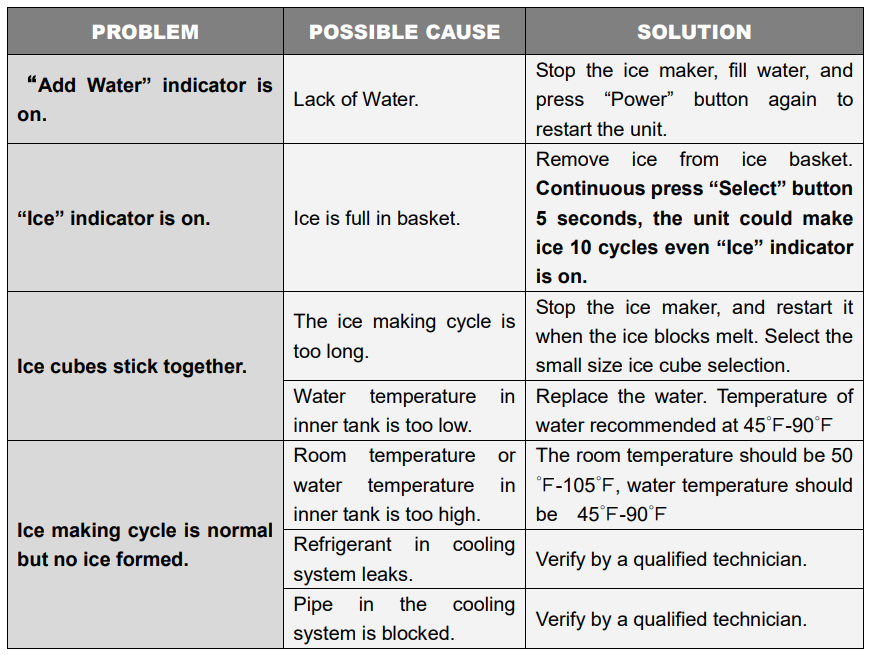

TROUBLESHOOTING

Technical parameters and circuit diagram

EXPLOSIVE DRAWINGS

1. Power cord
2. Back panel
3. Plate in force
4. Magnetism valve
5. Evaporator
6. Control box cover
7. Main PCB
8. Control box
9. Ice-making box
10. Micro switch
11. Inner tank bracket, LH
12. Cam
13. Ice scoop link
14. Ice scoop
15. Back bottom panel
16. Back top panel
17. Clear window
18. Displaying
19. Touch pad
20. Front top panel
21. Front bottom panel
22. Ice basket
23. Foaming assembly
24. Water filter
25. Inner tank bracket, RH
26. Synchronous motor
27. Stainless wire
28. Condenser
29. DC Fan motor
30. Filter dryer
31. Copper tube filter
32. Silicon plug drain
33. Nylon plug drain
34. Silicon sealing pump
35. DC water pump
36. Compressor
37. Plate bottom
38. Rubber foot
39. Air grille
