Dimplex DHCH20H 2kW Ceramic Tower Heater Manual

Dimplex DHCH20H 2kW Ceramic Tower Heater

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance.

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY. Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.

• When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following:
• If the appliance is damaged, check with the supplier before installation and operation.
• Do not use outdoors.
• Do not use in the immediate surroundings of a bath, shower, or a swimming pool.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.
• Do not locate the appliance immediately below a fixed socket outlet or connection box.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use this appliance in series with a thermal control, a program controller, a timer, or any other device that switches on the heat automatically, since a fire risk exists when the appliance is accidentally covered or displaced.
• In the event of a fault, unplug the appliance.
• Unplug the appliance when not required for long periods.
• This product is intended for INDOOR RESIDENTIAL applications only.
• DO NOT cover the cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route the cord under furniture or appliances. Take care to position the cord away from traffic areas and where it will not be a tripping hazard.
• This appliance must not be used in a bathroom.
• The appliance must be positioned so that the plug is accessible.
• Although this appliance complies with safety standards, we do not recommend its use on deep-pile carpets or on long-haired rugs.
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent, or a similarly qualified person to avoid a hazard.
• Keep the supply cord away from the front of the appliance.
• Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• To reduce the risk of fire, keep textiles, curtains, and/or flammable material a minimum distance of 1 m from the air outlet.
• To avoid overheating, DO NOT COVER the appliance. Do not place material or garments on the appliance, or obstruct the air circulation around the appliance, for instance by curtains or furniture, as this could cause overheating and a fire risk.
• This heater carries the warning symbol indicating that it must not be covered.
• To avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• Do not use this appliance with an extension lead or power board.
• Do not use this appliance in series with a thermal control, a program controller, a timer, or any other device that switches on the heat automatically, since a fire risk exists when the appliance is accidentally covered or displaced.

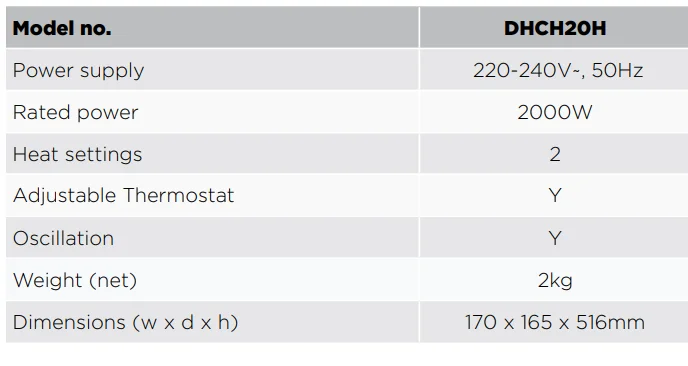

Specifications

For greater precision, please always refer to the rating label placed on the product.

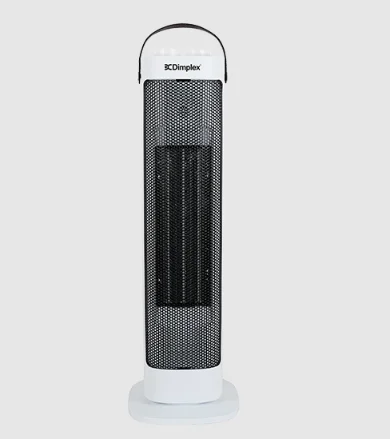

Parts

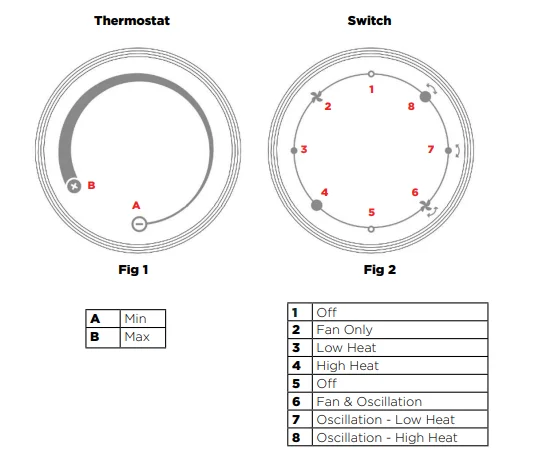

Control Panel

Operation

1. Turn the THERMOSTAT switch clockwise, from MIN to MAX.
2. To use the heater without oscillation, turn the SWITCH to the FAN ONLY icon.
3. For low heat, position the switch to icon 3, and for high heat, switch to icon 4.
4. To enable oscillation, turn the SWITCH to the FAN & OSCILLATION icon 6. For low heat, position the switch to icon 7, and for high heat, switch to icon 8.
5. To turn the device off, position the switch to one of the OFF icons 1 or 5.

Note: For best results, use this heater in a room with a maximum ceiling height of 2.5 m.

Cleaning

Over time, dust can accumulate on the heater, which can affect performance. It is recommended to clean the unit at least once a month.

1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build-up with a soft brush.
3. Wipe the surface of the unit with a soft, damp cloth. Mild detergent can be used for any stubborn marks.

IMPORTANT

The control panel and other parts must not come into contact with water or any other liquids.

Storage

If not using the unit for an extended period of time, after cleaning, please:

• Ensure the control switch is OFF and remove the plug from the power outlet.
• Cover the unit and store it upright in a location where it will not receive direct sunlight. NB- Prolonged exposure to direct sunlight will discolour the unit.

Maintenance

If the unit fails to operate efficiently, is broken, or other problems arise, unplug and do not operate. Ask for advice by calling your local after-sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).

Warranty

Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relevant Customer Care Centre below.

Glen Dimplex Australia Pty Ltd
8 Lakeview Drive, Scoresby 3179, Victoria, Australia
Ph: 1300 556 816

Glen Dimplex New Zealand Ltd
38 Harris Road, East Tamaki, Auckland 2013, New Zealand
Ph: 0800 666 2824

Customer Care:

1300 556 816
[email protected]
www.dimplex.com.au
