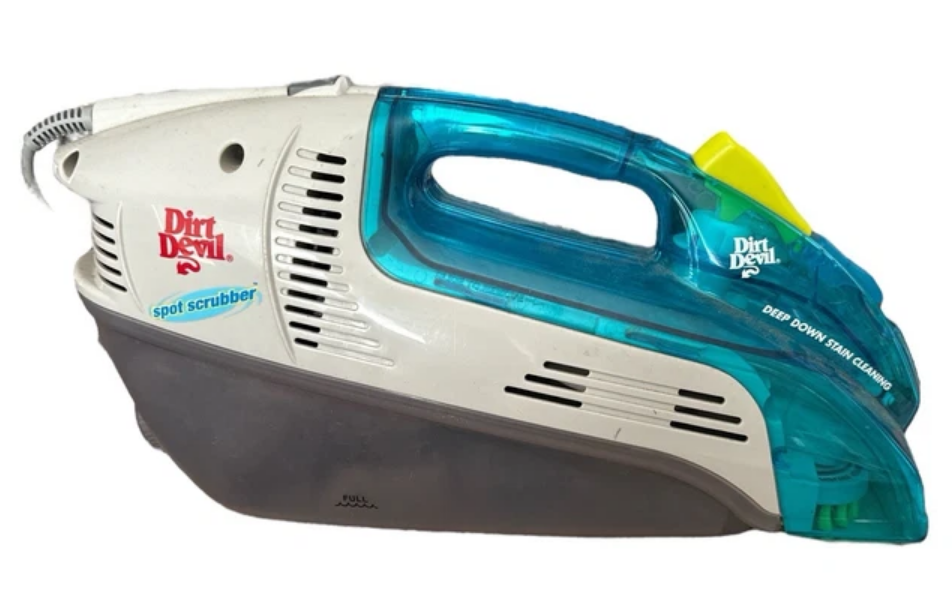

Dirt Devil Spot Scrubber Carpet Cleaner Machine

IMPORTANT SAFETY INSTRUCTIONS

When you use an appliance, basic precautions should be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
• ALWAYS FOLLOW THESE SAFETY INSTRUCTIONS.
• DO NOT LEAVE THE CLEANER UNATTENDED WHEN PLUGGED IN.
  * WARNING: DO NOT USE SHARP OBJECTS TO CLEAN OUT THE UNIT SINCE THEY COULD CAUSE DAMAGE.

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• Do not leave the appliance when plugged in. Unplug from the outlet when not in use and before servicing.
• Do not use outdoors: Electrical shock could occur.
• Do not immerse. To reduce the risk of electric shock, use indoors only, and use only on a surface moistened by the cleaning process.
•  Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual.
• Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center for inspection. Call 1-800-321-1134 for the nearest service center.
• Do not pull or carry by cord, use cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, rasp the plug, not the cord.
• Do not handle. Plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not pick u» anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Use the Spot Scrubber™ only to clean floors and upholstery. Do not use it to clean ceilings, walls, or other vertical surfaces.
• Do not use without a dirty water reservoir in place.
• To prevent dirty water from running into the motor, do not hold the Spot Scrubber™ upside-down or lay it on its side. Use Spot Scrubber ™in a normal Yacuurning position.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use an extension cord with this Spot Scrubber”. )
• Store the Spot Scrubber™ indoors. Put the Spot Scrubber™ away after use to prevent tripping accidents.
• Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the cleaner plate.
• Connect to a properly grounded outlet only. See Grounding Instructions.
• Use only Dirt Devil® Carpet Shampoo.

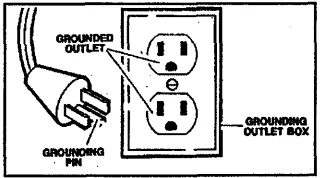

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120-volt circuit and has a grounding attachment plug that looks like the plug illustrated in the sketch. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter should be used with this appliance.

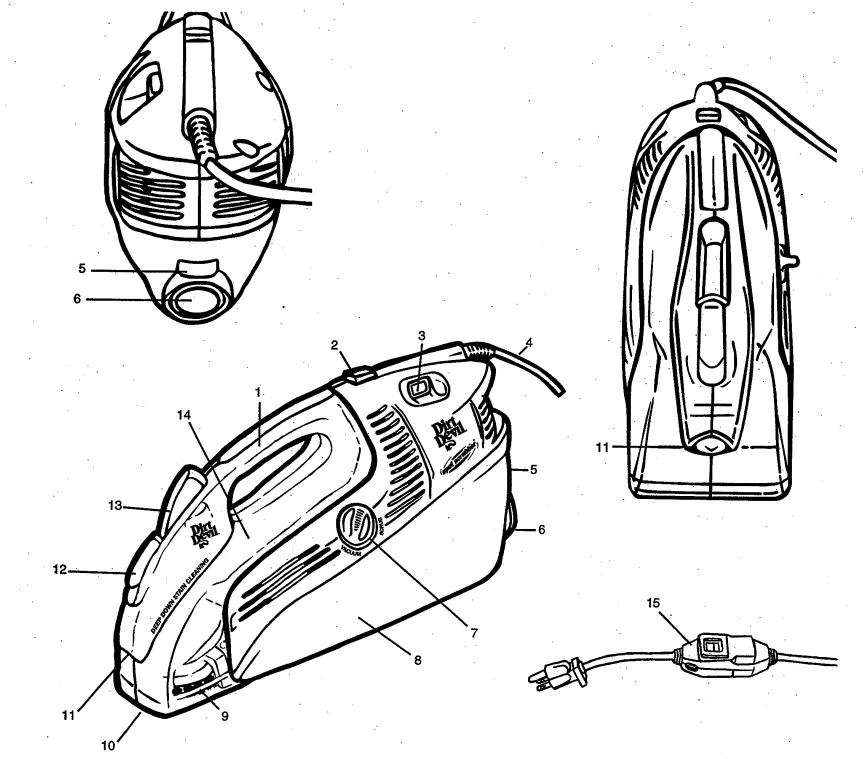

FEATURE DESCRIPTIONS

FEATURES

1. Handle
2. Clean Solution Reservoir Latch
3. On/Off Switch
4. Power Cord
5. Dirty Water Tank Latch
6. Drain Cap
7. Cleaning Mode Selector
8. Dirty Water Tank
9. Rotating Brush
10. Vacuum Nozzle
11. Spray Nozzle
12. Cord Wrap
13. Solution Spray Pump
14. Clean Solution Reservoir
15. ALCI

PREPARING THE CARPET/UPHOLSTERY

PREPARING THE CARPET/UPHOLSTERY:

IMPORTANT: Do not use the Spot Scrubber™ as a dry vacuum.

For existing stains or spots:

1. Vacuum carpet/upholstery thoroughly. Use a Dirt Devil® vacuum cleaner with a revolving brushroll for best results.

CHECK FOR COLOR FASTNESS:

Before cleaning carpet/upholstery, test for color fastness. Dampen a white cloth with dirt devil cleaning solution. Test a small area in a closet or under a cushion. Gently rub the cloth over the area. Check each color for color bleeding. If the cloth remains clean, it should be safe to clean the carpet/upholstery.

CHECK CLEANING CODE ON UPHOLSTERY:

NOTE: If upholstery is not marked, seek professional assistance.

• Use only on upholstery/fabric marked:
  • W (wet clean)
  • S/W (solvent/dry or wet clean)
• Do NOT clean upholstery/fabric marked
  • 8 (solvent/dry clean only).
• Check the cushion foam color. If the foam is a dark color, it may bleed through and discolor the fabric.

FOR QUICK SPILLS:

1. Make sure the cleaning mode selector knob is set to “vacuum”.
2. Vacuum up as much of the spill as possible.
3. Spray cleaning solution on the spot using a spray pump. Allow the cleaning solution to penetrate the stain for approximately 2 minutes.
4. Switch cleaning mode selector to “scrub” (see pg. 6 for location and operation of the cleaning mode selector).
5. Scrub with a rotating brush.
6. Return the cleaning mode selector to “vacuum” to vacuum up remaining moisture.

HELPFUL HINTS FOR CLEANING CARPET/UPHOLSTERY:

1. Do not oversaturate carpet/upholstery with cleaning solution while using the Spot Scrubber™.
2. Allow the cleaning solution to penetrate the stain for approximately 2 minutes.
3. For heavily soiled areas, additional applications may be necessary.
4. Allow plenty of time to dry carpet/upholstery thoroughly.
5. Wipe the cleaning solution from the woodwork and wood to prevent any damage.
6. Try not to walk on carpet until it is completely dry.
7. After the carpet is thoroughly dry, vacuum the carpet using a cleaner with a revolving brushroll.

AFTER CLEANING:

• Allow carpet to dry completely. Try not to walk on the carpet until it is dry.
• If you need to walk on the carpet, place white towels on the areas you want to walk.
• A the carpet is not dry and the furniture must be placed back in the room, use plastic or foil under the furniture to prevent staining the carpet.
• Thoroughly clean the dirty water tank with hot tap water. See page 7.

WARNING: DO NOT STORE SPOT SCRUBBER™ IN GARAGE OR AREA WHERE UNIT COULD FREEZE.

HOW TO OPERATE

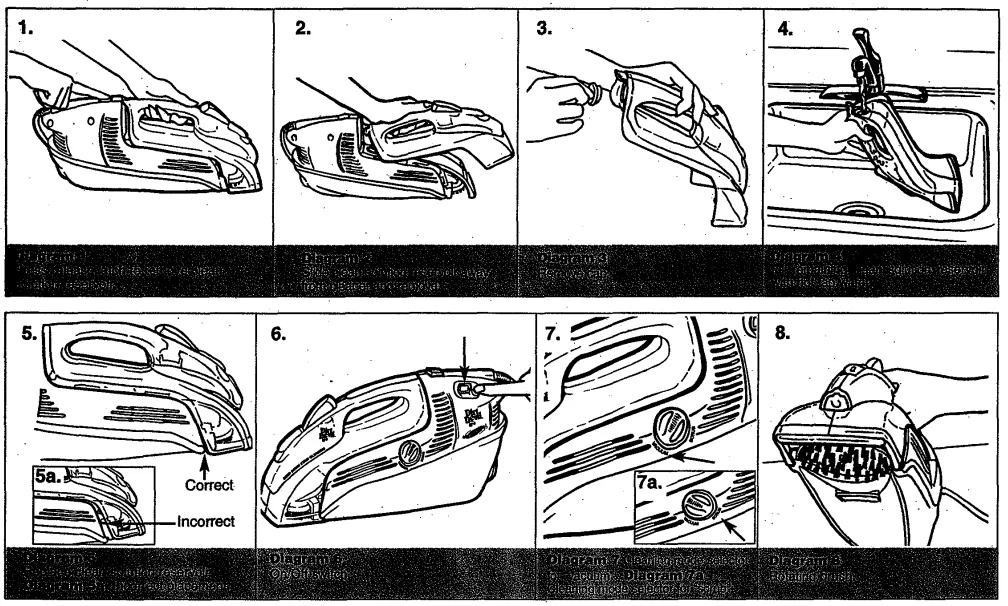

REMOVE AND REPLACE CLEAN SOLUTION RESERVOIR:

1. Grasp the clean solution reservoir under the handle and press the handle release latch down (Diagram 1).
2. Slide the clean solution reservoir away from the cleaner and remove (Diagram 2).
3. Unscrew the cap from the back of the clean solution reservoir (Diagram 3). Fill the reservoir with approximately 1/2 oz. of solution, Fill the remaining clean solution reservoir with hot tap water (Diagram 4). Replace cap.
   NOTE: Use only Dirt Devil® Carpet & Rug Shampoo. Using other cleaning solutions may cause excessive foaming. Excessive foam will cause the float to shut off the vacuum prematurely. Using other cleaners will void your warranty.
4. Line up tabs on the clean solution reservoir with slots on the cleaner and slide the reservoir toward the cleaner (Diagram 5). Make sure the clean solution reservoir is not misaligned (Diagram 5a).

NOTE: Failure to install the clean solution reservoir correctly will result in poor, dirty water pickup.

CARPET/UPHOLSTERY CLEANING:

NOTE: Never leave the unit unattended with power on: Turn OFF when emptying and filling reservoir. Do NOT oversaturate the carpet.

IMPORTANT: For best cleaning results, use steady, moderate forward and backward motion.

1. Plug the cord into the electrical outlet.
2. Turn the power switch “on”. The switch is located on the rear left side of the cleaner (Diagram 6).
3. The cleaning mode selector will switch power to either the “vacuum” (Diagram 7) or the “scrub” (Diagram 7a).” For very wet areas, first try to vacuum the majority of the stain, removing as. much liquid as possible. Then turn the cleaning mode selector to “scrub” (before spraying) and spray solution onto the stain. Allow the cleaning solution to penetrate stain for 2 minutes. Use a rotating brush to agitate in a forward and backward motion using smooth, steady strokes (Diagram 8). Next, change the cleaning mode selector to “vacuum” to pick up remaining moisture.

Empty the dirty water tank when:

• Dirty water reaches the “FULL” line on the dirty water tank OR
• Float shuts off the airflow, indicated by a change in pitch of the motor and reduced suction.

NOTE:  Float may activate when the unit is used vertically or turned on its side.

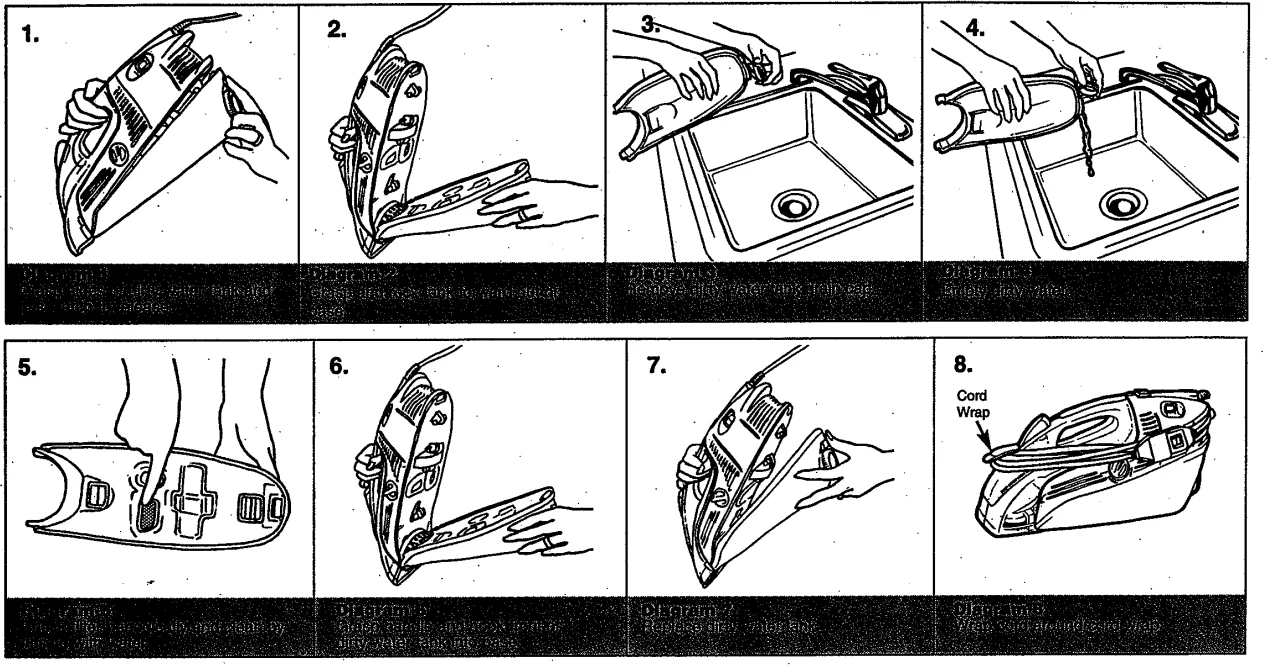

EMPTYING AND CLEANING THE DIRTY WATER TANK

WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS – UNPLUG BEFORE SERVICING.

EMPTYING DIRTY WATER TANK:

WARNING: ALWAYS REMOVE DIRTY WATER TANK BEFORE EMPTYING.

NOTE: Do NOT remove the dirty water tank with the unit in the upright position.

1. Grasp the sides of the dirty water tank and push the latch to release (Diagram 1).
2. Grasp and rock the tank forward out of base (Diagram 2).
3. Unscrew the dirty water tank drain cap (Diagram 3).
4. Empty dirty water into the sink (Diagram 4).
5. Replace the dirty water tank drain cap.

CLEANING DIRTY WATER TANK:

1. Rinse dirty water tank with hot tap water.
2. Let dry thoroughly before storing to prevent mildew from forming.

NOTE: Do not use any chemicals when cleaning.

HOW TO CLEAN THE FILTER:

1. Check the filter located on top of the dirty water tank periodically and clean it by rinsing with water when dirty (Diagram 5).
   NOTE: Make sure to replace the filter after cleaning.

PLACING DIRTY WATER TANK IN BASE OF CLEANER:

1. Grasp the handle and hook the front of the dirty water tank into the base of the cleaner, making sure the front of the dirty water tank is hooked securely into the base (Diagram 6). The dirty water tank has 2 tabs on the underside, which MUST latch into the underside of the base of the cleaner.
2. While making sure the front of the dirty water tank is hooked on the base, rock the rear of the tank into the base of the cleaner. Push down until it latches (Diagram 7). The dirty water tank will need to be emptied once or twice per fill-up of the clean solution reservoir.

NOTE: Failure to install the dirty water tank correctly will result in poor dirty water pickup.

NOTE: Do not store cleaner with solution in the reservoir or dirty water in the dirty water tank. Mineral deposits and mildew can form, which will affect the performance of your Spot Scrubber”.

HOW TO STORE CLEANER:

1. Flip up the cord wrap located on top of the cleaner just below the solution trigger. Wrap the cord around the cleaner using the cord wrap (Diagram 8).
   WARNING: DO NOT STORE SPOT SCRUBBER™ IN GARAGE OR AREA WHERE UNIT COULD FREEZE.

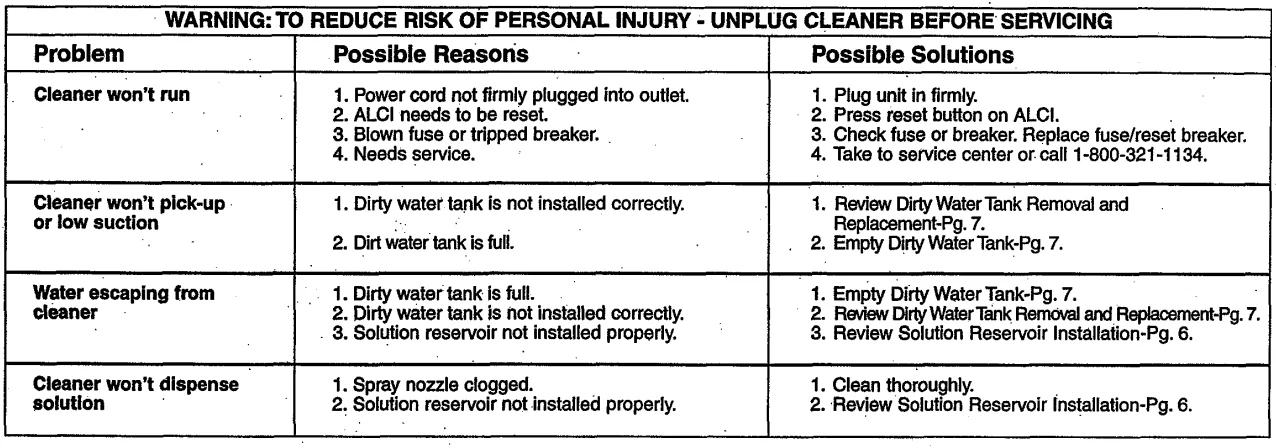

TROUBLESHOOTING GUIDE

ANY OTHER SERVICING SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE

CUSTOMER SERVICE (1-800-321-11 34)

In the event that further assistance is required, see your Yellow Pages for an authorized Royal® Dealer. Any transportation to and from any place of repair is to be paid by the owner. The service parts used in this unit are easily replaced and readily available from an authorized Royal® Dealer or retailer. ‘Always identify your cleaner by the model number and manufacturing code when requesting information or ordering replacement parts. (The model number appears on the back of the cleaner.)
