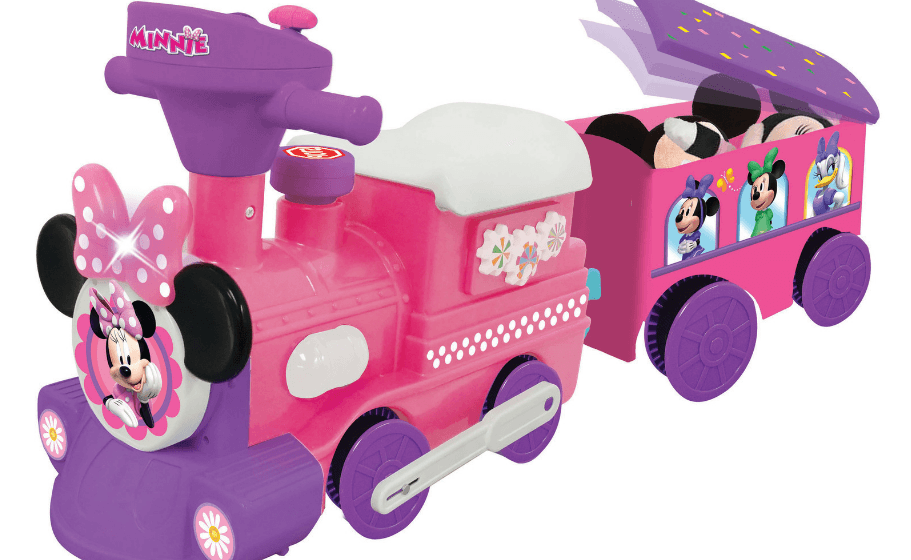

Disney Minnie Mouse 6-Volt Powered Train with Tracks Instruction Manual

Disney Minnie Mouse 6-Volt Powered Train with Tracks

Table of Contents

POWER SUPPLY CONNECTION

BATTERY CHARGING

IMPORTANT!

Before first-time use, please fully charge the battery for 10 hours. Charge the battery after each use of the vehicle, regardless of how long the vehicle was used. Do not charge the vehicle for more than 8 hours at each charge after the first use. Never charge the battery longer than 8 hours. Overcharging or undercharging the battery may shorten battery life and decrease vehicle running time.

WARNING: Battery can fall out and injure a child if the vehicle tips over.Always use battery retainer.

IMPORTANT NOTE:

We recommend that you start charging your battery before playing with your new 6V Battery-Powered Ride-On.
The charger is not a toy. Please keep away from children.
Do not short-circuit the battery.
You do not need to remove the battery from your vehicle to recharge it.
Before charging the battery, examine the battery case for cracks and other damage, which may cause sulfuric acid (electrolyte) to leak during the charging process. If damage is detected, do not charge the battery or use it in your vehicle. Battery acid is very corrosive and can cause severe damage to surfaces it contact with. Take precautions to protect the surface on which you charge your battery.
Use only the charger provided with the toy.

NOTE TO ADULTS: Regularly examine the charger for damage to the cord, plug, or other parts that may result in the risk of fire, electric shock, or injury.

If your battery is old and will not accept a charge, do not leave it in the vehicle. Always remove a dead battery from the vehicle.
Charge the battery at least once per month, even if the vehicle has not been used.

NOTE:

This product has CHARGING PROTECTION: when charging, the vehicle cannot be operated to go forward as this function will be cut off.
Recharge after initial charge up to 10 hours, and never charge the battery longer than 8 hours.
When the vehicle begins to run slowly, recharge the battery.

WARNING: Use the charger in dry locations only.

HOW TO CHARGE YOUR 6V BATTERY-POWERED RIDE-ON:

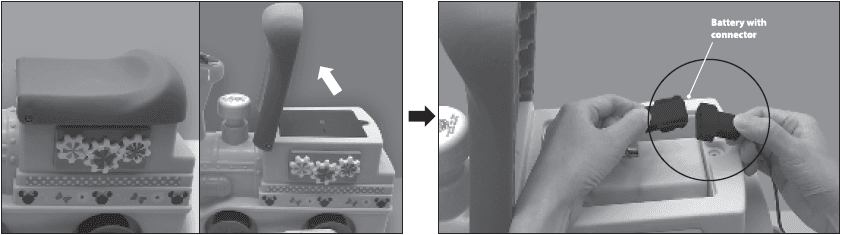

Lift up the seat cover. Unscrew the screw on the battery compartment cover. The battery with the connector is located inside the seat, and note that the battery charger is stored inside the caboose.

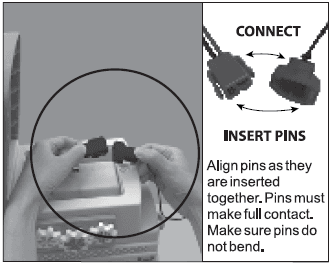

Connect the battery connector from the 6-volt battery-powered ride-on with the connector from the charger. Align the pins as they are inserted together. Make sure pins do not bend and make full contact.

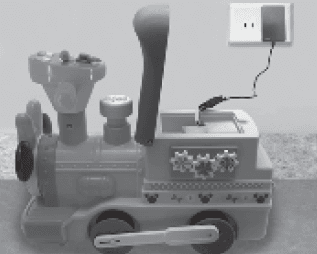

Plug the charger plug into a wall outlet. The battery will begin charging with a red light on.
Once the vehicle is fully charged, unplug the charger and put it away in a safe place. KEE PALL CHARGERS AWAY FROM CHILDREN. USE THE CHARGER IN DRY LOCATIONS ONLY.
Plug the battery connector into the power connector. Your 6-volt Battery-Powered ride-on is now ready for play.

HOW TO USE YOUR 6-VOLT BATTERY-POWERED RIDE-ON

POWER BUTTON

Press the power ON/OFF button located on the ride-on.
To move the 6-volt battery-powered ride-on forward, step gently on the footrest power button to drive. Always hold onto handles tightly when driving to avoid injuries.
To stop, release the footrest power button.
If the ride-on is not being played, press to “OFF” button on the “ON/OFF” button to turn off the motor. When “OFF” is pressed, the vehicle will not move forward even when the power button on the footrest is pressed.

WARNING:

Always stay seated and keep both hands on the handles tightly while riding. Be extra cautious when applying force on the footrest power button as the child adapts to the speed of the 6-Volt battery powered ride-on. Always keep a clear lookout of where you are driving as failure in doing so could result in injury. Adult supervision is required at all times to be safe.

INSTRUCTIONS FOR HANDLING RECHARGEABLE BATTERY:

Never mix different types of batteries or mix new and used batteries.
Charging batteries should be handled by ADULTS ONLY.
Exhausted batteries are to be removed from the toy by ADULTS ONLY.
The supply terminals are not to be short-circuited. Never lift or carry the battery by the wires or connector. This can damage the battery and possibly cause a fire resulting in serious injury. Lift and carry the battery by the case only.
Non-rechargeable batteries are not to be charged.
HOT motors. Handle carefully.

INSTRUCTIONS FOR USING THE CHARGER:

The charger should be examined regularly for damage to the cord, plug, enclosure, and other parts. In the event of such damage, the 6-volt battery-powered Ride-On toy should not be charged until the charger has been repaired by qualified personnel or replaced. Use only with charger provided with the toy.

Always use caution when charging.
The charger is not a toy and should be operated by an adult.
Always use the charger supplied to charge batteries for the 6-volt battery-powered ride-on.
Never operate the charger near flammable materials or liquids, and operate the charger in well-ventilated areas.
Disconnect the charger and unplug it from the 6-volt Battery-Powered Ride-On toy when not in use.
Do not exceed the recommended charging time.
Always disconnect the charger from the 6-Volt Battery-Powered Ride-On prior to wiping down or cleaning the 6-volt battery-powered ride-on toy with a dry cloth.

HOW TO REPLACE THE 6V BATTERY:

Note: Disconnect the power connector from the battery connector before conducting any maintenance procedures. Before first time use, charge the battery for 10 hours.

Lift up the seat cover.
Unscrew the battery compartment cover and remove it.
Unplug the power connector, which is connected to the battery.
Unscrew the three screws on the battery compartment with a screwdriver and remove the battery retainer.
Carefully lift the old battery and replace it with a new one.
Put the battery retainer back in place and secure it with screws. Plug the battery connector into the power connector, and align the pins as they are inserted together to ensure full contact is made. Secure the battery compartment cover back in place by securing the screw. Put down the seat cover, and the train is ready for play.

CARE

Leaving the battery in a discharged condition will ruin it.
Always remove an exhausted battery from the ride-on. Battery leakage and corrosion can damage the ride-on.
Do not store the battery on a surface that could be damaged by the acid contained inside the battery.
Use only the battery provided. Remember to charge the new battery for at least 10 hours before first use.
Examine the battery, charger, and their connectors for excessive wear or damage each time you charge the battery. If damage is detected, do not use the charger or the battery until you have replaced the worn or damaged part.

SAFETY PRECAUTIONS

Children riding the toy must have adult supervision at all times.
Do not ride on the road, driveways, near pools or water.
Do not allow children under or over the recommended age to ride the vehicle; please refer to the age grading guide.
To stop the vehicle, you must take your foot off the power button on the footrest.
Charging should only be done by an adult.
An adult must teach the child how to operate the 6-Volt Battery-Powered Ride-On.
Do not ride on hills or slopes, in sand, or on other soft, wet, or slippery surfaces.
Do not use a different size. Use only the original or recommended replacement battery.
The 6-Volt Battery-Powered Ride-On is designed to carry only one rider at a time. Never over-load the ride-on.
This product should be checked by adults before use.

WARNING: Never modify or alter the electrical system. Alterations could cause a fire or explosion resulting in serious injury or death and could also ruin the electrical system.
