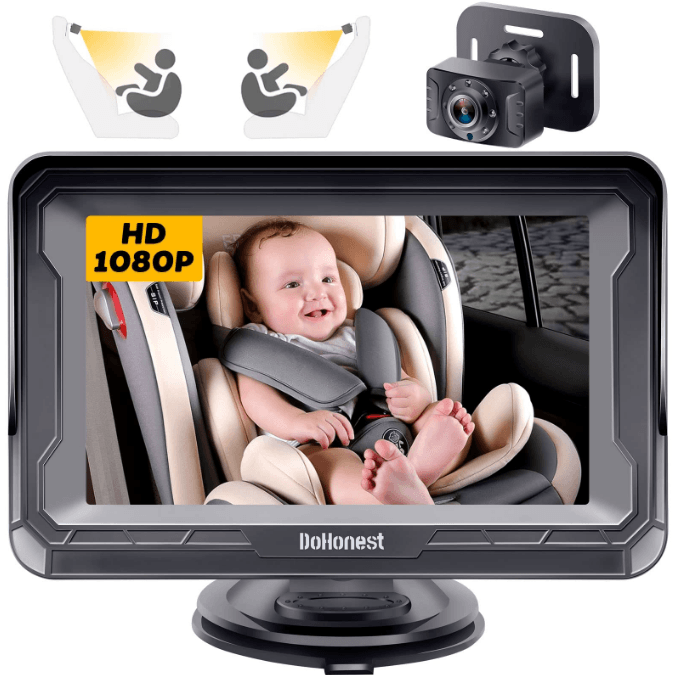

DoHonest V33 HD 1080P Baby Car Camera
System Connection Diagram
System Connection DiagramFirst, take a look at how the system components all connect together:
Recommended Installation Locations
- Camera: Close to rear marker lights, centered on vehicle
- Monitor: Dashboard area for easy viewing
Cable Connections
- Red wire to ignition hot (+) 12-32 volts
- Black wire to ground (-)
- Green trigger wire to backup light or backup beeper wire to activate monitor when in reverse
Powering the System
- Connect the red wire (ACC+) to the fuse switch
- Locate your vehicle’s circuit fuse box
- Connect the red wire to the corresponding power fuse (12- 32V)
Note: Connecting directly to the battery will keep camera always on and drain the battery, so use ignition switched power.
Installing the Camera
- Choose the ideal centered rear location
- Mark and drill holes, routing camera wire through
- Secure bracket with screws
- Adjust the angle as needed
Installing the Monitor
- Choose an easily viewable dashboard area
- Remove monitor and secure bracket with screws
- Place the monitor in the bracket
- Adjust the angle for best viewing
Control Operation Guide
The system comes with a handy control to operate all functions:
Buttons:
- Power button
- Video select button
- Left arrow (Positive/increase) button
- Menu button
- Right arrow (Negative/decrease) button
- Mode select button: Rotate flip image/normal/mirror image setting
Function Operations:
- V1/V2 Button: Switch between CH1 and CH2 camera channels
- Mode Button: Rotate/flip image between normal and mirror modes
- Power Button: Turn monitor on/off and standby
- Menu Button Operations:
- Press 1 time: Enter brightness adjust mode
- Use +/- to increase/decrease value (0-40, default 20)
- Exits after 10 seconds
- Press 2 times: Enter contrast adjust mode
- Use +/- to increase/decrease value (0-40, default 20)
- Exits after 10 seconds
- Press 3 times: Enter color adjust mode
- Use +/- to increase/decrease value (0-40, default 20)
- Exits after 10 seconds
- Press 4 times: Enter language adjust mode
- Use +/- to cycle languages (English, French, etc
- The default is English
- Exits after 10 seconds
- Press 5 times: Enter default settings mode
- Use +/- to reset brightness, contrast, color, volume, and ruler
- Language, RLUD, and VCOM cannot be reset
- Exits after 10 seconds
- Press 6 times: Enter volume adjust mode
- Use +/- to increase/decrease value (0-40, default 20)
- Exits after 10 seconds
- Press 7 times: Enter RLUD adjust mode (rotate/flip image)
- Use +/- to cycle between 1, 2, 3, 4 settings
- Rotates/flips each camera channel individually
- Allows correct front/rear orientation (e.g. 4=rear, 3=front)
- Exits after 10 seconds
- Press 8 times: Enter VCOM adjust mode
- Use +/- to increase/decrease value (0-40, default 20)
- Exits after 10 seconds
- Press 9 times: Enter parking guideline (ruler) adjust mode
- Use +/- to increase/decrease value
- NOTE: Valid for CH2 channel only, not CH1
- Exits after 10 seconds
- Press 10 times: Enter version check mode
- Exits after 10 seconds
- Press 1 time: Enter brightness adjust mode
- Parking Guideline Setting: Same as Menu button press 9 times
- Mirror Image Setting: Same as Menu button press 7 times
For more manuals by DoHonest, visit ManualsLibraryy
DoHonest V33 HD 1080P Baby Car Camera-FAQs
How does the DoHonest wireless car camera work?
It connects to your smartphone via built-in Wi-Fi, letting you view live footage and download recordings without removing the memory card.
How does a backup camera function?
The camera activates when you shift into reverse, showing a live video feed on your monitor that mirrors your rear view to help with parking and safety.
Why is my backup camera showing a black screen?
A black screen often means the lens is blocked—check for dirt, mud, or debris. Clean the lens to restore visibility.
What do the colored lines on the backup camera mean?
The blue lines represent your vehicle’s width and expected path. The red line is about 18 inches from the back of the car, helping you gauge distance.
Do car cameras need Wi-Fi to work?
No, but Wi-Fi makes it easier to access footage on your phone. Without it, you’ll need to remove the SD card and transfer files manually to a computer.
Will the camera work when the car is turned off?
Yes, if Parking Mode is enabled. It uses motion or impact sensors to activate and record short clips even when the car is off.
Do dash cams always record?
Not always. Some start and stop with the car, while others with Parking Mode and hardwiring can record even when the engine is off.
How do I adjust the rearview camera angle?
To change the angle, reposition the mount using washers or spacers between the camera and the vehicle surface, then secure it back in place.
