Ring Stick Up Cam Battery Outdoor Camera
Charge and insert the battery.
Charge the provided battery.
First, fully charge the battery by plugging it into a USB port using the provided orange cable.
The battery is fully charged when just one LED is lit.
Remove the battery cover.
Twist the battery cover counterclockwise to unlock, then remove it from your Stick Up Cam.
Insert the battery
Insert the charged battery into the bottom of your Stick| Up Cam until it clicks into place.
Set up your Stick Up Cam in the Ring app
Download the Ring app
The app walks you through setting up and managing your Stick Up Cam.
Search for “Ring” in one of the app stores below, or visit: ring.com/app
Set up your Stick Up Cam in the Ring app
In the Ring app, select Set Up a Device and follow the in-app instructions.
Try it out!
After setup, tap the Live View button in the Ring app to see live video from your Stick Up Cam.
Install your Stick Up Cam Battery
Choose a location.

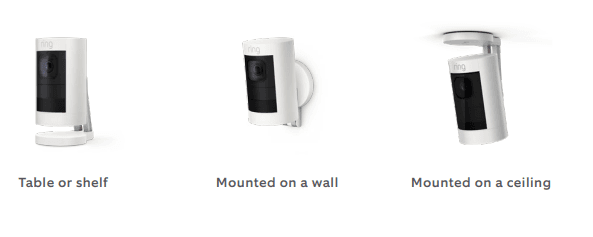

Stick Up Cam is happy just about anywhere, indoors or out, It comes ready to sit on a flat surface like a table or shelf, but can also be mounted to a wall or ceiling.
Just choose a spot where it can provide the view you want.
How to use Stick Up Cam on a table or shelf

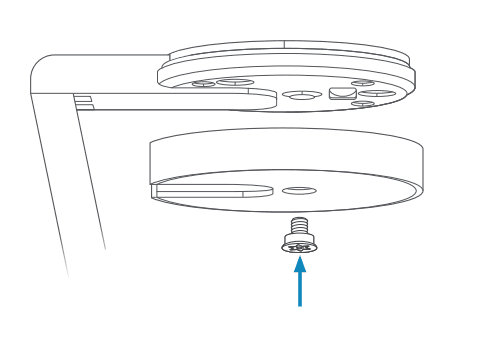

Your Stick Up Cam comes ready to place on a table or shelf. If desired, insert the provided security screw into the base, and tighten with the star-shaped end of the screwdriver bit.
How to install Stick Up Cam on a wall
Remove the plastic cover and rubber pad from the base.
You’ll put the cover back on once you’ve mounted your Stick Up Cam.

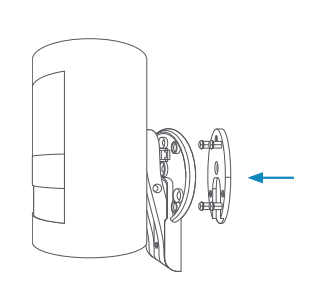

Flip the base to the rear.
The base of the stand is hinged. Before wall-mounting, flip the base down and behind your Stick Up Cam.
Push the rubber pad back into the base.
The rubber pad should sit between your wall and the base of your Stick Up Cam.

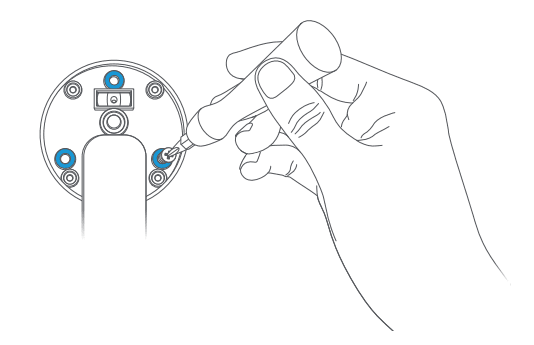

Drive the screws.
Hold the round part of the base against your wall, rubber-side down. Use the integrated level to ensure it’s straight. Then mount it with the included screws.

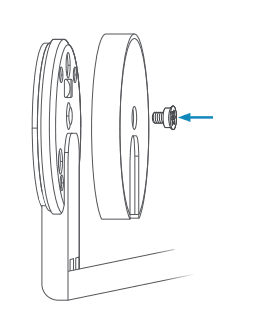

Snap the cover back onto the base.
Then, secure it with the included base security screw, using the star-shaped end of the screwdriver bit.
How to install Stick Up Cam on a ceiling
Remove the plastic cover from the base.
You’ll put the cover back on once you’ve mounted your Stick Up Cam.

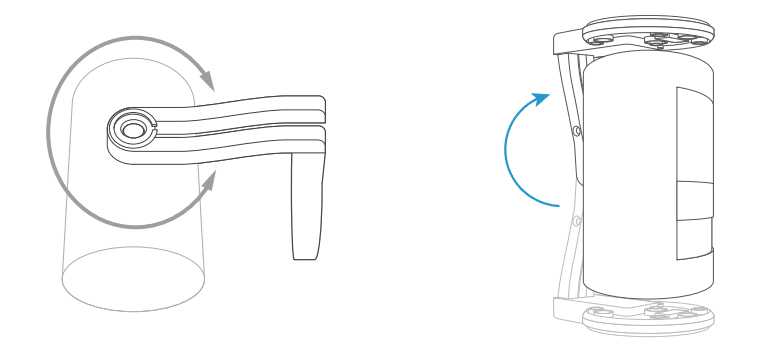

Rotate the stand above the camera:
The whole stand can rotate on its axis. Before ceiling- mounting, rotate the stand 180 degrees so the base is positioned above your Stick Up Cam.
Drive the screws.
Hold the round part of the base against your ceiling, rubber-side down. Then mount it with the included screws.
Snap the cover back onto the base.
Then, secure it with the included security screw, using the star-shaped end of the screwdriver bit.
Final steps For all mounting styles:
Attach the battery cover.
Line up the “open lock” symbol on the rear of your Stick Up Cam with the line on the battery cover. Then push the cover on and twist it clockwise to lock it in place.
Now your Stick Up Cam is installed and ready to protect you.

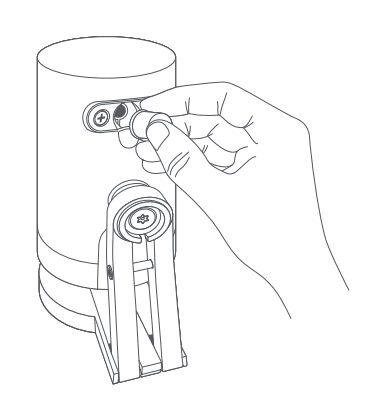

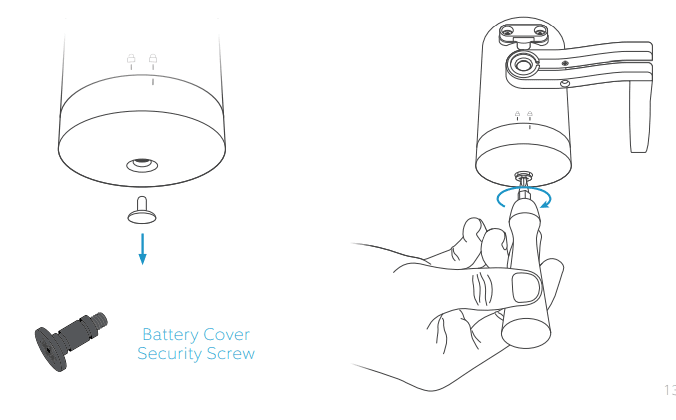

If desired, add the battery security screw.
By default, the battery cover can be easily removed for battery charging. However, if you want to secure it, add the included security screw.
To do this, pull the rubber plug out of the cover and insert the security screw. Finally, tighten it with the star-shaped end of the screwdriver bit.
If you have a Ring Solar Panel.
Ring Solar Panel charges the battery in your Stick Up Cam whenever the sun is shining.
To purchase your own, visit: https://shop.ring.com/products/solar-panel
Mount your Ring Solar Panel.

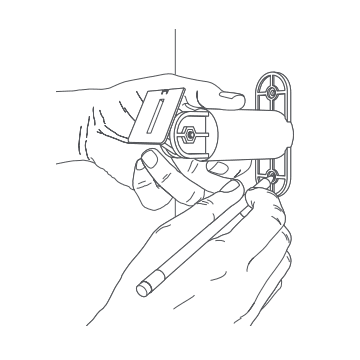

Follow the Ring Solar Panel| instructions to mount the panel to your home and route its power cable to your Stick Up Cam.
Remove the rubber plug.
Pull the round plug straight| out of the power port to remove it.
Plug in your Ring Solar Panel.

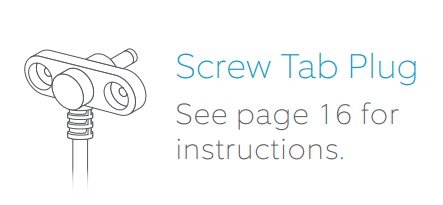

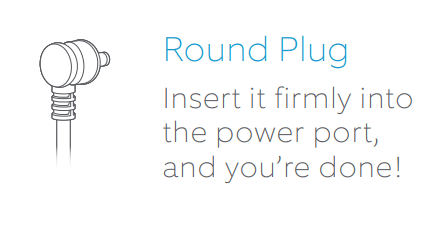

The power cable from your Ring Solar Panel may come with a round plug, or it may have a plug with screw tabs. The style of the plug determines how you’ll hook it up.
Need a little setup help?
If your in-app setup doesn’t go as planned, try these tips:
Get your Wi-Fi password just right.
The most common setup issues come from entering the wrong Wi-Fi password. These passwords are case- sensitive, and every little error counts.
Reboot your router.
If you entered the right password but you’re having no luck, try turning your Wi-FI, router off, wait 30 seconds, then turn it back on. Then, begin setup again in the Ring app.
For additional help, visit:
Or give us a call…
US 1 800 656 1918
Canada 1 855 300 7289
Worldwide +1 310 929 7085
For a list of all our customer support numbers, visit:
For more manuals by Ring, visit ManualsLibraryy
Ring Stick Up Cam Battery Outdoor Camera-FAQs
How long does the Ring Stick Up Cam Battery last on a full charge?
The battery typically lasts 6 to 12 months depending on usage. Recharging takes around 5 to 10 hours, so it’s good to have a backup plan while it’s charging.
Is the Ring Stick Up Cam Battery waterproof?
The camera is weather-resistant, meaning it can handle rain and outdoor conditions. However, it is not waterproof and should never be submerged in water.
How does the Ring Stick Up Cam Battery work?
This camera is powered by a rechargeable battery pack and connects to the internet using Wi-Fi. There are also solar and wired versions available with different power options.
Why is my Ring Stick Up Cam battery draining quickly?
A weak Wi-Fi signal can cause your camera to frequently reconnect, using more power. Make sure the camera is close to a reliable Wi-Fi connection to help conserve battery life.
Can the Ring camera battery be overcharged?
Yes. Overcharging or exposing the battery to extreme heat or cold can damage it. Always charge in a moderate-temperature environment and avoid impacts that could dent or puncture the battery.
What is the field of view on the Ring Stick Up Cam?
The standard field of view is 130°. With additional accessories, you can extend to 360° pan and 117° tilt for broader coverage.
Does the Ring Stick Up Cam work at night?
Yes, it features Night Vision. You can even enable Color Night Vision in the Ring app to see clearer and more detailed video in low light.
Does the Ring Stick Up Cam need Wi-Fi?
Yes, it requires a Wi-Fi connection for live video, alerts, and remote access. The Stick Up Cam Elite is a different model that uses Power Over Ethernet (PoE) instead.
How can I make the Ring camera battery last longer?
To save battery:
1. Use Live View less frequently
2. Lower motion sensitivity
3. Disable unnecessary motion zones
4. Adjust motion frequency settings in the Ring app
