DREO DR-HTF004 Pilot Max Tower Fan User Manual

DREO DR-HTF004 Pilot Max Tower Fan

IMPORTANT SAFETY INSTRUCTIONS

General Safety

1. Children shall not play with the appliance. Cleaning and maintenance shall not be performed by children without supervision.
2. Use the appliance as described in the user manual only. Any other use not recommended in the user manual may cause fire, electrical shock, or personal injury.
3. This appliance can be used by children aged above 8 years and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of this appliance in a safe way and understand the hazards involved.

Operation Safety

1. Place the appliance on a flat, dry surface before use.
2. Do not immerse in water and any other liquids.
3. Do not use the appliance until the base is installed.
4. Do not insert your fingers, pencil and any other objects into the grilles while in operation.
5. Do not dismantle, repair, or modify. All servicing should be performed by qualified personnel.

Electricity Safety

1. Make sure that the voltage of your electricity supply is the same as that indicated on the appliance.
2. Always unplug before cleaning or leaving the appliance unused for a long period of time. Keep your hands dry when plugging/Unplugging.
3. Do not operate any fan with a damaged cord or plug. Discard the fan or return it to an authorized service facility for examination and/or repair.
4. Do not run a cord under the carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from the traffic area so that it will not be tripped over.
5. WARNING: To reduce the risk of fire or electric shock, do not use This Fan with any solid-state speed control device.
6. 24V/1.5A power adapter only. Turn off the appliance before unplugging it.

FOR HOUSEHOLD USE ONLY READ AND SAVE THESE INSTRUCTIONS

Specifications

ASSEMBLING YOUR TOWER FAN

Assembly Instructions

When using the appliance for the first time, remove the wraps and attach the parts by following the steps below.

• Keep two base halves upside down and hold them in a crossed position, then insert the pegs on one half onto the slots on the other half.
• Press down on the joint areas as shown to click two base haves together.
• Remove the screw nut on the bottom of the fan by rotating it counterclockwise.
• Fit the base onto the fan and secure by screwing the nut back on.
• Put the fan upright, then plug the power adapter into the power input (located at the back of the fan), and into the power outlet.

CAUTION: Do not operate the tower fan if the base has not been installed.

Package Contents

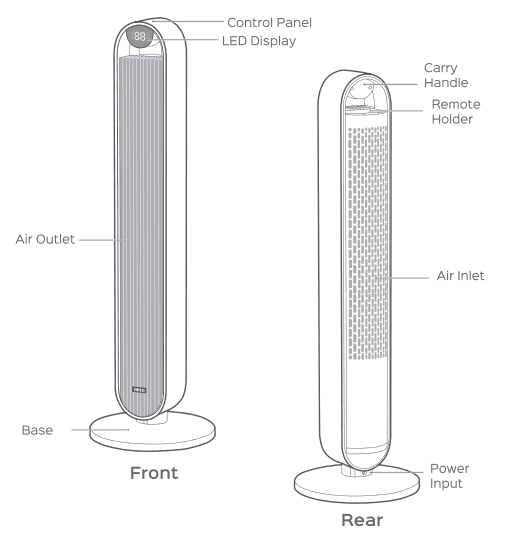

KNOWING YOUR TOWER FAN

Control Panel

Power Button

• Turn power on/off

Mode Button

• Switch between Normal/Natural/Sleep/Auto Mode
• Long press to mute/unmute

Oscillation Button

• Select to start/pause oscillating
• Select to set oscillation angle, see page 9

Decrease Button

• Decrease fan speed (1-12 levels)
• Decrease oscillation angle (30°/60°/90°/120°), see page9

Increase Button

• Increase fan speed (1-12 levels)
• Increase oscillation angle (30°/60°/90°/120°), see page9

Timer Button

• Select to set a timer (0-12h)

LED Display

NOTE:
This tower Jan features auto-brightness. The display adapts automatically based on the ambient 1/ghtlng conditions.

Getting the Most out of Your Tower Fan

1. It’s not an air conditioner.
2. Remove any tall obstacles that might block the airflow from the fan.
3. Combine with your AC unit to get cooler air throughout the room.
4. Position the tower fan closer to you to get more direct airflow.
5. Place a bucket of ice in front of the fan for an extra cooling boost.

USING YOUR TOWER FAN

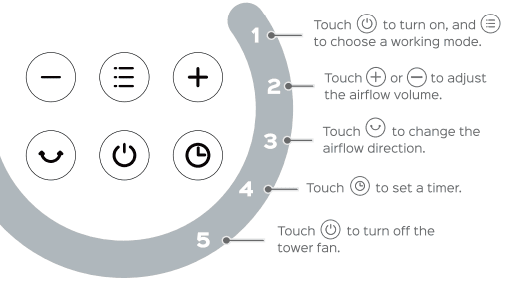

General Operations

Working Modes

Sleep Mode (Mute Auto On)

Fan speed decreases every 30 minutes. Speed decreases by three or two levels at most and will remain
constant if at level 3, 2 or 1:

• For level 12: 12→11→10→9
• For level 11: 11→10→9→8
• For level 10: 10→9→8→7
• For level 9: 9→8→7→6
• For level 8: 8→7→6
• For level 7: 7→6→5
• For level 6: 6→5→4
• For level 5: 5→4→3
• For level 4: 4→3
• For level 3: 3
• For level 2: 2
• For level 1: 1

Auto Mode

Fan speed adapts to the ambient temperature.

Normal Mode

Fan runs at a constant speed.

Natural Mode

The fan runs at alternating speeds.

Additional Features

Change Oscillation angle

• Touch the Oscillation buttonand its icon will flash for 5 seconds on the display. During the flashing process, touch (±) or 8 to change the oscillation angle.
• The display will show 1/2/3/4, indicating the current oscillation angle is set to 30/60/90/120 degrees.
  Note: To adjust/speed, please wait untilstops flashing.

Timer

• When the fan is ON/OFF, touch the timer buttonrepeatedly to set a timer from 1 to 12 hours.
• When the timer ends, the fan will stop/start running automatically. To cancel, set the time to 0 hours.
  Note: When the auto-off timer is enabled, the display will return to fan speed after 3 seconds.

Mute

• Method 1: Short press the mute buttonon the remote control to turn on/off button sounds.
• Method 2: Long press the mode buttonon the control panel to turn on/off button sounds.

Memory

• If the fan is turned OFF or disconnected from power, it will operate under the previous settings (except the timer setting) when it is turned ON again.

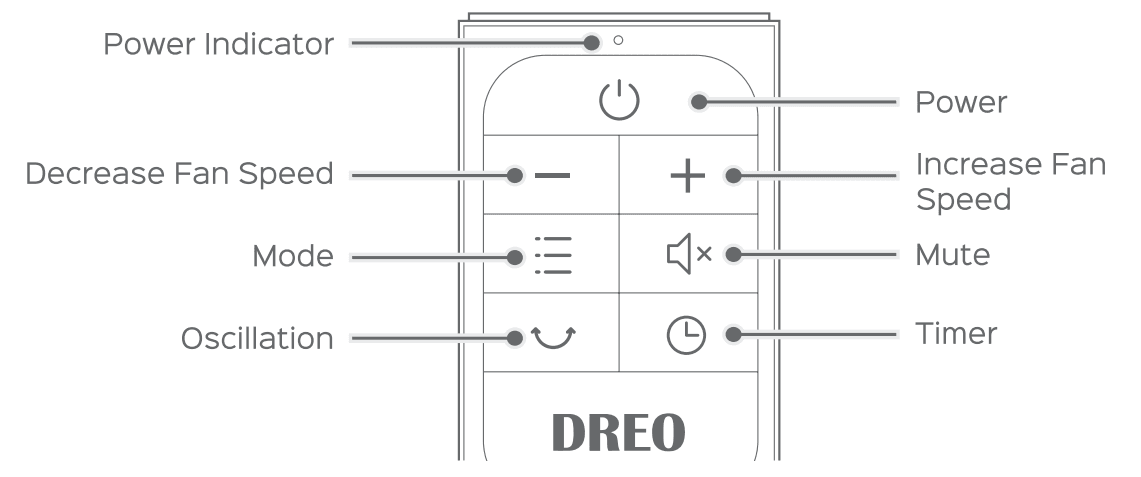

Remote Control

Battery Replacement

1. Press the locking button to pop out the battery holder.
2. Replace with the same battery type with the(+) side facing up.
3. Push in the holder until securely locked into place.
   Note: if the indicator on the remote control doesn’t turn on anymore, please consider replacing the battery.

CLEANING AND MAINTENANCE

Outer Surface

Gently wipe off the dust with a soft, dry cloth.

Grilles & Blades

Remove the dust using a vacuum or air duster.

Base

The base can be disassembled in the reverse order of assembly.

CAUTION

1. Always unplug the fan before any cleaning or maintenance to avoid the risk of fire, electric shock, or injury to persons.
2. Do not immerse in water or get water inside the motor housing.
3. Do not use any chemical agents when cleaning the fan.
4. Store in a cool, dry place and cover it to protect it from dust.

TROUBLESHOOTING

My fan won’t turn on!

1. Make sure that the cord is connected to a powered outlet and the mains voltage corresponds with the voltage indicated on the fan.
2. Check if the power adapter is securely inserted into the power outlet and the tower fan.

My fan is shaky and wobbling!

1. Place the fan on a flat, level surface.
2. Incorrect installation might also cause shakiness. Please refer to the assembly instructions on pages 3-4.

My fan is making vibration and noise!

1. Place the fan on a flat, level surface.
2. Be sure not to insert anything into the air inlet and outlet.

OREO CUSTOMER CARE

Default 12-Month Warranty

This appliance is covered by a Dreo warranty for 12 months from the date of its original purchase.

Extend Your Warranty

Extend your warranty by registering your new appliance on our website https://dreo.com/warranty.
The warranty will not apply In cases of:

1. Accidents, misuse, or repairs performed by unauthorized personnel.
2. Any unit that has been tampered with or used for commercial purposes.
3. Normal wear and tear of wearable parts.
4. Use of force, damage caused by external influences.
5. Damage caused by non-observance of the User Manual, e.g. connection to an unsuitable mains supply or noncompliance with the instructions.
6. Partially or completely dismantled appliances.
7. Defects caused by or resulting from damages from shipping or from repairs, service, or alteration to the product or any of its parts that have been performed by a repair person not authorized by Dreo.

we can only provide after-sales service for products that are sold by Dreo or Dreo-authorized retailers and distributors. If you have purchased the appliance from a different place, please contact your seller for return and warranty issues.

FCC Statement

This device complies with Part 15 of the FCC Rules. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance and could void the user’s authority to operate the equipment. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
