INTRODUCTION, SAFETY AND WARNINGS

SAFE RIDING PRACTICES AND WARNINGS

• Check and obey all local laws or regulations that may be in effect in the locations where the electric ride-on toy may be used.
• Always wear appropriate clothing and shoes.
• Observe the age and weight limitations on the cover of this manual.
• Always stay seated while riding the electric ride-on toy.
• Children must be supervised by an adult at all times to be safe.
• Always be alert and ride your electric ride-on toy defensively. Watch out for obstacles that could catch one of the electric ride-on toy’s wheels or force you to turn suddenly and/or lose control. Be careful to avoid pedestrians, persons using other wheeled products (including roller or in-line skates, skateboards, scooters, bikes, etc.), children or animals who may enter your path. Always respect the rights and property of others.
• Do not activate the foot pedal unless you are seated in the ride-on toy and in a safe, outdoor environment that is suitable for riding your electric ride-on toy.
• Do not attempt or perform any stunts or tricks on the electric ride-on toy. It is not made to withstand such misuse and abuse.
• Keep both hands on the steering wheel at all times.
• Do not touch the motor on the electric ride-on toy when in use or directly after use as these parts can become extremely hot.
• Never allow more than two persons to ride the electric ride-on toy at one time and never try to tow anything.
• Do not use nearby steps, water, or swimming pools.
• Do not ride in wet weather.
• Never immerse the electric ride-on toy in water; electrical and drive components could be damaged by water or create other potentially unsafe conditions.
• Keep your fingers and other body parts away from the motor, steering system, wheels, and all other moving components.
• Never hitch onto another vehicle or let yourself be pulled or pull anyone or anything while riding the electric ride-on toy.
• Ride only on smooth, flat, dry surfaces such as pavement or level ground without loose debris, such as sand, leaves, rocks, or gravel. Water, mud, ice, bumpy, uneven, slick, or rough surfaces could impair traction and contribute to possible loss of control.
• Do not ride on or near hills or steep inclines. Ride only on level ground to avoid tip over.

USING THE CHARGER

The charger should be examined regularly for damage to the cord, plug, enclosure and other parts. In the event such damage has occurred, the electric ride-on toy should not be charged until the charger has been repaired by qualified personnel or replaced. Use only the supplied, recommended charger.

• Always use caution when charging.
• The charger is not a toy and should be operated by an adult.
• Never operate the charger near flammable materials or liquids, and operate the charger in well-ventilated areas.
• Disconnect the charger and unplug it from the electric ride-on toy when not in use.
• Do not exceed the recommended charging time

BEFORE YOU BEGIN ASSEMBLY

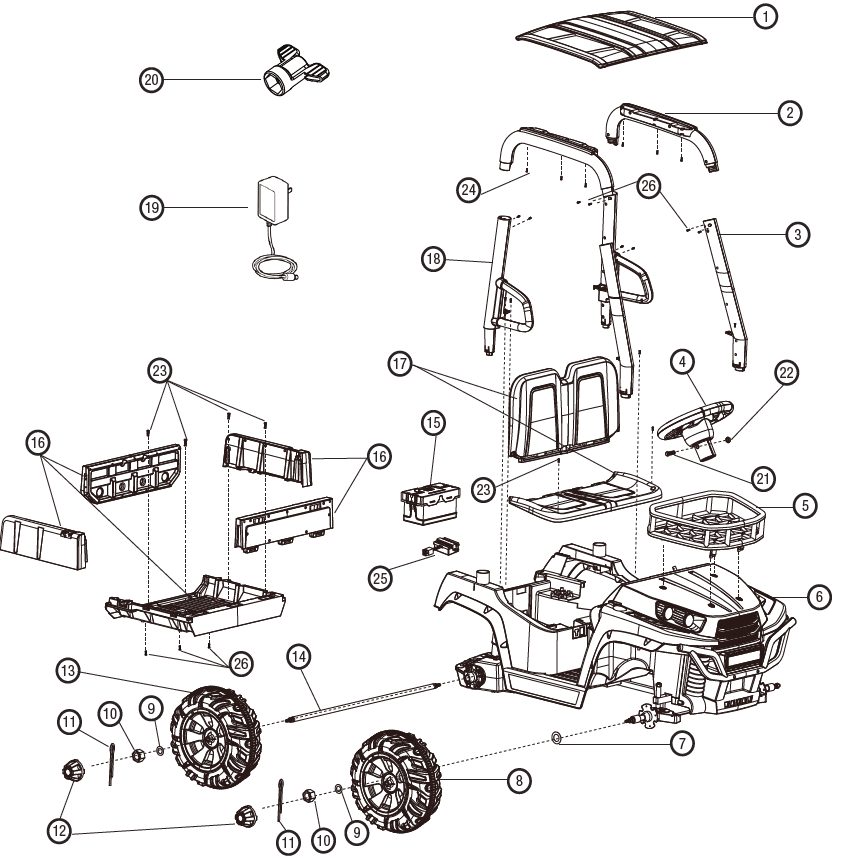

PARTS DIAGRAM

1. Roof x1
2. U shape Support x2
3. Roof Front Support x2
4. Steering Wheel Assembly x1
5. Cargo Basket x1
6. Plastic Body Assembly x1
7. Ø19 Front Axle Washer x2
8. Front Wheel x2
9. Ø12 Washer x4
10. M10 Lock Nut x4
11. Split Pin x4
12. Axle Cap x4
13. Rear Wheel x2
14. Rear Axle x1
15. Battery x1
16. Cargo Bed (5 pcs)
17. Seat (2 pcs)
18. Roof Rear Support x2
19. Charger x1
20. 17 mm Socket Wrench (for wheels) x2
21. M5x35 Machine Screw x1
22. M5 Lock Nut x1
23. M5 x 16 mm Screw x6
24. 4×16 mm Round Head Screw x16
25. Controller x1
26. 4×12 mm Round Head Screw x11

• Your new ride-on toy requires adult assembly. Because your new ride-on toy is heavy and large, we strongly suggest using two people to finish the assembly. Set aside around 60 minutes for assembly. Identify all parts before assembly and save all packaging material until assembly is completed to ensure that no parts are discarded

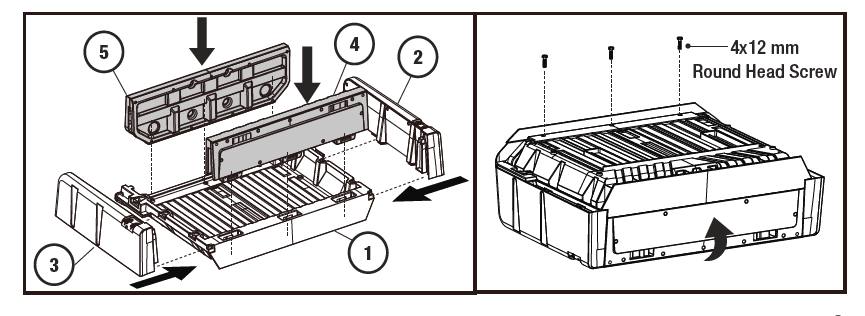

1. CARGO BED ASSEMBLY

• Find the plastic board marked with “1” on its back.
• Find other two boards that are marked with “2” and “3”, and push them horizontally until they sit well as shown.
• Find a plastic board marked with “4” on its back, and push it vertically until you hear it click into.
• Find a plastic board marked with “5”, there are slots along two side of it, slide it into the sticking tabs on “2” and “3” as shown, making sure the door is secure.
• Gently turn the cargo bed upside down, use three 4×12 round head screws to tighten it properly

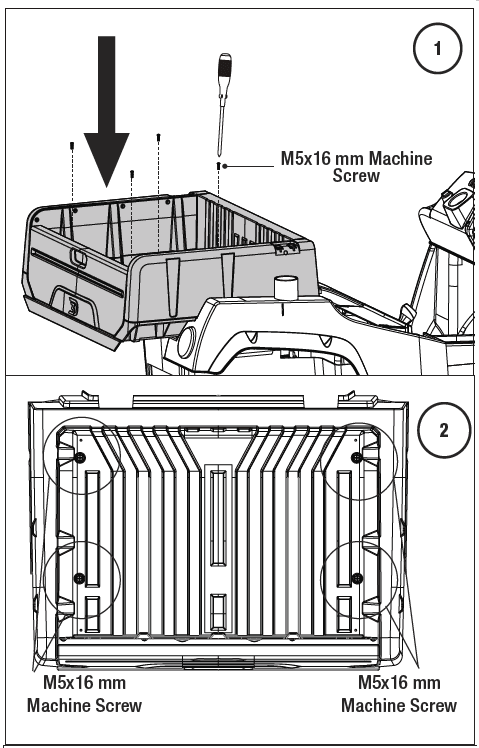

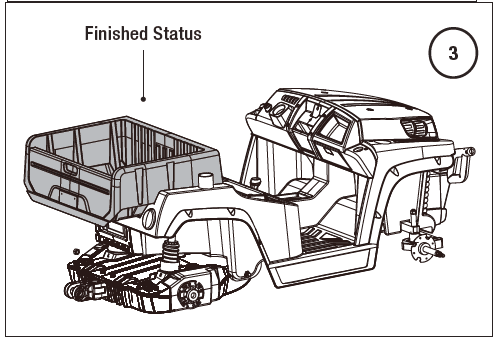

2. CARGO BED INSTALLATION

• Align the cargo bed assembly with the four screw holes on the ride-on toy body. Use four M5x16 machine screws to tighten each corner securely

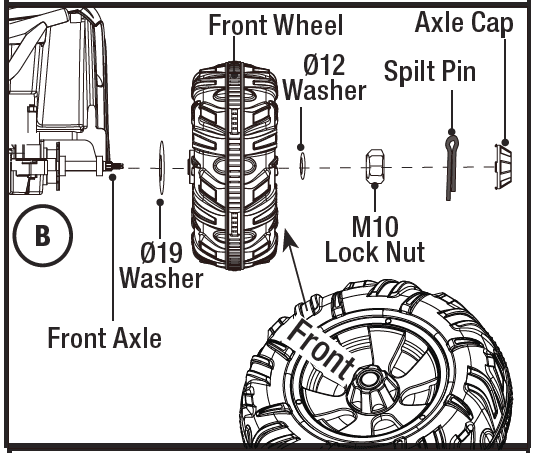

3. FRONT WHEEL ASSEMBLY

• Turn the ride-on toy body upside down (this should be handled carefully by two adults)
• Cut the tie on the front axle with scissors.

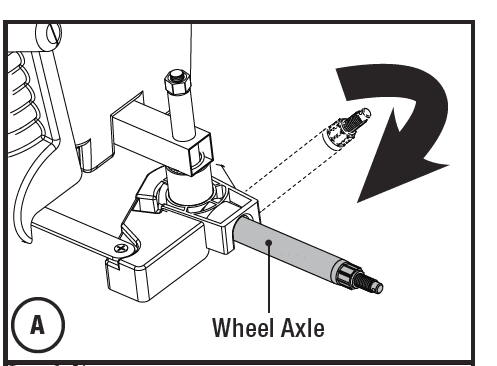

• Adjust the front wheel axle until the axle clicks into position to ensure that it is secure for safety (see Figure A).
• Remove washers and nuts from the front wheel axle.
• Fit a Ø19 washer onto the axle.
• Find a front wheel marked with an “R” and labeled “Front”. Find the “R” marking on the front of the ride-on toy body to match this wheel and slide the wheel onto the axle.
  • NOTE: Refer to the below drawing showing the “R” and “L” locations on the ride-on toy body.
• Fit a Ø12 washer and M10 locknut onto the axle, then tighten it with a socket wrench.
• Insert the axle cap until it clicks into place.
• Find the other front wheel, marked with an “L” and labeled with and “Front”. Find the “L” marking on the front end of the ride-on toy body to match this wheel and slide the wheel onto the axle. Secure this wheel with the same steps as the other front wheel above.
• Front wheels should spin freely; if not, loosen the nut slightly.

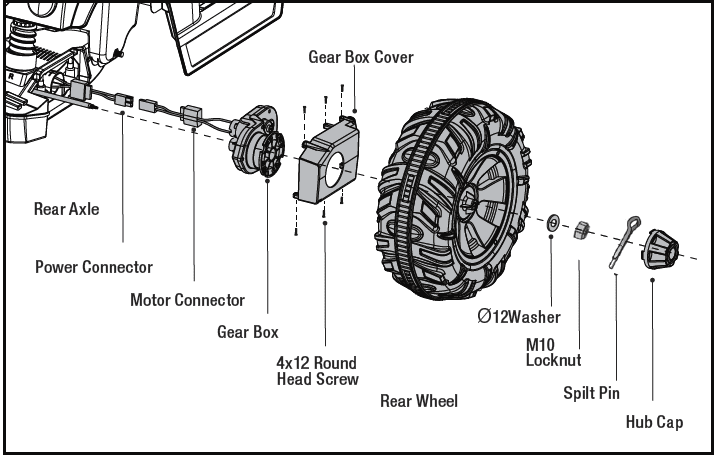

4. REAR WHEEL ASSEMBLY

• First, remove all washers and nuts from the rear axle.

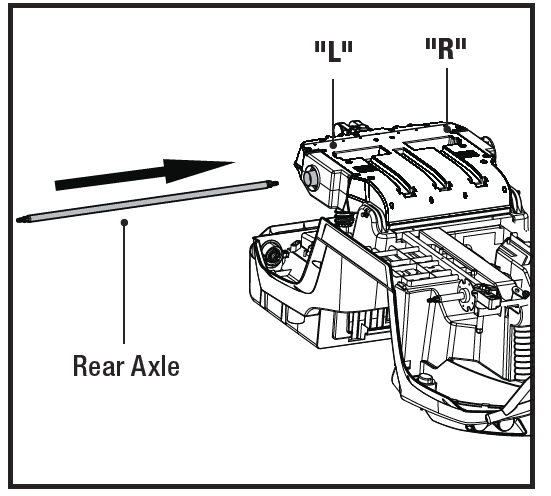

• Insert the rear axle through the hole in the ride-on toy body as shown, making sure the axle exposure at the left and right ends are equal.

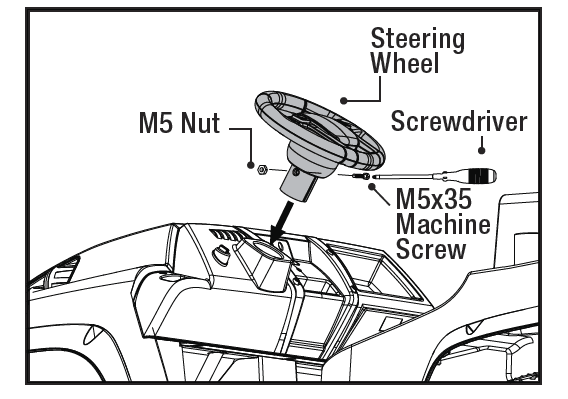

5. STEERING WHEEL ASSEMBLY

• Gently turn the ride-on toy body upright.
• Remove the M5x35 machine screw and nut from the steering wheel.
• Insert the steering wheel onto the end of the steering column, line up the hole in the steering wheel and the hole in the steering column, reinsert the M5x35 machine screw as shown, and tighten it with M5 nut securely.

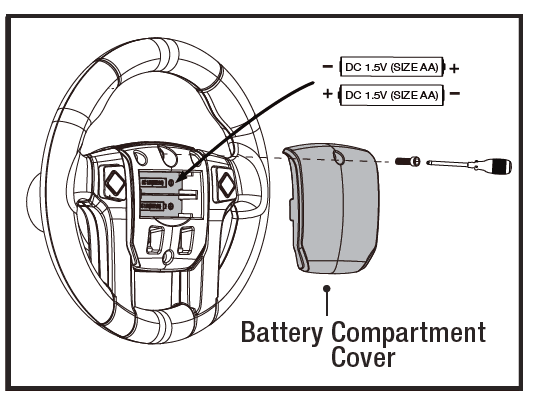

STEERING WHEEL BATTERIES INSTALLATION

NOTE: Batteries are not included.

• Unscrew the screw in the steering wheel and remove the cover.
• Insert 2x 1.5V size AA AM-3 or LR6 batteries.
• Replace the cover and tighten the screw to secure it in place.

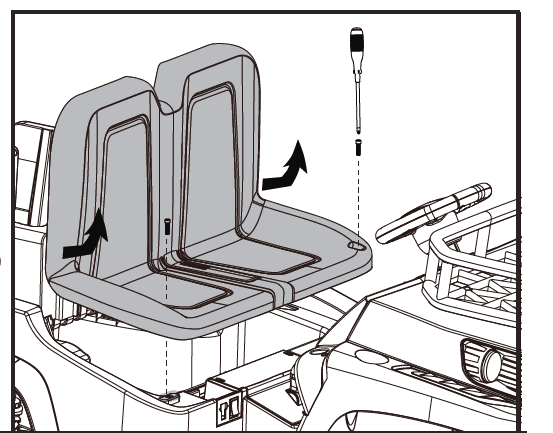

SEAT INSTALLATION

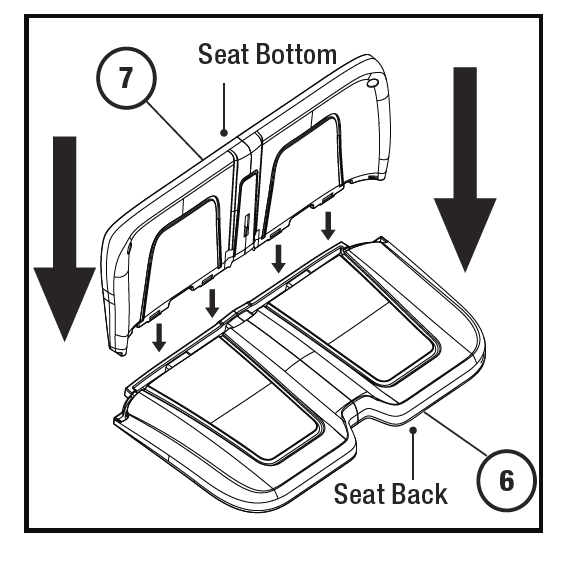

• Find a Seat Back that is marked “6” on its back, also find the Seat Bottom marked “7” on its back.
• Locate the Seat Back on the ground and insert the Seat Bottom into the Seat Back as shown.
• NOTE: Gently insert the Seat Bottom tabs into the corresponding Seat Back slots and push to hear the Seat Bottom click into place. Once the tabs click into place, it cannot be pulled out without damaging the seat.

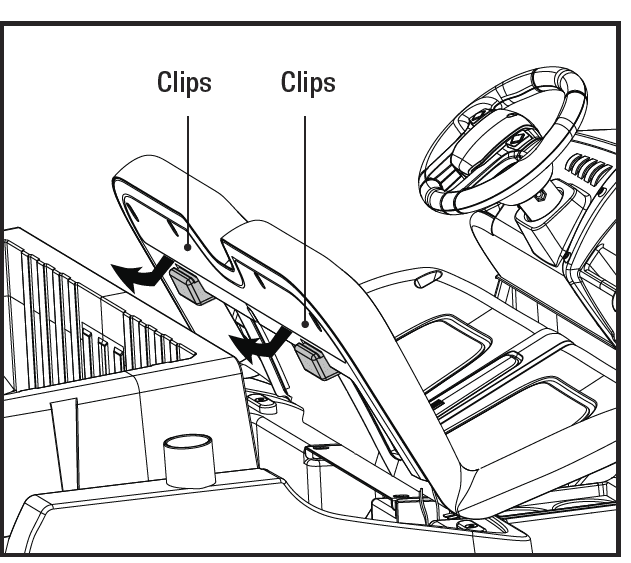

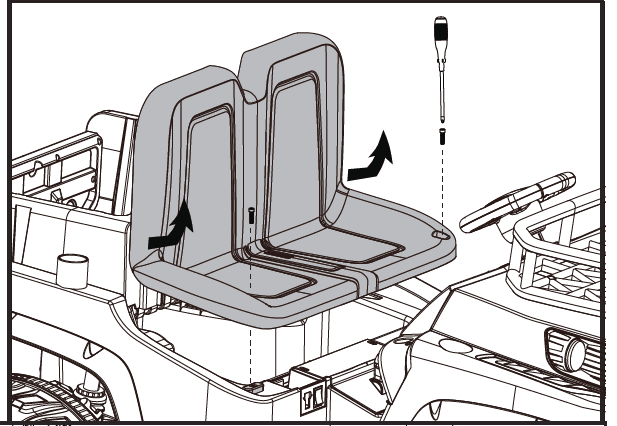

• Hook the clips (in the back of the seat) up into the slots in the ride-on toy body, then click the seat into the ride-on toy body.

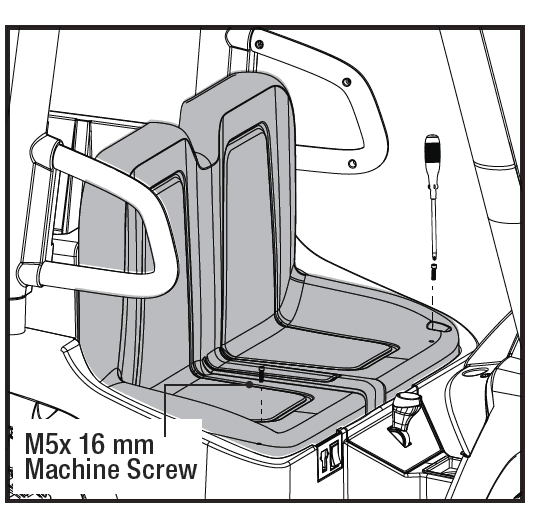

• Tighten the seat with two M5x16 mm machine screws.

BATTERY CHARGING

IMPORTANT NOTE

• We recommend that you start charging your battery before beginning the assembly of your new ride-on toy.
• The battery must be upright while charging.
• The charger is not a toy, and should only be operated by adults.
• Do not short-circuit the battery.
• You do not need to remove the battery from your ride-on toy to recharge it.
• Before charging the battery, examine the battery case for cracks and other damage that may cause sulfuric acid (electrolyte) to leak during the charging process. If damage is detected, do not charge the battery or use it in your ride-on toy. Battery acid is very corrosive and can cause severe damage to surfaces it contacts.
• NOTE:
• This product has CHARGING PROTECTION: when charging, all the functions will be cut off.
• Recharges after initial charge – Up to 12 hours, and never charge the battery longer than 30 hours.
• When the ride-on toy begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time 12 hours, less than 30 hours at most.
  • CAUTION: Use the charger in dry locations only.

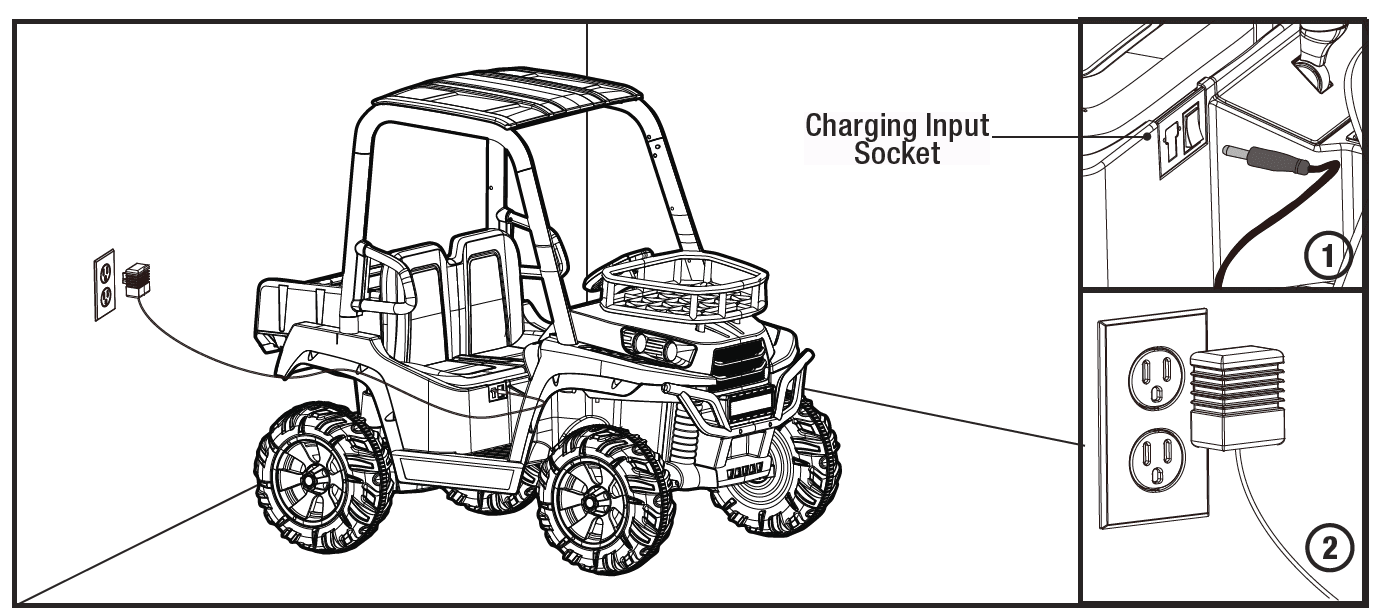

• Plug the charger port into the input socket (the socket is under the seat).
• Plug the charger plug into a wall outlet. The battery will begin charging

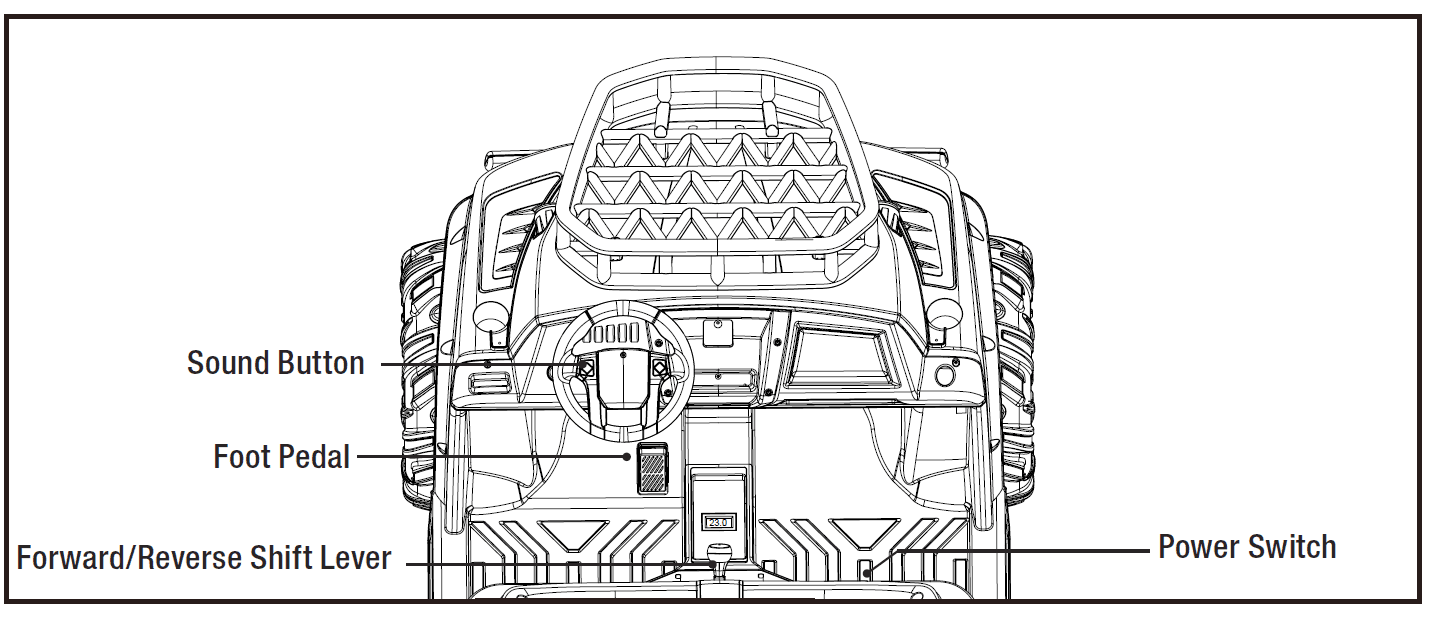

HOW TO USE YOUR RIDE-ON TOY

• POWER SWITCH
• Turn the ride-on toy on or off.
• FOOT PEDAL
• To move the car, press the foot pedal down.
• To stop, take your foot off the foot pedal.
• FORWARD-REVERSE SHIFT LEVER
• To move the car forward at high speed, shift the lever to the “2” position.
• To move the car forward at low speed, shift the lever to the “1” position.
• To move the car backward, shift the lever to the “R” position.
• NOTE: Use low speed until you get familiar with your new ride-on toy.

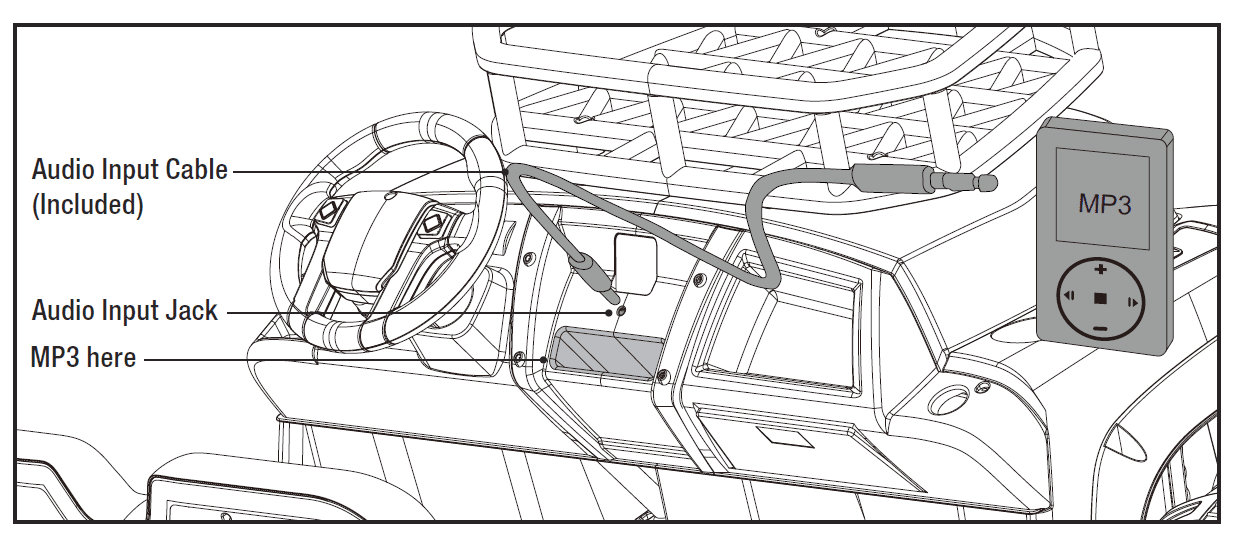

• SOUND BUTTON
• To activate sound, press the button on the steering wheel.
• STOP
• To stop the ride-on toy, you must take your foot off the pedal

DETAILED MAINTENANCE AND REPAIR

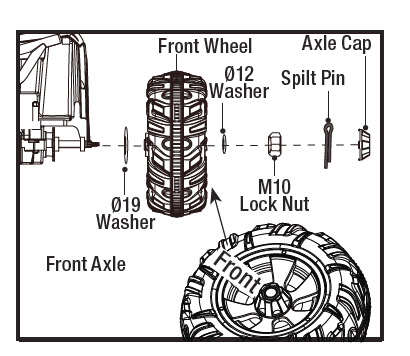

HOW TO REPLACE FRONT WHEEL

1. Remove the axle cap by sliding a flat head screwdriver along the edge of the cap and carefully prying the cap open.
2. Use needle nose pliers to remove the split pin in the hole of the front axle end.
3. Remove the M10 locknut with a 17 mm socket wrench.
4. Remove the Ø12 washer.
5. Remove the wheel, then replace it with a new wheel.
6. Remount the Ø12 washer and M10 locknut and securely tighten the wheel.

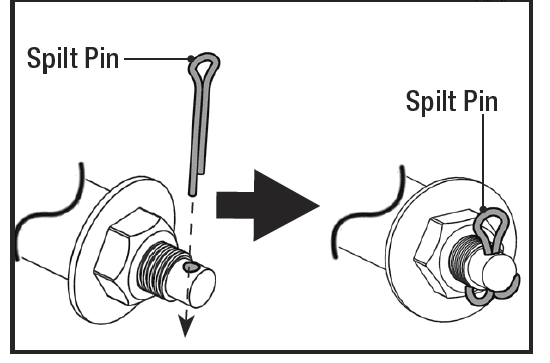

7. Insert a split pin into the hole in the end of the front axle, and split it using standard needle nose pliers.
8. Reinsert the axle cap.

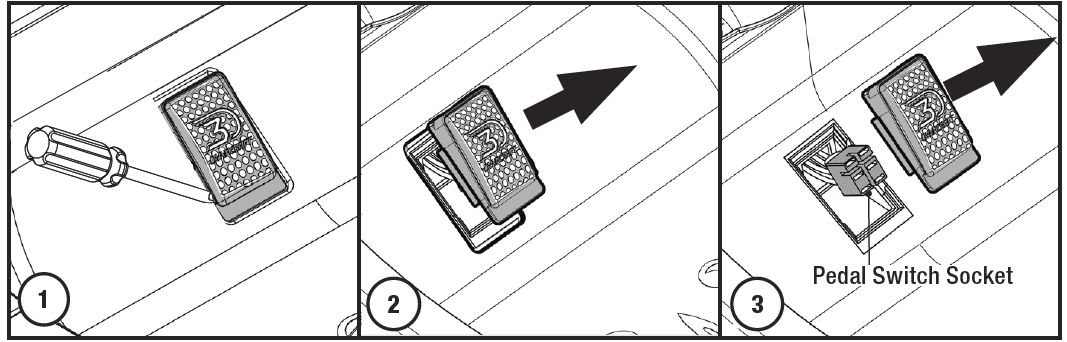

HOW TO REPLACE THE FOOT PEDAL

1. Use a flat-head screwdriver to gently pry the LEFT side of a foot pedal.
2. Gently remove the foot pedal.
3. Disconnect the old foot pedal from the pedal switch socket.
4. Replace and reconnect the new foot pedal to the pedal switch socket to ensure they are connected in the correct position (see Figure 3) and then insert the right side of the foot pedal into the foot pedal compartment first, and gently push down on the left side of the pedal so that it snaps into place

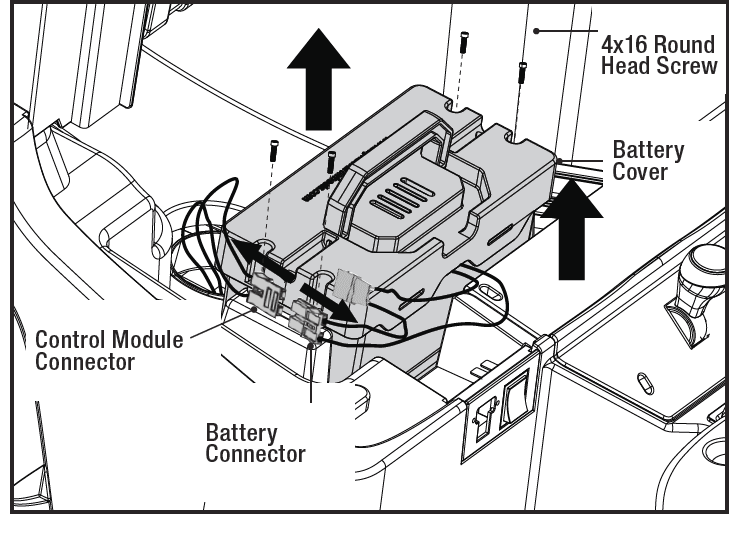

HOW TO REPLACE THE BATTERY

1. Unscrew the two screws on the seat and remove the seat.
2. Use a screwdriver to remove the four screws on the battery cover.
3. Unplug the battery connector (which is connected to the battery).
4. Carefully lift the handle on the battery cover and remove the dead battery together with the battery cover and replace it with a new battery

HOW TO REPLACE FORWARD-REVERSE SHIFT LEVER

1. Unscrew the two screws on the seat and remove the seat.
2. Unscrew four 4×12 round head screws as shown to remove the Forward-Reverse Shifter Assembly from the ride-on toy body (diagram A).
3. Unplug the switch sockets from the Forward-Reverse switches (diagram B).
4. Use a flat head screwdriver to pry off the shift lever cover, and then unscrew the 4×16 mm flat head screw and remove the shift lever (diagram C).
5. Unscrew the 4 4×16 mm flat head screws and remove the shift lever assembly.
6. Replace the shift lever assembly with a new one, securing it with the 4 4×16 mm flat head screws. Reattach the shift lever using the 4×16 mm flat head screw and snap the shift lever cover back into place. Reconnect the switch sockets with the Forward-Reverse Switches, and reverse steps 1 and 2, above, to finish reinstalling the shift lever

MAINTAINING YOUR RIDE-ON TOY

• Occasionally use a lightweight oil to lubricate moving parts such as wheels and the steering linkages.
• Park the ride-on toy indoors or cover it with a tarp to protect it from wet weather. Keep the ride-on toy away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• ADULTS ONLY: Recharge the battery after each use. Recharge the battery at least once a month when the ride-on toy is not being used.
• DO NOT wash the ride-on toy with a hose. DO NOT wash the ride-on toy with soap and water.
• DO NOT drive the ride-on toy in rainy or snowy weather. Water will damage the motor, electrical system, and battery.
• DO NOT store the ride-on toy, outside in the rain or exposed to the elements. The ride-on toy should be stored inside or covered to protect it from exposure to the elements.
• Clean the ride-on toy with a soft, dry cloth. To restore shine to plastic parts, use a nonwax furniture polish. DO NOT use car wax. DO NOT use abrasive cleaners, or cleaners that contain ammonia or isopropyl alcohol.
• DO NOT drive the ride-on toy in loose dirt, sand or fine gravel, which could damage moving parts, motors or the electric system.

TROUBLESHOOTING GUIDE
