LG FH2J3QDN Inverter Direct Drive Front Loader Washer User Manual

LG FH2J3QDN Inverter Direct Drive Front Loader Washer

SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Installation

• Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
• This appliance should only be transported by two or more people holding the appliance securely.
• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, or rain or temperatures below freezing.
• Tighten the drain hose to avoid separation.
• If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.
• Do not plug multiple socket outlets, an extension power cable, or an adapter into this appliance.
• This appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the appliance, in such a way that a full opening of the appliance door is restricted.
• This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance to electric current.
• This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.
• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded.
• Do not modify the power plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

Operation

• Do not attempt to separate any panels or disassemble the appliance. Do not apply any sharp objects to the control panel in order to operate the appliance.
• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owner’s Manual. Use only authorized factory parts.
• Do not put animals, such as pets into the appliance.
• Keep the area underneath and around the appliance free of combustible materials such as lint, paper, rags, chemicals, etc.
• Do not leave the appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.
• Use new hose or hose-set supplied with the appliance. Reusing old hoses can cause a water leak and subsequent property damage.
• Do not put in, wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as waxes, wax removers, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene, petrol, spot removers, turpentine, vegetable oil, cooking oil, acetone, alcohol, etc.). Improper use can cause fire or explosion.
• Never reach into the appliance while it is operating. Wait until the drum has completely stopped.
• In case of a flood, disconnect the power plug and contact the LG Electronics customer information centre.
• Do not push down the door excessively, when the appliance door is open.
• Do not touch the door during a high-temperature program.
• Do not use flammable gas and combustible substances (benzene, gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
• If the drain hose or inlet hose is frozen during winter, use it only after thawing.
• Keep all washing detergents, softeners, and bleach away from children.

INSTALLATION

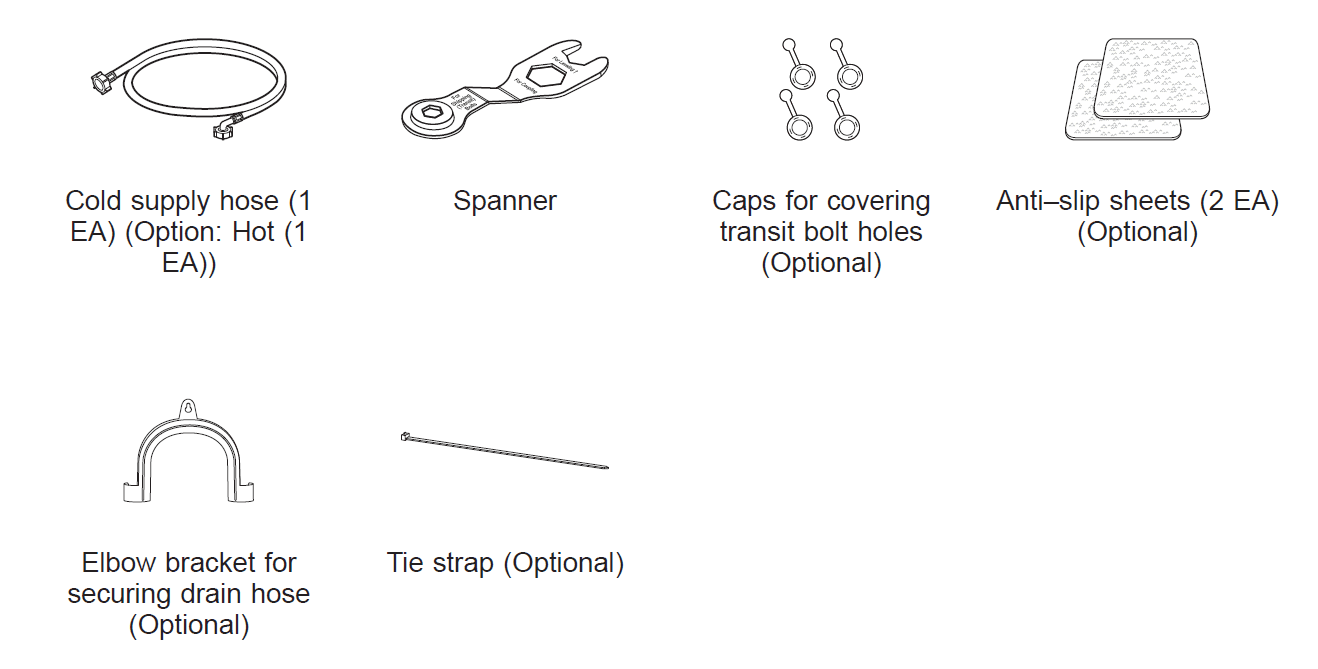

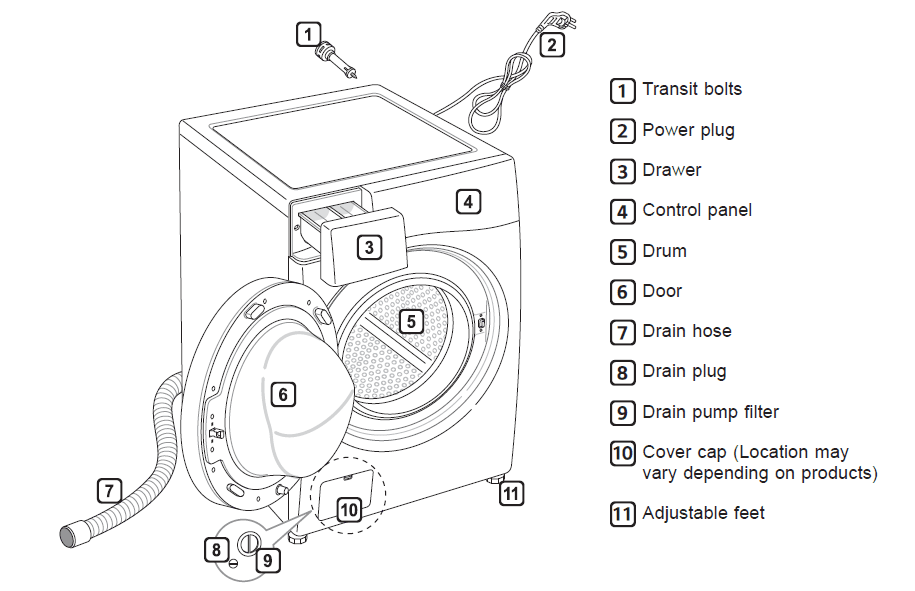

Accessories

Specifications

• Appearance and specifications may change without notice to improve the quality of the product.
• No further backflow protection is required for connection to the water supply.

Installation Place Requirements

Location

Level floor: Allowable slope under the entire appliance is 1°.

Power outlet: Must be within 1.0 meter of either side of the location of the appliance.

• Do not overload the outlet with more than oneappliance.

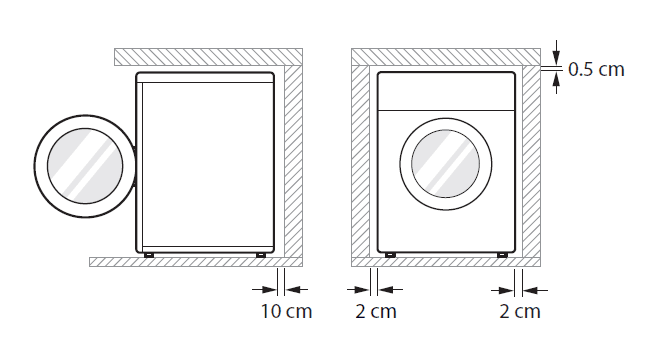

  Additional Clearance: For the wall, 10 cm: rear/2 cm: right & left side
• Do not place or store laundry products on topof the appliance at any time. These productsmay damage the finish or controls.

WARNING: The plug must be plugged into an appropriateoutlet that is properly installed and groundedin accordance with all local codes andordinances.

Positioning

• Install the appliance on a flat hard floor.
• Make sure that air circulation around the appliance is not impeded by carpets, rugs,etc.
• Never try to correct any unevenness in the floor with pieces of wood, cardboard or similarmaterials under the appliance.
• If it is impossible to avoid positioning the appliance next to a gas cooker or coal burning stove, insulation (85×60 cm) covered with aluminum foil on the side facing the cooker or stove must be inserted between the two appliances.
• Do not install the appliance in rooms where freezing temperatures may occur. Frozen hoses may burst under pressure. There liability of the electronic control unit may be impaired at temperatures below freezing point.
• Ensure that when the appliance is installed, it is easily accessible for an engineer in the event of a breakdown.
• With the appliance installed, adjust all four feet using the transit bolt spanner provided to ensure the appliance is stable, and a clearance of approximately 5 mm is left between the top of the appliance and the underside of any worktop
• If the appliance is delivered in winter and temperatures are below freezing, place the appliance at room temperature for a few hours before putting it into operation.

WARNING: This equipment is not designed for maritime use or for use in mobile installations such as caravans, aircraft etc.

Electrical Connection

• Do not use an extension cord or double adapter.
• Always unplug the appliance and turn off the water supply after use.
• Connect the appliance to an earthed socket in accordance with current wiring regulations.
• The appliance must be positioned so that the plug is easily accessible.
• Repairs to the appliance must only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local service centre.

Using Anti-Slip Sheets (Optional)

If you install the appliance on a slippery surface, it may move because of excessive vibration. Incorrect leveling may cause malfunction through noise and vibration. If this occurs, install the anti-slip sheets under the leveling feet and adjust the level.

1. Clean the floor to attach the anti-slip sheets.
   • Use a dry rag to remove and clean foreign objects and moisture. If moisture remains, the anti-slip sheets may slip.
2. Adjust the level after placing the appliance in the installation area.

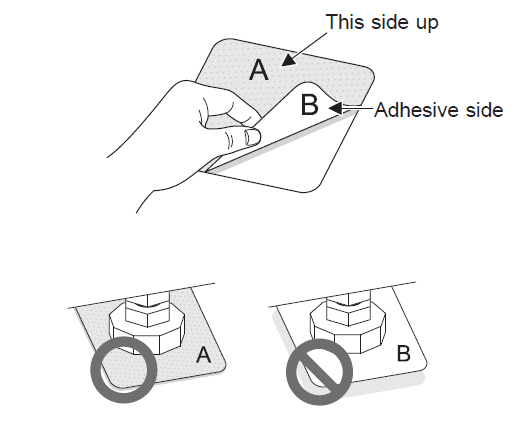

3. Place the adhesive side of the anti-slip sheets on the floor.
   • It is most effective to install the anti-slip sheets under the front feet. If it is difficult to place the pads under the front feet, place them under the back feet.
4. Ensure the appliance is level.
   1. Push or rock the top edges of the appliance gently to make sure that the appliance does not rock. If the appliance rocks, level the appliance again.

NOTE: You can obtain anti-slip sheets from the LG Service Centre.

Wooden Floors (Suspended Floors)

• Wooden floors are particularly susceptible to vibration.

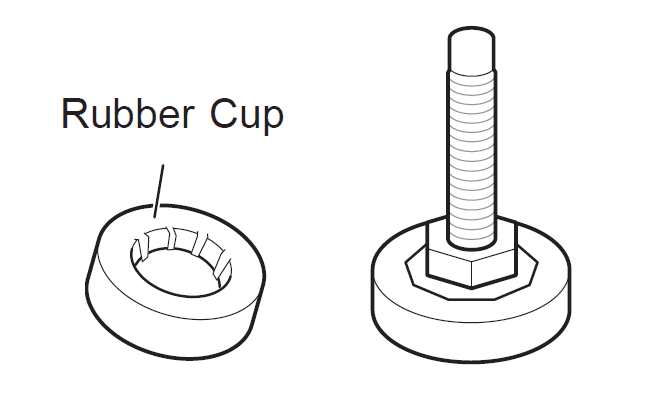

• To prevent vibration we recommend you place rubber cups at least 15 mm thick of each foot of the appliance, secured to at least two-floor beams with screws.
• If possible install the appliance in one of the corners of the room, where the floor is more stable.
• Fit the rubber cups to reduce vibration.

NOTE

• Proper placement and leveling of the washing machine will ensure long, regular, and reliable operation.
• The washing machine must be 100% horizontal and stand firmly in position.
• It must not ‘Seesaw’ across corners under the load.
• The installation surface must be clean, and free from floor wax and other lubricant coatings.
• Do not let the feet of the washing machine get wet. Failure to do so may cause vibration or noise.
• You can obtain rubber cups (p/no.4620ER4002B) from the LG Service Centre.

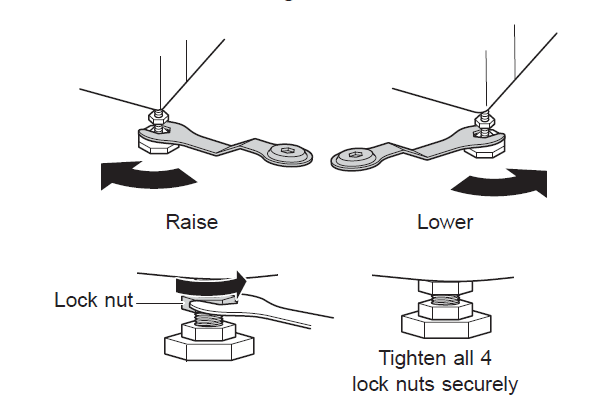

Leveling the Appliance

If the floor is uneven, turn the adjustable feet as required (Do not insert pieces of wood etc. under the feet). Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level (Use a spirit level).

• Once the appliance is level, tighten the lock nuts up towards the base of the appliance. All lock nuts must be tightened.

Diagonal Check

• When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (check both directions). If the appliance rocks when pushing the machine top plate diagonally, adjust the feet again.

NOTE

• Timber or suspended-type flooring may contribute to excessive vibration and unbalance.
• If the washing machine is installed on a raised platform, it must be securely fastened in order to eliminate the risk of falling off.

Connecting the Water Supply Hose

• Water pressure must be between 0.1 MPa and 1.0 MPa (1.0‒10.0 kg/cm2).
• Do not strip or cross-thread when connecting the supply hose to the valve.
• If the water pressure is more than 1.0 MPa, a decompression device should be installed.
• Periodically check the condition of the hose and replace the hose if necessary.

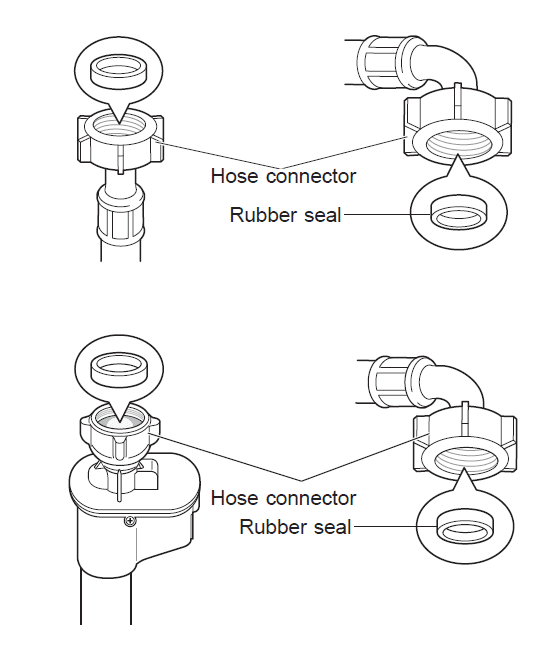

Checking the Rubber Seal on the Water Supply Hose

Two rubber seals are supplied with the water inlet hoses. They are used for preventing water leaks. Make sure the connection to taps is sufficiently tight.

Connecting Hose to Water Tap

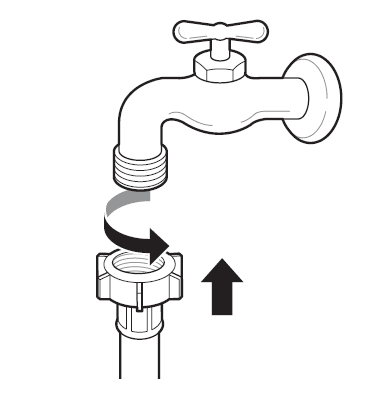

Connecting Screw-Type Hose to Tap with Thread

Screw the hose connector onto the water supply tap.

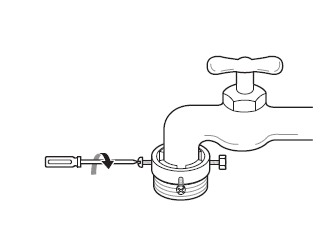

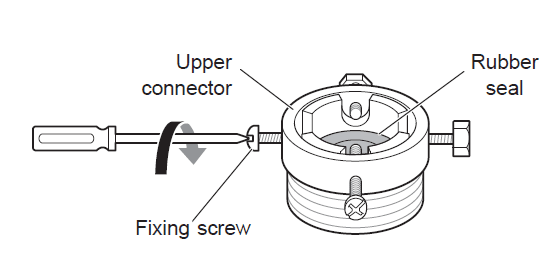

Connecting Screw-Type Hose to Tap Without Thread

1. Loose the four fixing screws.
2. Remove the guide plate if the tap is too large to fit the adapter.
3. Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection. Tighten the four fixing screws.
4. Push the supply hose vertically upwards so that the rubber seal within the hose can adhere completely to the tap and then tighten it by screwing it to the right.

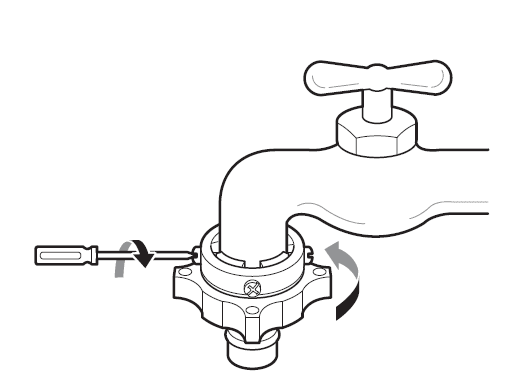

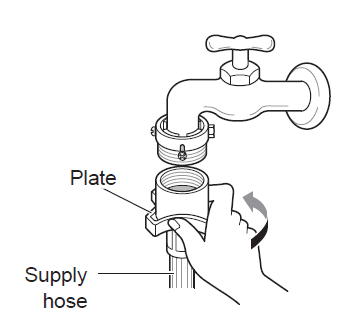

Connecting One Touch Type Hose to Tap Without Thread

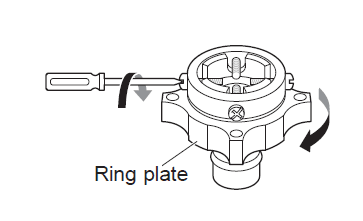

1. Unscrew the adapter ring plate and loose the four fixing screws.
2. Remove the guide plate if the tap is too large to fit the adapter.
3. Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection. Tighten the four fixing screws and the adapter ring plate.

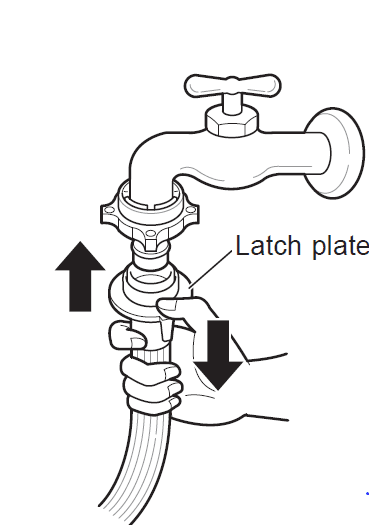

4. Pull the connector latch plate down, push the supply hose onto the adapter, and release the connector latch plate. Make sure the adapter locks into place.

NOTE

• Before connecting the supply hose to the water tap, turn on the water tap to flush out foreign substances (dirt, sand, sawdust, and etc.) in the water lines. Let the water drain into a bucket, and check the water temperature.

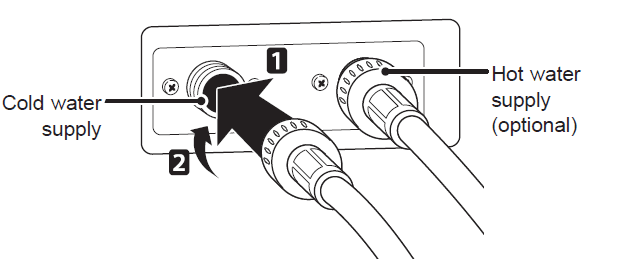

Connecting Hose to Appliance

Attach the hot water line to the hot water supply on the back of the washer. Attach the cold water line to the cold water supply on the back of the washer.

NOTE: After completing the connection, if water leaks from the hose, repeat the same steps. Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the guide plate before inserting the tap into the adaptor

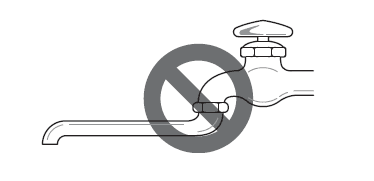

Using the Horizontal Tap

Horizontal tap
Extension tap Square tap

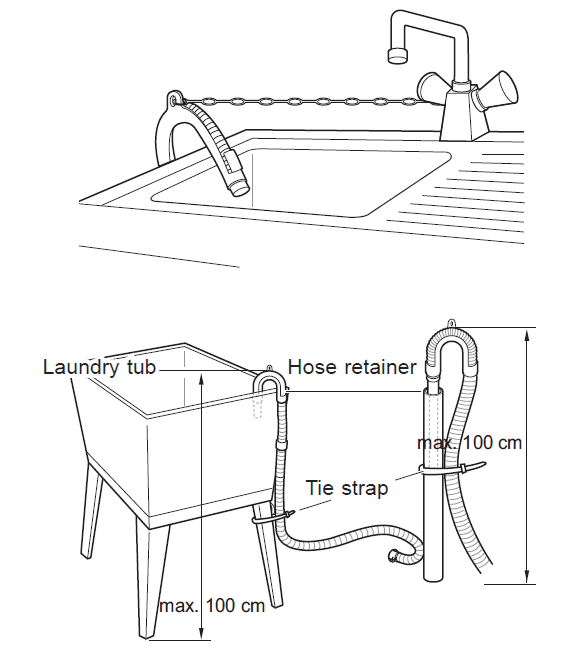

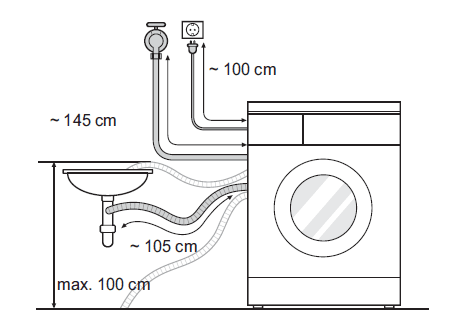

Installing the Drain Hose

• The drain hose should not be placed higher than 100 cm above the floor. Water in the appliance may not drain or may drain slowly.
• Securing the drain hose correctly will protect the floor from damage due to water leakage.
• If the drain hose is too long, do not force it back into the appliance. This will cause abnormal noise.
•
• When installing the drain hose to a sink, secure it tightly with string.
• Securing the drain hose correctly will protect the floor from damage due to water leakage

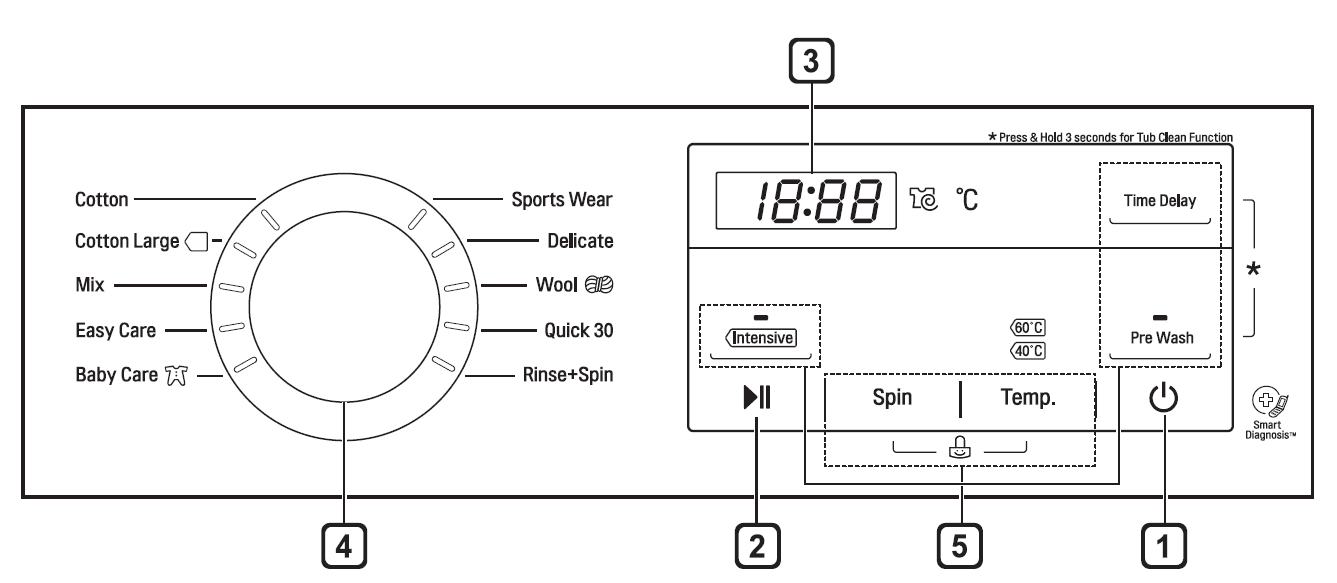

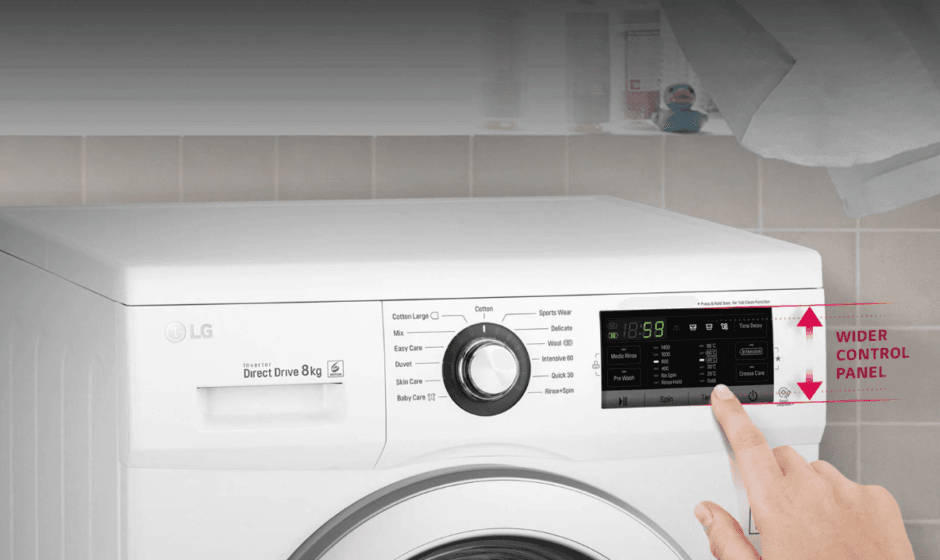

Control Panel

1. Power Button:
   • Press the Power button to turn the washing machine on.
2. Start/Pause Button:
   • This Start/Pause button is used to start the wash cycle or pause the wash cycle.
   • If a temporary stop of the wash cycle is needed, press the Start/Pause button.
3. Display
   • The display shows the settings, estimated time remaining, options, and status messages. When the product is turned on, the default settings in the display will illuminate.
   • The display shows the estimated time remaining. While the size of the load is being calculated automatically, blinking or ‘Detecting’ appears.
4. Programme Knob
   • Programs are available according to the laundry type.
   • The lamp will light up to indicate the selected program.
5. Options
   • This allows you to select an additional program and will light when selected.
   • Use these buttons to select the desired program options for the selected cycle.

Programme Table

Washing Programme

Extra Options

**: This option is automatically included in the cycle and can be deleted.

Operating Data

MAINTENANCE

Cleaning Your Washing Machine

Care After Wash

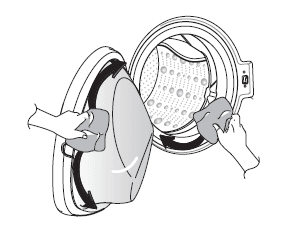

• After the cycle is finished, wipe the door and the inside of the door seal to remove any moisture.
• Leave the door open to dry the drum interior.
• Wipe the body of the washing machine with a dry cloth to remove any moisture.

Cleaning the Exterior

Proper care of your washing machine can extend its life.

Door:

• Wash with a damp cloth on the outside and inside and then dry with a soft cloth.

Exterior:

• Immediately wipe off any spills.
• Wipe with a damp cloth.
• Do not press the surface or the display with sharp objects.

Cleaning the Interior

• Use a towel or soft cloth to wipe around the washing machine door opening and door glass.
• Always remove items from the washing machine as soon as the cycle is complete. Leaving damp items in the washing machine can cause wrinkling, color transfer, and odor.
• Run the Tub Clean program once a month (or more often if needed) to remove detergent buildup and other residue

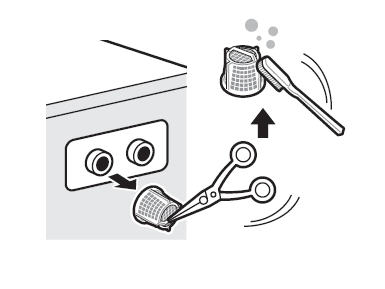

Cleaning the Water Inlet Filter

• Turn off the supply taps to the machine if the washing machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.
• icon will be displayed on the control panel when water is not entering the detergent
  drawer.
• If water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it occasionally.

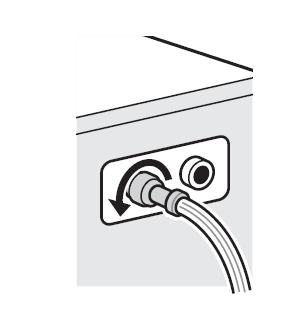

1. Turn off the water tap and unscrew the water supply hose.
2. Clean the filter using a hard bristle brush.

Cleaning the Dispenser Drawer

Detergent and fabric softener may build up in the dispenser drawer. Remove the drawer and inserts and check for buildup once or twice a month.

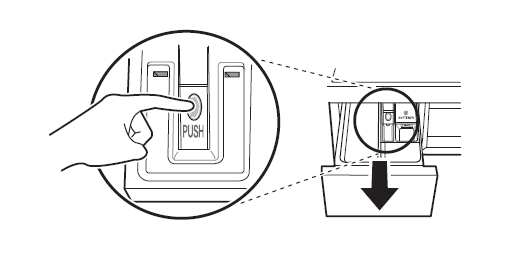

1. Remove the detergent dispenser drawer by pulling it straight out until it stops.
   • Press down hard on the disengage button and remove the drawer.
2. Remove the inserts from the drawer.
   • Rinse the inserts and the drawer with warm water to remove build-up from laundry products. Use only water to clean the dispenser drawer. Dry the inserts and drawer with a soft cloth or towel.
3. To clean the drawer opening, use a cloth or small, non-metal brush to clean the recess.
   • Remove all residue from the upper and lower parts of the recess.
4. Wipe any moisture off the recess with a soft cloth or towel.
5. Return the inserts to the proper compartments and replace the drawer.

Tub Clean (Optional)

Tub Clean is a special cycle to clean the inside of the washing machine. A higher water level is used in this cycle at a higher spin speed. Perform this cycle regularly.

1. Remove any clothing or items from the washing machine and close the door.
2. Open the dispenser drawer and add anti-limescale (e.g. Calgon) to the main wash compartment.
3. Close the dispenser drawer slowly.
4. Power On and then press and hold the Time Delay and Pre Wash button for 3 seconds. Thenwill be displayed on the display.
5. Press the Start/Pause button to start.
6. After the cycle is complete, leave the door open to allow the washing machine door opening, flexible gasket, and door glass to dry.

CAUTION: If there is a child, be careful not to leave the door open for too long.
NOTE: Do not add any detergent to the detergent compartments. Excessive suds may generate and leak from the washing machine.

TROUBLESHOOTING EN

• Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your washing machine does not function properly or does not function at all, check the following before you call for service:

Diagnosing Problems

WARRANTY

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install or repair the product; instruction to the customer on operation of the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of unauthorized repairs/installation.
• Failure of the product to perform during power failures and interruptions or inadequate electrical service.
• Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product’s owner’s manual.
• Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
• Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the intended purpose, or any water leakage where the product was not properly installed.
• Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, components, or consumable cleaning products that are not approved by LG.
• Damage caused by transportation and handling, including scratches, dents, chips, and/or other
  damage to the finish of your product, unless such damage results from defects in materials or workmanship.
• Damage or missing items to any display, open box, discounted, or refurbished Product.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
• Increases in utility costs and additional utility expenses.
• Repairs when your Product is used in other than normal and usual household use or contrary to the instructions outlined in the Product’s owner’s manual.
• Costs associated with removal of your Product from your home for repairs.
• The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including LG’s owner’s and installation manuals.
• Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not approved or specified by LG.

For more manuals by LG visit, ManualsLibraryy

LG FH2J3QDN Inverter Direct Drive Front Loader Washer-FAQs
