Dyson TP01 Pure Cool Tower Air Purifier and Fan User Manual

Dyson TP01 Pure Cool Tower Air Purifier and Fan

IMPORTANT SAFETY INSTRUCTIONS

BEFORE USING THIS MACHINE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN
THIS MANUAL AND ON THE MACHINE

When using an electrical machine, basic precautions should always be followed, including the following:

WARNING

THE MACHINE AND THE REMOTE CONTROL BOTH CONTAIN MAGNETS.

1. Pacemakers and defibrillators may be affected by strong magnetic fields. If you or someone in your household has a pacemaker or defibrillator, avoid placing the remote control in a pocket or near to the device.
2. Credit cards and electronic storage media may also be affected by magnets and should be kept away from the remote control and the top of the machine. These warnings apply to the machine, and also where applicable, to all tools, accessories, chargers, or mains adaptors. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
3. This Dyson machine is not intended for use by persons (including children) with reduced physical, sensory or reasoning capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the machine by a person responsible for their safety.

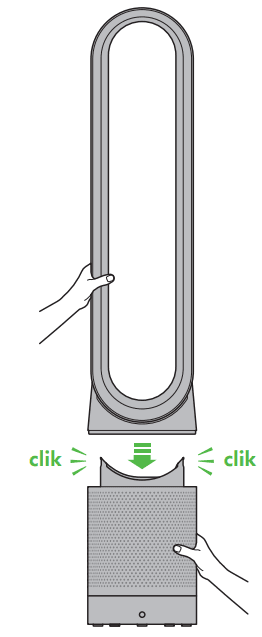

4. Ensure the machine is fully assembled in line with the instructions before use. Do not dismantle the machine or use it without the loop amplifier fitted.
5. Do not allow it to be used as a toy. Close attention is necessary when used by or near children. Children should be supervised to ensure that they do not play with the machine.
6. Use only as described in this Dyson Operating Manual. Do not carry out any maintenance other than that shown in this manual, or advised by the Dyson Helpline.
7. Suitable for dry locations ONLY. Do not use outdoors or on wet surfaces and do not expose to water or rain.
8. Do not handle any part of the plug or machine with wet hands.
9. Do not operate any machine with a damaged cord or plug. Discard the machine or return it to an authorized service facility for examination and/or repair. If the supply cord is damaged it must be replaced by Dyson, its service agent, or a similarly qualified person in order to avoid a hazard.
10. If the machine is not working as it should, has received a sharp blow, has been dropped, damaged, left outdoors, or dropped into water, do not use it and contact the Dyson Helpline.
11. Do not stretch the cord or place the cord under strain. Keep the cord away from heated surfaces.
12. Do not run the cord under the carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from traffic area and where it will not be tripped over.
13. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord. The use of an extension cord is not recommended.
14. Do not put any objects into openings or the inlet grille. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
15. Do not use any cleaning agents or lubricants on this machine. Unplug before cleaning or carrying out any maintenance.
16. Always carry the machine by the base, do not carry it by the loop amplifier.
17. Turn off all controls before unplugging. Unplug from the outlet when not in use for extended periods. To avoid a tripping hazard, safely coil the cord.
18. Do not use near furnaces, fireplaces, stoves, or other high-temperature heat sources.
19. Do not use in conjunction with or directly next to an air freshener or similar products. Do not spray or apply perfumes directly on or near the filter. Keep essential oils and chemicals away from the machine.
20. This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.
21. WARNING: Chemical Burn and Choking Hazard. Keep batteries away from children. This product
    contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
22. Always place the machine on a firm, flat, level surface.
23. Your filter unit is non-washable and non-recyclable.

READ AND SAVE THESE INSTRUCTIONS
This Dyson machine is intended for household use only.

POLARIZATION INSTRUCTIONS

To reduce the risk of electric shock, this machine has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not attempt to defeat this safety feature and do not change the plug in any way.

• Do not pull on the cord. In order to avoid overheating and fire hazards, do not cover the machine.
• Do not store near heat sources.
• Do not carry by the air loop amplifier. The air loop amplifier is not a handle.
• Do not use near open flames.
• Do not spray-scented products such as air fresheners or perfumes near the filter or the machine.

Control

Attach the remote control to the top of the machine with the buttons facing down.

To set the sleep timer, select the desired time. When time reaches zero, the machine will go into standby mode. To cancel, increase the time until two dashes appear.When using the sleep timer, the LED display will turn off after 10 seconds of inactivity.

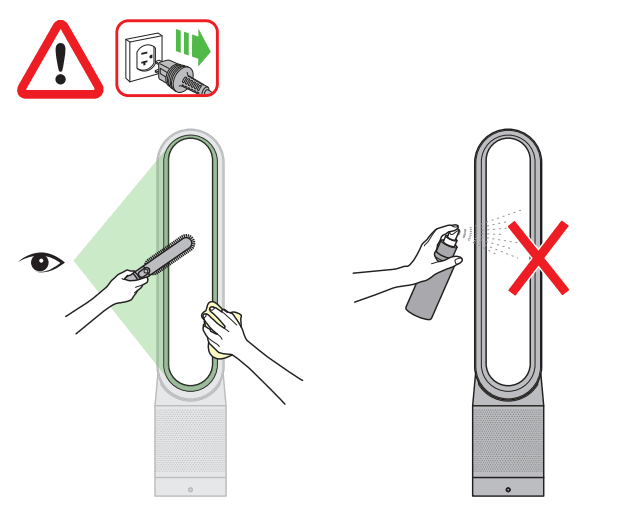

Cleaning

Ensure the machine is unplugged. Wipe dust from the loop, filter unit, and other parts with a soft brush or dry or damp cloth when dust accumulates. Do not use detergents or polishes to clean the machine.

Clearing blockages

Ensure the machine is unplugged. Look for blockages in the air inlet holes and in the small aperture inside the air loop amplifier. Use a soft brush to remove debris.

Replacing the filter unit

When your non-washable filter unit needs replacing the machine will display the pattern shown. To replace the non-washable filter unit, follow these steps. If the machine has been in use, leave for 1 to 2 hours before replacing the filter unit to allow the machine to cool down completely. Your Dyson machine is programmed to remind you to replace the filter unit after 12 months based on 12 hours of usage a day. Please note your indicator will activate sooner with more use. The indicator is only a guide. Use in heavily polluted environments may require the filter unit to be replaced more regularly.

USER SERVICING INSTRUCTIONS

DO NOT REPLACE ATTACHMENT PLUG
Risk of fire. Do not replace the attachment plug. Contains a safety device (fuse) that should not be removed. Discard the product if the attachment plug is damaged.

• Grasp the plug and remove it from the receptacle or other outlet device. Do not unplug by pulling

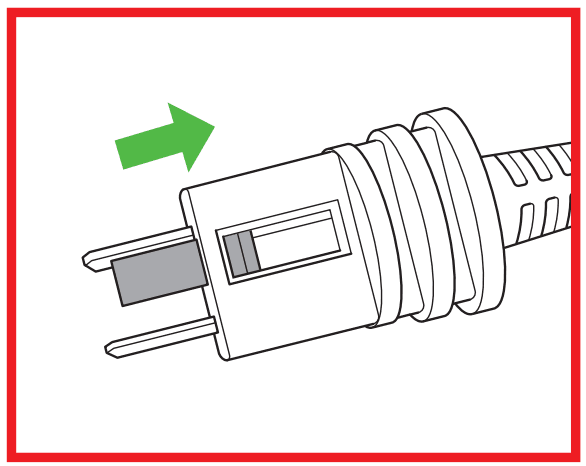

  on the cord. Slide open the fuse access cover on top of the plug towards the blades.
• Remove the fuse carefully.
• Risk of fire. Replace fuse only with 5 Amp, 125 Volt fuse.

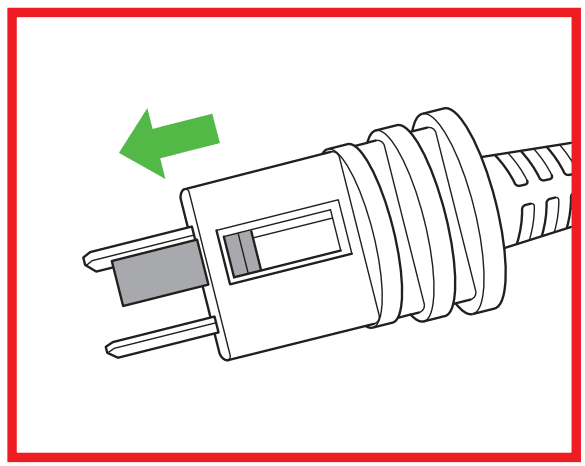

• Close the fuse cover. Slide closed the fuse access cover on top of the attachment plug.

USING YOUR DYSON MACHINE

PLEASE READ THE ‘IMPORTANT SAFETY INSTRUCTIONS’ IN YOUR DYSON USER MANUAL BEFORE PROCEEDING.

LOOKING AFTER YOUR DYSON MACHINE

• Do not carry out any maintenance or repair work other than that shown and described in your Dyson User manual, or advised by the Dyson Helpline.
• Always disconnect the plug from the mains outlet before inspecting for problems. If the machine will not operate, first check that the mains outlet has an electricity supply and that the plug is properly inserted into the outlet.
• If the fuse needs replacing, please check ‘User servicing instructions’.

CONTROL WITHOUT REMOTE

• Press the Standby button on the machine to turn ON/OFF.

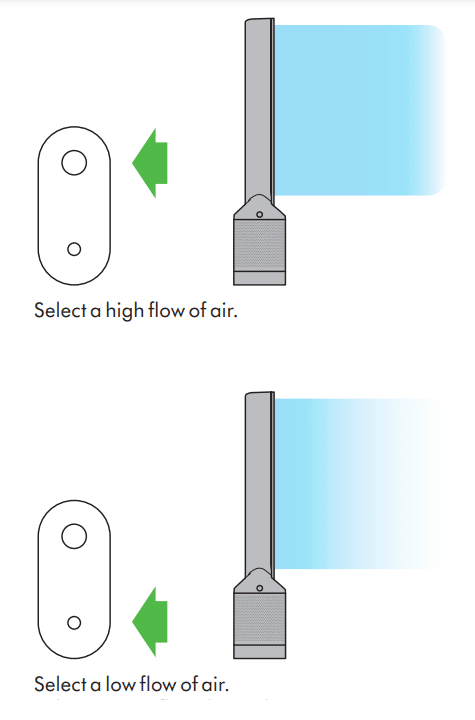

• Press and hold the Standby button on the machine to adjust the airflow. Airflow will increase to a maximum before decreasing.
• The oscillation function and sleep timer cannot be operated without the remote control.

LED DISPLAY

• The LED display will dim after 10 seconds of use.
• Press any button, other than the Standby ON/OFF, to reactivate.
• Do not press Standby ON/Off as this will turn the machine off.

SLEEP TIMER

To set the sleep timer, press and hold the Sleep timer button to select the desired time. When time reaches zero, the machine will go into standby mode. To cancel, reduce the time until two dashes appear

• The LED display will turn off after 10 seconds of inactivity – this is a power-saving feature and avoids light interference at night time.
• Press any button, other than the Standby ON/OFF, to reactivate.
• When the sleep timer is ON, do not press the Standby ON/OFF as this will turn the machine off and turn the sleep timer off too.

REPLACEABLE PARTS

BATTERY REPLACEMENT

CAUTION

• Switch OFF and unplug the machine before replacing the batteries.
• Unscrew the battery compartment on the remote control. Loosen the base and pull to remove the battery.
• Do not install backward or short-circuit the batteries.
• Do not attempt to dismantle or charge the batteries. Keep away from fire.
• Always replace the screw in the remote control and refer to the battery hazard in the warning section.
• Follow battery manufacturers’ instructions when installing new batteries (battery type CR 2032).
• Limited functionality is available without the remote control (see ‘Control without remote’).

NON-WASHABLE FILTER UNIT

• Your filter unit is non-washable and non-recyclable.
• To replace your filter unit follow the steps as shown.
• Failure to replace the filter when prompted may result in changes to product performance and appearance.
• A new filter unit can be purchased at www.dyson.com/filter.

DISPOSAL INFORMATION

• Dyson products are made from high-grade recyclable materials. Recycle where possible.
• Dispose of or recycle the battery in accordance with local ordinances or regulations
• Keep the used batteries away from children as these can still harm children if swallowed.
• Your filter units are non-washable and non-recyclable.
• Dispose of the exhaust filter unit(s) in accordance with local ordinances or regulations.
• The battery should be removed from the machine before disposal.
• California: This product includes a separate remote control device with a coin cell battery. The coin cell battery contains Perchlorates. Special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

DYSON CUSTOMER CARE

THANK YOU FOR CHOOSING TO BUY A DYSON MACHINE.
We don’t stop caring about our machines once they’re yours. With your free 2-year warranty, your Dyson purifying fan will be covered for parts and labor (excluding filters) for two years from the date of purchase, subject to the terms of the warranty. Even after your warranty has ended, we’ll still be on hand to help. If you have any questions regarding your Dyson machine, visit www.dyson.com/support for online help, general tips, and useful information about Dyson. Alternatively, you can call the Dyson Helpline with your serial number and details of where and when you bought the machine. If your Dyson machine needs repair, call the Dyson Helpline so we can discuss the available options. If your Dyson machine is under warranty, and it is a covered repair, it will be repaired at no cost.

REGISTER YOUR MACHINE TO BE THE FIRST TO RECEIVE DYSON UPDATES AND NEWS.

To help us ensure that you receive prompt and efficient service, please register as a Dyson machine owner. There are three ways to do this:

• Online at www.dyson.com
• Telephone the Dyson Helpline on 1-866-693-9766.
• Complete the enclosed form and mail it to us. This will confirm ownership of your Dyson machine in the event of an insurance loss, and enable us to contact you if necessary.
• Failure to register will not diminish your warranty rights.

LIMITED 2-YEAR WARRANTY

TERMS AND CONDITIONS OF THE DYSON 2-YEAR LIMITED WARRANTY

WHAT IS COVERED

This limited warranty is subject to the following terms:

• Your Dyson machine is warranted against original defects in materials and workmanship for a period of 2 years from the date of purchase when used for normal domestic purposes in accordance with the Dyson Operating Manual. Please retain your proof of purchase. If you do not have your proof of purchase, your warranty will start 90 days after the date of manufacture, according to Dyson’s records. This warranty provides, at no extra cost to you, all labor and parts necessary to ensure that your machine is in proper operating condition during the warranty period. The replacement of any part of your machine under warranty will not extend the period of warranty; however, your warranty will be extended for any time your machine is being repaired or retained for work being performed under the warranty. Any parts which are returned and replaced by Dyson will become the property of Dyson. Please call the Dyson Helpline at 1-866-693-9766 for more information.
• For refurbished machines, the length of the warranty may differ, please see the warranty letter included with the machine for warranty terms.
• This warranty is only valid if the machine is used in the country in which it was sold.

WHAT IS NOT COVERED

Dyson shall not be liable for costs, damages, or repairs incurred as a result of, due to, or from:

• Damage caused by not carrying out the recommended machine maintenance.
• Purchases of machines from unauthorized dealers.
• Careless operation or handling, misuse, abuse, and/or lack of maintenance or use not in accordance with the Dyson User manual.
• Use of the machine other than for normal domestic purposes within the United States, e.g. for commercial or rental purposes.
• Use of parts not in accordance with the Dyson User manual.
• Use of parts and accessories other than those produced or recommended by Dyson.
• External sources such as weather, electrical outages, or power surges.
• Repairs or alterations carried out by unauthorized parties or agents.
• Clearing blockages from your machine.
• Normal wear and tear (e.g. fuse etc.).
• Damage as a result of use not in accordance with the rating plate.
• Additionally, this limited warranty does not apply to any machine that has had the serial number altered or removed.
• If there is any doubt as to what is covered by the warranty, please contact Dyson.

WARRANTY LIMITATIONS AND EXCLUSIONS

• To the fullest extent permitted by applicable law, any implied warranties relating to your machine including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• To the fullest extent permitted by applicable law, your remedy for breach of this warranty is limited to the warranty service described below. Dyson will not be liable for any consequential damages or incidental damages you may incur in connection with your purchase and use of your machine.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by State.
• This limited warranty is not transferable.
• The limitations or exclusions of liability stated herein apply in the state of New Jersey, to the fullest extent permitted by applicable law.

WARRANTY SERVICE

• Before a service can take place, the terms of the warranty require that you contact the Dyson Helpline with your model name/number, serial number, date, and place of purchase.
• Please keep your purchase receipt in a safe place to ensure that you have this information.
• All work will be coordinated by Dyson or its authorized agents.
• Any replaced defective parts will become the property of Dyson.
• Service under this warranty will not extend the period of this warranty; however, your warranty will be extended for any time your machine is being repaired or retained for work being performed under the warranty.
• If your machine is not functioning properly, please call the Dyson Helpline at 1-866-693-9766. Most issues can be rectified over the telephone by our trained Helpline staff.

IMPORTANT DATA PROTECTION INFORMATION

When registering your Dyson machine:

• You will need to provide us with basic contact information to register your machine and enable us to support your warranty. Failure to register will not diminish your warranty rights.
• When you register, you will have the opportunity to choose whether you would like to receive communications from us. If you opt-in to communications from Dyson, we will send you details of special offers and news of our latest innovations.
• We never sell your information to third parties and only use information that you share with us as defined by our privacy policies which are available on our website at privacy.dyson.com.
