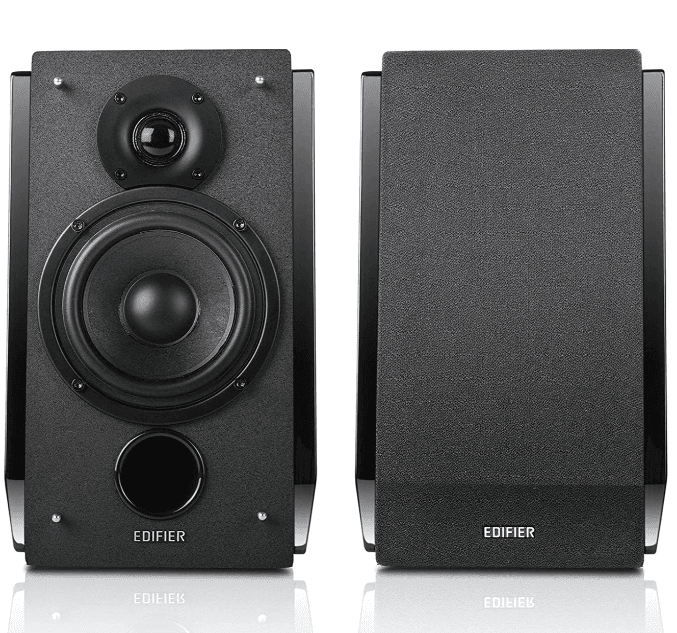

Edifier R1850DB Active Bookshelf Speakers
Important Safety Information
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Clean only with a dry cloth.
- Do not use this apparatus near water and never put this apparatus into liquids or allow liquids to drip or spill onto it.
- Do not place an appliance filled with water on this apparatus, such as a vase; nor place any form of open fire, such as a lit candle.
- Do not block any ventilation openings. Please leave enough space around the speakers to keep good ventilation (the distance should be above 5cm). Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled, objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
- Using the product in a 0-35 ·c environment is recommended.
- Do not use strong acid, strong alkali, and other chemical solvents to clean the product surface. Please use a neutral solvent or water to clean the product.

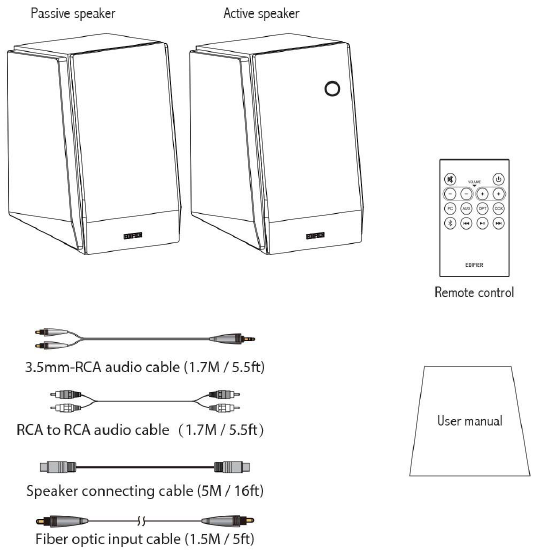

What’s in the box

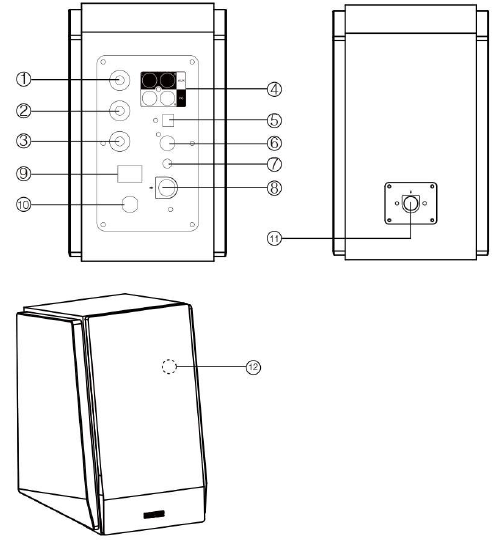

Control Panel
Illustration
- Treble dial
- Bass dial
- Master volume dial. Press to switch audio source: PC > AUX > OPT > COX > Bluetooth. Press and hold: Disconnect the Bluetooth connection
- Line-in input port
- Optical input port
- Coaxial input port
- Bass output
- Connect to the passive speaker port
- Power switch
- Power cord
- Connect to the active speaker port
- LED indicator:
- Blue: Bluetooth mode
- Green: PC mode (The light will flash once), AUX mode (The light will flash twice)
- Red: Optical mode (The light will flash once), Coaxial mode (The light will flash twice)
Note: The illustrations in this user manual may differ from the product. Please previous with the product at your hand.
Remote Control
- Mute/cancel mute
- Standby/power on
- Volume decrease
- Volume increase
- PC input
- AUX input
- Coaxial input
- Optical input
- Bluetooth (press and hold to disconnect Bluetooth connection)
- Previous track (Bluetooth mode)
- Next track (Bluetooth mode)
- Play/Pause (Bluetooth mode)
Replace the battery in the remote control
Open the remote control battery compartment as shown in the right picture. Properly replace the battery and close the battery compartment.
Note: A CR2025 cell battery sealed with insulating film is already placed in the remote control compartment as factory standard. Please take off the insulating film before the first use.
WARNING!
- Do not swallow the battery. It can cause danger!
- The product (the remote control included in the package) contains a cell battery. If it’s swallowed, it can cause severe injuries and lead to death within 2 hours. Please keep the new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and keep the remote control away from children.
- If you think the battery may have been swallowed or placed inside any part of the body, seek immediate medical attention.
Note:
- Do not expose the remote control to extreme heat or humidity.
- Do not charge the batteries.
- Remove the batteries when not in use for an extended period of time.
- Do not expose the battery to excessive heat, such as direct sun, fire, etc
- Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
Operating Instructions

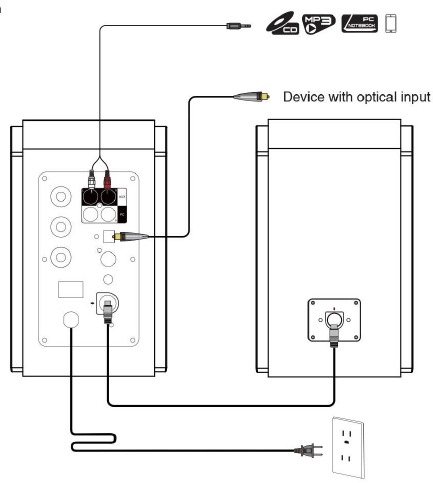

Connection
- Use the included speaker connecting cable to connect the active speaker and the passive speaker.
- Connect the speaker to the audio source device with the included audio cable.
- Connect the power adaptor to the speaker, and then connect it to the power source.
- Turn on the speaker. The LED indicator on the active speaker indicates the current audio source. If it’s not the intended input audio source, select the corresponding input with the remote control.
Audio Source Input
PC/ AUX Input
- Connect the audio cable to the PC/ AUX input port on the rear panel of the active speaker (please pay attention to the corresponding colors), and the other end to the audio source (i.e., PC, mobile phones and etc.).
- Press the PC/AUX button on the remote control or press the volume dial on the rear panel of the active speaker. The LED indicator on the active speaker turns green: PC mode (The light will flash once), AUX mode (The light will flash twice)
- Play music and adjust the volume to a comfortable level.
Optical/Coaxial Input
- Connect the “Optical cable” or “Coaxial cable” (not included) to the OPT/COX input port on the rear panel of the active speaker and device with optical and coaxial input.
- Press the OPT /COX button on the remote control or press the volume dial on the rear panel of the active speaker. The LED light on the active speaker turns red: OPT mode (The light will flash once), COX mode (The light will flash twice)
- Play music and adjust the volume to a comfortable level.
Note: In optical and coaxial modes, only PCM signals with 44.1 KHz/48 KHz can be decoded.
Bluetooth Connection
Bluetooth®
- Press the Bluetooth key on the remote control or the master volume control of the active speaker to select Bluetooth mode. The LED indicator turns blue.
- Turn on your Bluetooth device. Search and connect “EDIFIER R1850DB”.
Disconnect Bluetooth: Press and hold the volume dial or the Bluetooth key on the remote control for about 2 seconds to disconnect Bluetooth.
Playback: Reconnect Bluetooth and play music.
Note:
- The Bluetooth on R1850DB can only be searched and connected after switching the speaker into Bluetooth input mode. The existing Bluetooth connection will be disconnected once the speaker is switched to another audio source. When the speaker is switched back to Bluetooth input mode, the speaker will try to connect to the last connected Bluetooth audio source device.
- Pin code is “0000” if it is needed.
- In order to use all Bluetooth features offered by the product, make sure your audio source device supports A2DP and AVRCP profiles.
- The compatibility of the product may vary depending on the audio source device.

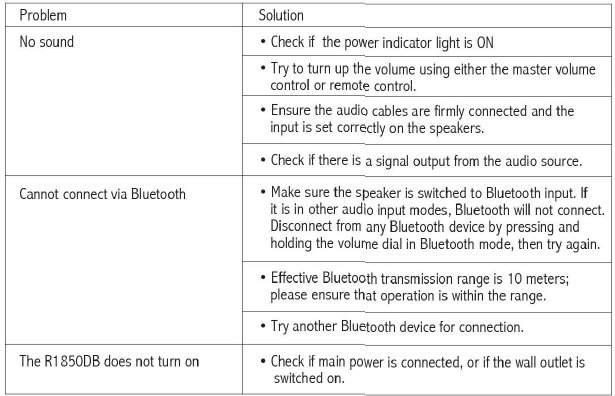

Troubleshooting
