Edifier W820NB Plus Over-Ear Headphones User Manual

Edifier W820NB Plus Over-Ear Headphones

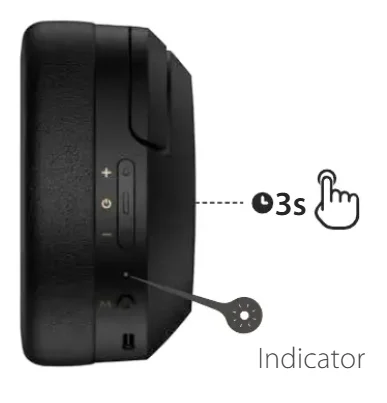

Power ON/OFF

1. Power ON: press and hold the “O” key for about 3s when powered OFF until the LED blinks blue.
2. Power OFF: press and hold the “O” key for about 3s when powered ON until the LED blinks red.

Note:

Under wireless mode:

1. If there is no Bluetooth connection for 5 minutes after powering on, the headphones will turn off automatically.
2. If there is no Bluetooth connection when the noise cancellation is on, the headphones will turn off automatically after 4 hours.

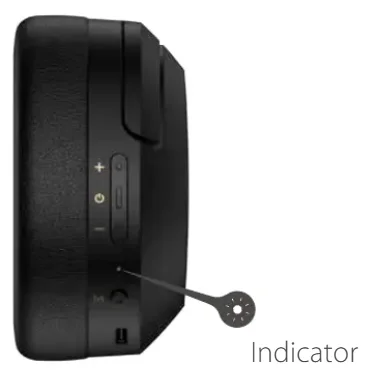

Pairing

Pairing for the first time

1. Press and hold the “” key for about 35 seconds while the device is powered off. Blue and green LEDs will blink alternately and rapidly.
2. Select “EDIFIER W820NB Plus” in your device settings to connect. The blue LED will blink twice after being connected.

Note:

For subsequent use, the headphones will automatically connect to the device used last time.

Pairing for a new device

1. Press and hold the “” key for about 6s when powered off to skip the latest connected device and pair the new Bluetooth device. Blue and green LEDs will blink alternately and rapidly.
2. Select “EDIFIER W820NB Plus” in your device settings to connect. Blue LED will blink twice afbeing ter being connected.

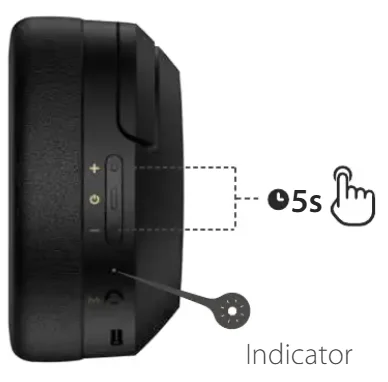

Reset

Simultaneously press and hold the “+” and”—” keys for about 5s when powered on to clear pairing records. Blue LED will blink 6 times rapidly when successful.

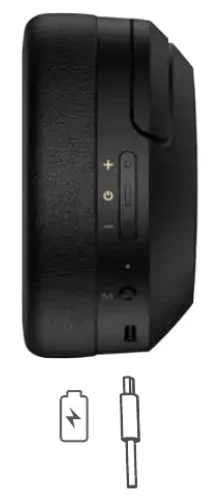

Charging

1. Connect the small end of the included USB cable to the USB-C port of the headphones and connect the other end to a USB-A power supply or wall charger (not included).
2. The orange LED is steady lit when charging and off when fully charged.

Note:

Please do not charge the headphones when there is sweat or other liquids inside the charging port, which may damage the headphones.

Input: 5V 1 A

Connecting to the PC with wired headphones

1. Connect the small end of the included USB cable to the USB-C port of the headphones and connect the other end to the USB-A port of the PC. You can listen to music, talk and charge the headphones after the connection is successful.
2. The orange LED is steadily lit when charging, and the green LED is steadily lit when fully charged.

Note:

It is recommended to use the included USB cable, and other cables may have compatibility issues that prevent them from working properly.

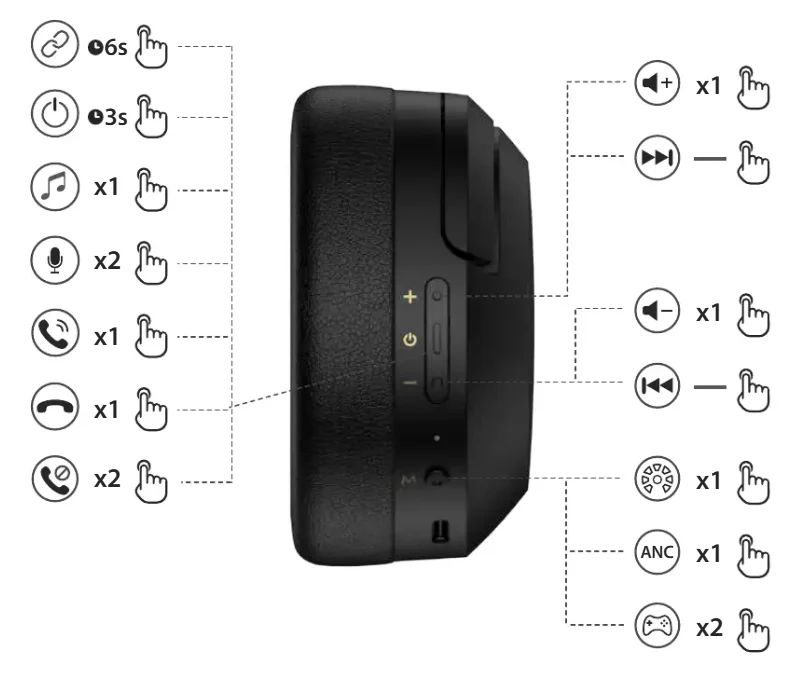

Controls

Note:

1. —: Press and hold.
2. Default sound control: noise cancellation & ambient sound.
3. Images are for illustrative purposes only and may differ from the actual product.
4. Download the Edifier Connect App for more customizable control settings.

For more information, please visit our website:

Model: EDF200118
EditorInternational Limited
P.O. Box 6264
General Post Office
Hong Kong

www.edifier.com
© 2022 Edifier International Limited. All rights reserved.
Printed in China

NOTICE

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customised for different applications.
Pictures and illustrations shown in this manual may be slightly different from the actual product.
If any difference is found, the actual product prevails.
