Euhomy IM-03S Countertop Nugget Ice Maker User Manual

Euhomy IM-03S Countertop Nugget Ice Maker

Safety Precautions

IMPORTANT SAFETY TIPS

To reduce the risk of fire, explosion, electric shock, or injury when using your ice maker, follow these important safety instructions

1. Before using, check that the voltage power corresponds to the one shown on the appliance nameplate.
2. Do not remove any safety, warning, or product information labels from your ice maker.
3. Plug the ice maker into an exclusive grounded outlet. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.
4. This appliance must be grounded. It is equipped with a cord having a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
5. Avoid the use of an extension cord because it may overheat and cause a risk of fire. However, if it is necessary to use an extension cord:
   • Use only extension cords with a grounding plug.
   • The marked rating of an extension cord must be equal to or greater than the rating of this appliance.
   • It should be positioned such that it does not drape over the counter or tabletop, where it can be pulled on by children intentionally.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. Do not let the cord hang over the edge of the table or counter.
8. Do not place on or near a hot gas or electric burner, or in a heated oven.
9. Place the power cord in such a way it cannot be pulled on by children or cause a tripping hazard.
10. Place the power cord in such a way that it is not in contact with hot surfaces.
11. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
12. Do not touch the ice-making parts when using the ice maker or making ice to avoid suffering from frostbite.
13. Do not immerse any part of the product in water.
14. To disconnect, turn any control to “OFF”, then remove the plug from the wall outlet.
15. Do not plug or unplug the product with wet hands.
16. Unplug the product before cleaning, maintaining, and when not in use.
17. Do not use with water that is microbiologically unsafe or of unknown quality.
18. Do not clean your ice maker with any flammable fluids. The fumes may create a fire hazard or explosion.
19. Do not overturn the ice maker. If the ice maker is overturned accidentally, make it stand steadily for 2 hours before powering it on again.
20. If the ice maker is brought in from outside in the wintertime, do not use it for a few hours, allowing the unit to warm up to the room temperature before operating.
21. Never put flammable, explosive, or corrosive articles into the ice maker.
22. Never use the ice maker when there is flammable gas leakage.
23. Never store or use gas and other flammable articles near the ice maker to avoid any fire.
24. Unplug the ice maker before moving it to avoid damaging the refrigerating system.
25. Do not attempt to disassemble, repair, modify, or replace any part of your product.
26. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
27. Children should be supervised to ensure that they do not play with the appliance.
28. Close supervision is necessary when any appliance is used by or near children.
29. Do not leave the appliance unattended while in use.
30. Do not use outdoors.
31. Do not use the appliance for anything other than its intended use.
32. Please abandon the ice maker according to local regulations, as it uses flammable blowing gas and refrigerant.

IMPORTANT SAFETY TIPS

When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance.

• Do not attempt to disassemble, repair, modify, or replace any part of your product
• This appliance can be used by children aged 10 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Close supervision is necessary when any appliance is used by or near children.
• Do not leave the appliance unattended while in use.
• Do not use outdoors.
• Do not use the appliance for anything other than its intended use.
• Please abandon the ice maker according to local regulators, as it uses flammable blowing gas and refrigerant
• Please according to local regulations regarding the disposal of the appliance for its flammable refrigerant and blowing gas.

Risk Of Fire or Explosion- Flammable Refrigerant Used

• Do not use mechanical devices To Defrost the ice maker. Do Not Puncture Refrigerant Tubing.
• To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing
• Consult RepairManual/Owner’s Guide Before Attempting To Install or Service This Product. All Safety
• Precautions Must be Followed.
• Dispose Of Property In Accordance Wth Federal Or Local Regulations.
• Follow Handling Instructions Carefully.
• The ice maker should be installed in accordance with the safety standard for Refrigeration Systems, ASHRAE15. The ice maker shall not be installed in corridors or hallways of public buildings.
• If the unit is with a problem that needs to be maintained, it should be replaced with like components, and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.

Note: The wires in this mains lead are colored in accordance with the following code:

Green or Green with a strip

To avoid a hazard due to instability of the appliance, it must be placed on an even or flat surface.

Operation & Installation

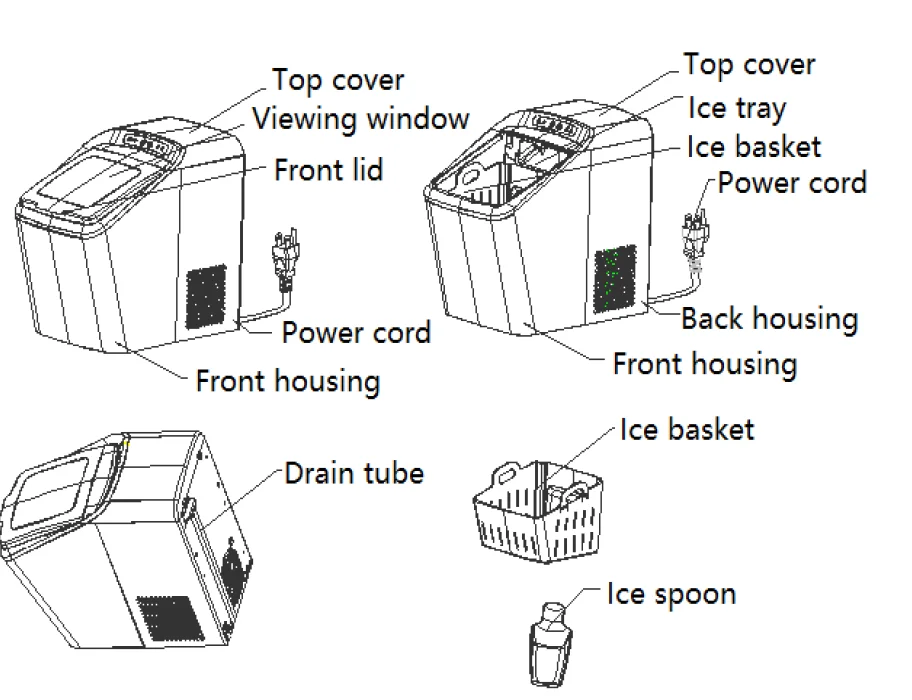

ASSEMBLY AND PARTS

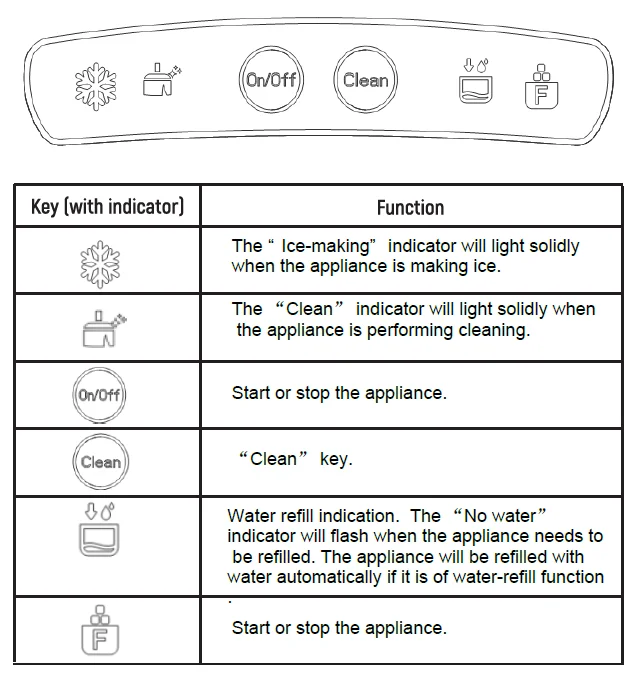

CONTROL PANEL DISPLAY

UNPACKING YOUR ICE MAKER

• Remove the exterior and interior packaging. Check that the ice basket and ice scoop are included. If any parts are missing, please contact our customer service.
• Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it.
• Find a location for your ice maker that is protected from direct sunlight and other sources of heat(ie, stove, furnace, radiator ). Place the ice maker on a level surface. Make sure that there is at least 6 inches of space between the back and sides of your ice maker and the wall.
• Allow one hour for the refrigerant fluid to settle before plugging the icemaker in.
• The appliance must be positioned so that the plug is accessible.

Note: Fill with potable water only

BEFORE FIRST USE

• Unpack the appliance, then check and make sure that all the accessories, including ice basket and ice scoop, etc., are complete. Please contact the client service department if some accessories are missing.
• Please ensure the ice maker is level and on a stable table or platform to avoid malfunction.
• The incline angle of the ice maker cabinet should not exceed 45° during transportation or use. Do not turn the ice maker upside down. Doing so could cause the compressor or refrigerating system to operate incorrectly. Please allow time for the fluids in the compressor to settle after the ice maker is moved or transported. Before using the ice maker for the first time, please wait for 2 hours after the unit has been leveled and positioned in the proper place.
• The appliance must be placed on a dry and level surface with sufficient ventilation, far from heat sources such as ovens, heaters, and corrosive gases. Leave a 6-inch[15cm] clearance on all sides of the ice maker for proper ventilation.
• Do not fill the water reservoir with hot water. This may damage the ice maker. It is best to fill the water reservoir with water of room temperature or lower.
• Do not use the appliance at a very cold environment [lower than 41°F/5°℃].
• Clean the appliance by following the operation of “CLEANING AND MAINTENANCE” before operating.

USING YOUR ICE MAKER

1. Ensure that the drain plug at the bottom of the water reservoir is closed well.
2. Plug the ice maker into the wall outlet, the”“indicator blinks.
   NOTE: Please allow the ice maker be rest for 30 minutes before plugging it in if it has been moved.
3. Open the top lid and remove the ice basket.
4. WARNING: Fill the water reservoir with potable water only.
   NOTE: Do not fil above the MAX water level mark.
5. Replace the ice basket and close the top lid.
6. Press the”ON/OFF’key and the ””indicator lights solidly.
7. The ice-making cycle will last approximately 20-30 minutes, depending on the ambient temperature and water temperature.
8. The ice-making assembly is equipped inside of appliance, and the ice-making assembly will keep producing ice when the water is pumped into it. When the ice forms in the ice-making assembly, the ice cubes will be transferred into the ice tray, and then the ice cubes will drop into the ice basket. And the above action will be repeated until the ice basket is full.
9. The “” indicator will light up when the ice basket is full and then the ice maker will stop the icemaking cycle automatically. Open the front lid and gently remove the ice from the ice basket with the ice scoop. And then replace the ice basket and close the front lid, then the ice maker will restart its ice-making function automatically. If the ice is not removed, after about 8 hours, the appliance will automatically work again. Alternatively, you can press the “ON/OFF” key to restart the appliance.
10. The “” indicator will flash when the water reservoir is lacking water.
11. 1. If the appliance is connected with external water source by the 1/4PE tube shown in the section of “CLEANING AND MAINTENANCE” (see Fig.1), the water reservoir will be refilled with water automatically and the appliance will restart the ice-making cycle; alternatively, the user can remove the ice basket and refill the water reservoir with water to “MAX” mark manually, and then the appliance will restart the ice-making cycle automatically. Please remember to close the front lid after
       refilling water manually to avoid overflow.
    2. If the appliance is not connected to an external water source, firstly remove the ice basket and then fill the water reservoir with water manually. After the water reservoir is refilled with water, please close the front lid, and then the appliance will restart the ice-making cycle automatically.
12. When you have got your desired amount of ice, stop the ice-making cycle by pressing the “ON/ OFF” key and unplugging the unit from the wall outlet.
13. Open the front lid and transfer the ice to a freezer.
14. Allow the ice maker to reach room temperature.
15. Suggest replacing the water every week. Please empty the water reservoir if the ice maker is not used for a long time.

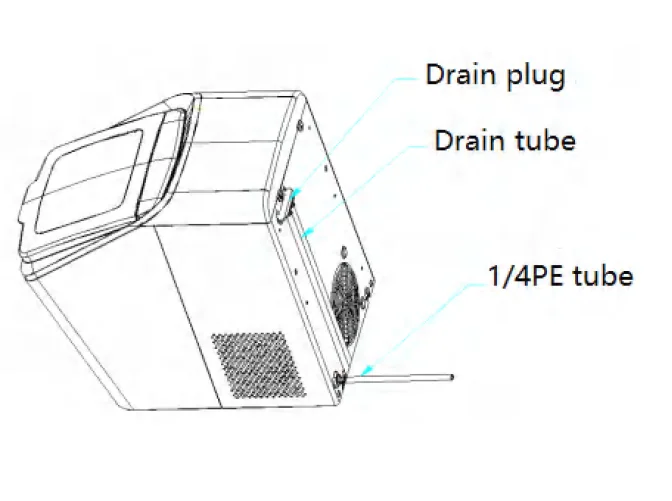

16. The ice maker can be connected with an external water source by the 1/4PE tube shown in the section “CLEANING AND MAINTENANCE” if you want to add the function of refilling water automatically.

Tips & Maintenance

CLEANING AND MAINTAINING YOUR ICE MAKER

Before using your ice maker, it is strongly recommended to clean it thoroughly.

1. Remove the ice basket, add water and detergent into the water reservoir, then hold and press the “Clean” key for about 3 seconds, the “” indicator lights up and the appliance enters the
   cleaning mode.
2. After cleaning for 8 minutes, the appliance stops working and the “” indicator flashes.
3. Remove the drain tube at the back of the appliance and place it at the dirty water outlet. Open the drain plug, and then the dirty water is drained from the drain tube until all the water inside the appliance is drained out.
4. Close the drain plug and fill the water reservoir with water. And then press the “Clean” key again, the “” indicator lights up, and the appliance enters the cleaning mode.
5. Repeat the operation of step 3 after the detergent inside the appliance is removed.
6. Clean the inside of the appliance with a piece of soft cloth soaked with warm water and vinegar.
7. Rinse the drain tube and place the drain plug at the fixing groove at the back of the appliance.
8. Wash the ice basket and ice scoop in warm, soapy water. Rinse and dry.
9. Clean the exterior of the ice maker with a soft, damp cloth. Use a mild dishwashing soap, if necessary.
   NOTE: Do not use organic solvents, boiled water, detergents, strong acid and strong alkali,s etc. for cleaning.
10. Please empty the water reservoir and dry it for storage if the ice maker is not used for a long time.

NOTE:

1. Do not use organic solvents, boiled water, detergent, strong acid, and strong alkali, etc. for cleaning
2. Please empty the water reservoir and dry it for storage if the ice?The maker is not used for a long time.

Specfcations

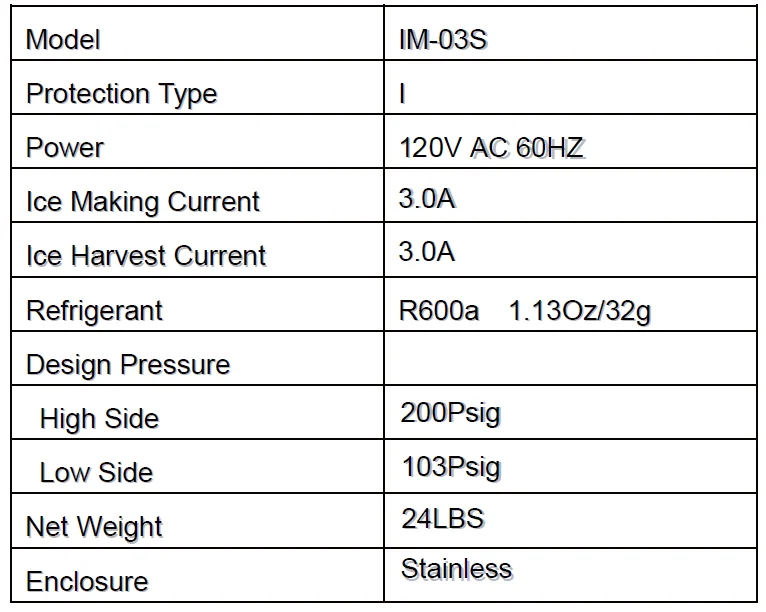

TECHNICAL PARAMETERS

Warranty

Euhomy offers a limited 1-year warranty (“ warranty period” ) on all of our products purchased new and unused from Euhomy company, with an original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period. The warranty does not apply where damage is caused by other factors, including without limitation:

•  normal wear and tear;
•  abuse, mishandling, accident, or failure to follow operating instructions;
•  exposure to liquid or infiltration of foreign particles;
•  servicing or modifications of the product other than by Euhomy;
•  commercial or non-household use.

The Euhomy warranty covers all costs related to restoring the proven defective product through repair or replacement of any defective part and necessary labor so that it conforms to its original specifications. A replacement product may be provided instead of repairing a defective product. Euhomy’s exclusive obligation under this warranty is limited to such repair or replacement. A receipt indicating the purchase date is required for any claim, so please keep all receipts in a safe place. Although greatly appreciated, the product registration is not required to activate any warranty and product registration does not eliminate the need for the original proof of purchase. The warranty becomes void if attempts at repair are made by non-authorized third parties and/or if spare parts, other than those provided by Euhomy, are used. You may also arrange for service after the warranty expires at an additional cost. These are our general terms for warranty service, but we always urge our customers to reach out to us with any issue, regardless of warranty terms. If you have an issue with an Euhomy product, please contact us ([email protected]), and we will do our best to resolve it for you.
