Fanttik Cruise V9 Vacuum Cleaner User Guide

Fanttik Cruise V9 Vacuum Cleaner

Quick Start Guide

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, please observe the following rules:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

WARNING –To reduce the risk of fire or injury:

1. This product has an internal battery. Do not put the device into fire or heat. Do not charge, use, place ii under high temperature conditions, and do not store ii in the car in case of overheating, ignition or explosion.
2. It is recommended to charge, use or store the device between 32°F and 104°F
3. People with physical, mental or sensory disabilities should not use the device for their safety.
4. Children should not use, clean or play with the device.
5. Do not use the device with wet hands to avoid injury.
6. Do not leave the appliance when plugged in.
7. Do not use the appliance outdoors or on wet surfaces
8. Do not pull the power cord to unplug. To unplug, please grasp the plug, not the power cord. Keep the appliance free of dust, lint, hair and anything that may reduce airflow.
9. Do not use this device to vacuum up any liquid, such as water and cola.
10. Do not vacuum smoking or burning things such as cigarettes, but match or hot ashes.
11. Do not vacuum hard or sharp objects to avoid injury when cleaning the Dustbin.
12. Do not use scented products on this equipment to avoid fire caused by the flammable chemicals in them.
13. Do not modify or repair the internal battery.
14. Do not use it in heated or moist places such as the healing room and bathroom.
15. When the vacuum cleaner’s service life is over, please give it to the recycling location designated by the government because the internal battery cannot be taken out.
16. If the charging wire is damaged or broken, please stop using it immediately.
17. If you don’t use it for a long time, please unplug the charging cable after full charge and place it in a coolcdry place. Charge it at least once every 3 months to avoid battery loss.
18. If the device needs to be transported, it is recommended to use the original packaging box and keep it in the “OFF” state.
19. Unplug from the outlet when not in use and before servicing.
20. Do not allow it to be used as a toy. Close attention is necessary when used near children.
21. Use only as described in this manual. Use only the manufacturer’s recommended attachments.
22. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service centre.
23. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Keep the cord away from heated surfaces.
24. Do not put any object into openings. Do not use with any opening blocked.
25. Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
26. Use extra care when cleaning on stairs.
27. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
28. Do not use without a dust bag and/or filters in place.
29. Prevent unintentional starting. Ensure the switch is in the off position before picking up or carrying the appliance.
30. Carrying the appliance with your finger on the switch or energising an appliance that has the switch on invites accidents.
31. Recharge only with the charger specified by the manufacturer.
32. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts the eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
33. Do not use an appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour, resulting in fire, explosion or risk of injury.
34. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause an explosion.
35. Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
36. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
37. Do not modify or attempt to repair the appliance except as indicated in the instructions for use and care. Use only with Listed/Certified Information Technology (Computer) Equipment, or Listed/Certified ITE Power Supply, or Listed Class 2 Power Unit.
38. This appliance contains non-replaceable batteries.

SAVE THESE INSTRUCTIONS

Please follow the safety and operating instructions. We assume no responsibility for your property loss caused by improper use.

This product is only for household use.

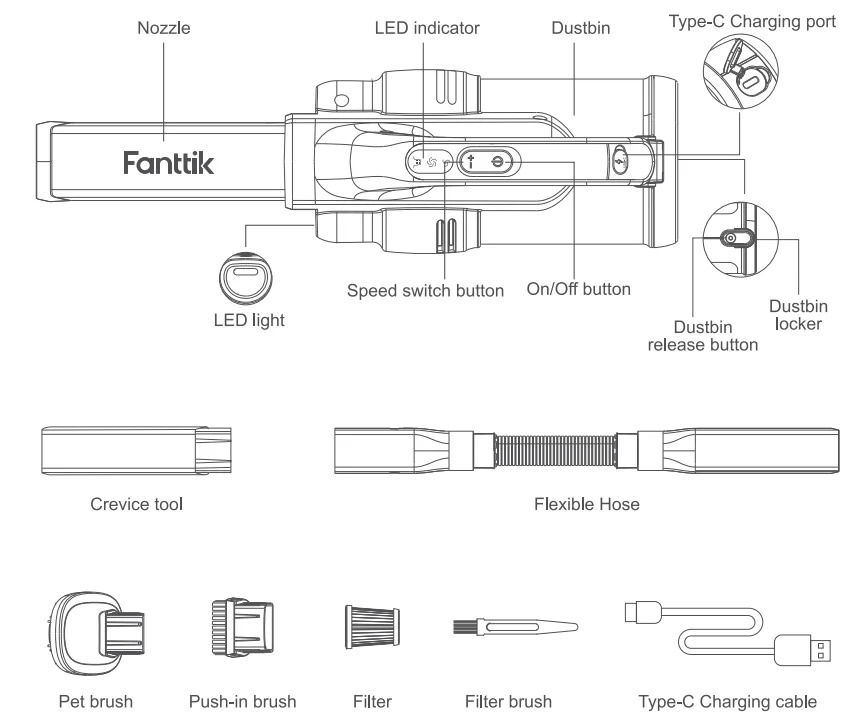

PRODUCT OVERVIEW

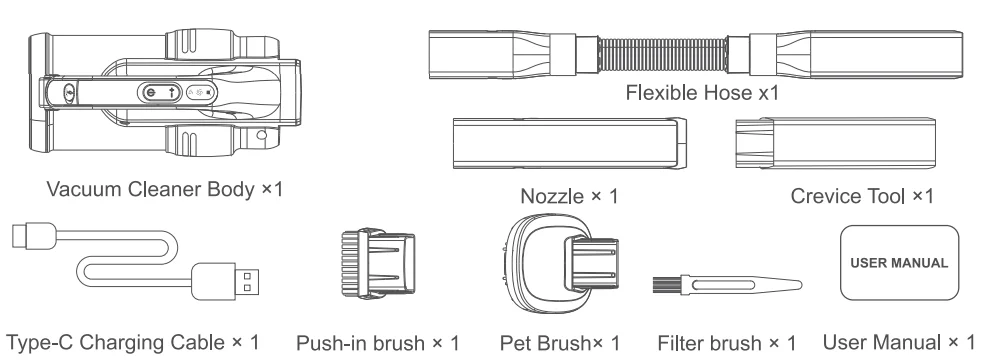

PACKAGE CONTENTS

( Applicable model: V9)

(Applicable model: V9 Pet Pro)

Carefully check the package contents. If anything is missing or damaged, please contact our online customer service for support.

HOW TO USE

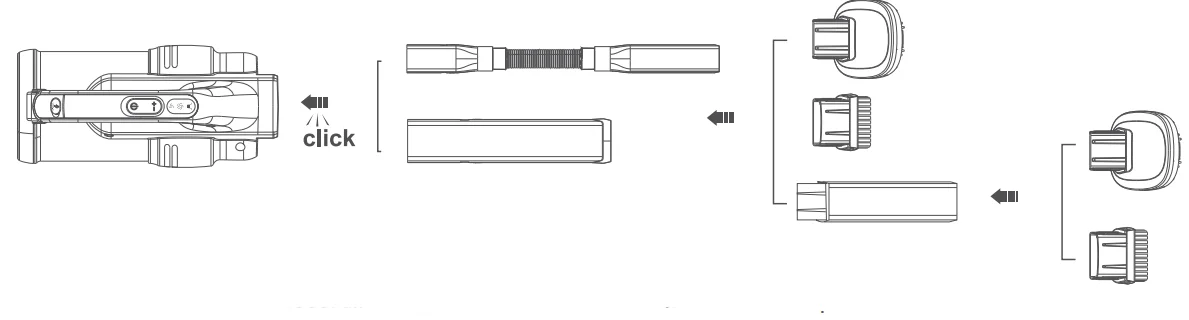

How to assemble

• Insert the nozzle(or hose) into the Vacuum Cleaner Body first.
• Select the suction head according to your needs and install it in the corresponding port to use.
• The two cleaner heads can be used separately or in combination.

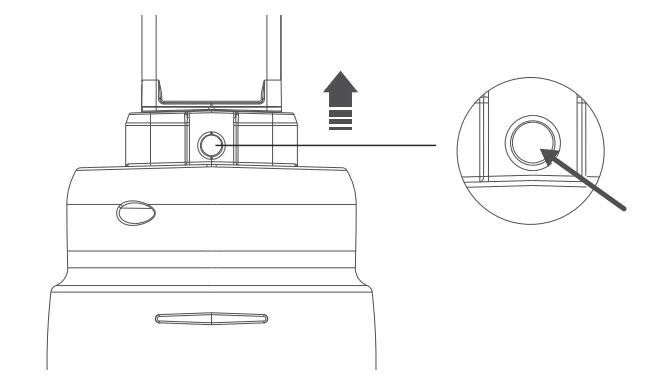

How to disassemble

Press the nozzle(or hose) button by hand or another tool and pull out the nozzle (or hose). Other accessories can be pulled out directly.

Hose and pet brush are included in the pet version only

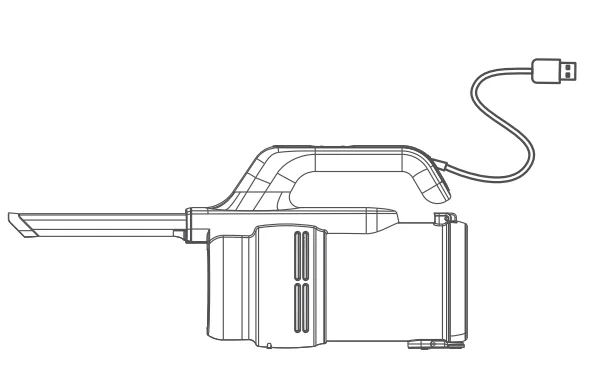

How to charge

1. Please use a 5V/2A max power adapter (not included) and the type-C charging cable(included) to charge. The type-C charging cable can only be used for charging.
2. It takes about 3-4 hours to fully charge. You can use the device in high-speed mode for about 13 minutes or in low-speed mode for about 30 minutes after a full charge.
3. The lithium-ion battery must be FULLY charged before first use and after long-term storage.
4. It is recommended to charge the device every three months.

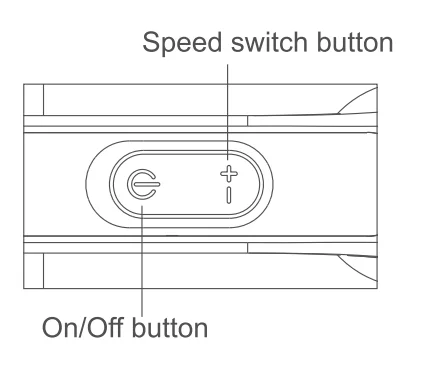

How to use

On/Off Button

Short-press to turn on the device (floodlight on), and press again to turn off (floodlight off).

Speed Switch Button

Low speed by defaultShort-pressss the Speed Switch Button to switch to high speed, and press again to switch back (Long-press the button for 1.5 seconds to turn off the light).

CLEAN AND MAINTENANCE

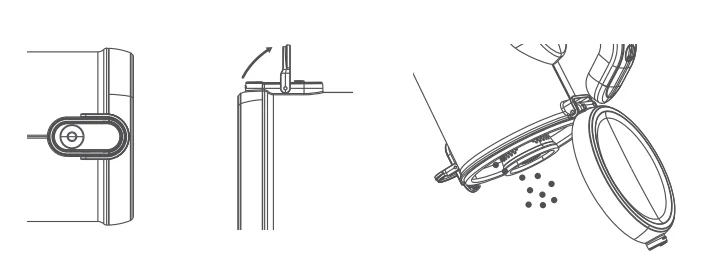

• • Push the Dustbin locker upward, press the Dustbin release button to open the door and empty the dirt inside.

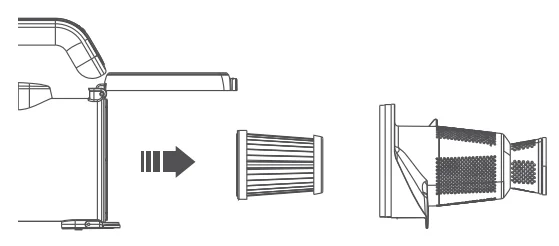

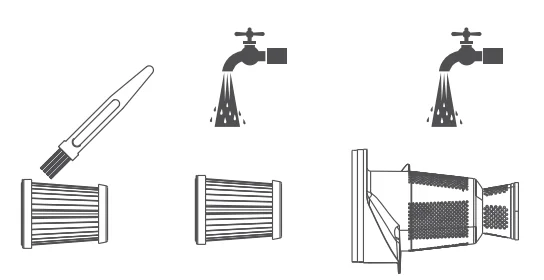

  • Pull out the Pre-filter and filter from the bottom of the Dustbin.
  • Clean the filter with the cleaning brush. Wash the pre-filter and Filter with wa,,  rm soapy water.

  • Make sure the filters are dry before refitting them into the dustbin.

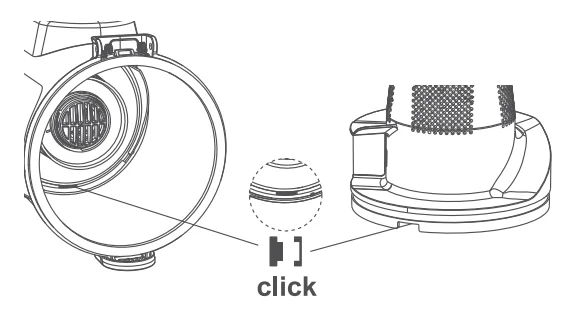

• The Pre-filter notch should be matched with the Dustbin bulge.

Do not wash the unit or get the charging port wet. The filter element is recommended to be replaced every 3 months. You can buy replacement filters(model:AV9001) from Amazon

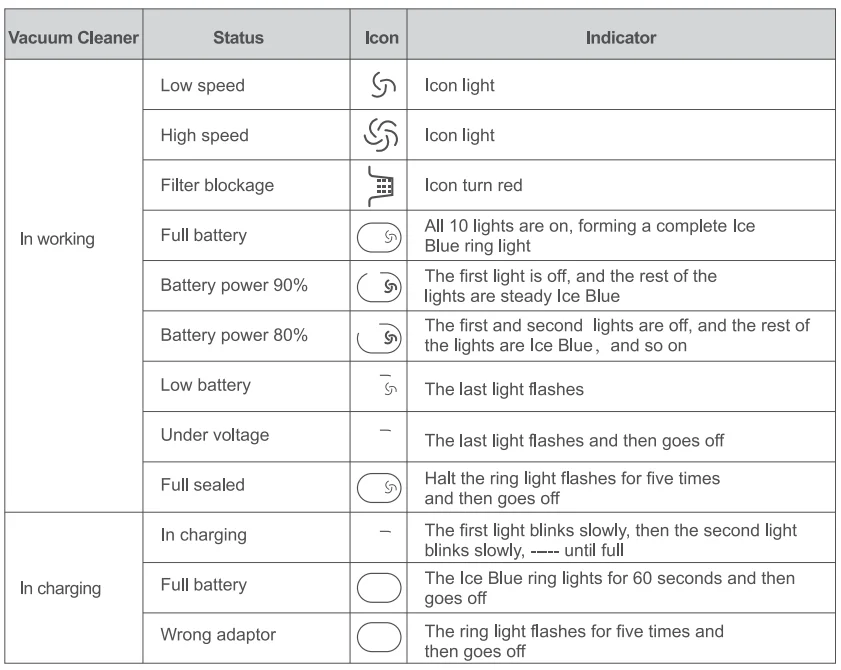

LED INDICATOR

TOXIC AND HAZARDOUS SUBSTANCES

0 indicates that all homogeneous materials’ hazardous substances content is below the limit specified in the Standard 2011/65/EU.
X indicates that the hazardous substances content in at least one homogeneous material of the component exceeds the limit specified in the Standard 2011/65/EU.
Indicates that the replacement of non-environmental protection substances cannot be achieved currently due to the global technology limitations, which will be gradually improved with technical improvements

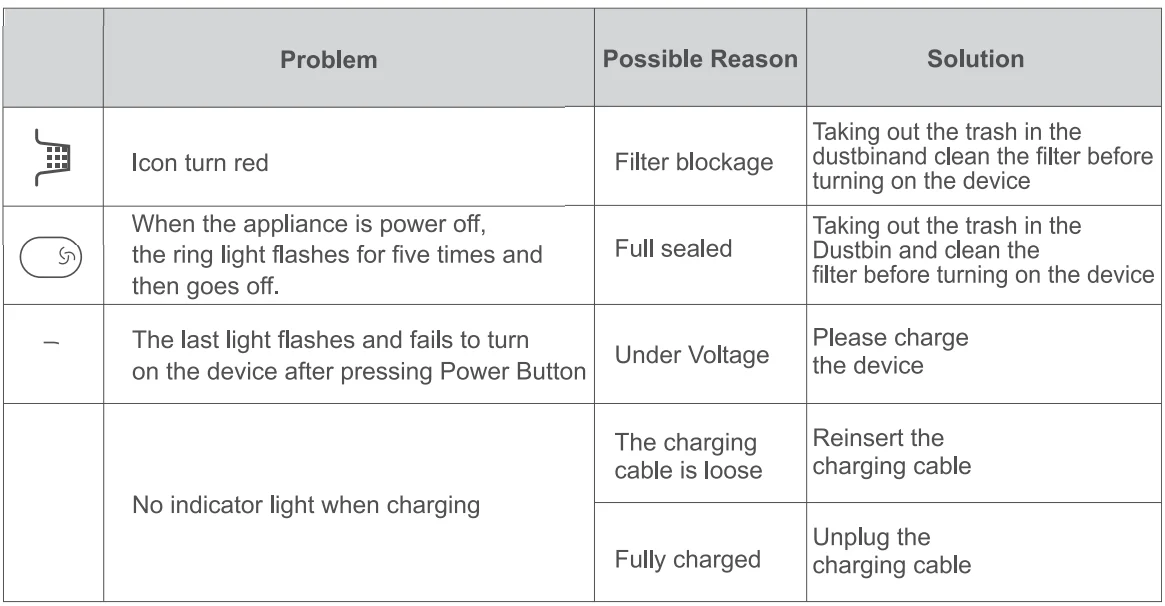

TROUBLESHOOTING

If the following operations can not solve your problems, please stop using the device and contact the manufacturer by email[email protected]

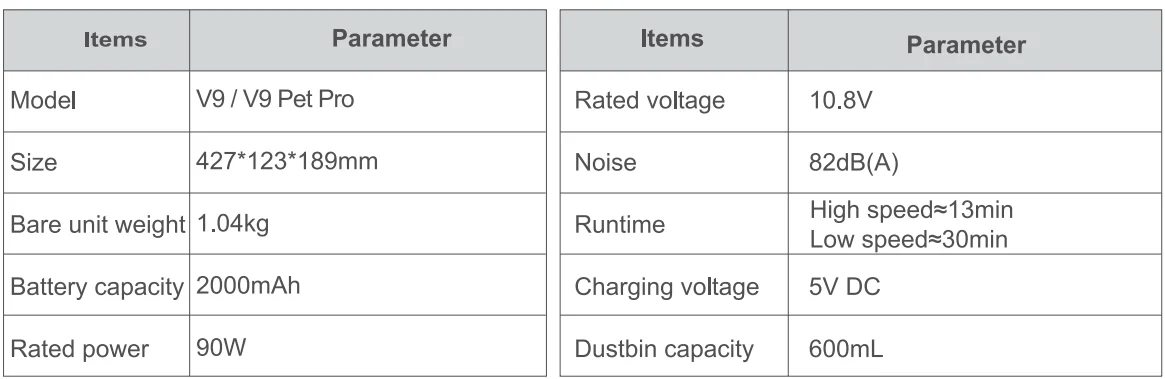

SPECIFICATIONS
