Fanttik Fold V10 Ultra Deluxe Handheld Vacuum

Quick Start Guide

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire or injury, all the safety and operating instructions should be read before use and should be followed to avoid injury, fire, electric shock, property loss, and other risks.

1. These appliances are intended for household use only.
2. This product has an internal battery. Please do not put the device in a fire or expose it to heat. Do not charge, use, or place it under high temperature conditions, and do not store it in the car in case of overheating, ignition, or explosion.
3. It is recommended to charge, use, or store the device between 32°F and 104°F.
4. People with physical, mental, or sensory disabilities should not use the device for their safety.
5. Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
6. Do not use the device with wet hands to avoid injury.
7. Do not use this device to vacuum up any liquid, such as water and cola.
8. Do not vacuum smoking or burning things such as cigarette butts, matches, or hot ashes.
9. Do not vacuum hard or sharp objects to avoid injury when cleaning the dust bowl.
10. Do not use scented products on this equipment to avoid fire caused by the flammable chemicals in them.
11. Do not modify or repair the internal battery.
12. Do not use it in heated or moist places such as the heating room and bathroom.
13. When the vacuum cleaner’s service life is over, please give it to the recycling location designated by the government because the internal battery cannot be taken out.
14. If the charging wire is damaged or broken, please stop using it immediately.
15. If you don’t use it for a long time, please unplug the charging cable after a full charge and place it in a cool, dry place. Charge it at least once every 3 months to avoid battery loss.
16.  If the device needs to be transported, it is recommended to use the original packaging box and keep it in the “OFF” state.
17. Unplug from the outlet when not in use and before servicing.
18. Do not allow it to be used as a toy. Close attention is necessary when used near children.
19. Use only as described in this manual. Use only the manufacturer’s recommended attachments.
20. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
21. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Keep the cord away from heated surfaces.
22. Do not put any object into openings. Do not use with any opening blocked.
23. Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
24. Use extra care when cleaning on stairs.
25. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
26. Do not use without a dust bag and/or filters in place.
27. Prevent unintentional starting. Ensure the switch is in the off position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing an appliance that has the switch on invites accidents.
28. Recharge only with the charger specified by the manufacturer.
29. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts the eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
30. Do not use an appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior, resulting in fire, explosion, or risk of injury.
31. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause an explosion.
32. Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the instructions. Charging
    improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
33. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
34. Do not modify or attempt to repair the appliance except as indicated in the instructions for use and care.
35. Use only with Listed/Certified Information Technology (Computer) Equipment, or Listed/Certified ITE Power Supply, or Listed Class 2 Power Unit.
36. This appliance contains non-replaceable batteries.

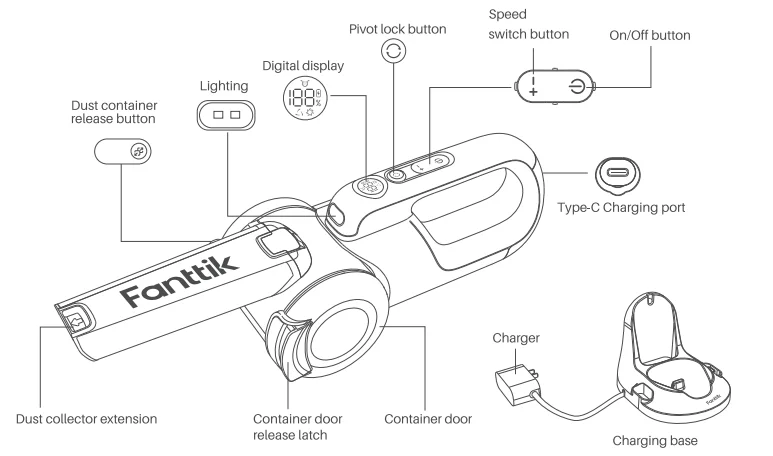

PRODUCT OVERVIEW

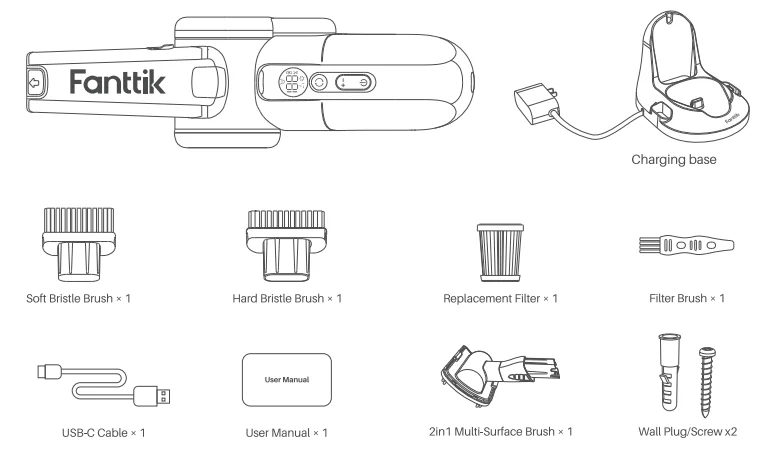

PACKAGE CONTENTS

HOW TO USE

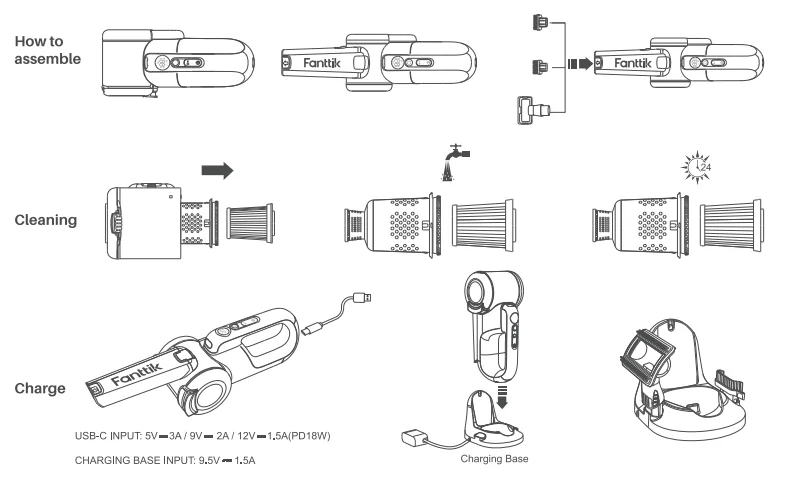

How to assemble

Take out the main machine and press the Pivot lock button to adjust the dust collector to the desired angle. Select the accessories (hard bristle brush and soft bristle brush) as required and install them on the front port.

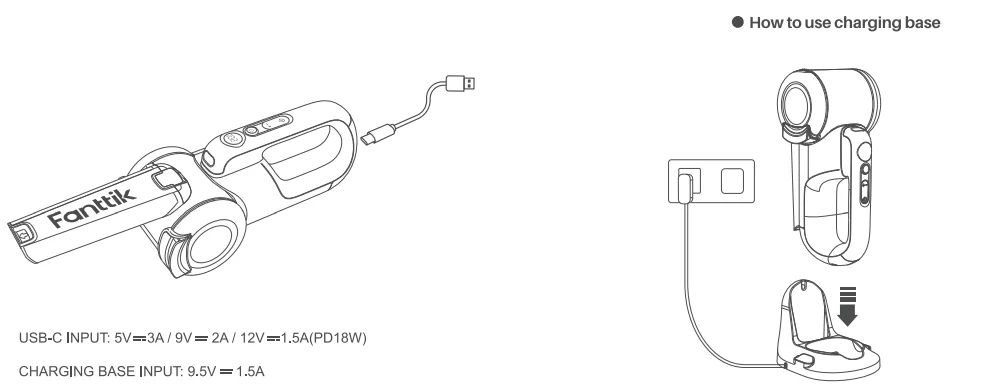

How to charge

1. Open the silicone cap on the rear housing.
2. When using TYPE-C charging, please prepare a 5V 3A/9V 2A/12V 1.5A(PD18W) power adapter(not included), and then connect the TYPE-C charging cable (included) for charging. The type-C charging cable can only be used for charging. It takes about 2-2.5 hours to fully charge.
3. When using the charging base, after folding the vacuum cleaner, place it in the groove of the charging base. There is a convex pad in the groove for aligning the machine unit, and you can start charging after you put it down. The digital screen will display the charge. It takes about 3-3.5 hours to fully charge.
4. You can use the device in high-speed mode for about 13 minutes or in low-speed mode for about 35 minutes after a full charge.
5. The lithium-ion battery must be FULLY charged before first use and after long-term storage.
6. If not used for a long time, it is recommended to charge the device every three months.

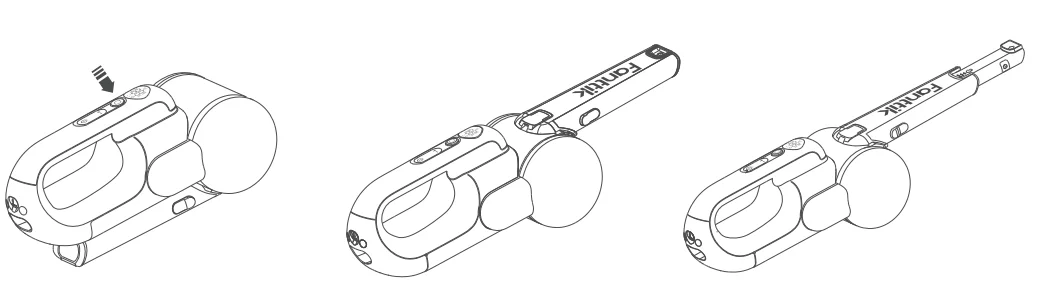

V10 different usage states

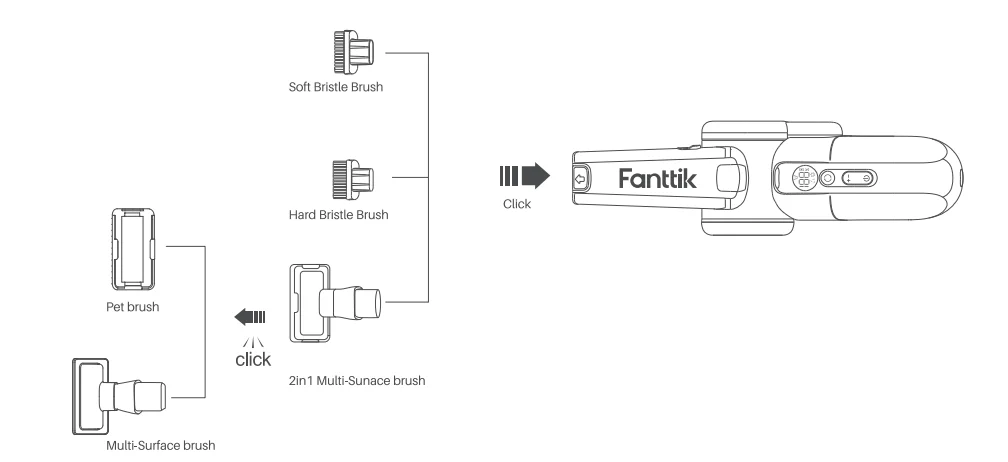

• When using, press the Pivot lock button, rotate to the appropriate angle according to the need, and then select a different brush, and install it on the port for use. If necessary, the dust collector extension tube can be pulled out for use.

How to assemble

• Take out the machine and press the Pivot lock button to adjust the dust collector to the desired angle. Select the brush as required and install it on the nozzle. Use a different brush to clean as a dust collector.

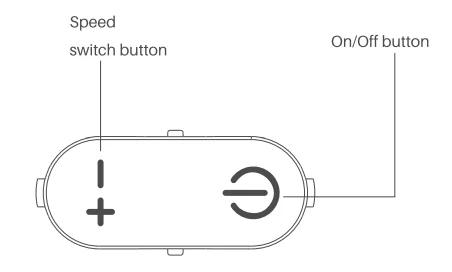

On/Off button

• Press to turn on (light on), then press to turn off (light off)

Speed switch button:

• Short-press the speed switch button to switch to high speed and press again to switch back to low speed. (Long-press the button for 1.5 seconds to turn off the lamp.)

CLEAN AND MAINTENANCE

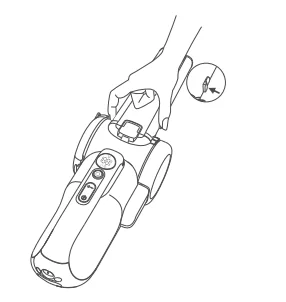

1. Press the dust container release button.
2. Take down the SA Bowl sub-assembly.

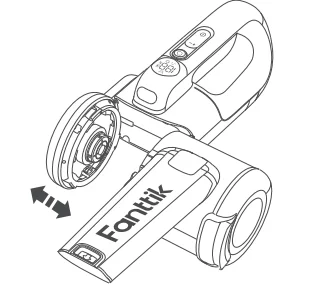

3. Take down the filter system.
4. Pull out the filter and clean the pre-filter and the main filter with a cleaning brush.

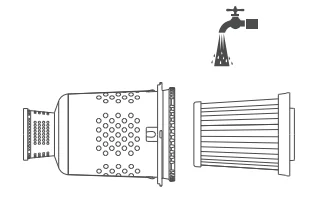

5. Clean the pre-filter and filter with clean water.
6. Wash or clean the SA container & the Dust collector.

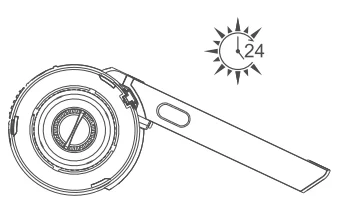

7. Wait for the filter system to dry completely before putting them back in the SA container & the Dust collector.
8. The SA container & Dust collector are completely dry before putting them back.
9. Do not wash the unit or get the charging port wet. The filter element is recommended to be replaced every 3 months.

Wall Mounting

The product can be attached to a wall to provide convenient storage and a charging point for the appliance. When fixing to a wall, make sure that the fixing method is suitable for the wall type and is appropriate to the weight of the appliance. Mark the location of the screw holes (within reach of an electrical outlet for charging the vac while it is on the wall bracket). The wall-mounted charging base needs to be installed in a cool and dry place that is near a power outlet but not exposed to direct sunlight.

• The charging base is intended for indoor use only.
• Use the appropriate mounting hardware for the type of wall to securely install the charging base.
• Make sure the installation area is clear of any pipes such as gas or water lines, air ducts, electric wires and cables, or drainage lines.
• It is recommended to hire a professional to install the docking station and to use protective clothing, goggles, and other protective materials where necessary.
• Measure the distance between the two screw holes on the wall mounting
• Use a 6mm drill bit to drill two holes in the wall at this distance, and insert the wall plug into the holes.
• Screw one screw into the lower wall plug, but do not tighten it, then hang the charging base on the first nail, and finally tighten the charging base with the second screw.

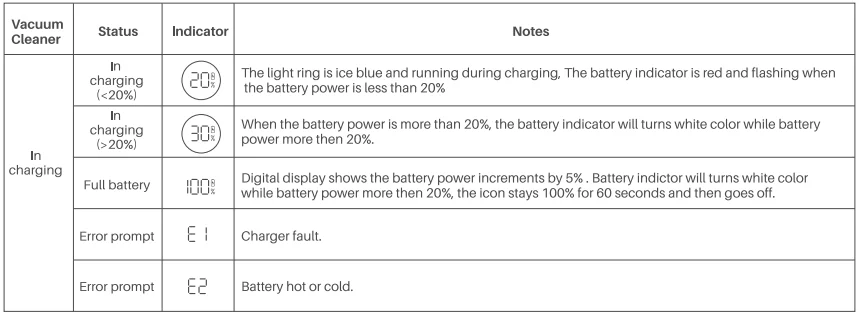

LED Indicator

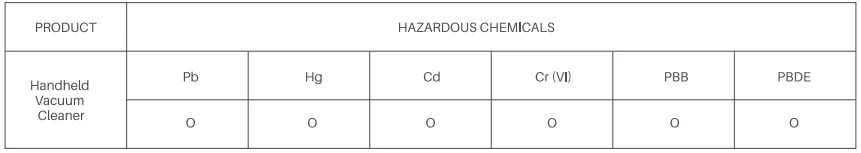

TOXIC AND HAZARDOUS SUBSTANCES

• O indicates that all homogeneous materials’ hazardous substances content is below the limit specified in the Standard 2011/65/EU.
• X indicates that the hazardous substances content in at least one homogeneous material of the component exceeds the limit specified in the Standard 2011/65/EU.
• X indicates that the replacement of non-environmental protection substances cannot be achieved currently due to the global technology limitations, which will be gradually improved with technical improvement.

TROUBLESHOOTING

If the following operations can not solve your problems, please stop using the device and contact the manufacturer with E-mail [email protected]. Visit www.fanttik.com for more information.

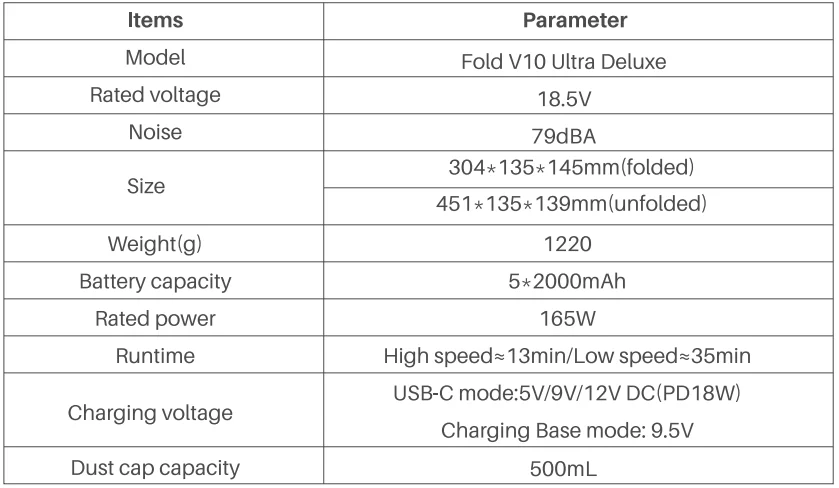

Technical Data
