Garmin Edge 1040 GPS Bike Computer User Manual

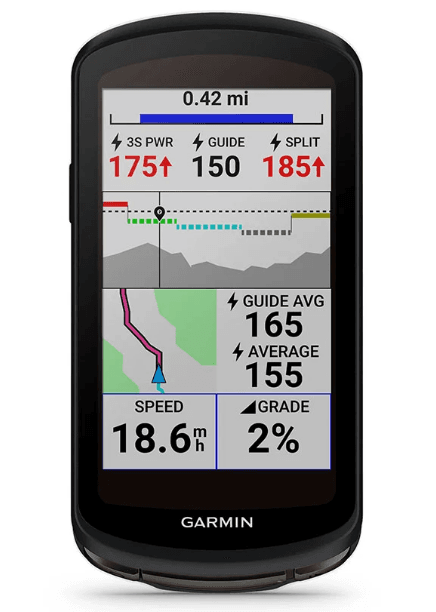

Garmin Edge 1040 GPS Bike Computer

Table of Contents

Introduction

WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other important information.
Always consult your physician before you begin or modify any exercise program.

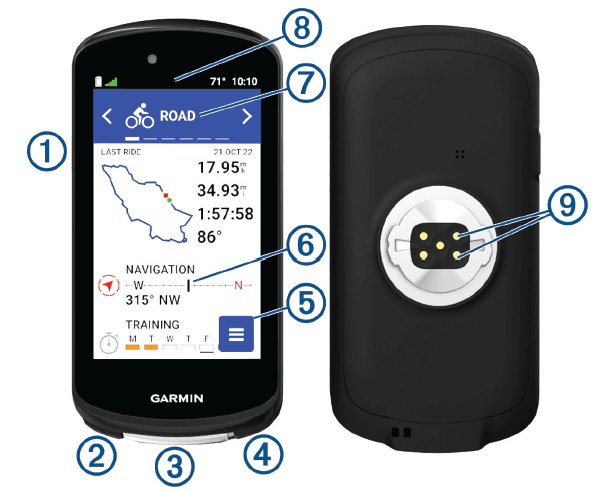

Device Overview

Press to enter sleep mode and wake the device.
Hold to turn the device on and off and lock the touchscreen.
Press to mark a new lap.
USB port (under weather cap)
Lift the weather cap to charge the device or connect it to a computer.
Replace the weather cap to prevent damage to the USB port.
Press to start and stop the activity timer.
Select to open the main menu.
Glances
Swipe up or down on the home screen to view the glances.
Select to open the glance or menu.
Biking profile
Swipe left or right to change the biking profile.
Select to open the biking profile.
Widgets
Swipe down from the top of the screen to view the widgets, then swipe left or right to view more widgets.
Electrical contacts
Charge using an external power accessory.

NOTE: Go to buy.garmin.com to purchase optional accessories.

Home Screen Overview

The home screen gives you quick access to all the features of the Edge device.

Battery status
GPS signal strength
Bluetooth® status
Sync in progress
Select to go for a ride.
Use the arrows to change the biking profile.
Navigation
Select to mark a location, search for locations, and create or navigate a course.
Training
Select to access your segments, workouts, and other training options.
History
- Select to access your previous rides and totals.
- Select to access your history, performance metrics, personal records, contacts, and settings.
- Select to access connected features and settings.
- Select to access your Connect IQ™ apps, widgets, and data fields.

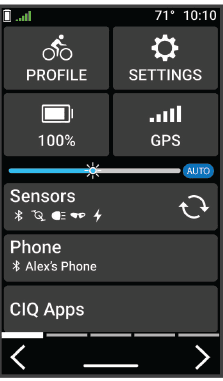

Viewing Widgets

Your device is preloaded with several widgets, and more are available when you pair your device with a phone or other compatible device.

From the home screen, swipe down from the top of the screen.
The settings widget appears. A flashing icon means the device is searching for a signal. A solid icon means the signal was found or the sensor is connected. You can select any icon to change the settings.
Swipe left or right to view more widgets.
The next time you swipe down to view the widgets, the last widget you viewed appears.

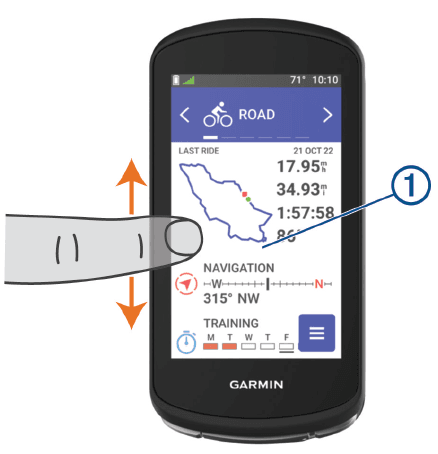

Viewing Glances

Glances provide quick access to health data, activity information, built-in sensors, and more.

From the home screen, swipe up or down.
The device scrolls through the glances.
Select a glance 1 to view additional information.
Select to customize the glances (Customizing the Glances, page 66).

Using the Touchscreen

When the timer is running, tap the screen to view the timer overlay.
The timer overlay allows you to return to the home screen during a ride.
Select to return to the home screen.
Swipe or select the arrows to scroll.
Select to return to the previous page.
Select to save your changes and close the page.
Select to close the page and return to the previous page.
Select to search near a location.
Select to delete an item.
Select for more information.

Locking the Touchscreen

You can lock the screen to prevent inadvertent screen touches.

Hold and select Lock Screen.
During an activity, select .

Acquiring Satellite Signals

The device may need a clear view of the sky to acquire satellite signals. The time and date are set automatically based on the GPS position.
TIP: For more information about GPS, go to www.garmin.com/aboutGPS.

Go outdoors to an open area.
The front of the device should be oriented toward the sky.
Wait while the device locates satellites.
It may take 30–60 seconds to locate satellite signals.

Training

Going for a Ride

If you are using a wireless sensor or accessory, it can be paired and activated during initial setup (Pairing Your Wireless Sensors, page 51). If your device was packaged with a wireless sensor, they are already paired and can be activated during initial setup.

Hold to turn on the device.
Go outside and wait while the device locates satellites.
The satellite bars turn green when the device is ready.
From the home screen, select < or > Change the biking profile.
Press to start the activity timer.NOTE: History is recorded only while the activity timer is running.

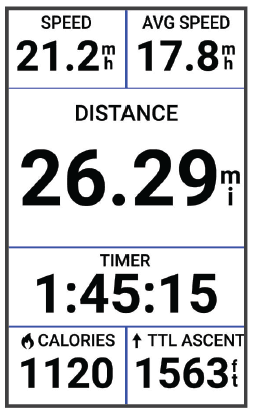

Swipe left or right to view additional data screens.
You can swipe down from the top of the data screens to view the widgets.
If necessary, tap the screen to view status overlay data (including battery life) or return to the home screen.
Press to stop the activity timer.
TIP: Before you save this ride and share it on your Garmin Connect™ account, you can change the ride type. Accurate ride type data is important for creating bike-friendly courses.
Select Save.
Select.

Training Plans

You can set up a training plan in your Garmin Connect account and send the training plan workouts to your device. All scheduled workouts sent to the device appear in the training calendar.

Using Garmin Connect Training Plans

Before you can download and use a training plan, you must have a Garmin Connect account (Garmin Connect, page 56), and you must pair the Edge device with a compatible phone.

From the Garmin Connect app, select o .
Select Training > Training Plans.
Select and schedule a training plan.
Follow the on-screen instructions.
Review the training plan in your calendar.

Viewing the Training Calendar

When you select a day in the training calendar, you can view or start the workout. You can also view saved rides.

Select Training > Training Plan.
Select .
Select a day to view a scheduled workout or a saved ride.

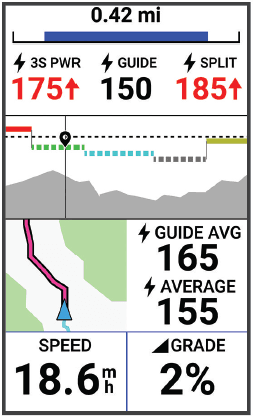

Power Guide

You can create and use a powerful strategy to plan your effort on a course. Your Edge device uses your FTP, the course elevation, and the projected time it will take you to complete the course to create a customized power guide.

One of the most important steps in planning a successful power guide strategy is choosing your effort level. Putting a harder effort into the course will increase the power recommendations, while choosing an easier effort will reduce them (Creating a Power Guide, page 9). The primary goal of a power guide is to help you complete the course based on what is known about your ability, not to achieve a specific target time. You can adjust the effort level during your ride.

Power guides are always associated with a course and cannot be used with workouts or segments. You can view and edit your strategy in Garmin Connect and sync it with compatible Garmin® devices. This feature requires a power meter, which must be paired with your device (Pairing Your Wireless Sensors, page 51). After the devices are paired, you can customize the optional data fields (Data Fields, page 82).

Creating a Power Guide

Before you can create a power guide, you must pair a power meter with your device (Pairing Your Wireless Sensors, page 51).

Select Training > Power Guide >+.
Select an option:
- Select Use Saved Course to use a saved course, and select the course.
- Select Course Creator to create a new course, and select ⁝ > Create Power Guide.
Enter a name for the power guide, and select .
Select a riding position.
Select a gear weight.
Select Save.

Starting a Power Guide

Before you can start a power guide, you must create a power guide (Creating a Power Guide, page 9).

Select Training > Power Guide.
Select a power guide.
Select Ride.
Press to start the activity timer.

Workouts

You can create custom workouts that include goals for each workout step and for varied distances, times, and calories. You can create workouts using Garmin Connect, and transfer them to your device. You can also create and save a workout directly on your device.
You can schedule workouts using Garmin Connect. You can plan workouts in advance and store them on your device.

Device Information

Charging the Device

NOTICE
To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer. The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer.

NOTE: The device will not charge when outside the approved temperature range (Edge Specifications, page 73).

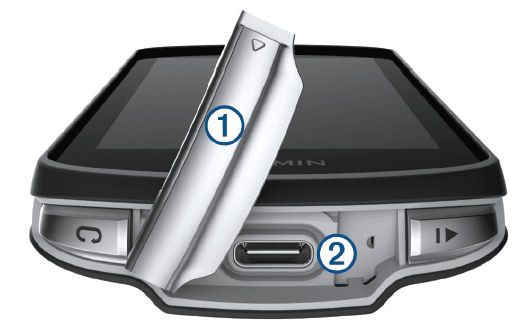

Pull up the weather cap 1 from the USB port 2.
Plug the small end of the USB cable into the USB port on the device.
Plug the large end of the USB cable into an AC adapter or a computer USB port.
Plug the AC adapter into a standard wall outlet.
When you connect the device to a power source, the device turns on.
Charge the device completely.
After you charge the device, close the weather cap.

Product Updates

Your device automatically checks for updates when connected to Bluetooth or Wi‑Fi. You can manually check for updates from the system settings (System Settings, page 65). On your computer, install Garmin Express (www.garmin.com/express). On your phone, install the Garmin Connect app.

This provides easy access to these services for Garmin devices:

Software updates
Map updates
Data uploads to Garmin Connect
Product registration

Updating the Software Using the Garmin Connect App

Before you can update your device software using the Garmin Connect app, you must have a Garmin Connect account, and you must pair the device with a compatible smartphone (Pairing Your Phone, page 40).
Sync your device with the Garmin Connect app.
When new software is available, the Garmin Connect app automatically sends the update to your device.

Updating the Software Using Garmin Express

Before you can update your device software, you must have a Garmin Connect account, and you must download the Garmin Express application.

Connect the device to your computer using the USB cable.
When new software is available, Garmin Express sends it to your device.
Follow the on-screen instructions.
Do not disconnect your device from the computer during the update process.
NOTE: If you have already set up your device with Wi‑Fi connectivity, Garmin Connect can automatically download available software updates to your device when it connects using Wi‑Fi.

Specifications

Edge Specifications

Battery type
- Rechargeable, built-in lithium-ion battery
Battery life
Edge 1040: Up to 35 hr.
- Edge 1040 Solar: Up to 45 hr. with solar1
Operating temperature range
- From -20º to 60ºC (from -4º to 140ºF)
Charging temperature range
- From 0º to 45ºC (from 32º to 113ºF)
Wireless frequencies
- Edge 1040: 2.4 GHz @ 12.7 dBm maximum
- Edge 1040 Solar: 2.4 GHz @ 12.0 dBm maximum
Water rating
- IEC 60529 IPX72

1 With use in 75,000 lux conditions
2 The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating.

HRM-Dual Specifications

Battery type
- User-replaceable CR2032, 3 V
Battery life
- Up to 3.5 years. at 1 hr./day
Operating temperature range
- From -5° to 50°C (from 23° to 122°F)
Wireless frequency
- 2.4 GHz @ 2 dBm maximum
Water rating
- 1 ATM1
  NOTE: This product does not transmit heart rate data while swimming.

Speed Sensor 2 and Cadence Sensor 2 Specifications

Battery type
- User-replaceable CR2032, 3 V
Battery life
- Approximately 12 mo. at 1 hr./day
Speed sensor storage
- Up to 300 hr. of activity data
Operating temperature range
- From -20º to 60ºC (from -4º to 140ºF)
Wireless frequency
- 2.4 GHz @ 4 dBm maximum
Water rating
- IEC 60529 IPX72

Troubleshooting

Resetting the Device

If the device stops responding, you may need to reset it. This does not erase any of your data or settings.

Hold for 10 seconds.
The device resets and turns on.

Restoring the Default Settings

You can restore the default configuration settings and activity profiles. This will not remove your history or activity data, such as rides, workouts, and courses.
Select > System > Device Reset > Reset Default Settings > .

Clearing User Data and Settings

You can clear all user data and restore the device to its initial setup. This removes your history and data, such as rides, workouts, and courses, and resets the device settings and activity profiles. This will not remove any files you added to the device from your computer.

Select > System > Device Reset > Delete Data and Reset Settings > .

Maximizing Battery Life

Turn on Battery Saver (Turning On Battery Save Mode, page 79).
Decrease the backlight brightness or shorten the backlight timeout (Display Settings, page 65).
Select the Smart recording interval (Data Recording Settings, page 66).
Turn on the Auto Sleep feature (Using Auto Sleep, page 64).
Turn off the phone‘s wireless feature (Phone Settings, page 65).
Select the GPS setting (Changing the Satellite Setting, page 65).
Remove wireless sensors that you no longer use.

My phone will not connect to the device

If your phone will not connect to the device, you can try these tips.

Turn off your phone and your device, and turn them back on again.
Enable Bluetooth technology on your phone.
Update the Garmin Connect app to the latest version.
Remove your device from the Garmin Connect app and the Bluetooth settings on your phone to retry the pairing process.
If you bought a new phone, remove your device from the Garmin Connect app on the phone you intend to stop using.
Bring your phone within 10 m (33 ft.) of the device.
On your phone, open the Garmin Connect app, select or , and select Garmin Devices > Add Device to enter pairing mode.
Swipe down on the home screen to view the settings widget, and select Phone > Pair Smartphone to manually enter pairing mode.

Improving GPS Satellite Reception

Frequently sync the device to your Garmin account:
- Connect your device to a computer using the USB cable and the Garmin Express application.
- Sync your device to the Garmin Connect app using your Bluetooth-enabled phone.
- Connect your device to your Garmin account using a Wi‑Fi wireless network.
  While connected to your Garmin account, the device downloads several days of satellite data, allowing it to quickly locate satellite signals.
Take your device outside to an open area away from tall buildings and trees.
Remain stationary for a few minutes.

My device is in the wrong language

Select .
Scroll down to the second-to-last item in the list, and select it.
Scroll down to the seventh item in the list, and select it.
Select your language.

Temperature Readings

The device may display temperature readings that are higher than the actual air temperature if the device is placed in direct sunlight, held in your hand, or is charging with an external battery pack. Also, the device will take some time to adjust to significant changes in temperature.

Replacement O-rings

Replacement bands (O-rings) are available for the mounts.
NOTE: Use Ethylene Propylene Diene Monomer (EPDM) replacement bands only. Go to http://buy.garmin.com or contact your Garmin dealer.

Getting More Information

Go to support.garmin.com for additional manuals, articles, and software updates.
Go to buy.garmin.com or contact your Garmin dealer for information about optional accessories and replacement parts.
