Haier HPN14XCM 14000 BTU Portable Air Conditioner User Manual

Haier HPN14XCM 14000 BTU Portable Air Conditioner

Important Instructions

• Please keep this manual in a safe place.
• Do not use liquid or a spray to clean this product. Use a damp cloth.
• Do not place the product on an unstable surface or elevated place as it may fall and cause damage or injury.
• Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside and disable them or cause them to function improperly.
• Never try to dismantle the product by yourself. Unsupervised dismantling and incorrect reassembly of the inside of the back cover may damage the electrical circuit and affect its performance. When maintenance is required, please contact the local service center or local distributor.

Assembly and Installation

Accessories Include

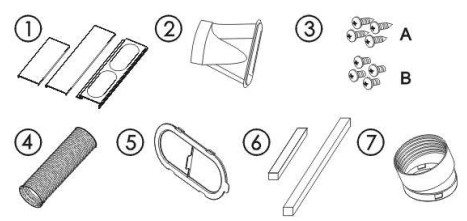

1. Main window panel and extension panels – extends from 20″ up to 46″ .3 pieces
2. Exhaust nozzle.. •2 pieces
3. Screws. . 8 pieces
4. Exhaust hose 2 pieces
5. Cover 2 pieces
6. Foam 2 pieces
7. Hose connector 2 pieces

1. Connect the 3 pieces of the window panels by sliding the 2 extension panels into the main window panel.
2. Apply a foam strip to the end of each extension panel.
3. Open the window and place the window panel assembly into the window. Adjust the extension panels to fit the width or height of the window as shown below (see figure A). Secure the extension panels using 4 blunt tip screws (see figure B-1). Secure the main window panel using 4 pointed screws (see figure B-2 and B-3).

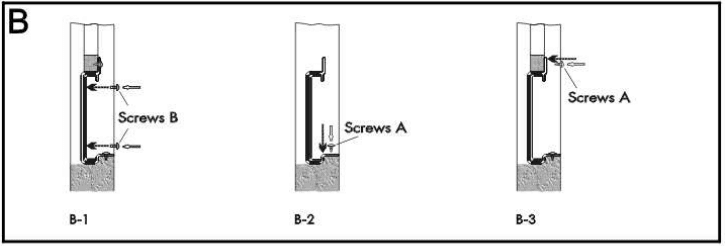

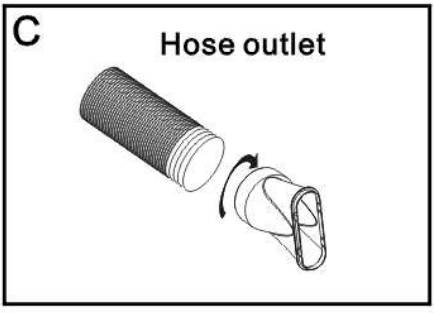

4. Expand the 2 ends of the exhaust hose. Connect the hose connector to one end of the exhaust hose by turning clockwise. Then insert the exhaust nozzle at the other end of the exhaust hose by turning clockwise (see figure C) to create the hose assembly.
5. Insert the hose connector end of the hose assembly into the rear of the unit and turn clockwise to secure (see figure D).

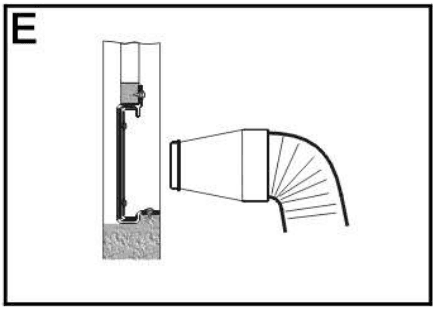

6. Insert the exhaust hose with nozzle end into the window panel(see figure E).
7. Plug the power cord into the wall outlet and press the “Reset” button.
8. Please allow 8″ of space around the unit for proper air circulation.

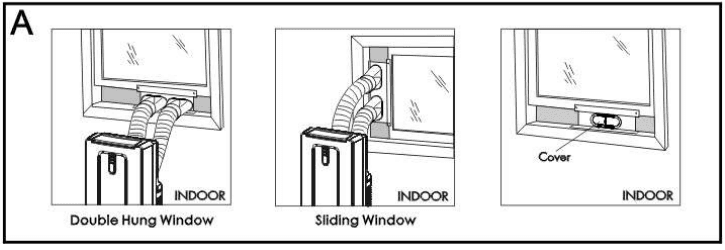

9. When removing the portable air conditioner for storage, the window panel may be left in place. Simply place the cover over the nozzle hole (see figure A).

Parts and Features

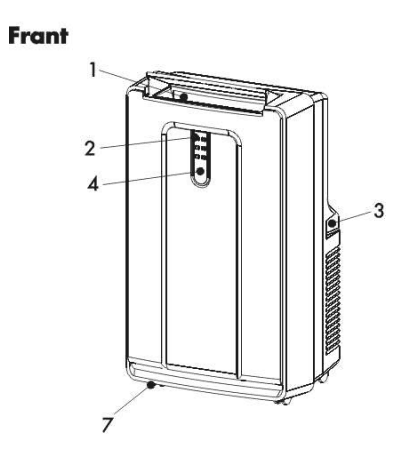

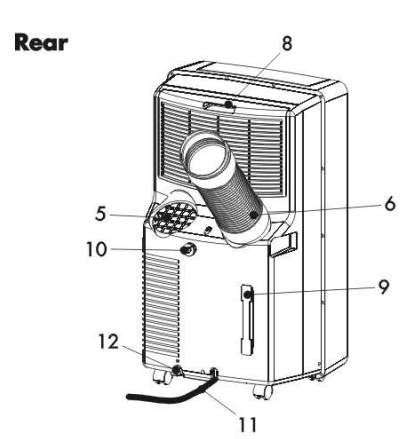

1. Air outlet
2. Control panel
3. Handle hole 4
4. Remote control storage facility
5. Air inlet
6. Air outlet hose
7. Casters
8. Air filter
9. Built-in cable storage
10. Upper Drain
11. Power supply cord
12. Lower Drain

Note: Please ensure if the water outlet drain is well installed before use.

POWER SUPPLY CORD

TEST: WHEN THIS BUTTON IS PRESSED OR WHEN THERE IS A CURRENT LEAK, THE UNIT WILL NOT OPERATE.

RESET: AFTER SOLVING THE PROBLEM, PRESS THE RESET BUTTON TO RESUME OPERATION.

Operation

NOTE: Wait 24 hours before turning on the air conditioner if the unit has been tilted for any reason. This allows the oils and the coolants to settle and level off.

BEFORE USE

1. Use an 115V, 15Amp outlet for the air conditioner. Do not use any other electrical appliances on this line or you may trip the fuse. Use a dedicated line for this air conditioner.
2. Do not place the air conditioner in direct sunlight or close to any heating appliances (ie., baseboard heaters, stoves, etc.)
3. Operate on a flat surface only.
4. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.
5. Keep unit at least 1 foot away from the wall.

DURING USE

1. When turning on the unit for the first time after plugging it into an electrical outlet, the unit will start in a low fan cooling mode. The temperature display on the LCD will show the current room temperature. When turning on the unit during regular usage, it will remember the last setting used. If you want to operate the air conditioner as a dehumidifier, then adjust to dehumidification mode.
2. After a normal shut down, wait for 3 minutes before restarting the unit so as to complete the compressor cycle.
3. In cooling mode, this portable air conditioner should not require water to be removed. The unit has a unique design which continuously evaporates the water. In heating mode, or when the unit is operated in high humidity conditions, you may need to empty the water tank periodically. The unit will shut down automatically when the water tank is full and the ‘Tank Full” warning light will turn on.
4. To empty the water tank: Place a shallow pan (not included) below the lower drain located on the back of the unit (near the bottom of the air conditioner), remove plug, and drain the water tank completely. Re-insert the drain plug. You will then be able to restart your portable air conditioner.
5. Check and clean the filter once every week for highest efficiency. NOTE: Do not operate unit without filter.

AFTER USE

If the unit is not being used for a long period of time, drain the water from the water tank. Please see step 4 of the “During Use” section above for more information.

Control Panel Operation

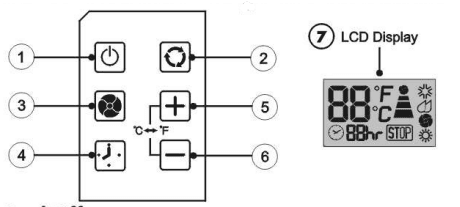

1.  Power On / Off
2. Mode: Press the mode button for desired setting.
   • Cool: Eal sign appears in LCD display when in cooling.
   • Dehumidification: @ sign appears in LCD display when in dehumidification mode.
   • Fan: [@ sign appears in LCD display when in fan mode.
   • Heat: [ sign appears in LCD display when in heat mode. (HPN1 4XHM Only)
3. Fan Speeds: There are 3 adjustable speeds in the cool and fan mode: Low, Medium and High. In dehumidification mode, and room temperature is greater than 77°F, fan speed can be adjusted; otherwise fan speed is fixed to “low.”
4. On / Off Timer: To set the Timer for a 1 to 24-hour delay until the air conditioner turns off:
   • When you use the timer setting button while the unit is operating, you can preset a time for the unit to turn off.
   • When you use the timer setting button while the unit is on standby, you can present a time for the unit to turn on.
   • If you press the “ON/OFF” button, the preset timer function will be cancelled.
   • Timer setting range is 1~24 hours.
     • To clear Timer Delay program: NOTE: Air conditioner can be either on or off.
       • Press the Timer button.
       •  Press and hold the minus button until the timer display has cleared.
     • To change the remaining time (in hours):
       • Press the Timer button.
       •  Press the plus or minus button to change the delay time from 1 to 24 hours.
       • The new delay time will display.
5. Setting the Temperature:
6. Setting the Temperature: To set the temperature, press the or key to raise or lower the temperature. The temperature can be raised or lowered in the cool mode. The temperature cannot be adjusted in fan or dehumidification mode. Press 5 and 6 simultaneously to switch between *F and “C. NOTE: The temperature can be set between 61’F to 89’F ( Cool Mode) and 61°F to 80°F (Heat Mode).
7. LCD Display: When STOP indicator light turns on, the internal water tank has filled with condensed water and the air conditioner will turn off automatically. See “Portable Air Conditioner Care” for directions on draining the air conditioner.

Remote Control Operation

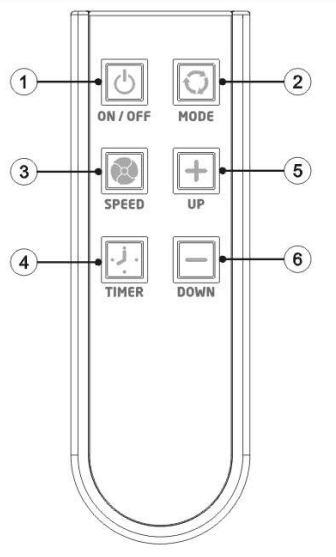

1.  Power On / Off
2. Mode: Press the mode button for desired setting.
   • Cool: Eal sign appears in LCD display when in cooling.
   • Dehumidification: @ sign appears in LCD display when in dehumidification mode.
   • Fan: [@ sign appears in LCD display when in fan mode.
   • Heat: [ sign appears in LCD display when in heat mode. (HPN1 4XHM Only)
3. Fan Speeds: There are 3 adjustable speeds in the cool and fan mode: Low, Medium and High. In dehumidification mode, and room temperature is greater than 77°F, fan speed can be adjusted; otherwise fan speed is fixed to “low.”
4. On / Off Timer: To set the Timer for a 1 to 24-hour delay until the air conditioner turns off:
   • When you use the timer setting button while the unit is operating, you can preset a time for the unit to turn off.
   • When you use the timer setting button while the unit is on standby, you can present a time for the unit to turn on.
   • If you press the “ON/OFF” button, the preset timer function will be cancelled.
   • Timer setting range is 1~24 hours.
     • To clear Timer Delay program: NOTE: Air conditioner can be either on or off.
       • Press the Timer button.
       •  Press and hold the minus button until the timer display has cleared.
     • To change the remaining time (in hours):
       • Press the Timer button.
       •  Press the plus or minus button to change the delay time from 1 to 24 hours.
       • The new delay time will display.
5. Setting the Temperature:
6. Setting the Temperature: To set the temperature, press the or key to raise or lower the temperature. The temperature can be raised or lowered in the cool mode. The temperature cannot be adjusted in fan or dehumidification mode. Press 5 and 6 simultaneously to switch between *F and “C. NOTE: The temperature can be set between 61’F to 89’F ( Cool Mode) and 61°F to 80°F (Heat Mode).

Care and Cleaning Guide

• Always unplug your air conditioner before cleaning.
• Air filter needs to be cleaned at least once a week for your unit to operate at optimum efficiency. Slide out the filter from the back by pulling on the tab. The filter may be washed or vacuumed. Remove the excess water from the filter by gently shaking the filter. This will remove dust and particles trapped in the filter. After cleaning, reinstall the filter. DO NOT use your air conditioner without the air filter in place.
• To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your air conditioner.
• Always use a soft cloth dampened with water or a mild soap and water solution to wipe the front of the cabinet. Wipe dry with a soft cloth.

Storage

• To store your air conditioner when not being used for a long period of time, drain the water tank as described on page 6 under the “During Use” section, step 4. Remove exhaust hose, clean the filters, cover with plastic bag and store away.

Troubleshooting

If air conditioner does not operate

• Check if unit is plugged in. The plug may have come loose.
• Press “Reset” button on the plug to resume operation.
• Check if the electrical wall receptacle is the proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in “Off” mode. • If the warning light is on, drain the water drain pipe by removing the plug.

Air conditioner working but room not cooling

• Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
• Check exhaust hose for proper installation. • Redirect the airflow. Remove any obstacles.
• All doors and windows need to be closed so that cool air does not escape the room. • Air filter may be blocked or may need cleaning.
• Unit BU may be too low for the required cooling area.
• On extremely hot & humid days, air conditioners may take a little longer to cool.
• Drain the water drain pipe by removing the plug.
• Unit may be in fan or dry mode. Put air conditioner in cool mode.

Tank Full Warning Light Is On

• Unit will shut down when the water pan is full. This condition may occur either when the unit is operated in high humidity conditions, or when the unit is being operated in HEAT MODE, since the auto-evaporation function will not work in the heating mode. See instructions in the “Operation” section under “During use”.

Limited Warranty

This warranty covers all defects in workmanship or materials for

1. The mechanical and electrical parts (including labor costs) contained in this product for a period of 12 months, from the date of purchase (commercial or rental application, the warranty is 90 days).
2. The sealed system and compressor contained in this product is for a period of 5 years, from the date of purchase (excluding labor costs after the initial 12 month period). In commercial or rental use, the additional limited compressor warranty is for 1 year and 9 months (excluding labor costs after the initial 90 days period).

You must keep and be able to provide your original sales receipt as proof of the date of purchase

Who is covered?

The original retail purchaser of this product.

What will be done?

Haier America will repair or replace in your home, any mechanical, electrical part or the compressor, which proves defective in normal household use for a period of 12 months. Haier America will repair or replace (excluding labor costs) the sealed system and compressor (parts only) for an additional 4 vear periodi

How can you get service?

1. Contact your nearest Haier America Authorized Service Depot. For the name of the Service Depot nearest you, contact Haier America at (877) 337-3639.
2. All service must be performed by an authorized Haier America Service Depot.
