Hamilton Beach 11561 Rose 3-in-1 Steamer

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
5. Use the appliance only for its intended use.
6. To avoid the risk of electric shock, do not immerse the steamer/iron in water or other liquids.
7. Always turn the steamer/iron to OFF before plugging or unplugging from the electrical outlet. Never pull on the cord to disconnect the appliance from the electrical outlet; instead, grasp the plug and pull it to disconnect the appliance.
8. Do not let the cord touch hot surfaces. Let the steamer/iron cool completely before putting the steamer/iron away. Coil the cord loosely around the steamer/iron when storing.
9. Always disconnect the steamer/iron from the electrical outlet before filling the water reservoir with water, emptying the water from the water reservoir, and when the steamer/iron is not in use.
10. Do not operate the steamer/iron with a damaged cord or in the event the steamer/iron has been dropped or damaged, or there are visible signs of damage, or it is leaking. To avoid the risk of electric shock, do not disassemble the steamer/iron. Supply cord replacement and repairs must be performed by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as outlined in the Limited Warranty.
11. The steamer/iron must be used and rested on a stable surface.
12. Do not leave the steamer/iron unattended while it is connected to an electrical outlet.
13. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn the steamer/iron upside down—there might be hot water in the reservoir. Always unplug the steamer/iron and allow it to cool before attaching the fabric cover for delicates.
14. To avoid a circuit overload, do not operate the steamer/iron on the same circuit with another high-wattage appliance.
15. If an extension cord is necessary, a cord with an ampere rating equal to or greater than the maximum rating of the steamer/iron shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or tripped over.
16. Always lock the water reservoir cap in position before operating the appliance.
17. To reduce the risk of contact with hot water emitted from steam vents, check the appliance before each use by holding it away from your body and operating the steam button.

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop, where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

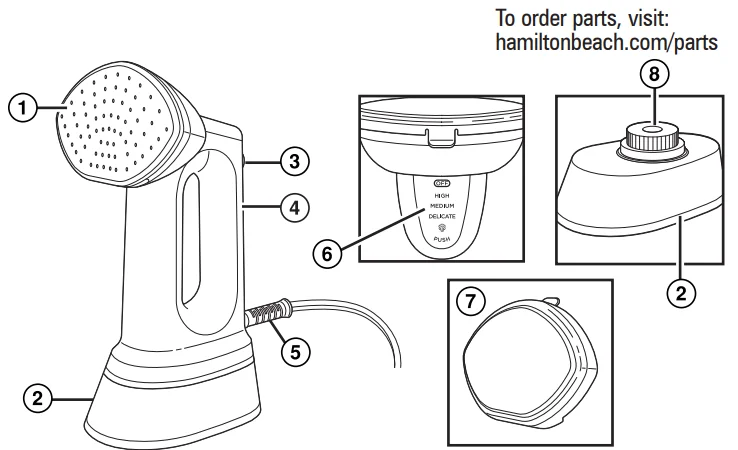

Parts and Features

1. Nonstick Soleplate with Steam Vents
2. Water Reservoir (removable)
3. Steam Button
4. Handle
5. Swivel Power Cord (10 ft. [3 m])
6. Control Panel with LED Mode Selector Display
7. Fabric Cover for Delicates
8. Water Reservoir Cap

Hamilton Beach in no way guarantees the availability of replacement parts, repair services, and information necessary to repair our products. For information on what parts and repair services may currently be available, please contact us using the methods provided in this manual.

NOTE: To avoid garment damage, check the garment label before using the Steamer/Iron. The label inside the clothing should recommend fabric care instructions.

How to Use as a Dry Iron

1. Plug into the outlet.
2. To select the temperature setting, press flashing PUSH on the Mode Selector Display until the desired setting is illuminated. The setting will stop flashing and beep twice when the temperature is reached.

How to Use as a Steam Iron or Garment Steamer

CAUTION: Burn Hazard. Steam is hot. Always make sure the unit is OFF when assembling attachments. Avoid contact with escaping steam.

NOTE: Do not use in steam mode if the garment label has this symbol .

1. To remove the Water Reservoir, hold the Steamer/Iron by the Handle, align the arrow on the Water Reservoir with (lock), turn to (unlock), and remove.
2. Unscrew the Water Reservoir Cap to remove, and fill the Water Reservoir with cold water to the MAX Fill. Do not overfill. Add the Cap back onto the Water Reservoir. If you have extremely hard water, mix 50% untreated tap water with 50% distilled or demineralized water for use in the Steamer/Iron.
3. Align the arrow on the Water Reservoir with (unlock) on the Steamer/Iron and turn to (lock) in place.
4. Plug into the outlet.
5. To select the temperature setting, press flashing PUSH on the Mode Selector Display until the desired setting is illuminated. The setting will stop flashing and beep twice when the temperature is reached.
6. Before using on fabric, let the Steamer/Iron steam for 5 seconds to remove any minerals or sediment from factory testing or last use. Press the Steam Button on the Handle to steam. CAUTION: Burn Hazard. Steam is hot. Always point the nozzle away from yourself and others. Never steam clothes while they are being worn.
7. Carefully move the Steamer/Iron up and down over wrinkled areas. Do not hold the Steamer/Iron in one spot for any length of time; this may cause damage to the fabric.
8. If steaming delicate fabrics, use the Fabric Cover for Delicates to protect the fabric or any embellishments on the garment. To attach the Fabric Cover for Delicates, with the Iron/Steamer unplugged and cool to the touch, align the tab up or down over the Soleplate and push to snap on. To remove, hold a finger behind the Fabric Cover for Delicates tab and push forward. The Fabric Cover for Delicates is only for use on the DELICATE setting.
9. To refill the Water Reservoir to continue steaming, unplug and cool for 5 minutes before adding water.
10. When steaming is complete, unplug and cool completely.
11. Always remove the Water Reservoir and empty the water after each use. Store upright.

Steamer Tips

• To avoid garment damage, check the garment label for fabric content and any steaming instructions.
• Hang garments on a plastic hanger for easier steaming. Wooden hangers will get damaged if used for steaming clothes.
• Wait 10 minutes before wearing your steamed garment or storing it in a closet.
• When steaming delicate fabrics, touching the fabrics lightly with the Fabric Cover for Delicates will help in wrinkle removal. The Fabric Cover for Delicates is only for use on the DELICATE setting.
• For more difficult wrinkles, try steaming from the underside of the fabric. This allows fibers in the fabric to relax.
• Pants are more easily steamed upside down, with pants hanging from the cuffs.

Auto Shutoff

The Steamer/Iron will automatically shut off after 30 minutes of inactivity. To turn it back on, press PUSH on the Display.

Care and Cleaning

WARNING: Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse the cord, plug, or base in any liquid.

1. Press PUSH on the Display until OFF is illuminated. Unplug. Allow the Steamer/Iron to cool completely.
2. Remove the Water Reservoir and drain all water.
3. Replace the Water Reservoir on the Steamer/Iron and store it upright.

Soleplate

1. Never iron over zippers, pins, metal rivets, or snaps, since these may scratch the Soleplate.
2. To clean buildup on the Soleplate, wipe with a sudsy cloth. Do not use abrasive cleansers, metal scouring pads, or chemical or hot iron cleaners. These will damage the Soleplate finish.

To Remove Minerals and Sediment from Steamer/Iron

1. Add 1/4 cup (59 mL) of white vinegar and 1/4 cup (59 mL) of cold water to the Water Reservoir and follow “How to use as Steam Iron” steps 1-5. Select the HIGH temperature setting and allow it to come to temperature. Press the Steam Button to quickly remove minerals and sediment. This should take about 4 minutes. Do not steam clothes with vinegar in the Water Reservoir.
2. Cool completely and empty the Water Reservoir. Rinse the Water Reservoir and add 1/2 cup (118 mL) of water. Repeat “How to use as a Steam Iron” to remove any remaining vinegar from the Steamer/Iron.

Troubleshooting

The steamer/Iron won’t heat.

• Plug into a working outlet.
• A temperature setting has not been selected. Select a temperature.
• The Steamer/Iron has automatically shut off. Press the PUSH button on the Display to turn it back on.

Water is leaking.

• Unplug. Check that the Water Reservoir Cap is secured in place. Dry off the Steamer/Iron. If the leak continues, do not operate the Steamer/Iron. Contact Customer Service.
• If dry ironing, make sure the Steam Button is not being pushed.

The steamer/Iron won’t steam.

• No water in the Water Reservoir. Add cold water to the Water Reservoir and follow the “How to Use as a Steam Iron” instructions.
• Allow the Steamer/Iron to reach temperature by waiting until the setting has stopped flashing and is illuminated.
• The Steamer/Iron is not plugged into an outlet. Plug it into an outlet.

The steamer/Iron is trailing or spitting.

• Clean the Steamer/Iron by following the “To Remove Minerals and Sediment from Steamer/Iron” section.
• ALWAYS empty the Water Reservoir after each use. Water left in the Reservoir may discolor clothing or cause mineral/sediment buildup in the Steamer/Iron.

Steamer/Iron is beeping, and the OFF setting is flashing.

• No water in the Water Reservoir. Unplug or press the Steam Button to reset.
• dd cold water to the Water Reservoir and follow the “How to Use as a Steam Iron” instructions.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is instead of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original delivery in Canada and in the U.S.

During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace it with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V ~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty.

This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please write to Hamilton Beach Brands, Inc., Attn: Consumer Affairs, 261 Yadkin Road, Southern Pines, NC 28387, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/customer-service in Canada. For faster service, include the model, type, and series numbers on your appliance.
