Hamilton Beach 31403 Sure-Crisp Air Fryer Toaster Oven User Guide

Hamilton Beach 31403 Sure-Crisp Air Fryer Toaster Oven

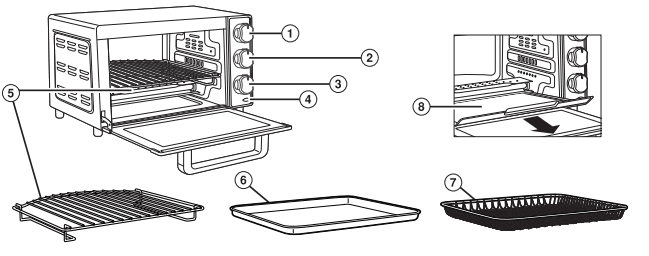

Parts and Features

1. Temperature Knob
2. Function Knob
3. Toast/Timer Knob
4. ON Indicator Light
5. Oven Rack
6. Baking/Broiling Pan
7. Air Frying Basket
8. Slide-Out Crumb Tray

Top Rack Position

Broiling, Toasting & Air Frying (small, flat foods)

Bottom Rack Position

Baking, Broiling, & Air Frying (larger foods)

Baking/Broiling Pan slides under oven rack.

How to Use

WARNING: Fire Hazard.

• If the contents ignite, do not open the oven door. Unplug the oven and allow the contents to stop burning and cool before opening the door.
• Do not operate the oven unattended.
• Do not use with oven cooking bags.
• Do not heat foods in plastic containers.
• Do not heat taco shells in a toaster oven. Always use a full-size conventional oven.
• Always allow at least 1 inch (2.5 cm) between food and the heating element.
• Follow the food manufacturer’s instructions.
• Always unplug the oven when not in use.
• Regular cleaning reduces the risk of fire.

Before first use

Most heating appliances produce an odor and/or smoke when used for the first time. Plug the Oven into an outlet. Turn Temperature Knob to 450°F (230°C). Heat at this temperature for 10 minutes. Odor should not be present after this initial preheating. Wash the Air Frying Basket, Baking/Broiling Pan, and Oven Rack before use.

Stay On Function

The Oven can be set to stay on by turning Timer to Stay On while pressing and holding buttons on side of Knob.

Air Fry Mode

• Use Air Fry mode to crisp foods using little added oil.
• The rack position used to air fry depends on the size of the food to be cooked. Keep at least 1 inch (2.5 cm) between food and heating elements.
• Place larger food on the bottom-rack position.
• Larger/thicker foods may need to be flipped, stirred, or rotated halfway during cooking.
• Air Fry Mode cooks and browns food evenly by circulating forced hot air, which crisps food.
• Slice or cut fresh foods into uniform-sized pieces to ensure even cooking.
• Check food for doneness before the recommended packaging cook time.
• For faster cooking, preheat the Oven to reduce cooking time.

1. Plug into an outlet. Rotate Function Knob to Air Fry.
2. Air Frying Basket: Arrange foods in a single, even layer, and avoid overfilling the basket. Insert the Oven Rack so that food is at least 1 inch (2.5 cm) from the heating element. Slide Baking/Broiling Pan under Oven Rack to catch drippings. Then place the Air Frying Basket with food on the Oven Rack.
   NOTE: Use bread crumb coatings or lightly spritz with oil. Sauces or batter coatings are not appropriate for air frying.
3. Turn Temperature Knob to Air Fry/Toast/Broil position.
4. Rotate the Timer clockwise past 10, then to the desired cooking time. Or, rotate to Stay On while pressing and holding buttons on side of Knob.
5. If time is selected, the Timer will sound when the selected time is complete. If Stay On is selected, rotate the Timer to OFF ( ) to end the cycle at any time.
6. Unplug.

Bake Mode

Use Bake mode for cakes, casseroles, cookies, and roasting meats, poultry or vegetables. Place Oven Rack in top or bottom position. Preheating the Oven for 5 minutes is necessary for Bake mode.

1. Plug into an outlet. Turn Temperature Knob to desired temperature, then rotate Function Knob to Bake.
2. Rotate the Timer clockwise past 10, then back to “dark toast” to preheat the Oven for 5 minutes before beginning to bake.
3. After the Oven is preheated, set the Timer to the desired time by rotating clockwise past 10, then to the desired baking time. Or, rotate to Stay On while pressing and holding buttons on side of Knob.
4. Rotate Timer to OFF ( ) to end the cycle at any time.
5. Unplug.

Broil Mode

Place Oven Rack in Oven. Use the top rack position for faster broiling times. The bottom rack position is for browning casserole tops, toasting sandwiches, melting cheese on bread, or for foods needing longer broiling times, like chicken and thick cuts of meat. Place Baking/Broiling Pan on Oven Rack. Place in Oven. DO NOT PREHEAT OVEN. Food must be a minimum of 1 inch (2.5 cm) from heating elements.

1. Plug into an outlet. Turn Temperature Knob to Air Fry/Toast/Broil and Function Knob to Broil ( ).
2. Rotate the Timer clockwise past 10, then to the desired broiling time. Or, rotate Timer to Stay On while pressing and holding buttons on side of Knob. Turn foods when browned or halfway through cooking time. Oven broils on high temperature and may not be adjusted.
3. Rotate Timer to OFF ( ) to end the cycle at any time.
4. Unplug.

Toast Mode

Use for browning and toasting breads, bagels, and English muffins. Place food cut/split side facing up. This will toast the cut/split side more than the outside of the food. Rack should be in the top position.

1. Plug into an outlet. Turn Temperature Knob to Air Fry/Toast/Broil and then rotate Function Knob to Toast ( ).
2. Select a shade of browning by turning the Timer clockwise past 10, then back to the desired toast color. A bell will sound when the Toast cycle is complete.
3. Rotate the Timer to OFF ( ) to end the cycle at any time.
4. Unplug.
   TIP: The number of slices of bread and the bread’s freshness will affect the toast’s color. For example, toasting four slices of bread will require a darker toast color setting than two slices of bread. Adjust Toast based on desired color and number of slices.

Test Kitchen Tips

• Visit foodsafety.gov for safe cooking temperature information.
• Bake foods, such as pizza, on the bottom rack position. Place food directly on the Oven Rack or in a Baking/Broiling Pan.
• When toasting only two slices of bread, place bread in the center of the toasting area on the bottom rack to get even toasting on top and bottom.
• Do not totally enclose foods in aluminum foil. Foil can insulate foods and slow down heating.
• Preheating before Air Frying can shorten cooking time and improve crispness.
• Air Frying Basket: Arrange foods in a single, even layer, and avoid overfilling the basket.
• Turn, flip, or stir foods halfway through cooking time for even cooking.
• Slice or cut fresh foods into uniform-sized pieces to ensure even cooking.
• Use bread crumb coatings or lightly spritz with oil. Sauces or batter coatings are not appropriate for air frying.
• Lining the baking pan underneath the basket makes cleanup easier. Do not line the air fry basket with parchment paper or foil as it blocks air flow to the food.

Care and Cleaning

WARNING Electrical Shock Hazard. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts.
The oven should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.

1. Unplug and allow to cool completely.
2. To clean the inside of the Oven, wipe the Oven walls, bottom of the Oven, and glass door with a damp, soapy cloth. Repeat with a damp, clean cloth. For stubborn stains, use a plastic scouring pad.
3. Wipe the outside of the Oven with a damp cloth. Do not use abrasive cleansers or metal scouring pads.
4. Wash the Slide-Out Crumb Tray, Baking/Broiling Pan, Air Frying Basket, and Oven Rack in hot, soapy water. Rinse and dry.

Troubleshooting

The oven will not heat.

• Check to make sure the electrical outlet is working and the Oven is plugged in. Turn Temperature Knob to 350°F (177°C). Turn Function Knob to Bake; then turn Timer counterclockwise to Stay On while pressing and holding buttons on side of Knob.

Moisture forms on the inside of the Oven door when toasting.

• This is normal when toasting in an Oven. Moisture is slower to escape from an Oven than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries.

An odor and smoke come from the Oven.

• Smoke and odor are normal during the first use of most heating appliances. These will not be present after an initial heating period.

The oven will not toast.

• Check to make sure the outlet is working and the Oven is plugged in. Turn Temperature Knob to Air Fry/ Toast/Broil. Turn Function Knob to Toast; then rotate Timer clockwise past 10 and then back to the desired toast color.

Some foods burn, and some are not done.

• Adjust Oven Rack position to center food in Oven.
• Adjust Oven temperature or cooking time for best results with your recipes.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for anything other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V ~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by a breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
