Hannspree HF207 LCD Monitor User Guide

Hannspree HF207 LCD Monitor

SAFETY NOTICE

1.  The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables and AC power cords, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibility of the user to correct such interference.
   WARNING: To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

PRECAUTIONS

• Do not use the monitor near water, e.g., near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
• Unplug the unit during a lightning storm or when it will not be used for a long period of time. This will protect the monitor from damage due to power surges.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• Never push any object into the slot on the monitor cabinet. It could short-circuit parts, causing a fire or electric shock. Never spill liquids on the monitor.
• Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.
• The wall socket shall be installed near the equipment and shall be easily accessible.

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with an LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen, depending on the desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less, such as a missing pixel or a pixel lit all the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
• If the screen suddenly flashes erratically or the backlighting fails, please contact your dealer or service center for repair. Do not attempt to repair the monitor yourself.

Lamp Disposal

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP SPECIFIC DISPOSAL INFORMATION, CHECK WWW.LAMPRECYCLE.ORG.

BEFORE YOU OPERATE THE MONITOR

FEATURES

• 20” Wide screen TFT Color LCD Monitor
• Crisp, Clear Display for Windows
• Recommended Resolutions: 1600 X 900 @60Hz
• EPA ENERGY STAR®
• GP Green Product
• Ergonomic Design
• Space Saving, Compact Case Design

CHECKING THE CONTENTS OF THE PACKAGE

The product package should include the following items:

LCD Monitor

Cables and User Manual

INSTALLATION INSTRUCTIONS

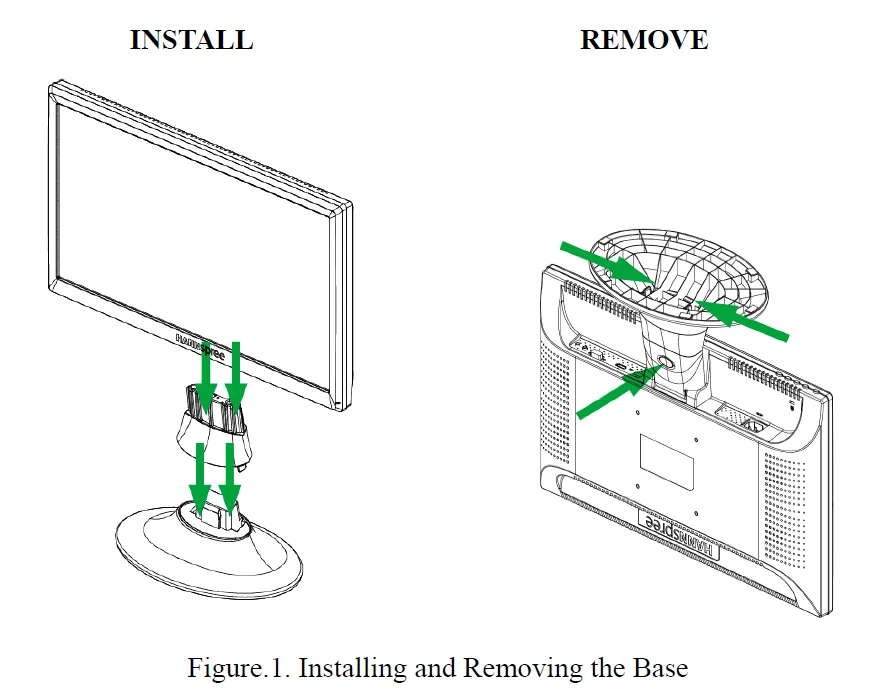

INSTALLATION:

1. Align the monitor with the opening in the base.
2. Note that the longer section of the base points forward.
3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly.
4. Verify that the monitor is securely attached to the base by looking at the bottom of the base and making sure that the clips are fully engaged in the base.

REMOVAL:

1. Flip over the monitor so that it is upside down.
2. Press the 2 clips on the base that hold the monitor in place.
3. Gently press and hold the 2 clips while pulling the base from the monitor unit; they are unattached.

POWER

POWER SOURCE:

1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an Internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the AC-power cord one end to your LCD monitor’s AC-input socket, the other end to a wall outlet.

MAKING CONNECTIONS

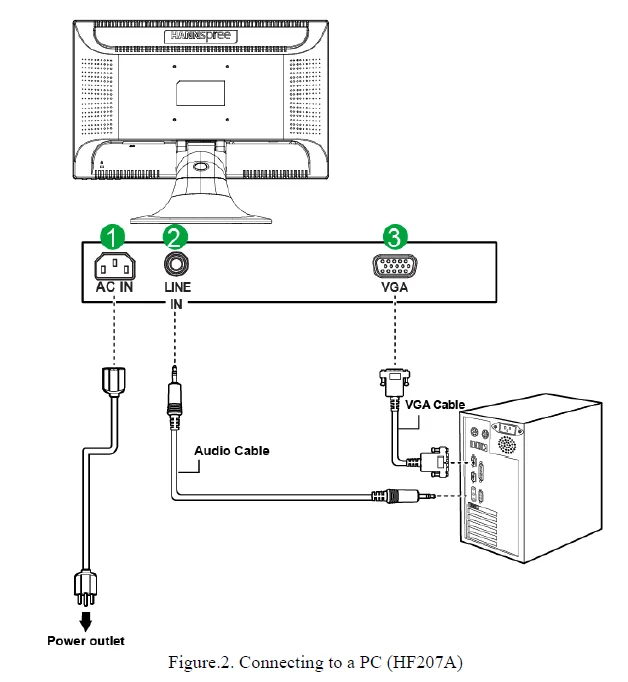

CONNECTING TO A PC (HF207A)

Turn off your computer before performing the procedure below.

1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer’s VGA port.
2. Connect the audio cable between the monitor’s audio input and the PC’s audio output (green port).
3. Plug one end of the AC power cord to the LCD monitor’s AC input socket, and the other end to a Wall outlet.
4. Turn on your monitor and computer.

1. Power AC Input
2. Audio Input
3. VGA Input

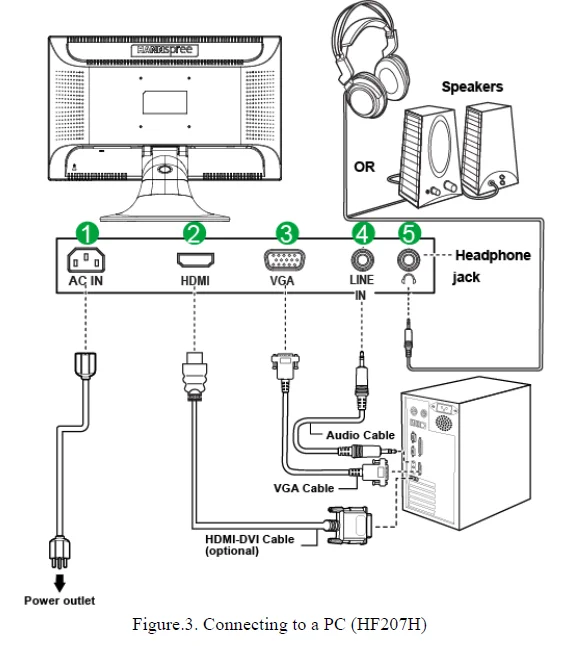

CONNECTING TO A PC (HF207H)

Turn off your computer before performing the procedure below.

1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer’s VGA port.
2. Connect one end of the HDMI to DVI cable (Dual input mode optional) to the back of the monitor and connect the other end to the computer’s DVI-D port.
3. Connect the audio cable between the monitor’s audio input and the PC’s audio output (green port).
4. Plug one end of the AC power cord to the LCD monitor’s AC input socket, and the other end to a Wall outlet.
5. Turn on your monitor and computer.

1. Power AC Input
2. HDMI Input
3. VGA Input
4. Audio Input
5. Earphone

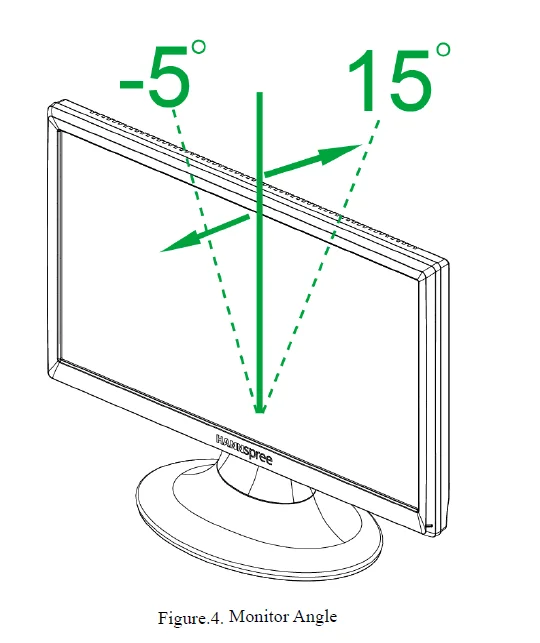

ADJUSTING THE VIEWING ANGLE

• For optimal viewing, it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference.
• Hold the stand so you do not topple the monitor when you change the monitor’s angle.
• You are able to adjust the monitor’s angle from -5° to 15°.

NOTES:

• Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
• Be careful not to place fingers or hands near the hinges when tilting the monitor; otherwise, pinching can result.

OPERATING INSTRUCTIONS

GENERAL INSTRUCTIONS

Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 5). By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.
• Connect the Signal cable from the monitor to the VGA card.
• Press the power button to turn on the monitor. The power indicator will light up.

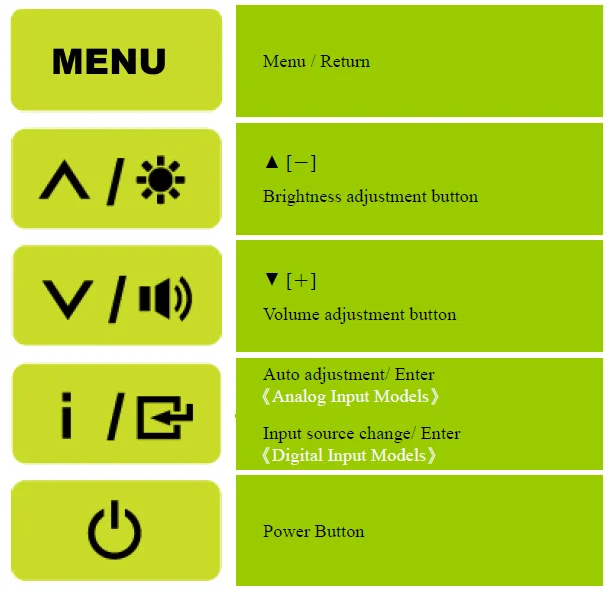

FRONT PANEL CONTROL

• Power Button:
  Press this button to switch the monitors on/OFF of monitor’s.
• Power Indicator:
  Blue — Power On mode.
  Orange — Power Saving mode.
• MENU / RETURN:
  • Turn the OSD menu on/off or return to the previous menu.
  • Exit the OSD menu when in volume OSD status.
• Adjust ▲▼:
  • Adjust Brightness and volume when the OSD is off.
  • Navigate through adjustment icons when OSD is ON or adjust a function when the function is activated.
• 【 i 】Button: 《Analog Input Models》
  • The OSD menu is used as《confirmation》function during start-up.
  •  The 「Auto adjustment」 function works only for VGA input. (The auto adjustment function is used to optimize the 「horizontal position」, 「vertical position」,「clock」,and 「phase」.)
• 【 i 】Button: 《Digital Input Models》
  • Press【 i 】to enter Source selections. (Selections include VGA, HDMI, etc. The actual selections may vary depending on the models. This function is only available in models with digital inputs.
  • The OSD menu is used as《confirmation》function during start-up.
  • Press and hold this button for more than 3 seconds will start 「Auto Adjust」 function when using the VGA input only. (The auto adjustment function is used to optimize the 「horizontal position」, 「vertical position」,「clock」, and 「phase」.)
• Hotkeys:
  • Restore Brightness and Contrast defaults:
    To reset both the Brightness and Contrast to their default values, press the 【▲】and 【▼】 keys at the same time.
  • ASPECT RATIO:
    Press【MENU】+【▼】key to change to 「FULL」mode or 「FIT」mode.

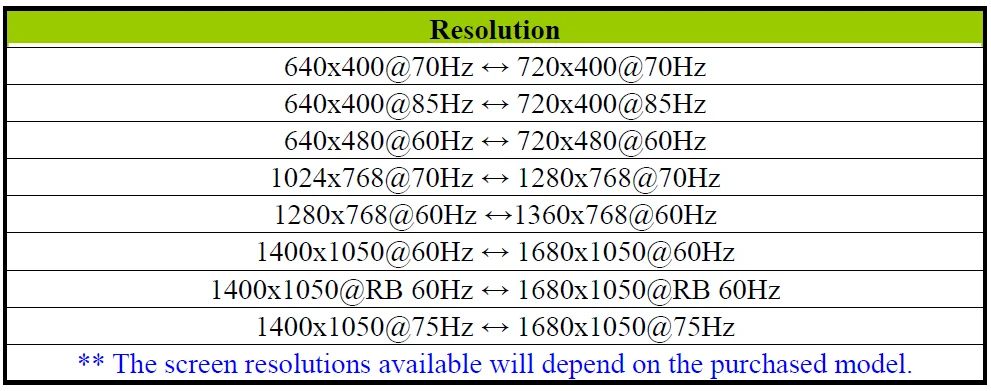

  • Change Resolution:
    For similar screen display resolutions (see table below), the screen resolution can be changed by pressing the【MENU】+【▲】button to achieve the optimal display quality.

NOTES:

• Do not install the monitor in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
• Save the original shipping box and packing materials, as they will come in handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it was originally packed at the factory.
• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

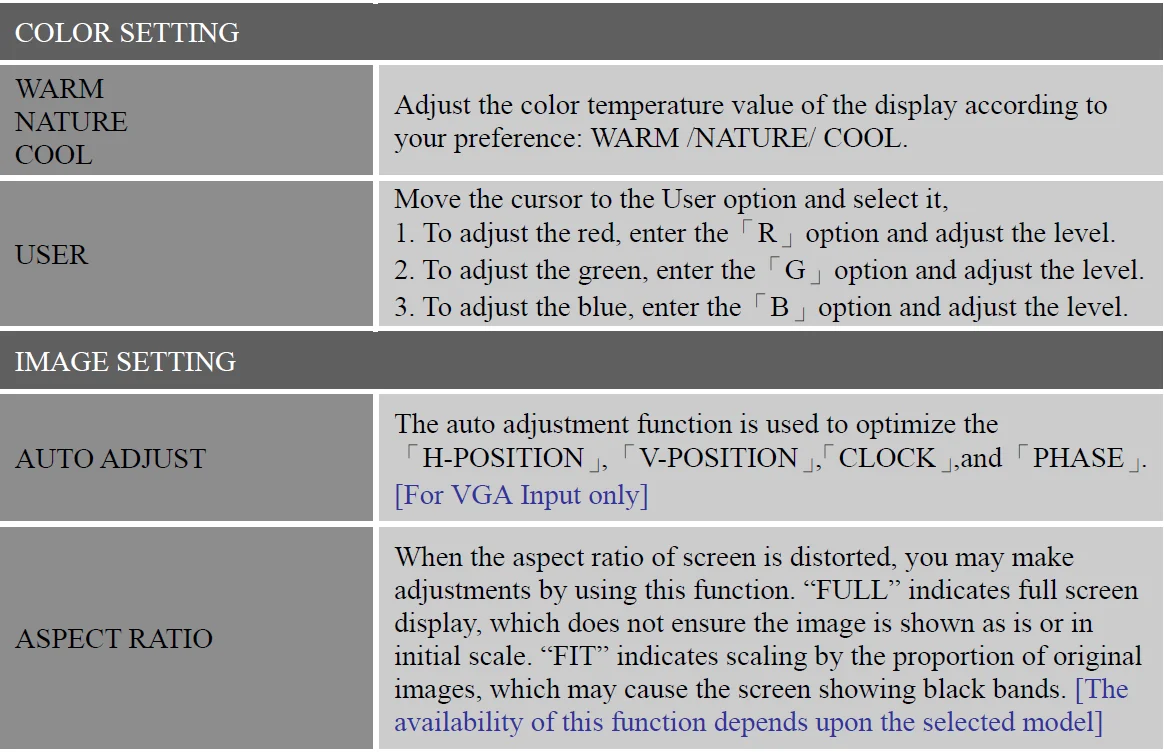

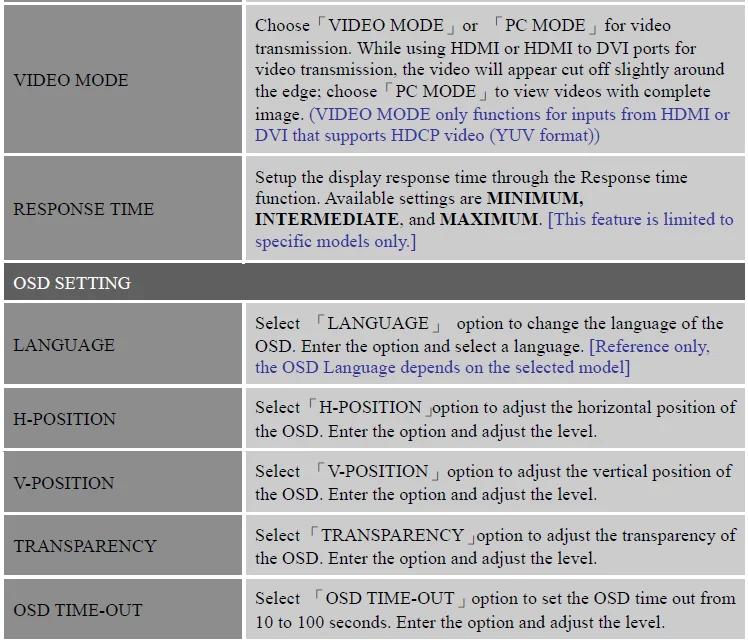

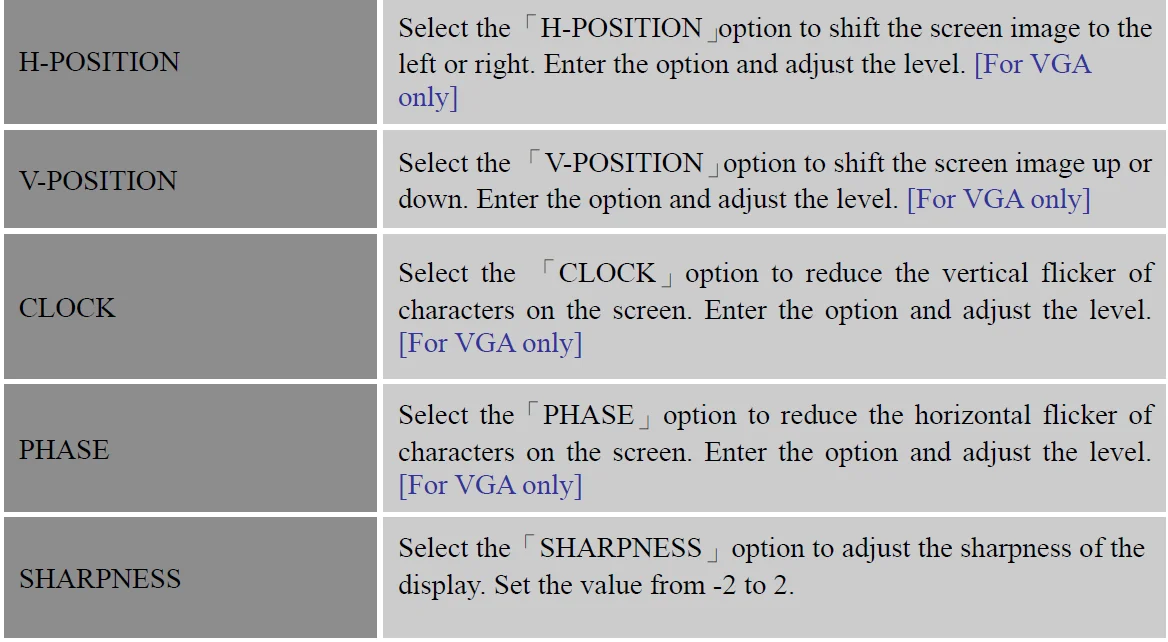

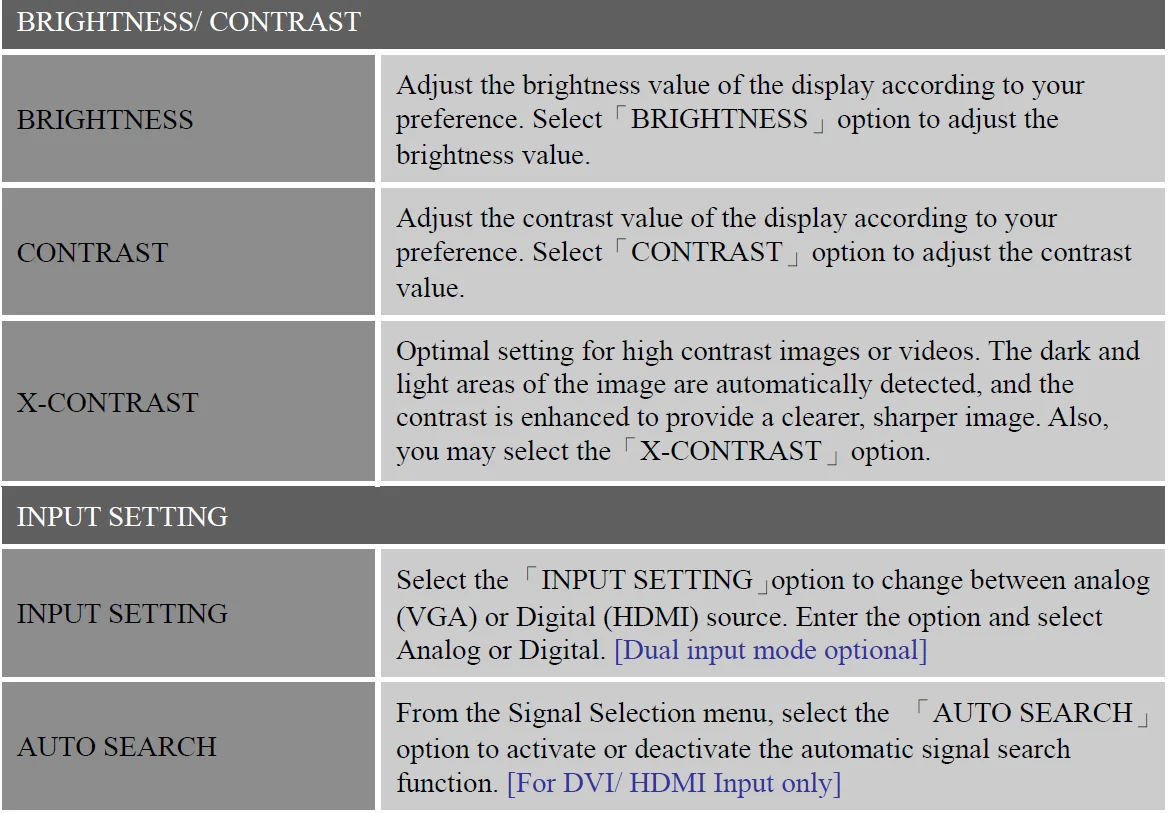

HOW TO ADJUST THE SETTINGS

PLUG AND PLAY

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA) and/or the United States Environmental Protection Agency (EPA) and the Swedish Confederation of Employees (NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal present. When there is no video input signal, this monitor, following a time-out period, will automatically switch to power saving mode. This reduces the monitor’s internal power supply consumption. After the video input signal is restored, full power is restored, and the display is automatically redrawn. The appearance is similar to a “Screen Saver” feature, except the display is completely off. The display is restored by pressing a key on the keyboard or clicking the mouse.

TECHNICAL SUPPORT (FAQ)

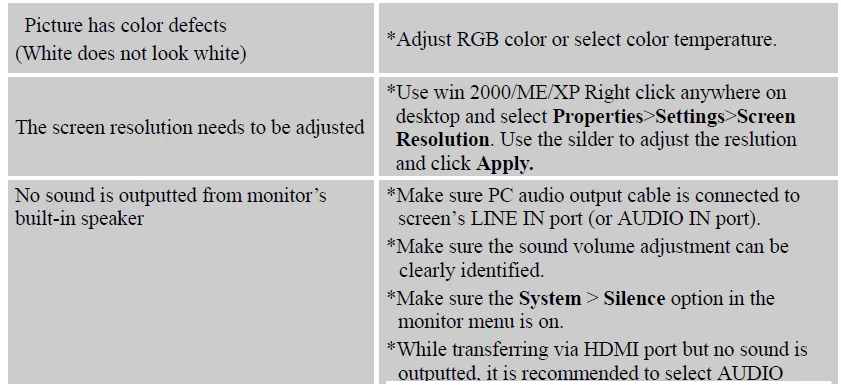

Q & A FOR GENERAL PROBLEMS

ERROR MESSAGE & POSSIBLE SOLUTIONS

• CABLE NOT CONNECTED :
  • Check that the signal cable is properly connected. If the connector is loose, tighten the connector’s screws.
  • Check the signal cable’s connection pins for damage.
• INPUT NOT SUPPORT :
  Your computer has been set to an unsuitable display mode. Set the computer to the display mode given in the following table.

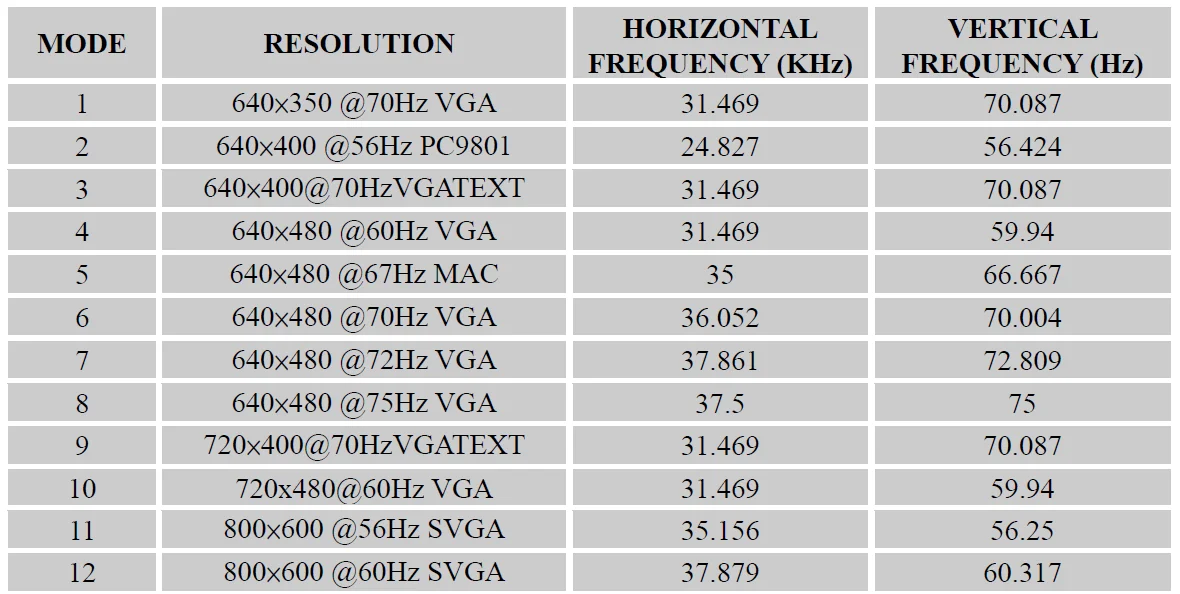

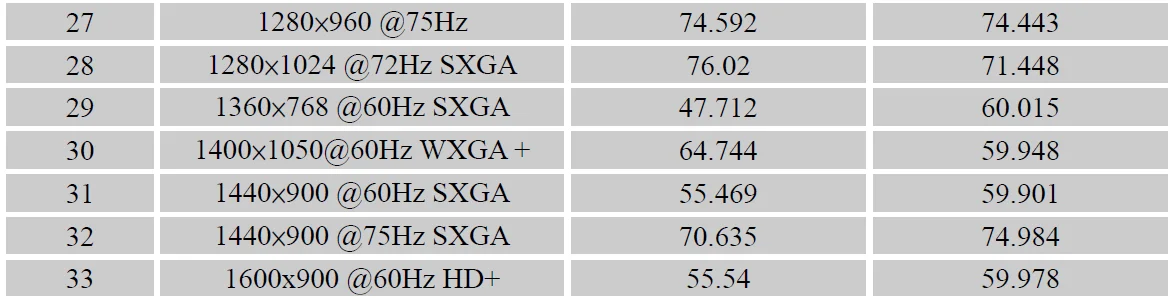

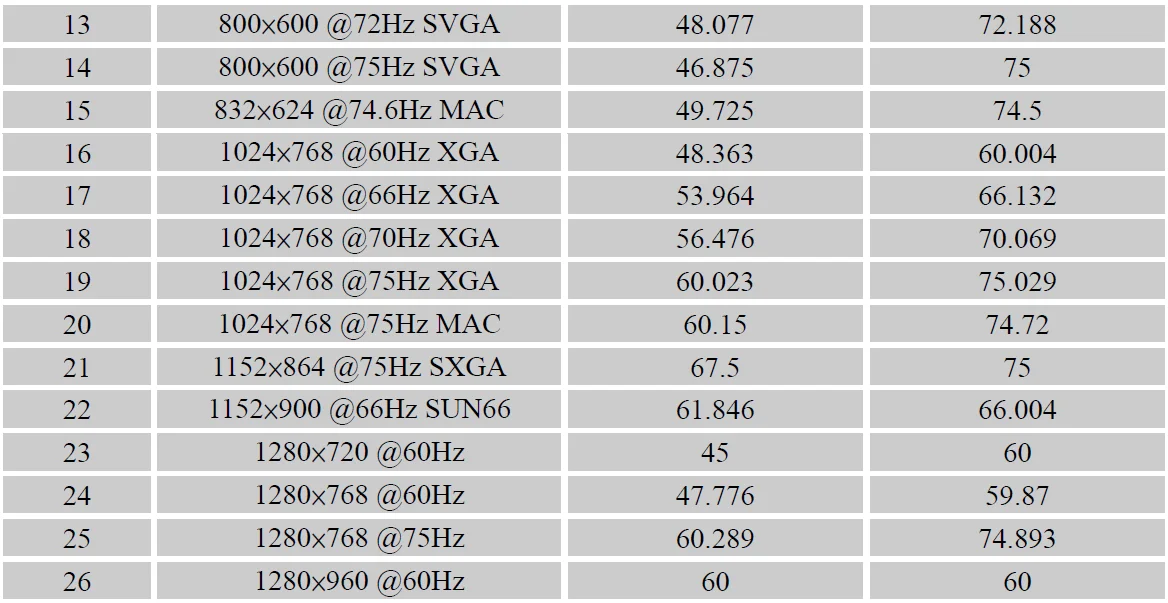

FACTORY PRESET TIMING TABLE:

** We ensure that the monitor can be lighted under interlace signal mode, but we can not guarantee the image quality.

SPECIFICATIONS

*** The above specification is subject to actual product specification and is subject to change without prior notice.

NOTES:
The Maximum Resolution will depend on the display card supported. The related issue can refer to the www.hannspree.com FAQ section.

FCC Class B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, as specified in Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Suppose this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. In that case, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions﹕(1) this device may not cause harmful interference﹔and (2) this device must accept any interference received, including interference that may cause undesired operations.

RECYCLING INFORMATION

We, the Hannspree, care very much about our environmental protection strategy and firmly believe that it helps us have a healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other materials can be classified to hazardous and poisonous substances. We strongly encourage you to contact the information provided to recycle this product. For more information, please visit www.hannspree.com

For more manuals by Hannspree, visit ManualsLibraryy

Hannspree HF207 LCD Monitor-FAQs
