Hermitlux Countertop Dishwasher User Guide

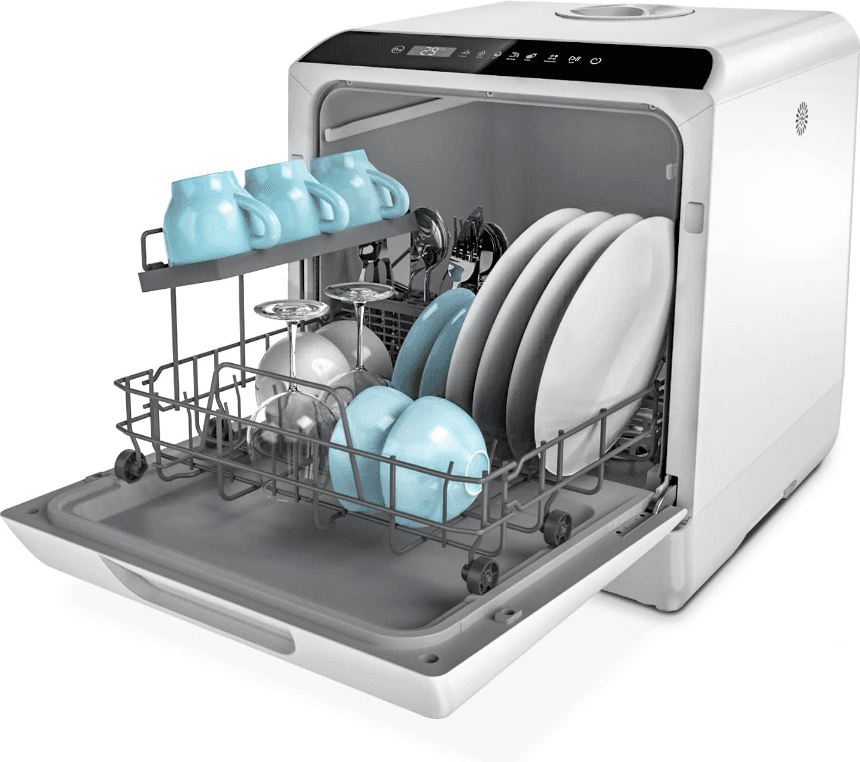

Hermitlux Countertop Dishwasher

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using your dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended function.
• Use only detergents or wetting agents recommended for use in a dishwasher, and keep them out of the reach of children.
• When loading items to be washed:

1. Locate sharp items so that they are not likely to damage the door seal;
2. Load sharp knives with the handles up to reduce the risk of cut-type injuries.

• Do not wash plastic items unless they are marked” dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.
• Do not touch the heating element during or immediately after use.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• To reduce the risk of injury, do not allow children to play in or on a dishwasher.
• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• DO NOT IMMERSE IN WATER.
• HOUSEHOLD AND INDOOR USE ONLY.
• It is forbidden to open the door while the appliance is working to avoid personal danger. Don’t open the door when washing avoiding to avoid hot water flying out and causing any harm.

SAVE THESE INSTRUCTIONS

Safety and Warning

Warning

1. Power socket must be grounded, avoiding possible electric leakage or shock.
2. Don’t share one socket with other appliances to prevent a fire.
3. Any new parts or power lines will be changed by the service man after damage.
4. Dispose of the machine in an environmentally friendly manner under local regulations.
5. Do not place the machine in an environment under 32°F, like outside the door in cold weather.
6. Please use salt and detergent that is special for the dishwasher.
7. Don’t place or use the machine on a platform that is not stable, wet, or smooth, or inflammable, to avoid any damage.
8. Don’t place and use the machine within 5.9″ far from the gas stove or heater;
9. Don’t place any heavy objects on the door when the door is opening to avoid the machine turning over.
10. Don’t splash water into the machine, avoiding electric shock or fire;
11. Don’t drink the left water in the machine.
12. Don’t let children operate the machine independently to avoid any danger.

Precaution

1. Don’t open the door when washing, to avoid hot water from flying out and causing any harm.
2. Don’t touch the block of the side air outlet.
3. Don’t tilt or move the machine when washing.
4. The knife or other objects with sharp points should not face a person to avoid any injuries when opening the door.
5. Please stop washing, power off, and close the tap when any faults occur.
6. Please check and clean the machine from time to time for the best washing effect.
7. Please fix the drain hose to the stained water outflow.
8. Don’t forcibly pull the power cord, drain hose, or press the cutlery tray, avoiding any damage;
9. Don’t use a wet hand to operate the machine to avoid an electric shock.
10. Children should be far from chemical materials such as salt, detergent to avoid any harm.

Product Introduction

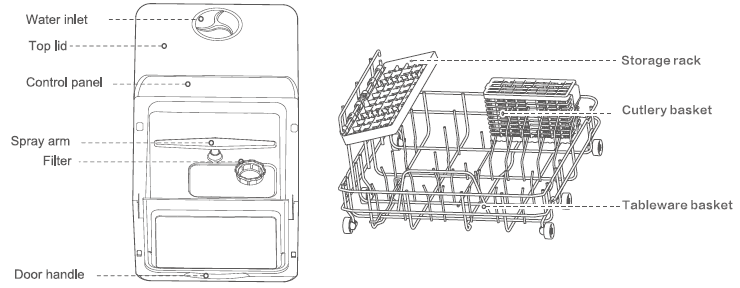

Machine

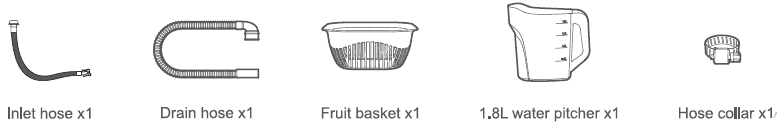

Parts list

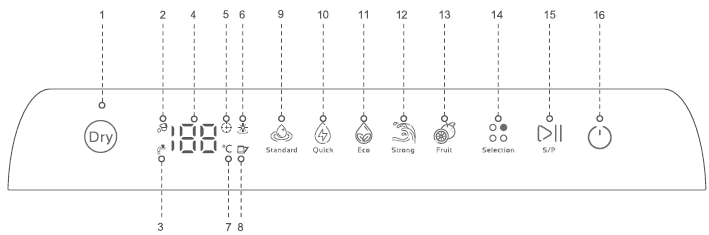

Control Panel

1. Dry
2. Tank model
3. Tap model
4. Display screen
5. Time display
6. Dry indicator
7. Temperature
8. Door open
9. Standard
10. Quick
11. ECO
12. Strong
13. Fruit
14. Program selection
15. Start/Pause
16. Power on/off

Installation

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance to electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. WARNING – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt about whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it does not fit the outlet, have a proper outlet installed by a qualified electrician.

Inlet hose installation

1. Connect machine: Insert the inlet hose elbow into the water inlet behind the machine and tighten the screw.
2. Connect tap: A, B, and C are three options for tap connection, but the B and C options need to make a hole on or behind the cabinet for the hose can go through the cabinet.

Note:

The product has the characteristic of heating liquid; the Water temperature should not be over 104°F if using hot water.

The size of the inlet hose elbow is 1/2′ with internal thread, the tap size must be 1/2′ with outer thread.

Drain hose installation

1. Connect machine: Insert the drain hose elbow into the water outlet behind the machine and tighten the collar.
2. Connect sewer: A, B, C, three options for sewer connection. B and C options need to make a hole in or under cabinet in order for the pipe can go through the cabinet.

Note:

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

Tableware Display

1. Please get rid of large food residue on tableware, avoiding blocking the water hose.
2. Please make reference to the right picture for the tableware display.

Note:

In order to fully clean tableware, please tilt the tableware internally or put the stained side down. The capacity of the maximum number of place settings is six.

Operation

• Power on: Plug in, touch the “Power button ” to turn on the machine.

Note: Before the program finishes, hold the power button for 3 seconds to force the machine to turn off.

• Add detergent: Open the door, add moderate detergent powder, or 1 pc detergent block into the machine, and close the door.

Note: No detergent when fruit washing; The dosage: 8-10g each washing cycle.

• Program selection: Touch the “selection program”, each of the program indicators will light one by one, select the program you want.
• Run the program: Touch the “S/P button”, run the selected program, and the machine will check the water supply automatically.

Note:

1. The system will automatically check that all supplies are appropriate. If the indicators become red, you need to open the tap or fill the tank.
2. After 5 times checking, there is still no water supply, the machine will enter standby mode.
3. Touch the “S/P button” to force pause the machine and add tableware during washing.
4. Touch “Power” for 3 seconds to quit the program, and the machine will drain, then stop.
5. Touch “Dry” to add 73 hours’ circular wind to keep the air fresh inside the machine.

• Wash: The machine has two water supply models, the tap model and the tank model.

Maintain & Clean

Clean Filter

1. Disassemble: Rotate anti-clockwise to disassemble the filter set, which has 3 parts: filter mesh, main filter, and fine filter.
2. Clean: Use water to flush and brush each of the filter parts.
3. Assemble: After cleaning, rotate clockwise to close the filter set.

Clean spray arms

1. Disassemble: Open the door, take out the basket, then pull out the up and down spray arms.
2. Clean: Use water to flush and brush each spray arm, and use tools with sharp points, like a needle, to clean holes if needed.
3. Assemble: After cleaning, please press each arm into position, and make sure the arm can move smoothly.

Fault and Problem

Fault codes

Problem
