Homdox HD05 2150PSI 1700W Electric Power Washer User Manual

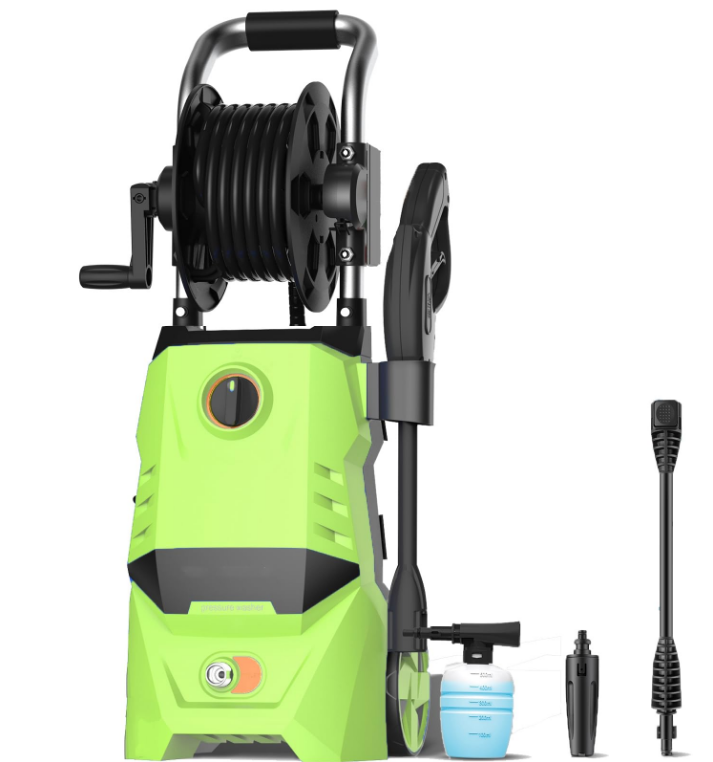

Homdox HD05 2150PSI 1700W Electric Power Washer

IMPORTANT SAFETY PRECAUTIONS

WARNING: When using this product, basic precautions should always be followed, including the following:

1. Read all instructions before using the product. Save all safety instructions.
2. Do not operate the pressure cleaner when fatigued or under the influence of alcohol or drugs.
3. Risk of injection or injury – do not direct the high-pressure water stream at any people or animals.
4. Do not allow children to operate the pressure cleaner at any time.
5. To reduce the risk of injury, close supervision is necessary when the pressure cleaner is used near children.
6. Know how to stop the unit and reduce pressure immediately. Be completely familiar with the controls.
7. Stay alert – always be aware of where you are directing the high-pressure spray.
8. Keep the cleaning area clear of all people.
9. Keep good footing and balance at all times – do not overreach or stand on an unstable support.
10. The work area should have adequate drainage to reduce the possibility of a fall due to slippery surfaces.
11. Follow the maintenance instructions specified in the manual.
12. To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch the plug with wet hands.
13. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI) built into the power cord plug, which greatly reduces the chance of electric shock while the unit is in use. If replacement of the plug or cord is needed, use only identical replacement parts.
14. This power washer conforms to CSA and other safety and consumer standards. Do not modify or rebuild any part of your power washer.
15. Never use an extension power cord since it defeats the effectiveness of the GFCI and increases the chance of electrocuting the operator.

PROPER USE OF THE PRESSURE CLEANER

THIS UNIT IS INTENDED FOR USE WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE CLEANER.

1. Operate the pressure cleaner at no more than the fluid pressure rated for the pressure cleaner. Never run the pressure cleaner without a water supply. Running the unit without a water supply will cause irreparable damage to the unit.
2. Make sure that the water supply you use for the pressure cleaner is not dirty, sandy, or holds any corrosive chemical products. Using a dirty water supply will compromise the long life of the pressure cleaner.
3. CAUTION – The pressure cleaner can be used for a variety of applications, including washing cars, boats, patios, decks, garages, etc., where high pressure is necessary to remove dirt and debris. High-pressure water flow can damage the work surface if not used properly! See the section titled “Operating Instructions” for more details. Always test the spray in an open area first.
4. NEVER move the unit by pulling on the high-pressure hose. Use the handle provided on the top of the unit.
5. Always hold the high-pressure gun and wand with two hands. Keep one hand on the gun/trigger, while supporting the wand with the other hand (see diagram).
6. When dispensing detergent, the pressure cleaner applies detergent to the cleaning area at low pressure only. Once the detergent has been applied, spray the detergent off the work area by using the adjustable nozzle.

ASSEMBLY INSTRUCTIONS

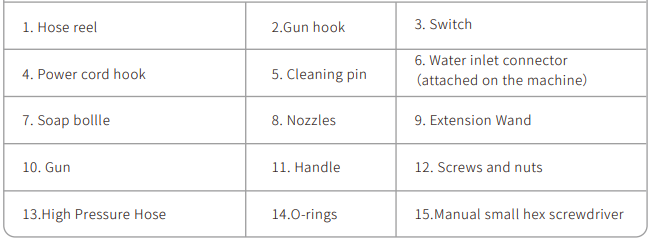

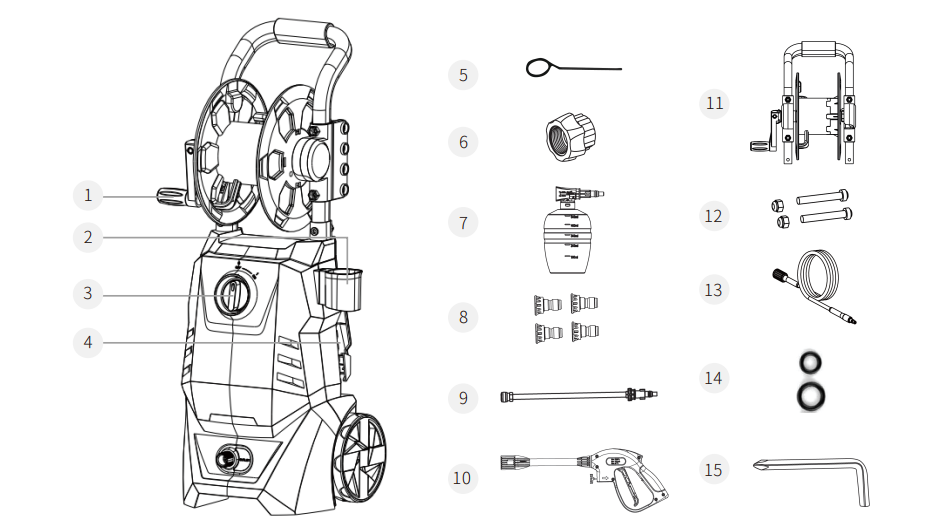

After opening the carton, please remove all parts and check them against the following list of components that are included:

Note:(No:14) Do not lose this accessory at will, it can be used as an after-sales part !!! O-ring(5.6*1.8) is used to connect the high-pressure tube to the gun section, O-ring(9*2.65) for extension Wand

Due to transportation and packaging, some of the accessories may be supplied disassembled. Please follow the assembly instructions.

Step 1

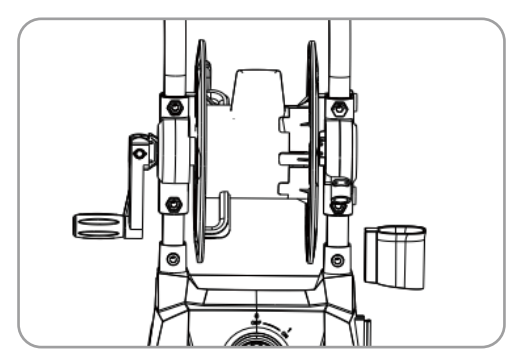

• Install the gun hook.

Step 2

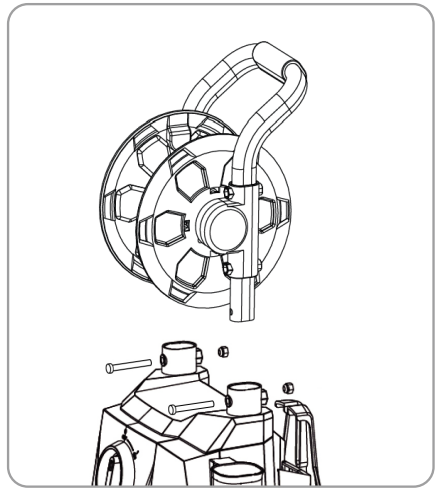

• Install the handle (two screws and nuts).

Step 3

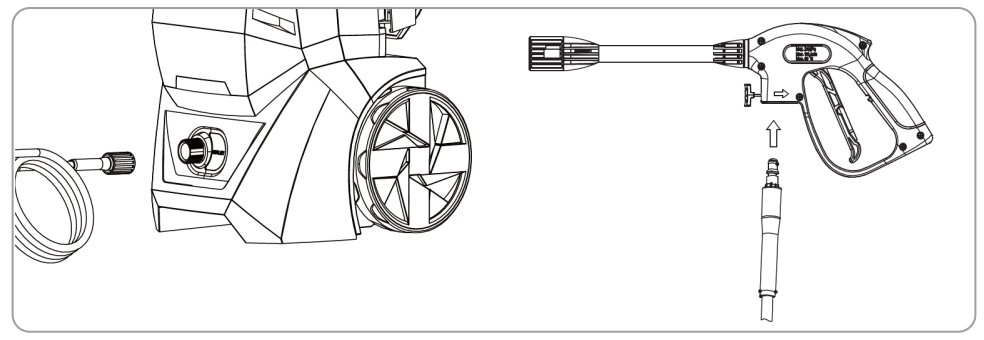

• Connect the external high-pressure tube. Connect the curved end of the external high-pressure pipe to the main body as shown below. The other end is connected to the gun.

Step 4

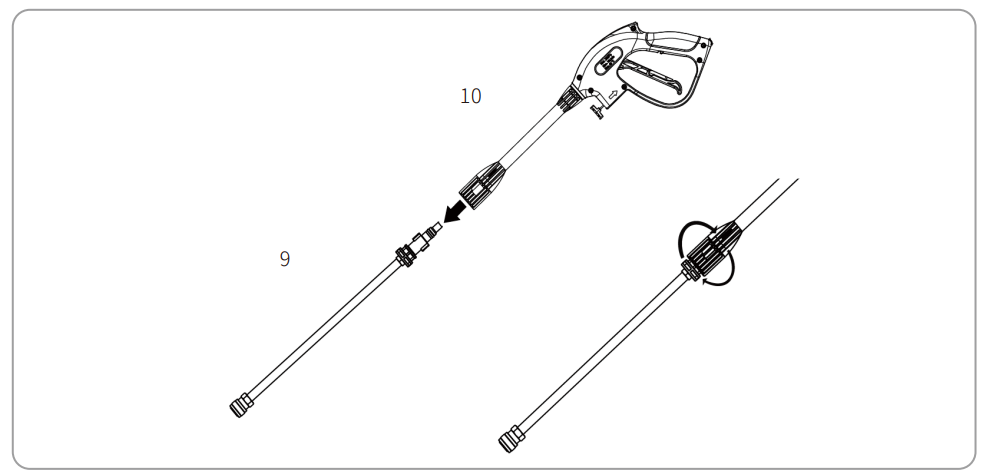

• A. Insert the extension wand (9) into the gun (10). Push and turn the adjustable nozzle clockwise onto the gun (10) until hand-tight to lock it in place. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the adjustable nozzle. All attachments must be inserted into the gun (9) for proper use.

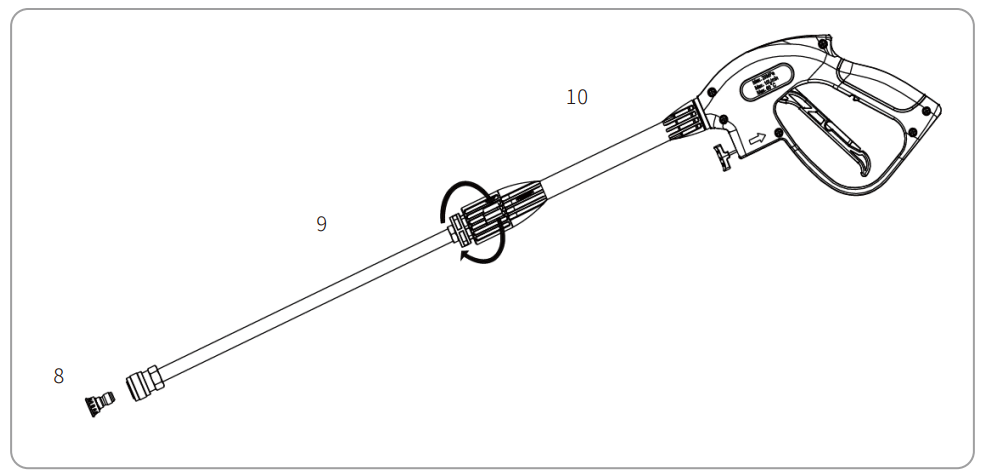

• B. Insert the spray adjustable nozzle (8) into the extension wand (9), as a quick-connect type. You just need to push it onto the extension wand (9) directly and powerfully until hand-tight to lock it in place. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the extension wand (9). Only one attachment can be inserted into the extension wand (9) at a time. All attachments must be inserted into the extension wand (9) for proper use.

Step 5

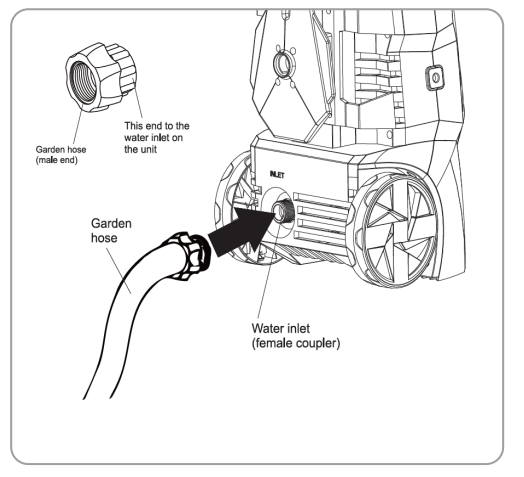

• Connect the garden hose adaptor (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adaptor. The garden hose must have an internal diameter of at least 13 mm (1/2 in.) and must be reinforced. The water supply must be at least equal to the washer’s delivery capacity.

Step 6

• Attach the hose connector to the pressure washer. Before attaching the connector to the male fitting, remove the plastic cap, which is inserted onto the male fitting on the pressure washer before shipping. This plastic cap can be discarded once removed. After both components have been installed, attach the garden hose with the connector screw on the pressure washer. Connect the garden hose to the waterspout. Finally, connect the hose connector to the faucet.

Step 7

Connect to the power supply:

1. Plug the pressure washer into the power outlet.

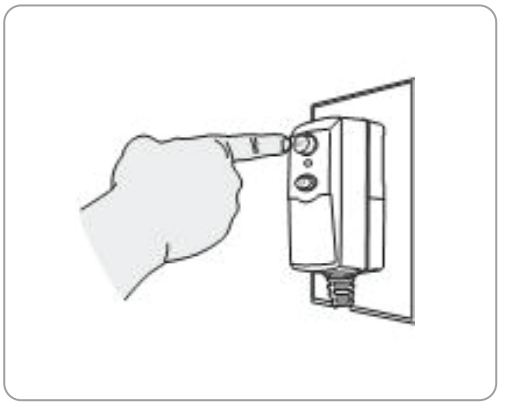

2. Press the TEST button, power will be cut and the indicator will fade. Do not use if this test fails. We recommend that you press the test button every time before using the pressure washer to ensure the protector works.
3. Press the RESET button. The indicator will illuminate, and power on for use.

OPERATING INSTRUCTIONS

THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE CLEANER!

Starting Up

After connecting the pressure cleaner to your cold water supply, proceed as follows:

• Make sure that the on/off switch is in the off position.
• Attach the hose to the gun as per the assembly instruction step #3.
• Connect the high-pressure hose to the high-pressure outlet fitting as per assembly step #3.
• Connect the garden hose to the high-pressure washer inlet fitting as per assembly step #5.
• Open the water supply valve completely.
• Before turning the unit on, press the gun trigger to bleed all the remaining air out of the pump and hose.
• Insert the adjustable spray nozzle into the gun as per assembly step #4.
• Start the pressure cleaner by turning the on/off switch to the on position and squeezing the trigger.
• REMINDER: The Motor does not run continuously, only when the trigger is squeezed.
• Note: Leakage switch operation: light on means power on, no light means no power.
• WARNING – RISK OF INJECTION! The unit will start spraying when the trigger is squeezed. When turning the unit off after use, high pressure still exists inside the hose and the unit. Point the gun in a safe direction and discharge the excess pressure. NEVER direct the high-pressure water stream at people or animals.

Automatic On/Off

• The pressure cleaner is equipped with an automatic on/off switch. The pressure cleaner will only run when the power switch is in the ON position and the trigger on the gun is squeezed. When you release the trigger to stop spraying water through the gun, the motor on the pressure cleaner will automatically shut off. Simply squeeze the trigger again to resume using the cleaner. To stop using the pressure cleaner, release the trigger and switch the unit to the OFF position. The unit should be turned completely OFF while not in use or while unattended.

Bleeding the Gun

• It is very important to bleed the gun before using the pressure cleaner. Refer to the “Assembly Instructions” to assemble the pressure cleaner. To bleed the gun, simply connect the garden hose to the pressure cleaner and squeeze the trigger BEFORE turning the electrical supply on. This allows any air trapped inside the pressure cleaner and gun to be removed before using the unit. Continue holding the trigger for approximately one minute to allow any excess air out of the unit. Water will flow through the gun at low pressure during this procedure. For more bleeding tips, see the section titled “Operating Instructions.”

Gun Safety Lock

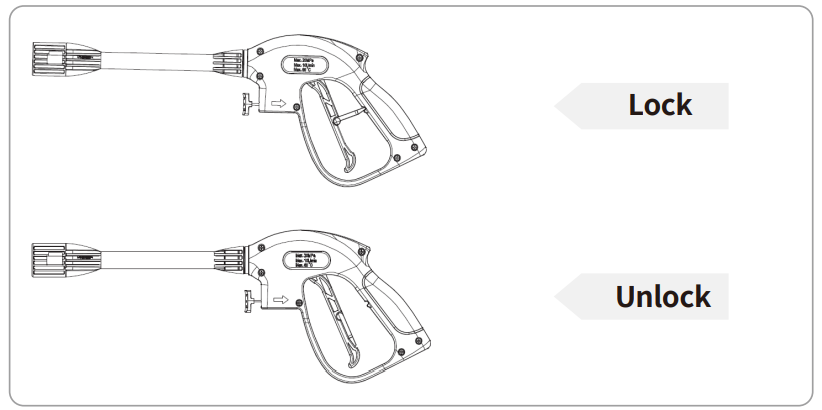

• This pressure cleaner is equipped with a gun trigger safety lock. When not using the pressure cleaner, use the safety lock to keep from accidentally engaging the high-pressure spray.

Adjustable Spray Nozzle

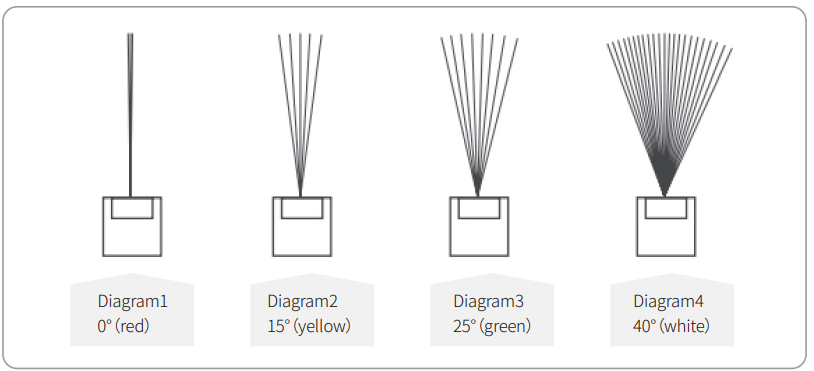

• The adjustable nozzle will allow you to use any variety of spray patterns from a full fan spray (Diagram 1) to a direct stream spray (Diagram 4). When using the pressure washer to clean wood decks, siding, vehicles, etc., always start using the fan spray and begin spraying from a minimum of 36” away to avoid damaging the surface of the material you are cleaning. Always begin by spraying in a testing area free and clear of people and objects.
• Warning: High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment, or the appliance itself.
• Do not direct the jet against yourself or others in order to clean clothes or footwear.

Unblock Lance

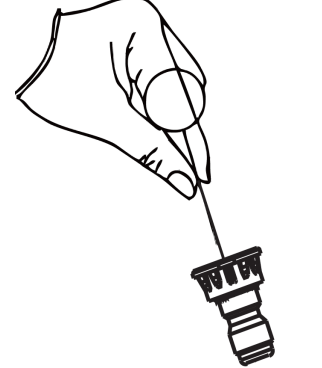

• When the nozzle is clogged, it will cause the pump to build pressure and may cause the unit to surge. You can clean the nozzle by inserting a needle into the tip to remove the deposits.

WATER FILTER AND NOZZLE CLEANING INSTRUCTIONS

A clogged or partially clogged water filter or nozzle can cause a significant reduction of water pressure coming out of the nozzle and/or cause the unit to pulsate while spraying.

1. The water filter is installed inside the water inlet quick connector and should be cleaned periodically. Rinse it with clean tap water and then place it back into the water inlet quick connector.
2. Using the nozzle tip cleaner provided (or an unfolded paper clip), insert the wire into the nozzle hole and move back and forth until debris is dislodged. Back-flush water through the nozzles using a garden hose and the highest pressure available (either a standard water nozzle or use your thumb over the nozzle to create water pressure for back-flushing).

CLEAN-UP AND STORAGE

Shutting Down the Pressure Cleaner

WHEN FINISHED USING THE PRESSURE CLEANER, FOLLOW THESE STEPS TO SHUT DOWN THE UNIT:

• Turn the pressure cleaner to the OFF position.
• Turn off the water supply.
• Before disconnecting the high-pressure hose connection, point the gun in a safe direction and discharge the high-pressure water.
• Disconnect the high-pressure hose from the pressure cleaner and gun.
• Disconnect the garden hose from the pressure cleaner.
• Remove the quick coupler fitting from the garden hose and attach it to the nipple portion of the fitting installed on the pressure cleaner for storage.
• Remove excess water from the pump by tipping the unit on both sides to drain any remaining water from the inlet and outlet fittings.
• Remove the Water Intake Filter and flush with water to remove dirt or debris. Return filter once cleaned.
• Drain the detergent reservoir and flush with running water.
• Wipe away any remaining water on all parts and fittings.
• Engage the gun safety lock.
• Store the pressure cleaner, parts, and accessories indoors in an area with a temperature above 0°C (32°F).

Winterizing and Long-Term Storage

FOLLOW ALL OF THE ABOVE SHUT-DOWN PROCEDURES, ADDING THE FOLLOWING STEPS:

• After disconnecting the water supply and before disconnecting the high-pressure hose, turn the pressure cleaner on for 2-3 seconds, until any remaining water in the pump exits.
• TURN THE NIT OFF IMMEDIATELY. CONTINUED USE OF THE PRESSURE CLEANER WITHOUT A WATER SUPPLY ATTACHED WILL CAUSE SEVERE DAMAGE TO THE UNIT!
•  Always store the pressure cleaner, parts, and accessories indoors in an area with a temperature above 0°C (32°F).
• WARNING: FAILURE TO COMPLY WITH THESE STORAGE INSTRUCTIONS WILL RESULT IN DAMAGE TO THE PUMP ASSEMBLY.

Maintenance

• This pressure cleaner is supplied with a closed lubrication system, so no additional oil is needed.
• Check all hoses and accessories for damage prior to use.
• Check the inlet filter periodically for deposits. Clean this filter regularly for maximum performance.

CLEANING TIPS

WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND CLEAR OF PEOPLE AND OBJECTS BEFORE YOU SPRAY AT THE INTENDED CLEANING SURFACE.

Wood and Vinyl Decks

• Rinse the cleaning and the surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply it to the area being cleaned at low pressure. Rinse at high pressure using the fan spray in a sweeping motion, keeping the tip of the spray nozzle at least 3-6 inches from the cleaning surface. Maintain a further distance from the cleaning area when using a direct spray. Caution: For softer woods, increase the distance from the cleaning area.

Cars, Boats, and Motorcycles

• Rinse the cleaning and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply it to the area being cleaned at low pressure. To achieve the best results, clean one side at a time. Allow the detergent to rest on the surface for a few minutes, but do not let the detergent dry. Rinse at high pressure using the fan spray in a sweeping motion, keeping the tip of the spray nozzle at least 8 inches from the cleaning surface. Maintain a further distance from the cleaning area when using a direct spray. Wipe the surface dry for a polished finish.

Barbecue Grills, Power Equipment, and Garden Tools

• Rinse the cleaning and the surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply it to the area being cleaned at low pressure. Allow the detergent to rest on the surface for a few minutes, but do not let the detergent dry. Rinse at high pressure using the fan spray, keeping the tip of the spray nozzle at least 1-3 inches from the cleaning surface. Maintain a further distance from the cleaning area when using a direct spray.

Cement Patios, Stone, and Brick

• Rinse the cleaning and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply it to the area being cleaned at low pressure. Rinse at high pressure using the fan spray in a sweeping motion keeping the tip of the spray nozzle at least 3-6 inches from the cleaning surface. Maintain a further distance from the cleaning area when using a direct spray.

TROUBLESHOOTING

• Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that its parts are in proper working order.

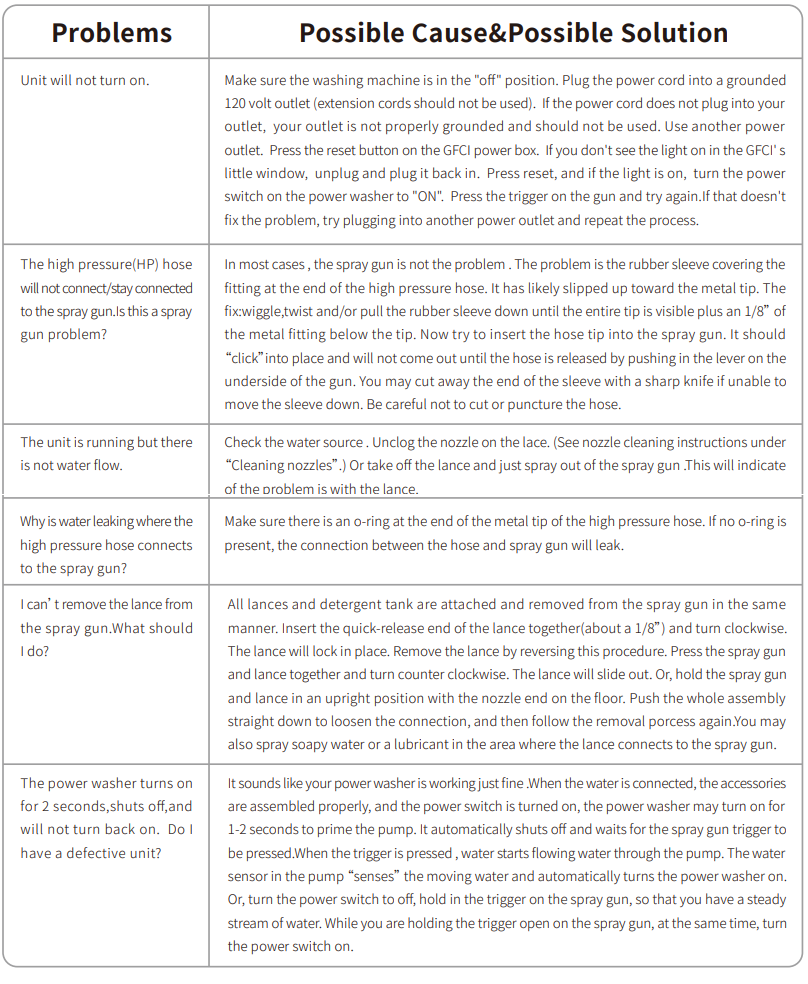

• To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues.
