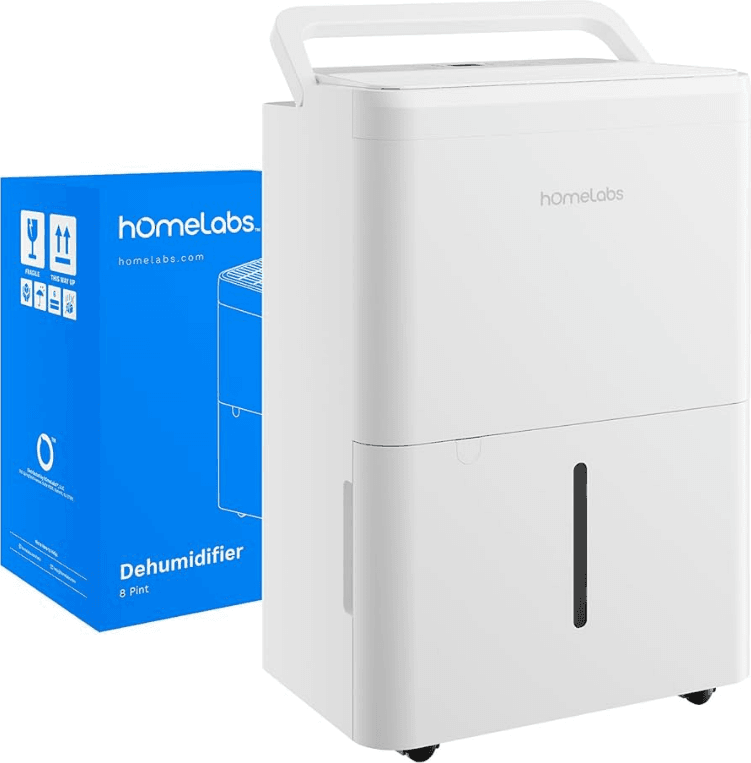

HomeLabs HME020031N 50 Pint Portable Wifi Dehumidifier User Manual

HomeLabs HME020031N 50 Pint Portable Wifi Dehumidifier

Important Safety Instructions

To prevent injury to the user or other people and property damage, the following instructions must be followed when using the Dehumidifier. Incorrect operation due to ignoring instructions may cause harm or damage.

Do not exceed the rating of the power outlet or connection device.
Do not operate or turn off the dehumidifier by plugging in or unplugging the device. Use the control panel instead.
Do not use if the power cord is broken or damaged.
Do not modify the power cord length or share the outlet with other appliances.
Do not touch the plug with wet hands.
Do not install the dehumidifier in a location that may be exposed to combustible gas.
Do not place the dehumidifier near a heat source.
Disconnect the power if strange sounds, smell, or smoke come from the dehumidifier.
You should never try to take apart or repair the dehumidifier by yourself.
Make sure to turn off and unplug the dehumidifier before cleaning.
Do not use the dehumidifier near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.
Do not drink or use the water drained from the dehumidifier.
Do not take the water bucket out while the dehumidifier is working.
Do not use the dehumidifier in small spaces.
Do not place the dehumidifier in places where it may be splashed by water.
Place the dehumidifier on a level, sturdy section of the floor.
Do not cover the intake or exhaust openings with cloths or towels.
Care should be taken when using the dehumidifier in a room with the following persons: infants, children, the elderly, and people not sensitive to humidity.
Do not use in areas where chemicals are handled.
Never insert your finger or other foreign objects into grills or openings. Take special care to warn children of these dangers.
Do not place a heavy object on the power cord, and make sure that the cord is not compressed.
Do not climb on or sit on the dehumidifier.
Always insert the filters securely. Make sure to clean the filter once every month.
If water enters the dehumidifier, turn the dehumidifier off and disconnect the power. Contact Home™ Customer Service at 1-800-898-3002 in order to avoid a hazard.
Do not place flower vases or other water containers on top of the dehumidifier.

ELECTRICAL INFORMATION

The home™ nameplate is located on the rear panel of the dehumidifier and contains electrical and other technical data specific to this dehumidifier.
Be sure the dehumidifier is properly grounded. To minimize shock and fire hazards, proper grounding is important. This power cord is equipped with a three-prong grounding plug for protection against shock hazards.
Your dehumidifier must be used in a properly grounded wall socket. If your wall socket is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper socket.
Avoid fire hazard or electric shock. Do not use an extension cord or an adapter plug. Do not remove any prong from the/power cord.

CAUTION

This dehumidifier can be used by children 8 years or older and persons with reduced physical, sensory, or mental capabilities or a lack of experience and knowledge with supervision or instruction concerning use of the dehumidifier. Cleaning and user maintenance shall not be done by children without supervision.
If the supply cord is damaged, it must be replaced by the hOme™. Please contact hOme™ Customer Service at 1-800-898-3002 in order to avoid hazard.
Prior to cleaning or other maintenance, the dehumidifier must be disconnected from the supply mains.
Do not install the dehumidifier in a location that may be exposed to combustible gas.
If combustible gas accumulates around the dehumidifier, it may cause a fire.
If the dehumidifier is knocked over during use, turn off the dehumidifier and unplug it from the main power supply immediately. Visually inspect the dehumidifier to ensure there is no damage. If you suspect the dehumidifier has been damaged, contact home™ Customer Service at 1-800-898-3002 for repair or replacement.
In a thunderstorm, the power must be cut off to avoid damage to the dehumidifier due to lightning.
Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or other appliances. Arrange the cord away from traffic areas and where it will not be tripped over.
Do not operate the dehumidifier with a damaged cord or plug. Please contact hOme™ Customer Service at 1-800-898-3002 for repair or replacement.
To reduce the risk of fire or electric shock, do not use this dehumidifier with any solid-state speed control device.
The dehumidifier shall be installed in accordance with national wiring regulations.
Contact home™ Customer Service at 1-800-898-3002 for repair or maintenance of this dehumidifier.

Parts Description

Front

Rear

ACCESSORIES

(placed in the bucket of the dehumidifier)

Operation

PLACE CORRECTLY

This unit may have been tilted or placed upside down during shipping. To ensure this device works properly, please ensure this unit is upright for at least 24 hours before initial use.
This dehumidifier is designed to operate in a working environment between 41°F (5°C) and 95°F (35°C).

Casters (Installed at four points on the bottom of the dehumidifier)

Do not force casters to move over carpet, or move the dehumidifier with water in the bucket. (The dehumidifier may tip over and spill water.)

NOTE: Some models do not come with casters.

SMART FUNCTIONS

Auto Shut Off

When the bucket is full and/or the humidity setting is reached, the dehumidifier will be shut off automatically.

Wait 3 minutes before resuming operation

To avoid any damage to the dehumidifier, the dehumidifier will not start operation following a complete cycle until after three (3) minutes. Operation will automatically start after three (3) minutes.

Auto Defrost

When frost builds up on the evaporator coils, the compressor will cycle off, and the fan will continue to run until the frost disappears.

Auto-Restart

If the dehumidifier shuts off unexpectedly due to power being cut, the dehumidifier will restart with the previous function setting automatically when the power resumes.

NOTE:

All the illustrations in the manual are for explanatory purposes only. Your dehumidifier may be slightly different. The actual shape shall prevail. The design and specifications are subject to change without prior notice for product improvement. Consult hOme™ Customer Service at 1-800-898-3002 for details.

CONTROL PANEL

FILTER button

The check filter feature is a reminder to clean the Air Filter for more efficient operation. The Filter light (clean filter light) will illuminate after 250 hours of operation. To reset after cleaning the filter, press the filter button and the light will go off.

COMFORT button

Press this button to turn the comfort function on/off. Under this mode, the humidity cannot be adjusted manually but will be preset to a recommended comfortable and healthy level based on the ambient temperature.

CONTINUOUS button

Press to activate the Continuous dehumidifying operation.

TURBO button

Control the fan speed. Press to select either High or Normal fan speed. Set the fan control to High for maximum moisture removal. When the humidity has been reduced and quiet operation is preferred, set the fan control to Normal.

POWER button

Press to turn the dehumidifier on and off.

TIMER button

Press to initiate the Auto start and Auto stop feature, in conjunction with the LEFT and RIGHT buttons.

When the dehumidifier is on, first press the Timer button. The Timer Off indicator light will illuminate. It indicates the Auto Stop program is initiated. Press it again, and the Time On indicator light will illuminate. It indicates the Auto Start is initiated.
When the dehumidifier is off, first press the Timer button. The TIMER ON indicator light illuminates. It indicates the auto-start program is initiated. Press it again, and the Time Off indicator light illuminates. It indicates the Auto Stop is initiated.
Press or hold the LEFT or RIGHT buttons to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start.
The selected time will register in 5 seconds, and the system will automatically revert to displaying the previous humidity setting.
When the Auto start & Auto stop times are set, within the same program sequence, the TIMER ON and OFF indicator lights illuminate, identifying that both ON and OFF times are now programmed.
Turning the dehumidifier ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop function.

LED display

Shows the set % humidity level from 35% to 85% or auto start/stop time (0~24) while setting, then shows the actual (±5% accuracy) room % humidity level in a range of 30% RH (Relative Humidity) to 90% RH (Relative Humidity).

Error Codes:

AS – Humidity sensor error;
ES – Temperature sensor error;
E3 – Dehumidifier malfunction;

Protection Codes:

P2 – The Bucket is full, or the bucket is not in the right position. Empty the bucket and replace it in the right position.
P2 – The Bucket is full. Empty the bucket.

Note: When one of the above malfunctions occurs, turn off the dehumidifier and check for any obstructions. Restart the dehumidifier. If the malfunction is still present, turn off the dehumidifier and unplug the power cord. Contact hOme™ Customer Service at 1-800-898-3002 for repair and/or replacement.

REMOVING THE COLLECTED WATER

There are two ways to remove collected water:

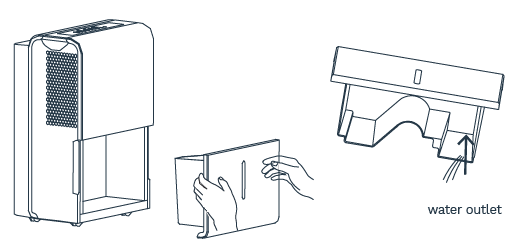

Use the bucket

When the bucket is full, remove the bucket and empty it.

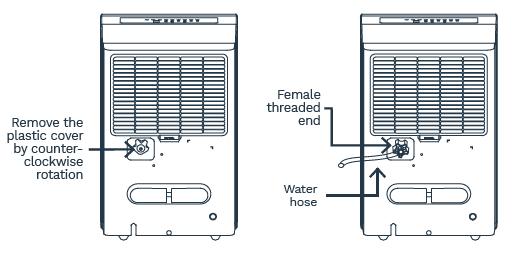

Continuous draining

Water can be automatically emptied into a floor drain by attaching the dehumidifier to a water hose with a female threaded end. (NOTE: On some models, the female threaded end is not included.)

Note: Do not use this operation when the outdoor temperature is equal to or less than 32°F (0°C), otherwise the water will freeze, causing the water hose to block up and the dehumidifier may be damaged.

Note:

Make sure the connection is tight and there is no leaking.
Lead the water hose to the floor drain or a suitable drainage facility, the drainage facility should be lower than the drain outlet of the dehumidifier.
Be sure to run the water hose sloping downward to let the water flow out smoothly.
When the continuous drain feature is not being used, remove the drain hose from the outlet.

Care & Cleaning

CARE AND CLEANING OF THE DEHUMIDIFIER

WARNING: Turn the dehumidifier off and remove the plug from the wall outlet before cleaning.

Clean the bucket

Clean the bucket with water every two (2) weeks.

Clean the air filter

Clean the filter with potable water at least once every 30 days.

Storing the dehumidifier

When not using the dehumidifier for long periods

After turning off the dehumidifier, wait one day before emptying the bucket.
Clean the main dehumidifier, bucket, and air filter.
Wrap the cord and bundle it with the band.
Cover the dehumidifier with a plastic bag.
Store the dehumidifier upright in a dry, well-ventilated place.

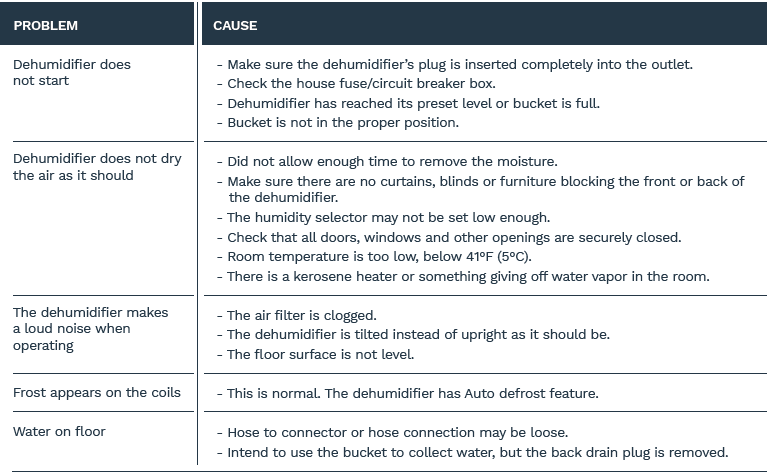

Troubleshooting

Before calling Home customer service, review this list. It may save you time and expense. This list includes the most common occurrences that are not the result of defective workmanship or materials in this dehumidifier.

Please contact hOme™ Customer Service at 1-800-898-3002 if the dehumidifier operates abnormally or does not operate, and the solutions above are not useful.
