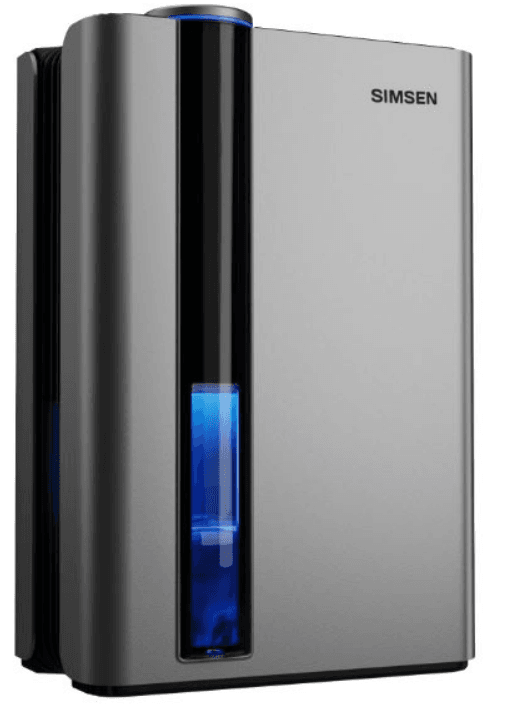

SIMSEN CT15 Dehumidifier
DEHUMIDIFIER Specifications
- Mode: CT15
- Power Supply: AC120V, 60Hz
- Rated Power: 78W
- Dehumidification: 1000ML/D(30 °RH90%)
- Product Size: 235X148X350MM
- Package Size: 250X180X365MM
- Weigh: 5.9Lb/2.7Kg
- Working Environment: 59°F-104 °F >45%RH
- Product Size: 2.4 lb/ 1.1 Kg
Package Contents
- 1 x Dehumidifier
- 1 x Water Pipe
- 1 x Filter Cotton
- 1 x User Manual
SAFETY INFORMATION
Follow all instructions and safety guidelines to reduce the risk of fire, electric shock, or other injury.
INTENDED OF USE
The SIMS EN dehumidifier is the solution for humidity problems such as dressing rooms, bedrooms, storerooms, bathrooms, wardrobes, caravans, etc. It also helps to eliminate musty odor and to prevent the growth of mildew. It is lightweight and easy to transport where you need it the most. Dehumidify and improve your home environment with SIMSEN.
IMPORTANT SAFETY PRECAUTIONS
- This appliance is intended for household use. Always store the appliance in an upright position to avoid water leakage.
- Avoid using the power plug in wet or damp places, and place it in areas where the air ventilation is good.
- Don’t block the air inlet and the air outlet of the dehumidifier; do not insert any foreign objects into the air outlet, as this will lead to damage.
- The dehumidifier should be placed on a level surface; otherwise, the water will overflow. When this dehumidifier is not being used for an extended period of time, please make sure that the water tank is drained.
- Children should not use this product alone and should not play with it.
THE WAY TO IMPROVE THE EFFICIENCY OF YOUR DEHUMIDIFIER
- Close the doors and windows where you run this room dehumidifier.
- Keep the front air inlet and the back outlet of this electric dehumidifier free from blocking
- Run your Home dehumidifier when the temperature is more than 15 · C and the humidity is more than 45%; at over 60%, the effect will be better.
- Best for spaces such as dressing rooms, bedrooms, storerooms, bathrooms, etc.
NOTE
- The effect of this dehumidifier is related to the temperature, the humidity, and the size of the room.
- The more humid it is, the better the effect.
- Ensure the dehumidifier is OFF and unplugged from the wall socket, and use a soft cloth to clean away dust or debris from the surface of the unit and air inlets.

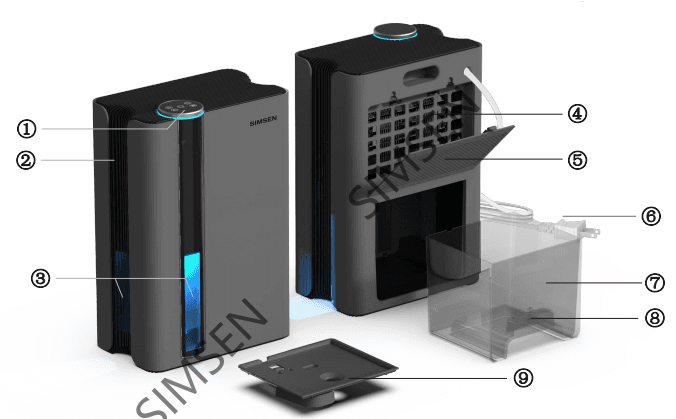

NAMES AND FUNCTION OF PARTS
- CD Control Panel
- Dry Air Outlet
- Water Level And
Ambient Lighting - Air inlet
- Dust Cover/Filter Cotton
- Power Line
- Water tank
- Drainage Outlet/Water Pipe Socket
- Water inlet
- Light Button
- On/ Off Button
- Night mode
FEATURE
HIGH-EFFICIENT DEHUMIDIFICATION)
The portable dehumidifier with a 2800ml capacity tank extracts up to 1000 ml of water daily in a humid environment of 30°C, Rh80%. The dehumidifier is suitable for the dressing roombedroom, storeroom, bathroom, wardrobes, caravans, etc. Keep moisture below 45%powerful efficiency in removing the moisture in the air.
COLORFUL NIGHT LIGHTS &AUTO SHUT OFF
Our electric dehumidifier has 7 changing lights (which can be set steady on). This bedroom dehumidifier creates a sweet and romantic sleeping atmosphere for you. Auto shut off function to prevent the water from overflowing. It is also very safe and convenient to use when you are not at home.
TWO WORKING MODES& ULTRA QUIET
The dehumidifier is designed with high speed and night mode that meet all kinds of dehumidification requirements of different people. You can freely switch between 2 modes: night mode is super quiet, with a considerate 30dB whisper-quiet operation, and sleep mode, suitable for bedrooms and offices.
SPACE SAVING & PORTABLE
Perfect for controlling humidity in your home, such as the kitchen, bathroom, bedroom, basementgarage, and closet. Note: The optimal operating temperature of the dehumidifier is 59°F-104°F -104°F will not work below 41 ‘F.
CREATE A HEALTHY & COMFORTABLE ENVIRONMENT
According to research, if the moisture in the air above 50% can breed uncomfortable or other health problems. The dehumidifier will start working when the humidity is more than 45%; it collects moisture and releases fresh air, providing you with a healthy and comfortable environment.
GETTING TO KNOW YOUR DEHUMIDIFIER

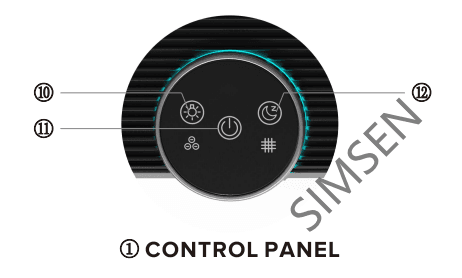

CONTROL PANEL HOW-TO USE
ON/ OFF BUTTON
On/ Off button, Press to power on.LED Atmospherelight open. Click again to shut down
LED LIGHT BUTTON
If you like a single color, you can locka color. When you like a certain color, you just need to wait for the light to change to that color automatically and then press the light button to pause on the color you like. If you like multiple colors, you can set the light to change automatically. Or you can click it to set the lights all off.
NIGHT MODE BUTTON
Press the Night mode, the lights will all turn off. The sound will be reduced, the gear will be changed to a low gear. Press again to return to normal.(NOTE: When the sleep mode is on, the dehumidifying effect is weaker than it is on normal mode and will take longer to dehumidify)
NEGATIVE ION LAMP
The SIMSEN dehumidifier is equipped with a negative ion generator, which automatically emits negative ions when you turn on the machine, making the air fresher. (NOTE: This is the negative ion working indicator light, not the button.)
FILTER SCREEN LAMP
The filter cotton light reminds the user that there is air filter cotton inside the dust screen on the back of the dehumidifier. After opening it for a period of time, it needs to be cleaned with clean water to keep it unobstructed. If the filter cotton is blocked, it will affect the dehumidification effect of the dehumidifier. (NOTE: This is a cotton filter reminder light, not a button, and touch is invalid)
RED LIGHT AND WARNING SOUND
When the water tank is full. reach the water tank, or the water tank is in a wrong positionthe red light will be on and a warning soundwill indicate that the water tank is full. Need to pour the water out of the water tank and put it back in the Dehumidifier to start the Dehumidifier.

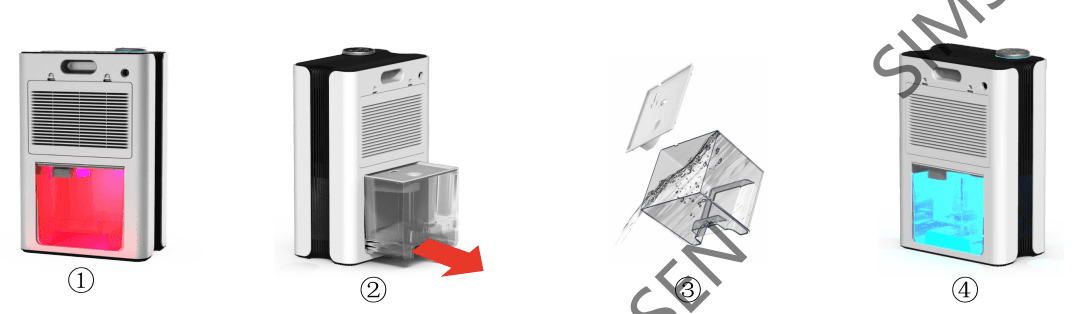

HOW TO REMOVE THE WATER TANK AND POUR OUT THE WATER
- When the water tank is full. The red LED Light will flash, and the dehumidifier will stop working automatically. First, unplug the power plug.
- Second. Remove the water tank.
- Third, remove the cover of the water tank and discard the collected water.
- Fourth, place the cover back into the dehumidifier. To continue dehumidifying, plug the power plug and push the”ON/OFFbutton again.

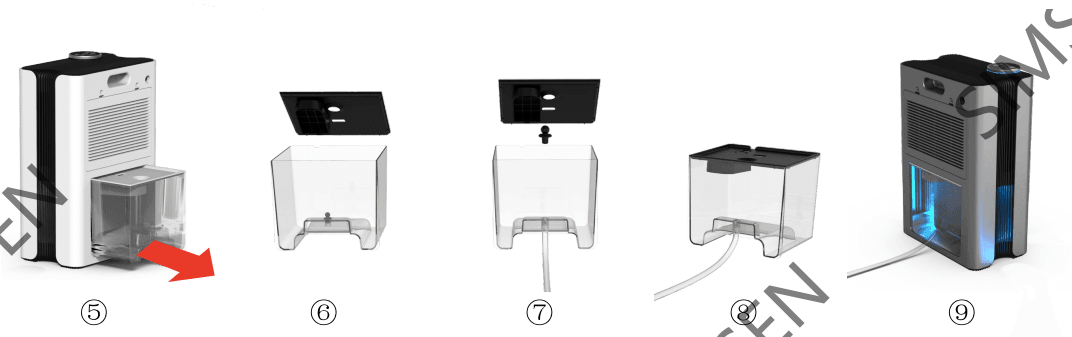

HOW TO USE DRAINAGE PIPES
- Pull out the water tank from the rear of the dehumidifier.
- Open the water tank cover, empty the water tank, and pull out the water tank plug. Install the drainage pipe and cover the water tank cover.
- Push the water tank with the installed drainage pipe into the dehumidifier in the direction shown in the picture, connect the drainage pipe to the sewer, and then you can turn on the dehumidifier to continue using it.

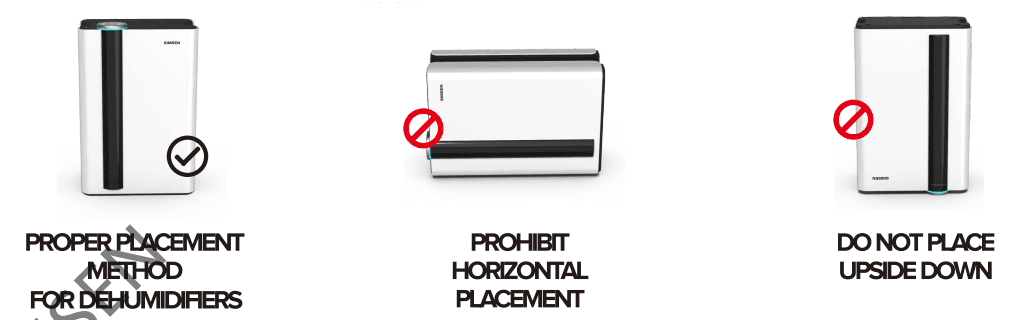

PLEASE USE THE DB-IUMDFIR WITH THE 5CREBII liACtJG UPWARDS AND DO NOT USE IT UPSIDE DOWN
TROUBLE SHOOTING
- Problem: The”Red LED” flashes first when the power is connected
- Possible Cause:
- The water tank is full
- The float getsjammed
- Solution:
- Empty the water tank and place it in the correct position
- Press the float
- Problem: The dehumidifier doesn’t work
- Possible Cause:
- The power supply is cut off
- Power socketloose
- The air outlet is blocked
- Solution:
- Check if the adaptor is plugged in
- Check the power socket and the power cord; ensure it is connected well
- Maintain a minimum clearance of at least 10cm around the dehumidifier when the unit is operating
CLEANING AND MAINTENANCE
Before cleaning and maintenance, please pull out the plug out of the socket outlet. Wipe the shell of the appliance with a soft, damp cloth; please do not use abrasive agents and resolvents, Otherwise, the appliance will be damaged.
SERVICE AND WARRANTY
We offer 1 one-year warranties for a dehumidifier. If you have any problem, question, or concern about our products, please feel free to contact us, and we will try our best to provide you the best solution within 24 hours.
