Honeywell FocusPRO 5000 Heating-Cooling Thermostat User Manual

Q: What are the fan modes on a Honeywell thermostat?

Auto : Fan runs only when the heating or cooling system is active. On : Fan runs continuously. Circ : Fan runs randomly about 33% of the time to circulate air.

Q: What is the "fan mode" used for on a Honeywell thermostat?

Fan mode controls how the fan operates: Auto : Runs only during heating or cooling cycles. On : Keeps the fan running continuously. Circ : Runs the fan periodically to maintain air circulation

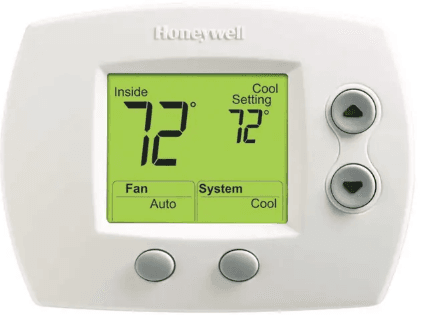

Honeywell FocusPRO 5000 Heating-Cooling Thermostat

Table of Contents

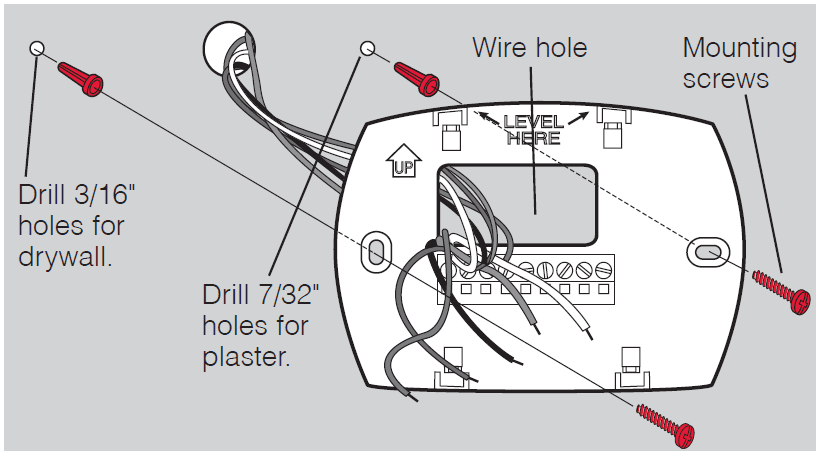

Wallplate installation

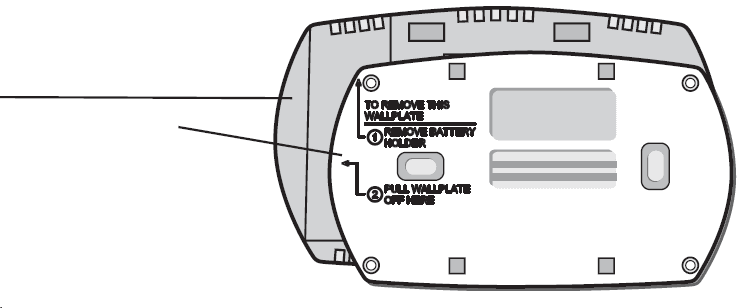

Remove the wallplate from the thermostat, then follow the directions below for mounting.

Remove the battery holder.
Pull here to remove the wallplate from the new thermostat.
Pull wires through the wire hole.
Position the wallplate on the wall, level, and mark hole positions with a pencil.
Drill holes at marked positions as shown below, then tap in supplied wall anchors.
Place wallplate over anchors, insert and tighten mounting screws

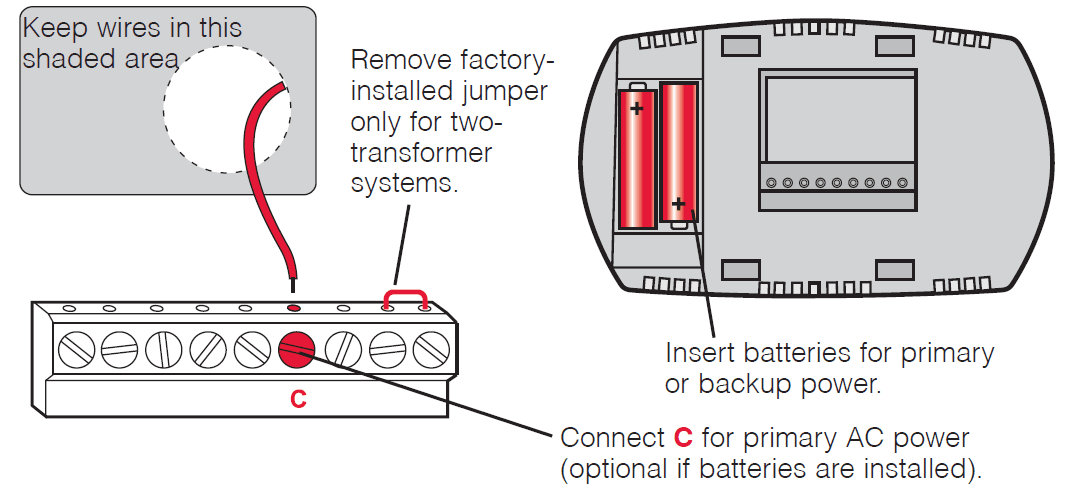

Power options

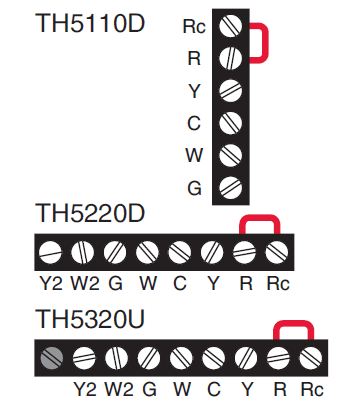

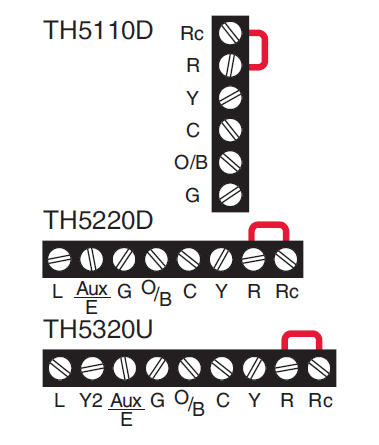

Wiring terminal designations

Conventional Terminals

Rc: 24VAC power from the cooling transformer
R: 24VAC power from the heating transformer
W: Heat relay (stage 1)
W2: Heat relay (stage 2)
Y: Compressor contactor (stage 1)
Y2: Compressor contactor (stage 2)
G: Fan relay
C: 24VAC common. For 2 transformer systems, use common wire from the cooling transformer.

Heat Pump Terminals

Rc: 24VAC power from the cooling transformer
R: 24VAC power from the heating transformer
O/B: Changeover valve
Y: Compressor contactor
Y2: Compressor contactor (stage 2) -TH5320U only
G: Fan relay
Aux/E: Auxiliary/Emergency heat relay
L: Sends output when set to Em. Heat
C: 24VAC common

Wiring conventional systems

1H/1C System (1 transformer)

Rc: Power [1]
R: [R+Rc joined by jumper]
Y: Compressor contactor
C: 24VAC common [3]
W: Heat relay
G: Fan relay

Heat-only System

Rc: Power [1]
R: [R+Rc joined by jumper]
C: 24VAC common [3]
W: Heat relay

Heat-only System (Series 20) [5]

Rc: [R+Rc joined by jumper]
R: Series 20 valve terminal “R” [1]
Y: Series 20 valve terminal “W”
C:: 24VAC common [3]
W: Series 20 valve terminal “B”

Heat-only System (normally open zone valve) [5]

Rc: [R+Rc joined by jumper]
R: Power [1]
Y: Normally open zone valve
C:24VAC common [3]

1H/1C System (2 transformers)

Rc: Power (cooling transformer) [1, 2]
R: Power (heating transformer) [1, 2]
Y: Compressor contactor
C: 24VAC common [3, 4]
W: Heat relay
G: Fan relay

Heat-only System with Fan

Rc: Power [1]
R: [R+Rc joined by jumper]
C: 24VAC common [3]
W: Heat relay
G: Fan relay

Cool-only System

Rc: Power [1]
R: [R+Rc joined by jumper]
Y: Compressor contactor
C: 24VAC common [3]
G: Fan relay

2H/2C System (1 transformer) [6]

Rc: Power [1]
R: [R+Rc joined by jumper]
Y: Compressor contactor (stage 1)
C: 24VAC common [3]
W: Heat relay (stage 1)
G: Fan relay
W2: Heat relay (stage 2)
Y2: Compressor contactor (stage 2)

2H/2C System (2 transformers) [6]

Rc: Power (cooling transformer) [1, 2]
R: Power (heating transformer) [1, 2]
Y: Compressor contactor (stage 1)
C: 24VAC common [3, 4]
W: Heat relay (stage 1)
G: Fan relay
W2: Heat relay (stage 2)
Y2: Compressor contactor (stage 2)

NOTES

Wire specifications

Use 18- to 22-gauge thermostat wire. Shielded cable is not required.

Power supply. Provide disconnect means and overload protection as required.
Remove jumper for 2-transformer systems.
Optional 24VAC common connection.
The common connection must come from the cooling transformer.
In Installer Setup, set the system type to Heat Only.
In Installer Setup, set the system type to 2Heat/2Cool Conventional.
In Installer Setup, set the changeover valve to O or B.
In Installer Setup, set the system type to 2Heat/1Cool Heat Pump.
In Installer Setup, set the system type to 2Heat/2Cool Heat Pump.
In Installer Setup, set the system type to 3Heat/2Cool Heat Pump.
L terminal sends a continuous output when the thermostat is set to Em. Heat. Connect to Honeywell zoning panels to switch the panel to Emergency Heat.

Wiring heat pump systems

1H/1C Heat Pump System

Rc: Power [1]
R: [R+Rc joined by jumper]
Y: Compressor contactor
C: 24VAC common [3]
O/B: Changeover valve [7]
G: Fan relay

2H/1C Heat Pump System (TH5220D only) [8]

Rc: Power [1]
R: [R+Rc joined by jumper]
Y: Compressor contactor
C: 24VAC common [3]
O/B: Changeover valve [7]
G: Fan relay
Aux/E: Auxiliary/Emergency heat relay
L: Sends output when set to Em. Heat [11]

2H/1C Heat Pump System (TH5320U only) [8]

Rc: Power [1]
R: [R+Rc joined by jumper]
Y: Compressor contactor
C: 24VAC common [3]
O/B: Changeover valve [7]
G: Fan relay
Aux/E: Auxiliary/Emergency heat relay
L: Sends output when set to Em. Heat [11]

2H/2C Heat Pump System (TH5320U only) [9]

Rc: Power [1]
R: [R+Rc joined by jumper]
Y: Compressor contactor (stage 1)
C: 24VAC common [3]
O/B: Changeover valve [7]
G: Fan relay
Y2: Compressor contactor (stage 2)
L: Sends output when set to Em. Heat [11]

3H/2C Heat Pump System (TH5320U only) [10]

Rc: Power [1]
R: [R+Rc joined by jumper]
Y: Compressor contactor (stage 1)
C: 24VAC common [3]
O/B: Changeover valve [7]
G: Fan relay
Aux/E: Auxiliary/Emergency heat relay
Y2: Compressor contactor (stage 2)
L: Sends output when set to Em. Heat [11]

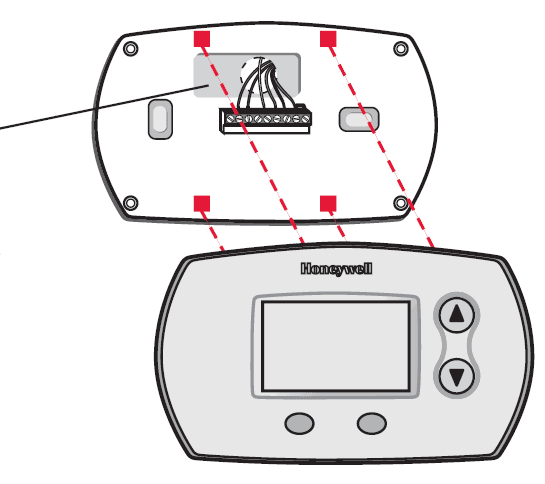

Thermostat mounting

Push excess wire back into the wall opening.
Plug the wall opening with non-flammable insulation.
Align the 4 tabs on the wallplate with corresponding slots on the back of the thermostat.
Push gently until the thermostat snaps in place.

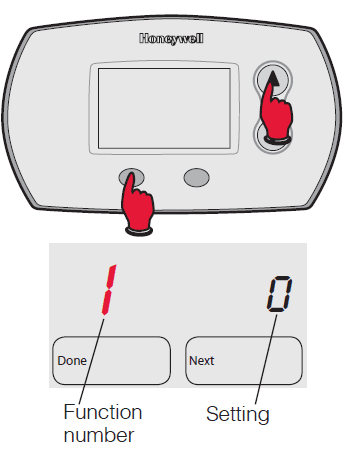

Installer setup

Follow the procedure below to configure the thermostat to match the installed heating/cooling system, and customize feature operation as desired.

To begin, press and hold the s and FAN buttons until the display changes.
Press s or t to change settings.
Press NEXT to advance to the next function.
Press DONE to exit and save settings.

Setup function Settings & options (factory default in bold)

Shaded areas below apply only to TH5320U/TH5220D or as otherwise noted.

1 System type 0 1 heat/1 cool conventional

1 1 heat/1 cool heat pump (no aux. heat)

2 Heat only — 2-wire systems, 3-wire zone valves (Series 20), and normally open zone valves

3 Heat only with fan

4 Cool only

5 2 heat/1 cool heat pump (with aux. heat)

6 2 heat/2 cool conventional

7 2 heat/1 cool conventional

8 1 heat/2 cool conventional

9 2 heat/2 cool heat pump (no aux. heat) – TH5320U only

10 3 heat/2 cool heat pump (with aux. heat) – TH5320U only

2 Changeover valve 0 Changeover valve (O/B terminal energized in cooling)

(O/B terminal) 1 Changeover valve (O/B terminal energized in heating)

3 Fan control 0 Gas or oil furnace — equipment controls fan in heating

(heating) 1 Electric furnace — thermostat controls fan in heating

5 Stage 1 heat cycle 5 For gas or oil furnaces of less than 90% efficiency

rate 1 For steam or gravity systems

(CPH: cycles/hour)* 3 For hot water systems & furnaces of over 90% efficiency

9 For electric furnaces

6 Stage 2 heat cycle 5 For gas or oil furnaces of less than 90% efficiency

rate/Auxiliary heat 1 For steam or gravity systems

cycle rate (CPH)* 3 For hot water systems & furnaces of over 90% efficiency

9 For electric furnaces

7 Auxiliary heat 5 For gas or oil furnaces of less than 90% efficiency

cycle rate (CPH)* 1 For steam or gravity systems

Only TH5320U 3 For hot water systems & furnaces of over 90% efficiency

for 3H/2C Heat 9 For electric furnaces

Pumps

9 Stage 1 compressor cycle rate (CPH)	3 Recommended for most compressors [Other cycle rate options: 1, 2, 4, 5 or 6 CPH]
10 Stage 2 compressor cycle rate (CPH)	3 Recommended for most compressors [Other cycle rate options: 1, 2, 4, 5 or 6 CPH]
12 Manual/Auto changeover	0 Manual changeover (Heat/Cool/Off) 1 Auto changeover (Heat/Cool/Auto/Off) 2 Auto changeover only (Auto)
14 Temperature display	0 Fahrenheit 1 Celsius
15 Compressor protection	5 Five-minute compressor off time [Other options: 0, 1, 2, 3, or 4-minute off time]
26 Auxiliary heat control	0 Comfort 1 Economy
27 Heat temperature range stops	90 Max. heat temperature setting is 90 °F (32 °C) [Other options: 40 °F to 89 °F (4.5 °C to 31.5 °C)]
28 Cool temperature range stops	50 Min. cool temperature setting is 50 °F (10 °C) [Other options: 51 °F to 99 °F (10.5 °C to 37 °C)]

Special function

Auxiliary heat control (Setup Function 26)

Comfort Setting: The thermostat will prioritize comfort over economy depending on heat pump performance, load conditions, and whether the thermostat is calling for the heat pump. Raising the temperature just a few degrees will often activate the auxiliary heat.
Economy Setting: The thermostat will attempt to reach the temperature setting without activating the auxiliary heat. The thermostat will wait to activate the auxiliary heat depending on heat pump performance, load conditions, and how many degrees the temperature setting is changed.

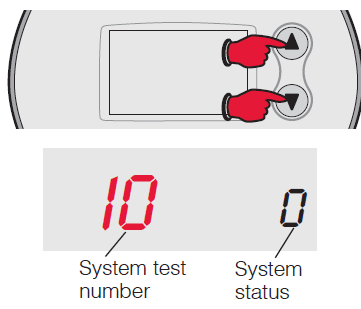

Installer system test

To begin, press and hold the buttons until the display changes.
Press to turn the system on/off.
Press NEXT to advance to the next test
Press DONE to terminate the system test.

System test System status

10 Heating system	0 Heat and fan turn off. 1 Stage 1 heat turns on. The fan turns on if Setup Function 1 is set to 1, 5, 9, or 10 OR Setup Function 3 is set to 1 2 Stage 2 heat turns on 3 Stage 3 heat turns on – TH5320U only

20 Emergency heating system	0 Heat and fan turn off 1 Heat and fan turn on
30 Cooling system	0 Compressor and fan turn off 1 Compressor and fan turn on 2 Stage 2 compressor turns on
40 Fan system	0 Fan turns off 1 Fan turns on

Specifications

Temperature Ranges
Heat: 40° to 90°F (4.5° to 32°C)
Cool: 50° to 99°F (10° to 37°C)
Operating Ambient Temperature
32° to 120°F (0° to 48.9°C)
Shipping Temperature
20° to 120°F (-28.9° to 48.9°C)
Operating Relative Humidity
5% to 90% (non-condensing)
Physical Dimensions
TH5220D 3-9/16” H x 5-13/16” W x 1-1/2” D 91 mm H x 147 mm W x 38 mm D TH5220D 3-7/16” H x 4-1/2” W x 1 5/16” D 86 mm H x 114 mm W x 33 mm D

Electrical Ratings

Terminal: Voltage (50/60Hz): Running Current
W Heating: 20-30 Vac: 0.02-1.0 A
(Powerpile): 750 mV DC: 100 mA DC
W2 (Aux/E) Heating: 20-30 Vac: 0.02-1.0 A
Y Cooling: 20-30 Vac: 0.02-1.0 A
Y2 Cooling: 20-30 Vac: 0.02-1.0 A
G Fan: 20-30 Vac: 0.02-0.5 A
O/B Changeover: 20-30 Vac: 0.02-0.5 A
L Output: 20-30 Vac: 0.02-0.5 A

For more manuals by Honeywell visit, ManualsLibraryy

Honeywell FocusPRO 5000 Heating-Cooling Thermostat-FAQs

How does the Honeywell thermostat measure temperature?

Honeywell thermostats consider both the air temperature and radiant temperature from objects like walls and furniture to provide a more accurate reading, similar to how people sense temperature.

How do I set the heat on my Honeywell thermostat?

To set the heat, toggle the system switch to “Heat,” then use the arrow buttons to adjust the temperature to your desired level.

How do I turn off my Honeywell thermostat?

Slide the system switch (labeled Heat-Off-Cool) to “Off.” You can also adjust the temperature manually or set a schedule for heating and cooling.

What is the PIN for a Honeywell thermostat?

The PIN can be found by flipping the thermostat over and locating the 4-digit number on the side with the batteries. Add 1234 to that number to get the thermostat’s PIN.

How does a thermostat detect temperature?

Thermostats use an internal sensor that measures temperature via infrared radiation. This radiation is converted into electrical signals to provide an accurate temperature reading.

What is the difference between DA and RA thermostats?

Direct Acting (DA) thermostats increase output pressure as the sensed temperature rises, while Reverse Acting (RA) thermostats decrease output pressure as the sensed temperature rises.

What are the fan modes on a Honeywell thermostat?

Auto: Fan runs only when the heating or cooling system is active.
On: Fan runs continuously.
Circ: Fan runs randomly about 33% of the time to circulate air.

How do I set a temperature on the thermostat?

Use the arrow buttons to adjust the displayed temperature to your desired level. The thermostat will show the ambient room temperature and the temperature you’ve set.

What is the “fan mode” used for on a Honeywell thermostat?

Fan mode controls how the fan operates:
Auto: Runs only during heating or cooling cycles.
On: Keeps the fan running continuously.
Circ: Runs the fan periodically to maintain air circulation
