Honeywell HEV615 Cool Moisture Humidifier

Filter

• A wicking filter is required for this unit to operate (one included)
• The wicking filter will help to capture minerals  from your water and will help to prevent white dust (calcium deposits from hard water)
• If you have hard water, you will need to replace your filter more frequently
• See “Caring for your Filter” section for tips on prolonging the life of your wicking filter

Humidity Level

• The ideal indoor humidity level is 40-60%
• Use a Honeywell humidity monitor (HHM10 or H10C) to check your indoor humidity level (not included)

GETTING TO KNOW YOUR HUMIDIFIER

How It Works

Water is released into the Reservoir when the Float Paddle engages the Plunger at the bottom of the water tank. A Wicking Filter absorbs water from the Reservoir. A fan pulls dry air from the room into the humidifier where it passes through the saturated Wicking Filter. The filter captures minerals and other impurities from the water, before the moisture is evaporated back into the dry room with the help of the fan. The amount of moisture output depends on many factors, including the current room humidity and temperature. As the humidity level in the room increases, the moisture output decreases, which prevents over humidification.

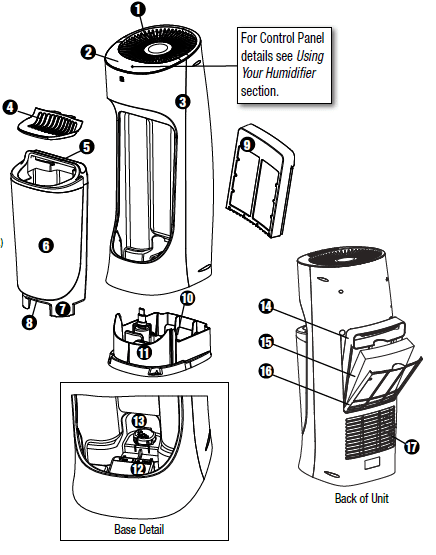

Components

1. Grill
2. Control Panel 4
3. Housing
4. Tank Cover
5. Tank Handle
6. Water Tank
7. Tank Feet
8. Plunger (under tank)
9. Filter Cartridge
10. Reservoir
11. Base
12. Float Paddle
13. Locking Knob
14. Filter Cartridge Handle
15. Wicking Filter
16. Filter Cartridge Door
17. Air Input Grill

SETTING UP YOUR HUMIDIFIER

Unpack the Humidifier

Keep this instruction manual for reference.

1. Remove packaging materials. Locate Float Paddle and set aside. This is required for operation.
2. Remove twist tie and extend power cord. Place on a firm, level, water resistant surface a minimum of 12 inches(30 cm) from walls.

Float Paddle Installation – required for humidifier to operate

This humidifier uses a float system to regulate the water flow from the Tank to the Reservoir. The Float Paddle must be properly installed for the unit to operate. If not properly installed, water may not flow into the Reservoir or it may leak from the Base. The Float Paddle is designed to be easy to install and remove.

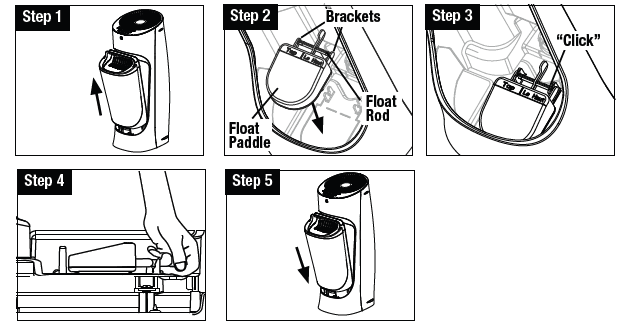

1. Remove Water Tank.
2. Line up Float Paddle with the float paddle shape on the bottom of the Reservoir.
3. Place Float Rod over the Brackets and press firmly until you hear it click into place.
4. Pull gently up on the Float Rod to be sure it doesn’t pop out of the Brackets.
5. Place Water Tank back in Base.

Float Paddle Installation – required for humidifier to operate Both filling options can be performed with or without the Tank Cover in place. Be sure to replace the Cover before using the humidifier to keep objects and debris out of the water.

FILLING/REFILLING THE WATER TANK

DO NOT ADD ESSENTIAL OILS to the water tank. Doing so could cause damage to the humidifier and void the warranty. This humidifier holds a maximum of 1.7 gallons (6.4 liters) of water.

The Tank can be filled in two ways:

Option 1: At the Humidifier
Option 2: At the SinkBoth filling options can be performed with or without the Tank Cover in place. Be sure to replace the Cover before using the humidifier to keep objects and debris out of the water.

Option 1: To Fill Tank at the Humidifier

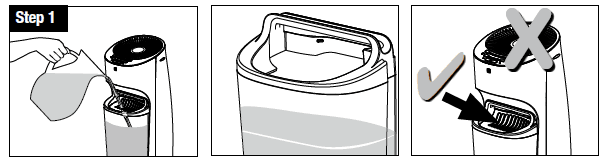

1. Pour cool water from a pitcher or jug directly into the Water Tank. It is not necessary to remove the Tank Cover. DO NOT overfill.

Option 2: To Fill Tank at the Sink

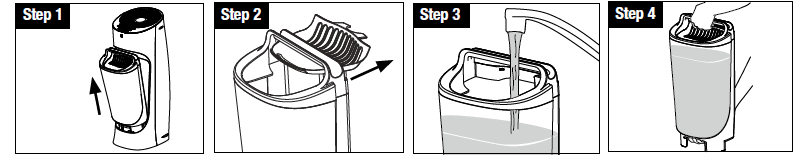

1. Grasp Tank Handle and pull Tank forward to remove from Base. Carry Tank to sink.
2. Remove Tank Cover if desired. Tank may also be filled through the openings in the Tank Cover.
3. Fill Tank with cool water. DO NOT overfill. Replace the Tank Cover if it was removed.
4. Carry Water Tank back to humidifier and replace on Base.

USING YOUR HUMIDIFIER – HEV620

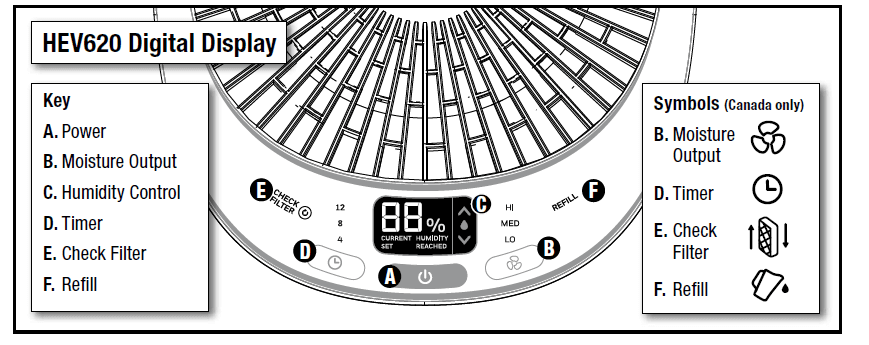

Power

1. Plug humidifier into a 120V outlet.

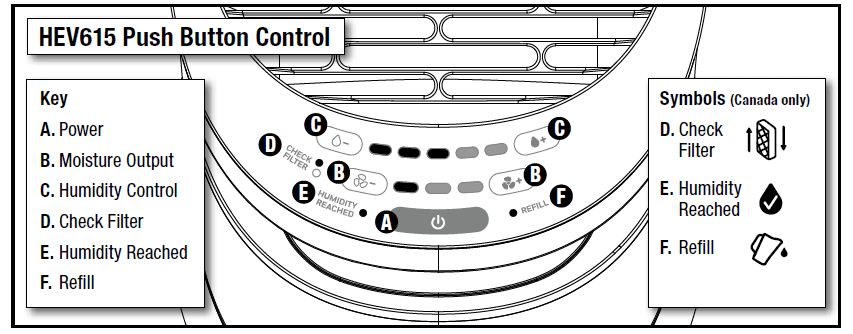

2. Press Power Button (A)
   Humidifier will turn on to high output and high humidity settings. Press again to turn off. If humidifier was programmed before turning off, previous settings will be remembered. Unplugging the humidifier resets to default settings.Moisture Output
3. Press the Moisture Output button (B) to toggle through low, medium, and high moisture output settings. A higher setting will provide more moisture output. The fan will pull more moisture off the Wicking Filter and into the air.The water level in the Water Tank will decrease faster with a higher setting, since more moisture is going into the air. A lower setting will provide less moisture output. The fan will run quieter, and the Water Tank will not have to be filled as frequently, since less moisture is going into the air.


   Humidity Control


4. Press the Humidity Control arrows (C) to set the desired humidity level. To scroll through the numbers faster, press and hold the arrow for 3 seconds. Release the button once the desired level is shown. Display will blink three times showing the SET humidity level, then the display will return to show the current room humidity level. CURRENT will illuminate on the display to indicate the current room humidity level.The humidistat can be set between 30%-69%. Below 30%, LO will illuminate on the display to indicate the minimum humidity level. Above 69%, the display will show HI to indicate the maximum humidity level is set.

Humidity Reached (US models only)

When the set humidity level is reached HUMIDITY REACHED will appear on the display and the humidifier will turn off. As long as HUMIDITY REACHED is illuminated, the fan will not run.

Once the humidity level drops below the set level, HUMIDITY REACHED will disappear and the humidifier will start running again. To increase the set humidity level, press the Humidity Control arrows

Timer

Press the Clock button (D) to set the Timer to 4, 8 or 12 Hours.

USING YOUR HUMIDIFIER – HEV615

Power

1. Plug humidifier into a 120V outlet.
2. Press Power button (A).
   Humidifier will turn on to high output and high humidity settings. Press again to turn off. If humidifier was programmed before turning off, previous settings will be remembered. Unplugging the humidifier resets to default settings.Moisture Output
3. Press the Moisture Output buttons or (B) to adjust the moisture output level accordingly. A higher setting will provide more moisture output. The fan will pull more moisture off the Wicking Filter and into the air. The water level in the Water Tank will decrease faster with a higher setting, since more moisture is going into the air. A lower setting will provide less moisture output. The fan will run quieter, and the Water Tank will not have to be filled as frequently, since less moisture is going into the airHumidity Control
4. Press the Humidity Control buttons or (C) to set the desired humidity level. It is recommended to run the humidifier on the highest humidity level for at least an hour, or until a comfortable humidity level is reached. Then adjust the Humidity Control button down until the Humidity Reached Indicator light illuminates and the humidifier turns off. This is your desired humidity level. The humidifier will turn on and off to maintain this setting.

Humidity Reached

When the set humidity level is reached, the blue Humidity Reached indicator (E) will illuminate, and the humidifier will turn off. As long as this light is illuminated, the fan will not run. Once the humidity level drops below the set humidity level, the blue light will turn off, and the humidifier will start running again. To increase the set humidity level, press the button.

INDICATOR LIGHTS (ALL MODELS)

Refill

When the Water Tank is empty, the humidifier will automatically shut off and the orange Refill Indicator (F) will illuminate. Turn off the humidifier and refill the Tank. See Filling/Refilling Water Tank on previous pages.

Check Filter

After 30 days the orange Check Filter indicator will illuminate to remind you to check your Wicking Filter. Remove the Filter Cartridge from the back of the humidifier, and check to see if it needs to be replaced. To reset this light, press and hold the Check Filter button for 2 seconds. If humidifier is unplugged, the 30 day counter will start over.

CARING FOR YOUR FILTER

To remove the filter

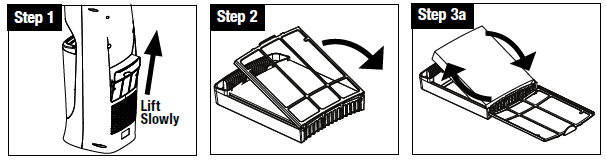

1. Pull the Filter Cartridge Handle straight up slowly, listening for water dripping from the filter.
2. With the Cartridge fully removed, flip the Cartridge Door open.
3. Remove the filter, and either:
   a. Flip top to bottom to ensure the top does not dry out OR
   b. Replace with a new filter. To prolong the life of your Wicking Filter, turn it over each time you fill the Water Tank. This will keep the top of the Filter from drying out and will help the Filter to age more evenly. If you notice the Filter getting hard, you may soak it in cool water to loosen mineral buildup. This will temporarily improve performance of the Wicking Filter until a replacement Filter is purchased. DO NOT attempt to clean the Wicking Filter with vinegar, soap or any chemical solutions. Doing so may damage the Filter.

It is recommended you change your Wicking Filter every 30-60 days depending on water quality and usage. If you have hard water, you may need to replace your Filter more frequently. Change your

Filter if you notice

• The Filter is hard and crusty
• The Filter starts to give off an odor
• Moisture output is decrease

CARING FOR YOUR FILTER (CONTINUED)

Be sure to use only genuine Honeywell Replacement Filters which are Protec® antimicrobial treated. It helps prevent the migration of mold, algae and bacteria on the filter. However, the Filter still needs to be replaced regularly. Humidifier Filters and accessories require replacement and are not covered under warranty. Find replacement filters at retailers or at www.HoneywellPluggedIn.com

CLEANING YOUR HUMIDIFIER

To keep your humidifier running efficiently, clean it regularly. Weekly cleaning is recommended. All maintenance should be done in the kitchen or bathroom on a water resistant surface near a faucet. To properly clean your humidifier we recommend the separate processes of Scale Removal and Disinfecting. These two processes must be performed separately.

Before Cleaning

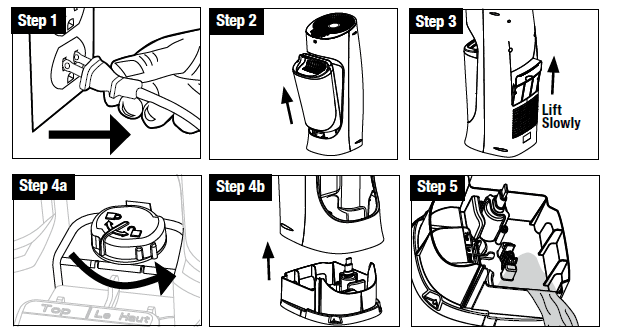

1. Turn off and unplug humidifier. NEVER clean the humidifier when it is running.
2. Remove Water Tank and Tank Cover. Empty water from Tank.
3. Remove Wicking Filter. Pull the Filter Cartridge Handle straight up slowly, listening for water dripping from the filter.
4. Remove Housing from Base.
   a. Turn Locking Knob to the right toward the unlock symbol.
   b. Lift Housing from the Base and set aside.
5. Holding the Base, empty water from the Reservoir.

Scale Removal

Follow steps 1-5 in Before Cleaning section, then follow the additional steps below

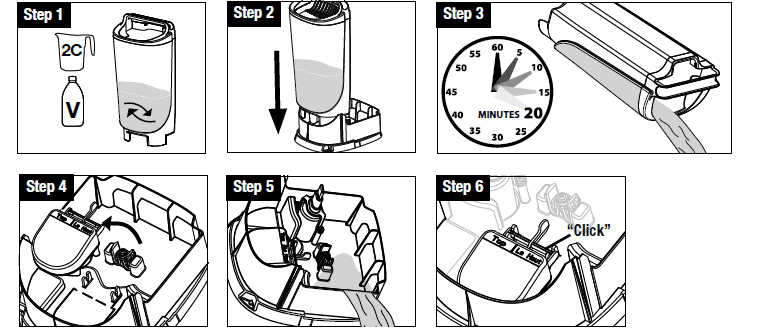

1. Pour a minimum of 3 cups (.7 liters) of undiluted distilled white vinegar in the Water Tank. Gently swish vinegar around in the Tank to wet entire inside of Tank.
2. Place Tank on Base. Vinegar will drain into the Water Reservoir and loosen mineral buildup (scale) in the Reservoir and bottom of the Water Tank. There should be enough vinegar to cover the bottom inside of the Tank.
3. Soak for 20 minutes, then remove Water Tank and slowly empty vinegar into sink. Rinse with tap water until the smell of vinegar is gone.
4. Remove Float Paddle from Reservoir by lifting up on Float Rod and set aside. Wipe Float Paddle and Reservoir area with a soft cloth to remove loosened minerals.
5. Empty vinegar from Base and Reservoir area; rinse with water until the smell of vinegar is gone.
6. Place Float Paddle back in Reservoir, ensuring Float Rod is secured in brackets. For detailed instructions, refer to the Float Paddle Installation section.

Disinfecting

Follow steps 1-5 in Before Cleaning section, then follow the additional steps below. Filter must be removed from humidifier before cleaning. DO NOT clean Filter with bleach solution.

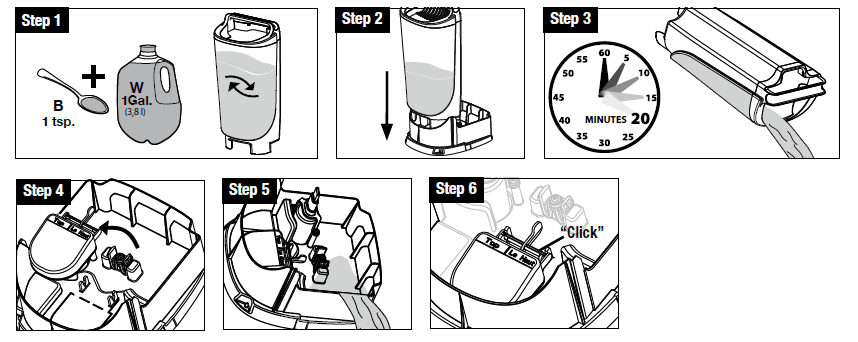

1. Add 1 teaspoon of bleach to 1 gallon (3.8 L) of water. Pour the bleach solution into the Tank.
2. Place Tank on Base. Bleach solution will drain into the Water Reservoir.
3. Soak for 20 minutes, then remove the Water Tank and slowly empty bleach solution into sink. Rinse Tank with tap water until the smell of bleach is gone.
4. Remove Float Paddle from Reservoir by lifting up on Float Rod and set aside.
5. Empty bleach solution from Base and Reservoir area; rinse with water until the smell of bleach is gone.
6. Place Float Paddle back in Reservoir, ensuring Float Rod is secured in brackets. For detailed instructions, refer to the Float Paddle Installation section.

Reassembling

After descaling and disinfecting, follow these steps to reassemble the unit

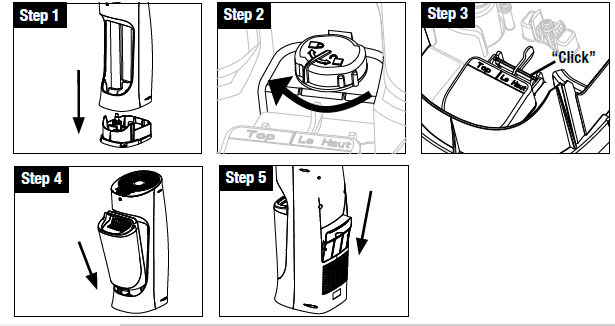

1. Place Housing on Base.
2. Turn Locking Knob to the left toward the lock symbol.
3. Ensure Float Rod is secured in brackets. For detailed instructions, refer to Float Paddle Installation section.
4. Place Tank on Base. Replace Tank Cover.
5. Install Filter Cartridge in back of Housing. See Caring for Your Filter section for tips about changing and maintaining your Wicking Filter.

End of Season Cleaning and Storage

Follow the cleaning instructions when the humidifier will not be used for at least one week, or at the end of the season. At the end of the season, remove any accessories and discard. Allow the humidifier and all components to dry completely before storing. DO NOT store humidifier with water inside the Reservoir or Water Tank. Pack unit safely and store in cool, dry location.

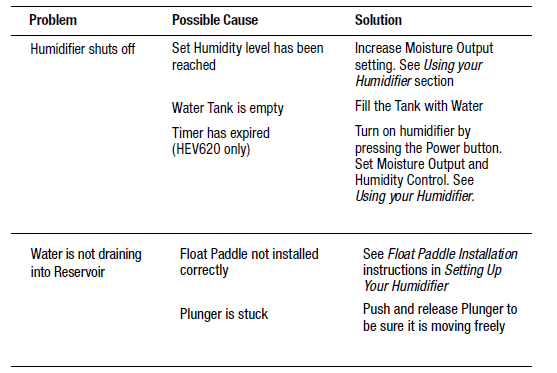

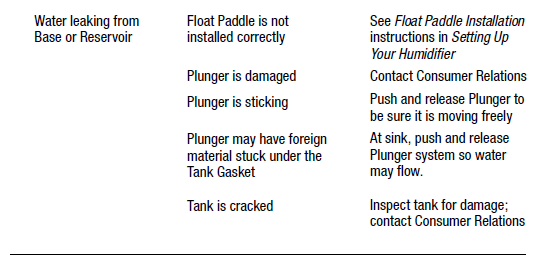

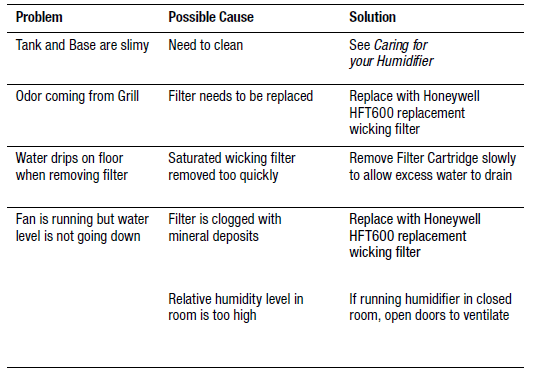

TROUBLESHOOTING

ACCESSORIES

To help you get the most out of your humidifier experience, consider these helpful accessories:

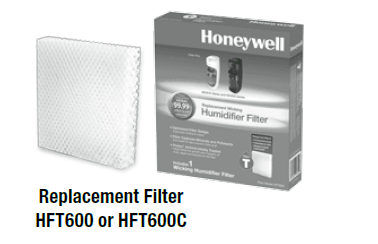

Honeywell Replacement Wicking Filter

Treated with Protec® antimicrobial layers to help prevent growth of mold on the filter. Honeywell HFT600 or HFT600C
Humidity Monitor

Displays relative humidity and room temperature so you can maintain a comfortable humidity level in your home. Honeywell HHM10 or H10C

SPECIFICATIONS

Electrical rating: 120V, 60 Hz., 43 Watts
Capacity: 1.7 gallons (6.4 liters)
If you experience a problem, please contact Consumer Relations. Do not return this humidifier to the original place of purchase. DO NOT attempt to open the motor housing or tamper with the product yourself. Doing so may void your warranty and cause personal injury or damage to the product.
