Levoit Vital 100S-P Smart Air Purifier User Manual

Levoit Vital 100S-P Smart Air Purifier

Package Contents

• 1 x Smart Air Purifier
• 1 x Washable Pre-Filter (Pre-Installed)
• 1 x The Main/Activated Carbon Filter (Pre-Installed)
• 1 x User Manual
• 1 x Quick Start Guide
• 1 x AC Power Adapter

Specifications

Note: To access additional smart functions, download the free VeSync app (see page 9).

SAFETY INFORMATION

To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety

• Only use your air purifier as described in this manual.
• Do not use without removing the plastic wrap from the filter. The air purifier will not filter air and may overheat, causing a fire hazard.
• Do not use your air purifier outdoors.
• Keep your air purifier away from water and wet or damp areas. Never place in water or liquid.
• Do not use in excessively humid areas or near humidifiers.
• Keep your air purifier away from heat sources.
• Do not use where combustible gases, vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present.
• At least keep 5 ft / 1.5 m away from where oxygen is being administered.
• Children should be supervised to ensure that they do not play with the air purifier.
• Do not allow children to play with the plastic packaging. Immediately discard the plastic after unwrapping the filter.
• Do not place anything into any opening on the air purifier.
• WARNING: To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Home Using A 3D Printer).
• To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety

READ AND SAVE THESE INSTRUCTIONS

• Children should be supervised to ensure they do not insert fingers or objects into the vent openings.
• Do not sit or place heavy objects on the air purifier.
• Keep the inside of the air purifier dry. To prevent moisture buildup, avoid placing in rooms with major temperature changes.
• Always unplug your air purifier before servicing, cleaning or any other maintenance (such as changing the filter).
• Do not use your air purifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer Support (see page 27).
• WARNING: Do not use this air purifier with any solid-state speed controls (such as a dimmer switch) to reduce the risk of fire or electric shock.
• Children should not clean or perform maintenance on the air purifier without supervision.
• This air purifier is not to be used by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Not for commercial use. Household use only.

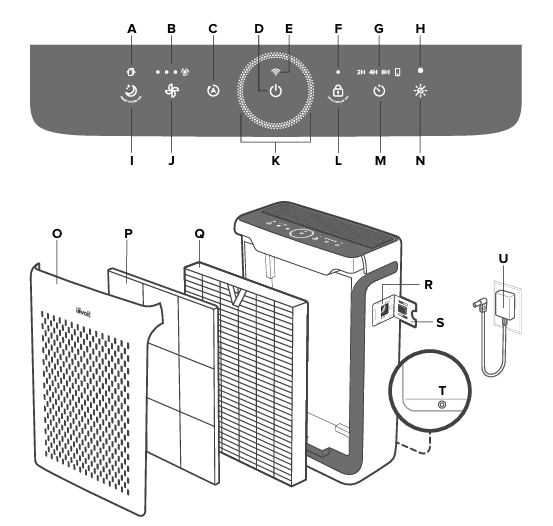

GETTING TO KNOW YOUR SMART AIR PURIFIER

• A. Check Filter Indicator
• B. Fan Speed Indicators
• C. Auto Mode Button
• D. On/Off Button
• E. Wi-Fi® Indicator
• F. Display Lock Indicator
• G. Timer Indicators
• H. Light Sensor
• I. Sleep Mode Button
• J. Fan Speed Button
• K. Air Quality Indicator
• L. Display Lock Button
• M. Timer Button
• N. Display Off Button
• O. Front Cover
• P. Washable Pre-Filter
• Q. The Main/Activated Carbon Filter
• R. AirSight™ Infrared Dust Sensor
• S. Dust Sensor Cover
• T. Power Adapter Input
• U. Power Adapter

GETTING STARTED

1. Place the air purifier on a flat, stable surface such as the floor.

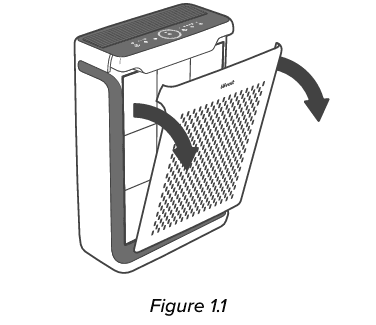

2. Pull both sides of the front cover to remove it. [Figure 1.1]

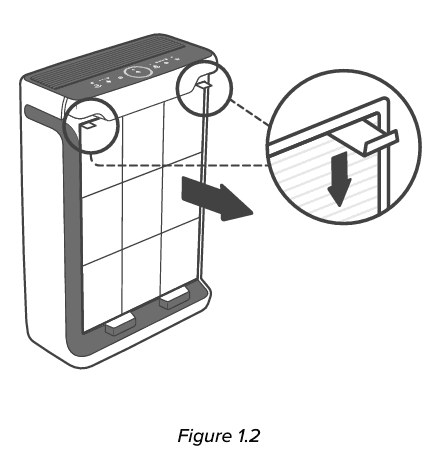

3. Push the pre-filter’s tabs inward and pull to remove the pre-filter from the air purifier. [Figure 1.2]

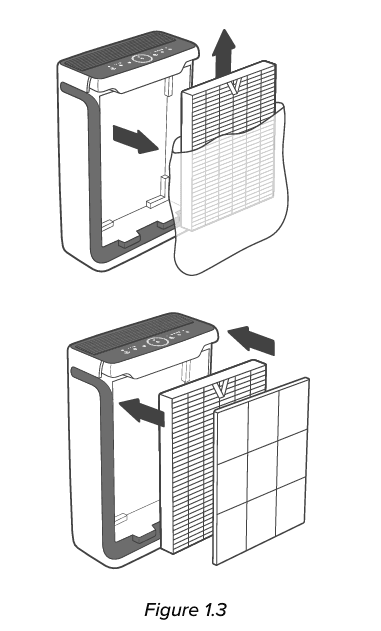

4. Remove the Main/Activated Carbon Filter from inside the air purifier.

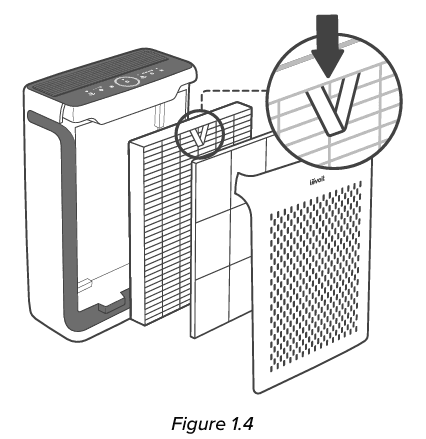

5. Remove the plastic packaging from the filter and place the filter and the pre-filter back into the air purifier. [Figure 1.3]Note: Make sure the Main Filter (the side with the ribbon handle) is facing outward when you insert the filter. [Figure 1.4]

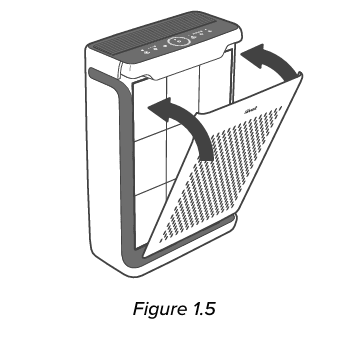

6. Place the front cover on the air purifier. Make sure to align the tabs on the cover with the slots on the bottom of the air purifier. [Figure 1.5]

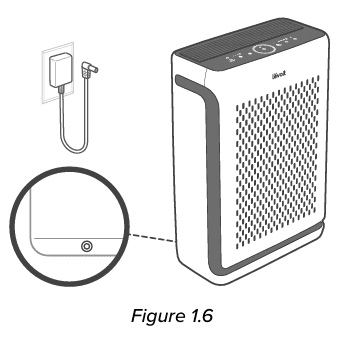

7. Insert the power adapter plug into the back of the air purifier. [Figure 1.6]

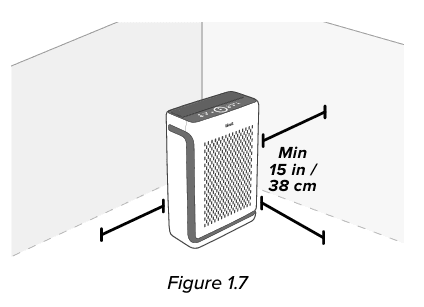

8. When using the air purifier, allow at least 15 inches / 38 cm of clearance from the front. Keep away from anything that would block air flow, such as curtains. [Figure 1.7]

VeSync App Setup

Note: The VeSync app is continually being improved and may change over time. If there are any differences, follow the in-app instructions.

1. To download the VeSync app, scan the QR code or search “VeSync” in the Apple App Store or Google Play Store.Note: For Android™ users, choose “Allow” to use VeSync.
2. Open the VeSync app. Log In or Sign Up.
   Note: You must create your own VeSync account to use third-party services and products. These will not work with a guest account. With a VeSync account, you can also allow your family and friends to control your smart air purifier.

Wi-Fi® Connection

• To disconnect Wi-Fi, press and holdfor 15 seconds until the Wi-Fi indicator turns off. This will restore the smart air purifier’s default settings and disconnect it from the VeSync app.
• To reconnect, please follow the instructions in the VeSync app for adding a device.

Connect with Amazon Alexa or Google Assistant

You can use the VeSync app to connect your smart air purifier to Amazon Alexa or Google Assistant. Please follow the in-app instructions to set up your voice assistant.
Note: You must create your own VeSync account to access voice assistants.

USING YOUR SMART AIR PURIFIER

Note: Using the VeSync app allows you to control your air purifier remotely and access additional functions and features (see page 13).

1. Plug in and tapto turn on the air purifier. The fan will start on low.
2. Tapto change fan speed between low, medium, high, and turbo.

Note:

• The fan speed indicators are not buttons and only display the fan speed setting.
• The fan speed indicators will light up when active, 1 indicator will light up for low, 2 for medium, 3 for high, and 4 for turbo.
• Turbo fan speed (4 indicator lights) is the loudest, but cleans air the quickest.
• For best results, or to address a specific air quality issue such as smoke, run the air purifier on turbo for 15–20 minutes before using a lower speed.
• To effectively clean air, keep windows and doors closed while the air purifier is on.

Sleep Mode

Sleep Mode operates quietly by using a fan speed lower than the low speed.

1. Tapto turn Sleep Mode on.
2. Sleep Mode will turn off the display after 6 seconds if no other buttons are tapped.
3. To switch from Sleep Mode, tap Auto Mode or select a fan speed on the air purifier’s display or in the VeSync app.

Note:

• When the display is turned off, tap any button to turn the display back on. If you don’t tap another button, the display will turn off again after 6 seconds.
• will still turn on and stay on if it’s time to check your filter (see page 17).

Auto Mode

Auto Mode uses AirSight™, an infrared dust sensor inside the air purifier, to adjust the fan speed automatically based on air quality. For example, if the air quality is bad, the fan will automatically be set to high speed.

1. Tapto turn Auto Mode on.
2. will light up while Auto Mode is on.
3. To switch from Auto Mode, tap Sleep Mode or select a fan speed on the air purifier’s display or in the VeSync app.

Note:

• Auto Mode does not use the turbo fan speed.
• The VeSync app also supports Efficient Auto Mode and Quiet Auto Mode (see page 14).

Light Detection

1. The light sensor is off by default. You can turn on/off Light Detection in the Vesync APP. You can also press and hold display button for 3 seconds to turn on/off Light Detection, and the air quality indicator blinks once when the operation is complete.
2. While the air purifier is operating, the Light sensor will detect the brightness of the room and work according to the ambient light.

Note:

• When the light detection is on and the room is in darkness, if the air purifier is in Auto Mode or Pet Mode, it will not use the high or turbo fan speed to avoid making too much noise.
• When the room becomes light again, the air purifier will return to its previous setting. The display will automatically turn back on.
• With the light detection on, if you click display off, the screen will stay off; however, you can’t get the screen to stay on in a dark room.

Timer

You can manually set the timer for 2, 4, or 8 hours using thebutton. You can also set the timer for 1–24 hours through the VeSync app.

1. Taprepeatedly to select a time. The timer will start automatically.
   Note:
   • The indicators are not buttons and cannot be used to select a time.
   • The timer indicators will light up blue when active.
   • When the timer is set through the VeSync app, theindicator will light up instead. Once the timer has finished, the air purifier will turn off.
2. To cancel the timer, tapuntil all timer indicators are off. You can also turn the timer off in the VeSync app.
   Note:
   • You can change the fan speed at any time while the timer is on.
   • The timer will restart if the time is changed.

Display Off

This turns off the display lights on the air purifier, including button lights and indicator lights (except the Check Filter Indicator).

1. Tapto turn off the display.
2. Tap any button to temporarily turn the display back on. If you don’t tap another button, the display will turn back off after 6 seconds.
3. Tapto turn the display back on. The display will stay on.
   Note:
   • The Check Filter Indicator will still turn on and stay on if it’s time to check your filter (see page 17).
   • With light detection on, it is unable to keep the screen lit in a dark room.If you prefer to keep the display lit up, you can turn off the light detection in Vesync APP.

Display Lock

When the air purifier is on, you can lock the display to prevent settings from being accidentally changed. Buttons will not respond to being tapped.

1. Press and holdfor 3 seconds to lock the display. The Display Lock Indicator will light up above thebutton.
   Note: If the display is turned off, the Display Lock Indicator will flash 3 times to show that the display has been locked, then turn off.
2. The Display Lock Indicator will blink when any other button is tapped to indicate that Display Lock is on.
3. Press and holdagain for 3 seconds to unlock the display. The Display Lock Indicator will turn off.

Standby Mode

The air purifier is in Standby Mode when it is turned off, but plugged in.

Note:

• In Standby Mode, the infrared dust sensor will still detect the surrounding air quality and give you updates in the VeSync app.
• Display Lock (available in the VeSync app) can be used while the air purifier is in Standby Mode to keep the air purifier from being turned back on.

Memory Function

When the air purifier is in standby or turned off and unplugged, it will remember its previous fan speed, Sleep Mode, Auto Mode, Pet Mode, and in-app Display and Light Detection settings.

Note: The air purifier will not remember timers.

VeSync App Functions

The VeSync app allows you to access additional smart air purifier functions, including those listed below. As the app develops, more features may become available. The screen design, functions, etc., of Vesync App may be subject to change or be discontinued without prior notice.

Remote Control

• Change any air purifier settings through the app, even while Display Lock is on.

Air Quality Updates

• View real-time air quality updates in the app.
• See your air quality history for the previous 4 weeks.

Pet Mode

• Pet Mode is efficient at filtering pet dander and fur from the air while conserving energy.
• When Pet Mode is on, the air purifier runs for 15 minutes at high speed (3 indicator lights), then 60 minutes at medium speed (2 indicators), and cycles between the two fan speeds. The corresponding fan speed indicators andon the air purifier’s display will light up.
• When Pet Mode is on, and the light sensor detects the room is dark, the display will turn off and limit Pet Mode to medium fan speed (2 indicators), to avoid making too much noise. When the light sensor detects that the room is lit again, Pet Mode will no longer be limited, and the air purifier will run at medium fan speed (2 indicators) for 30 minutes, then run at high (3 indicators) for 15 minutes. After this, the normal Pet Mode cycle will start (15 minutes at high speed, then 60 minutes at medium speed).
• To turn off Pet Mode, tap Auto Mode, Sleep Mode, or select a fan speed on the air purifier’s display or in the VeSync app.

Note:

• The corresponding fan speed indicators will light up depending on which fan speed is currently running.
• Pet Mode will stay on unless you select a different mode or fan speed.

Auto Mode

Access additional auto modes: Quiet Auto Mode and Efficient Auto Mode.

• Quiet Auto Mode uses the medium fan speed (2 indicator lights) instead of the high or turbo fan speeds, even when the air quality is poor, to avoid making too much noise.
• Efficient Auto Mode lets you choose the size of the area you want to purify. The air purifier will use the turbo fan speed to clean the air for a designated amount of time. This time is based on 1 ACH and the size of the room, meaning how long it takes for the air purifier to clean all the air in your room once, regardless of the air quality. After this, the mode will adjust the fan speed according to the actual detected air quality in the room.

Note: Efficient Auto Mode is useful for purifying odors from the air. The air purifier’s dust sensor can only detect particles in the air, not smells. Efficient Auto Mode does not rely on the dust sensor, but the room size instead.

Display Lock

• Turn the Display Lock on/off.
• Display Lock prevents current settings from being changed on the air purifier.
• will flash to indicate that the display is locked.

Schedules

• Create and customize schedules for your air purifier to match your routines.

Timer Function

• Set a timer between 1–24 hours.
• Easily view the exact time remaining on a timer.

Filter Replacement Info

• Keep tabs on the remaining filter life by checking the filter life percentage in the app.
• Shop for replacement filters.

ABOUT THE FILTER

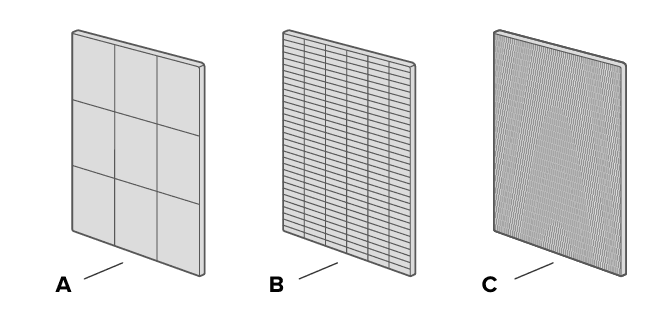

The air purifier uses a 3-stage filtration system to purify air.

A. Washable Pre-Filter

• Captures large particles such as dust, lint, fibers, hair, and pet fur
• Maximizes the filter’s life by protecting it
• Removable and washable to increase filtering efficiency (see Cleaning the Pre-Filter, page 18).

B. The Main/Activated Carbon Filter

• Traps at least 99.97% of airborne particles 0.3 microns in size.
• Filters small particles such as fine dust, smoke particles, and pollen and pet dander.

C. Activated Carbon Filter

• Physically adsorbs smoke, odors, and fumes.
• Filters compounds such as formaldehyde, benzene, ammonia, hydrogen sulfide, and volatile organic compounds (VOCs).

TROUBLESHOOTING

Problem	Possible Solution
Air purifier will not turn on or respond to button controls.	Plug in the air purifier.
	Check to see if the power cord is damaged. If it is, stop using the air purifier and contact Customer Support (see page 27).
	Plug the air purifier into a different outlet.
	The air purifier may be malfunctioning. Contact Customer Support (see page 27).
Airflow is significantly reduced.	Make sure the filter is removed from its packaging and properly in place (see page 7).
	Tapto increase the fan speed.
	Leave 15 inches / 38 cm of clearance from the front of the air purifier.
	The pre-filter may be clogged by large particles, such as hair or lint, blocking airflow. Clean the pre-filter (see page 18).
	Replace the filter (see page 19).
Air purifier makes an unusual noise while the fan is on.	Make sure the filter is properly in place with plastic packaging removed (see page 7).
	Make sure the air purifier is operating on a hard, flat, level surface.
	Replace the filter (see page 19).
	The air purifier may be damaged, or a foreign object may be inside. Stop using the air purifier and contact Customer Support (see page 27). Do not try to repair the air purifier.
Poor air purification quality.	Tapto increase the fan speed.
	Make sure no objects are blocking the front, sides, or top of the air purifier (the inlet or outlet).
	Make sure the filter is removed from its packaging and properly in place (see page 7).
	Close doors and windows while using the air purifier.
	If the room is larger than 219 ft² / 20 m², air purification will take longer.
	Replace the filter (see page 19).

Problem	Possible Solution
Strange smell coming from the air purifier.	Clean the filter, or replace if necessary.
	Contact Customer Support (see page 27).
	Make sure not to use your air purifier in an area with high humidity or while diffusing essential oils.
Air Quality Indicator always stays blue, even when the air quality is poor.	Clean the dust sensor lens (see page 20).
	The dust sensor detects airborne particles, but it cannot detect gas. Make sure there aren’t gasses polluting the air.
Air Quality Indicator always stays red.	Clean the dust sensor lens (see page 20).
	If you’re using an ultrasonic humidifier near the air purifier, the mist may affect the accuracy of the dust sensor. The dust sensor will detect the large mist particles, and the Air Quality Indicator may turn red. Avoid using an ultrasonic humidifier near the air purifier, or avoid using Auto Mode.
Air purifier randomly turns off.	Air purifier is malfunctioning. Stop using the air purifier and contact Customer Support (see page 27).
is still on after replacing the filter.	Reset the Check Filter Indicator (see page 17).
has not turned on after 9 months.	is a reminder for you to check the filter and will light up based on how much the air purifier has been used, as well as other factors (see page 17). If you don’t use your air purifier often,  will take longer to turn on.
turned on before 9 months.	is a reminder for you to check the filter and will light up based on how much the air purifier has been used, as well as other factors (see page 17). If you run your air purifier frequently, will turn on sooner.
The display does not stay on in darkness room.	Make sure that the Light detection is off (see page 11).
The purifier always shuts off automatically in a dark room.	Make sure that the Light detection is off (see page 11).

If your problem is not listed, don’t hesitate to get in touch with Customer Support (see page 27).

For more manuals by Levoit, visit ManualsLibraryy

Levoit Vital 100S-P Smart Air Purifier-FAQs
