Honeywell PRO TH4000 Series TH4210D1005 Thermostat Manual

Honeywell logo

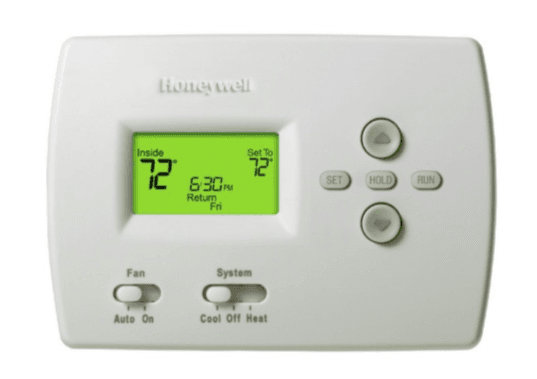

Honeywell PRO TH4000 Series TH4210D1005 Thermostat

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -main



About your new thermostat

  • Your new Honeywell thermostat has been designed to give you many years of reliable service and easy-to-use, push-button climate control.

Features

  • Separately programmable weekday/weekend schedules.
  • One-touch temp control overrides program schedule at any time.
  • Energy Star® compliant to greatly reduce your heating/cooling expenses.
  • Large, clear, backlit display is easy to read.
  • Displays both room temperature and temperature setting.
  • Built-in compressor protection

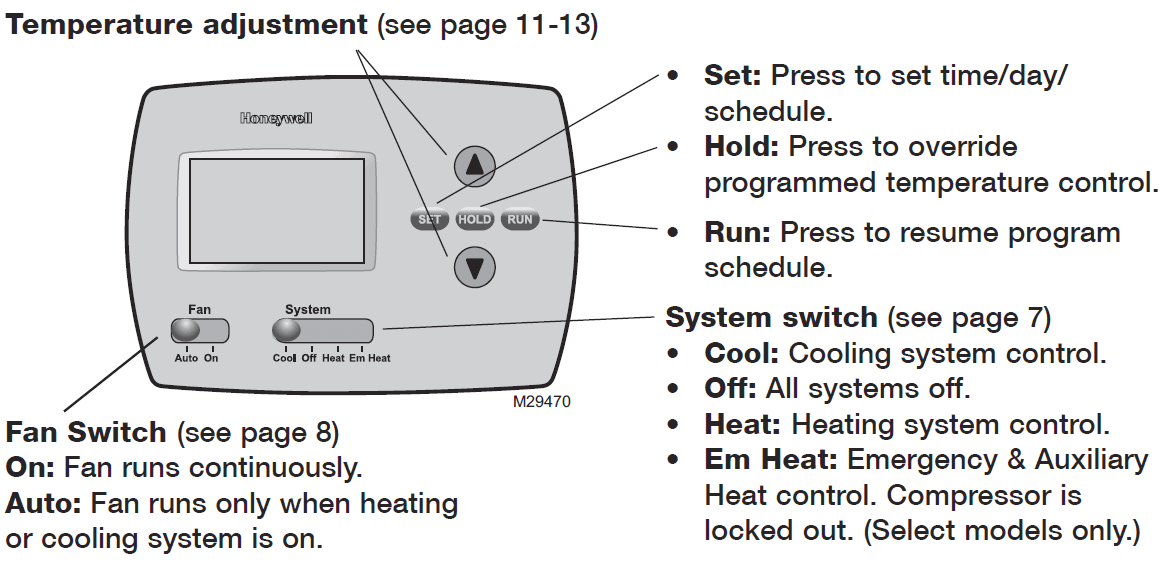

Quick reference to control

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -2

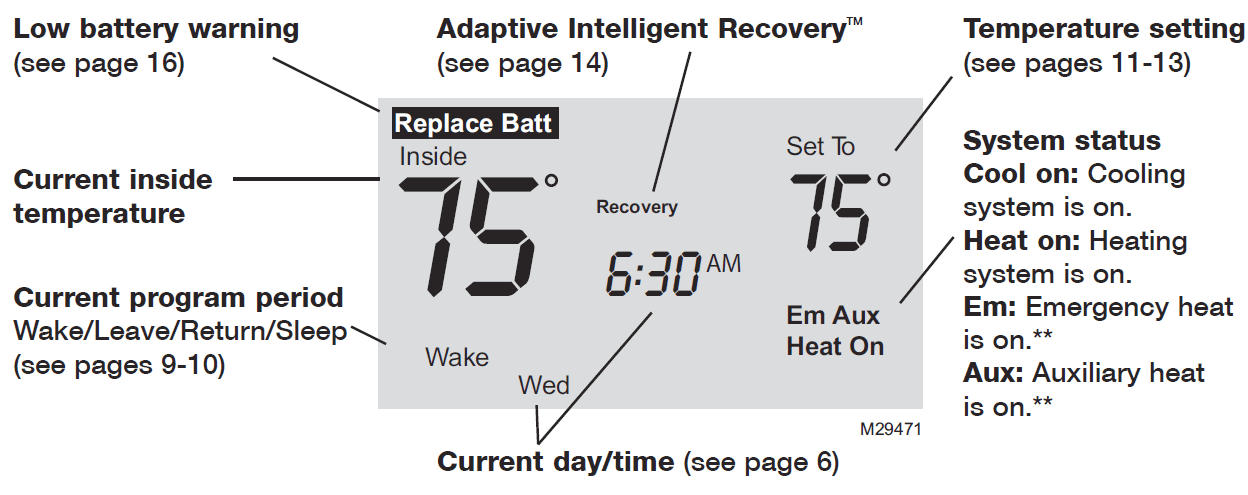

Quick reference to display screen

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -3

  • Only for heat pumps with this capability (select models only)

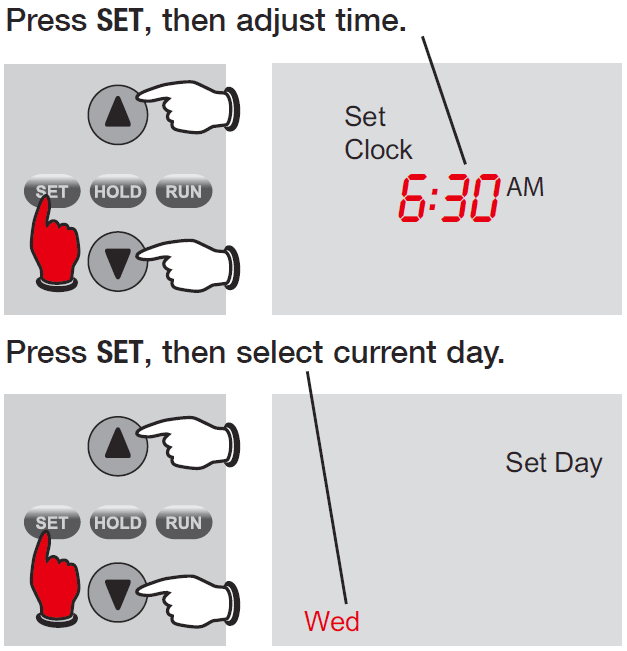

Set the time and day

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -4

  1. Press the SET button, then press or to set the clock time.
  2. Press the SET button, then press or to select the day of the week.
  3. Press RUN to save & exit.
    • Note: If the display flashes Set Clock, the thermostat will follow your settings for the weekday “Wake” time period until you reset the time and day.

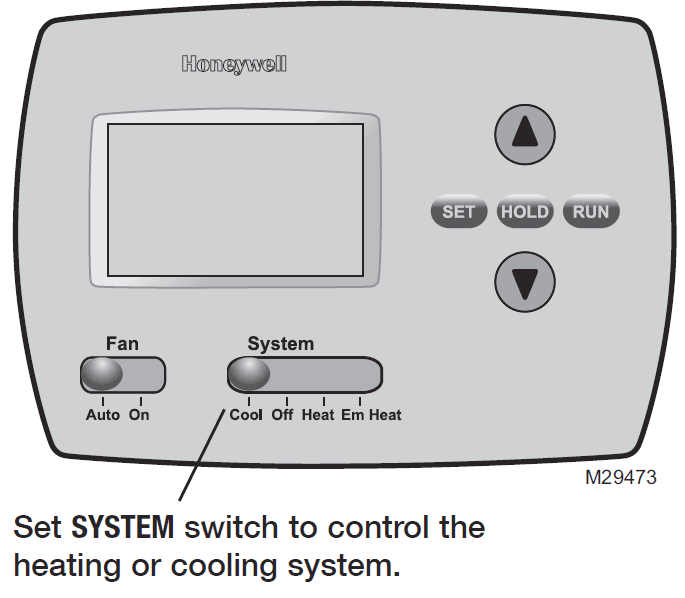

System switch

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -5

The SYSTEM switch can be set to control your heating or cooling system, depending on the season.

  • Cool: Cooling system control.
  • Off: All systems are off.
  • Heat: Heating system control.
  • Em Heat: Emergency & Auxiliary Heat control. The compressor is locked out. (Select models only.)
    • CAUTION: EQUIPMENT DAMAGE HAZARD. Do not operate cooling system when outdoor temperature is below 50°F (10°C)

Operating Manual

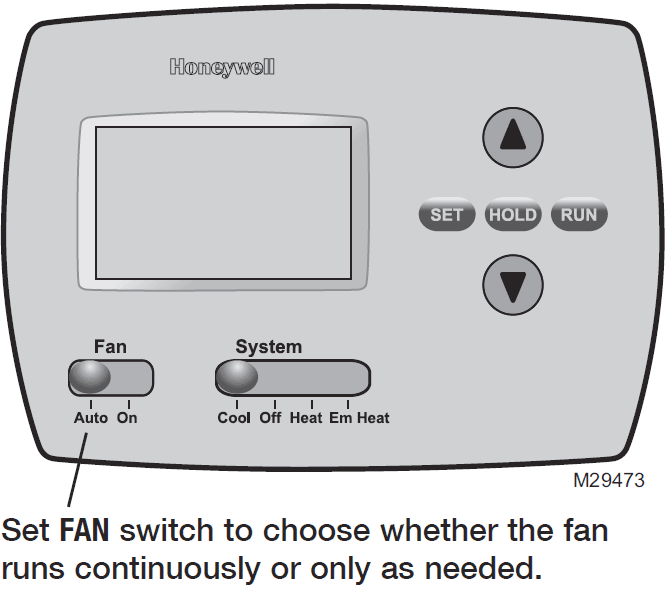

Fan switch

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -6

  • Set the FAN switch to Auto or On.
  • In “Auto” mode (the most commonly used setting), the fan runs only when the heating or cooling system is on.
  • If set to “On,” the fan runs continuously

Save money by setting program schedules

It’s easy to program your system for maximum energy savings. You can program four time periods each day, with different settings for weekdays and weekends

  • Set to the time you awaken and the temperature you want during the morning, until you leave for the day.Honeywell PRO TH4000 Series TH4210D1005 Thermostat -7
  • Set to the time you leave home and the temperature you want while you are away (usually an energy-saving level).Honeywell PRO TH4000 Series TH4210D1005 Thermostat -8
  • Set to the time you go to bed and the temperature you want overnight (usually an energy-saving level).Honeywell PRO TH4000 Series TH4210D1005 Thermostat -9

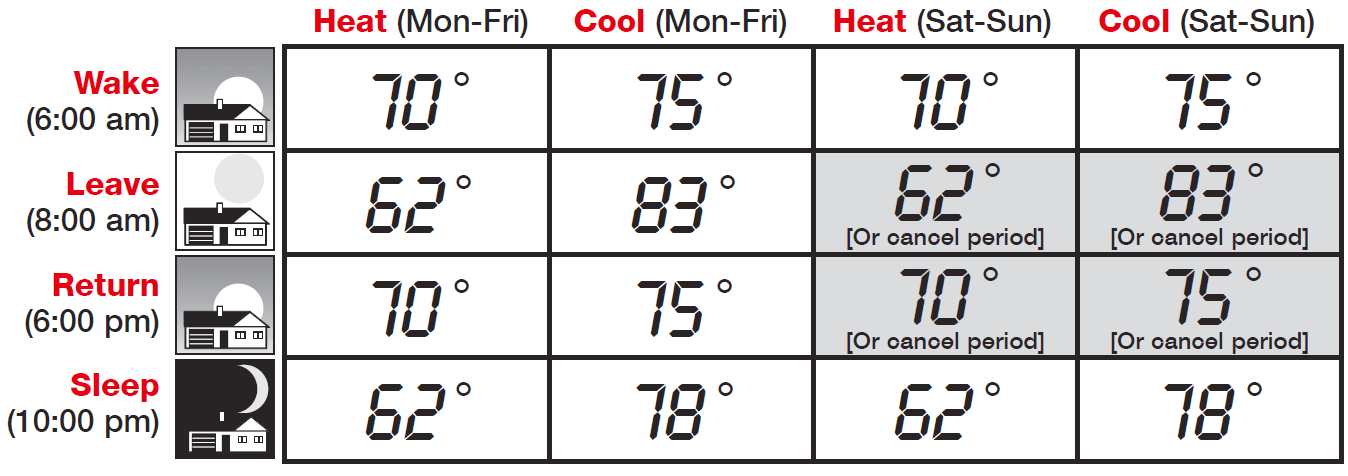

Energy Star® settings for maximum cost savings

  • This thermostat is pre-set to use Energy Star® program settings. We recommend these settings, since they can reduce your heating/cooling expenses by as much as 33%. (See next page to adjust times and temperatures of each time period.)Honeywell PRO TH4000 Series TH4210D1005 Thermostat -10

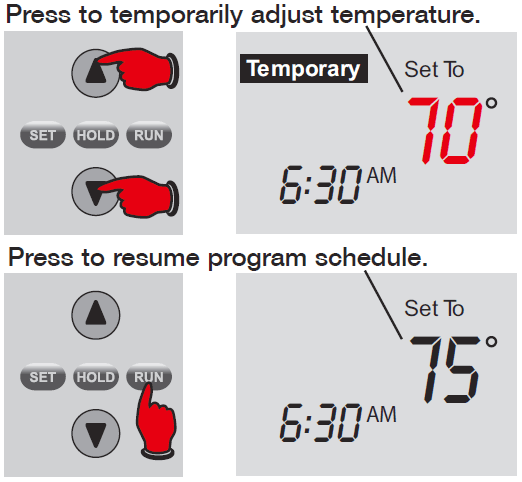

Program schedule override (temporary)

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -11

  • Note: Make sure the thermostat is set to the system you want to control (heat or cool)
  • Press or to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period.
  • The new temperature will be maintained only until the next programmed time period begins (see page 9). For example, if you want to turn up the heat early in the morning, it will automatically be lowered later, when you leave for the day.
  • To cancel the temporary setting at any time, press RUN.

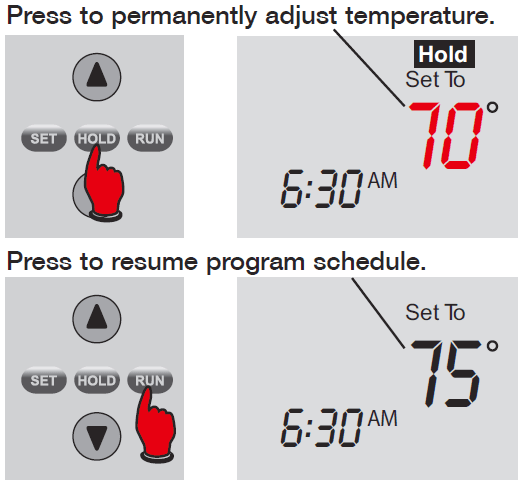

Program schedule override (permanent)

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -12

  • Note: Make sure the thermostat is set to the system you want to control (heat or cool).
  • Press HOLD to permanently adjust the temperature. This will override the temperature settings for all time periods.
  • The “Hold” feature turns off the program schedule and allows you to adjust the thermostat manually, as needed.
  • Whatever temperature you set will be maintained 24 hours a day, until you manually change it, or press RUN to cancel “Hold” and resume the program schedule.

Adaptive Intelligent RecoveryTM (AIR)

  • Adaptive Intelligent Recovery eliminates guesswork when setting your schedule. It allows the thermostat to “learn” how long your furnace and air conditioner take to reach the temperature you want.
  • Just set your program schedule to the time you want the house to reach your desired temperature. The thermostat then turns on the heating or cooling at just the right time to reach your scheduled temperature at your scheduled time.
  • For example: Set the Wake time to 6 am and the temperature to 70°. The heat will come on before 6 am, so the temperature is 70° by the time you wake at 6.

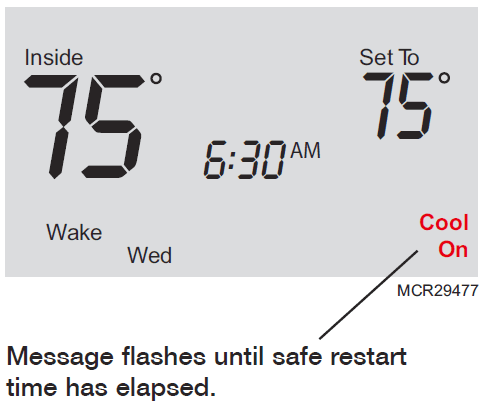

Built-in compressor protection

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -13

  • This feature helps prevent damage to the compressor in your air conditioning or heat pump system.
  • Damage can occur if the compressor is restarted too soon after shutdown. This feature forces the compressor to wait for a few minutes before restarting.
  • During the wait time, the display will flash the message Cool On (or Heat On if you have a heat pump). When the safe wait time has elapsed, the message stops flashing and the compressor turns on.

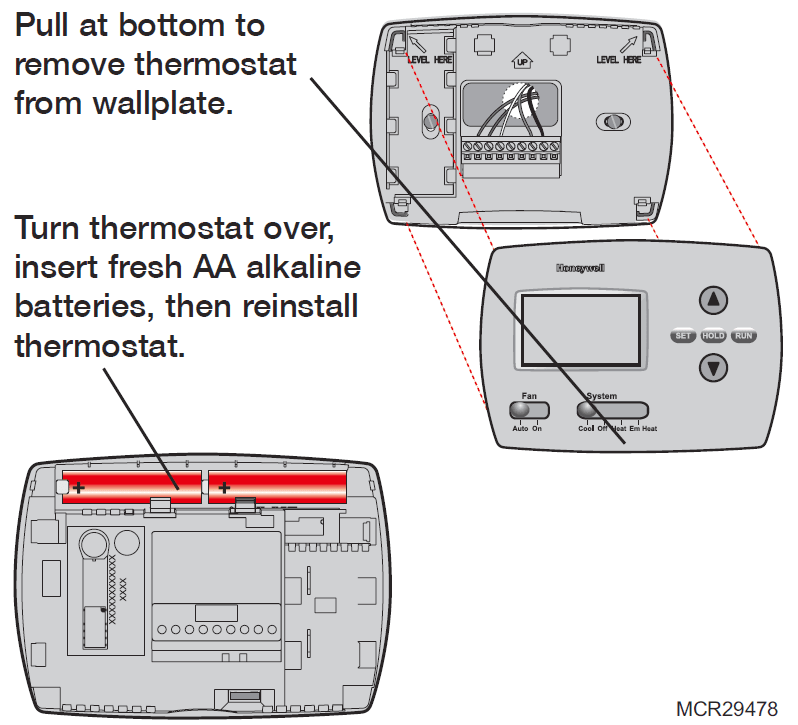

Battery replacement

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -14

  • Batteries are optional (for backup power) if your thermostat was wired to run on AC power when installed.
  • Install fresh batteries when the REPLACE BATT warning begins flashing. The warning flashes about two months before the batteries are depleted.
  • Replace batteries once a year, or before leaving home for more than a month. If batteries are inserted within one minute, the time and day will not have to be reset. All other settings are permanently stored in memory, and do not require battery power

In case of difficulty

If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily.

  • Display is blank
  • Check circuit breaker and reset if necessary.
  • Make sure power switch at heating & cooling system is on.
  • Make sure furnace door is closed securely.
  • Make sure fresh AA alkaline batteries are correctly installed (see page 16).
  • Heating or cooling system does not respond
  • Set system switch to Heat (see page 7). Make sure the temperature is set higher than the Inside temperature.
  • Set system switch to Cool (see page 7). Make sure the temperature is set lower than the Inside temperature.
  • Wait 5 minutes for the system to respond.
  • Temperature settings do not change
  • Make sure heating and cooling temperatures are set to acceptable ranges:
  • Heat: 40° to 90°F (4.5° to 32°C).
  • Cool: 50° to 99°F (10° to 37°C).
  • “Cool On” or “Heat On” is flashing
  • Compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor (see page 15).
  • “Heat On” is not displayed
  • Set the System switch to Heat, and set the temperature level above the current room temperature (see page 7).
  • “Cool On” is not displayed
  • Set the System switch to Cool, and set the temperature level below the current room temperature (see page 7).

To restore Energy Star® default settings

Follow these steps to restore Energy Star default settings (see page 10):

  1. Press SET 3 times to display “Set Schedule.”
  2. Press and hold SET and RUN at the same time for 4 seconds.
  3. Press RUN

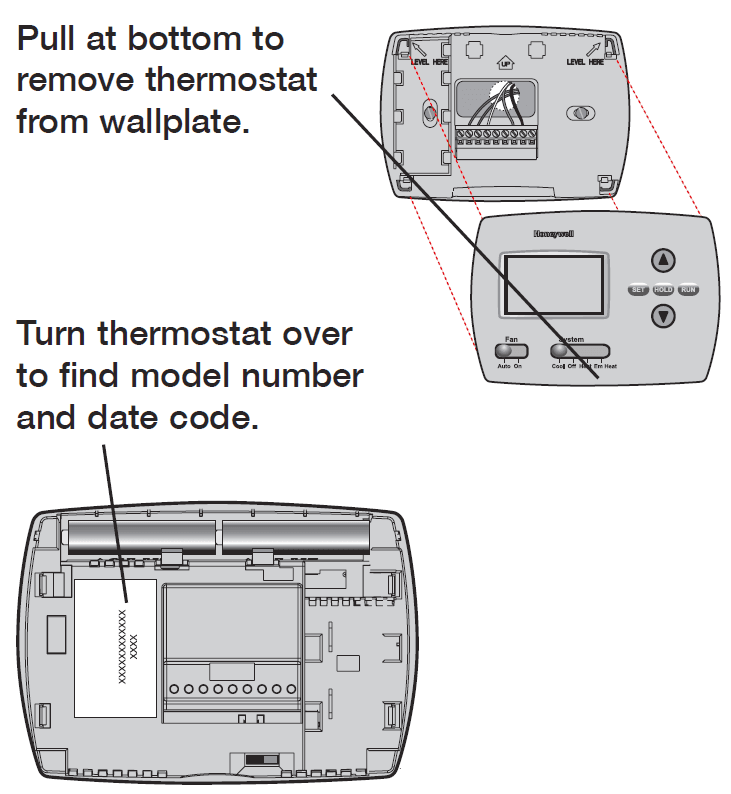

Customer assistance

Honeywell PRO TH4000 Series TH4210D1005 Thermostat -15

  • For assistance with this product, please visit http://yourhome.honeywell.com Or call Honeywell Customer Care toll-free at 1-800-468-1502.
  • To save time, please note your model number and date code before calling.
  • Accessories/replacement parts
  • To order, please call Honeywell Customer Care toll-free at 1-800-468-1502. Cover plate assembly*….Part No. 50002883-001
  • Use to cover marks left by old thermostats
