Emerson 1F80-0471 Single Stage Programmable Thermostat Manual

Emerson 1F80-0471 Single Stage Programmable Thermostat

APPLICATIONS

THERMOSTAT APPLICATION GUIDE

SPECIFICATIONS

Electrical Rating:

• Battery Power.……………………………………………. mV to 30 VAC, NEC Class II, 50/60 Hz or DC
• Input-Hardwire……………………………………………. 20 to 30 VAC
• Terminal Load…………………………………………………… 1.0 A per terminal, 1.5A maximum all terminals combined
• Setpoint Range…………………………………………………. 45° to 90°F (7° to 32°C)
• Rated Differentials: Fast Med. Slow
• Heat (SS)…………………………………………………… 0.4 °F 0.6 °F 1.7 °F
• Cool (SS).………………………………………………….. 1.2 °F – 1.7 °F
• Heat Pump (HP)…………………………………………. 1.2°F – 1.7°F
• Operating Ambient…………………………………………….. 32° to +105°F (0° to +41°C)
• Operating Humidity..………………………………………….. 90% non-condensing max.
• Shipping Temperature Range……………………………… -4° to +150°F (-20° to +65°C)
• Dimensions Thermostat……………………………………… 3-7/16″H x 4-7/16″W x 1-1/4″D

ATTENTION: MERCURY NOTICE

• This product does not contain mercury. However, this product may replace a product that contains mercury. Mercury and products containing mercury must not be discarded in household trash. Do not touch any spilled mercury. Wearing non-absorbent gloves, clean up any spilled mercury and place in a sealed container. For proper disposal of a product containing mercury or a sealed container of spilled mercury, place it in a suitable shipping container. Refer to www.thermostat-recycle.org for location to send product containing mercury

INSTALLATION

Remove Old Thermostat

A standard heat/cool thermostat consists of three basic parts:

1. The cover, which may be either a snap-on or hinge type.
2. The base, which is removed by loosening all captive screws.
3. The switching subbase, which is removed by unscrewing the mounting screws that hold it on the wall or adapter plate. Before removing wires from old thermostat, label each wire with the terminal designation from which it was attached. Disconnect the wires from the old thermostat one at a time. Do not let wires fall back into the wall.

Installing New Thermostat

1. Pull the thermostat body off the thermostat base. Forcing or prying on the thermostat will cause damage to the unit.
2. Place base over hole in wall and mark mounting hole locations on wall using base as a template.
3. Move base out of the way. Drill mounting holes. If you are using existing mounting holes and the holes drilled are too large and do not allow you to tighten base snugly, use plastic screw anchors to secure the base.

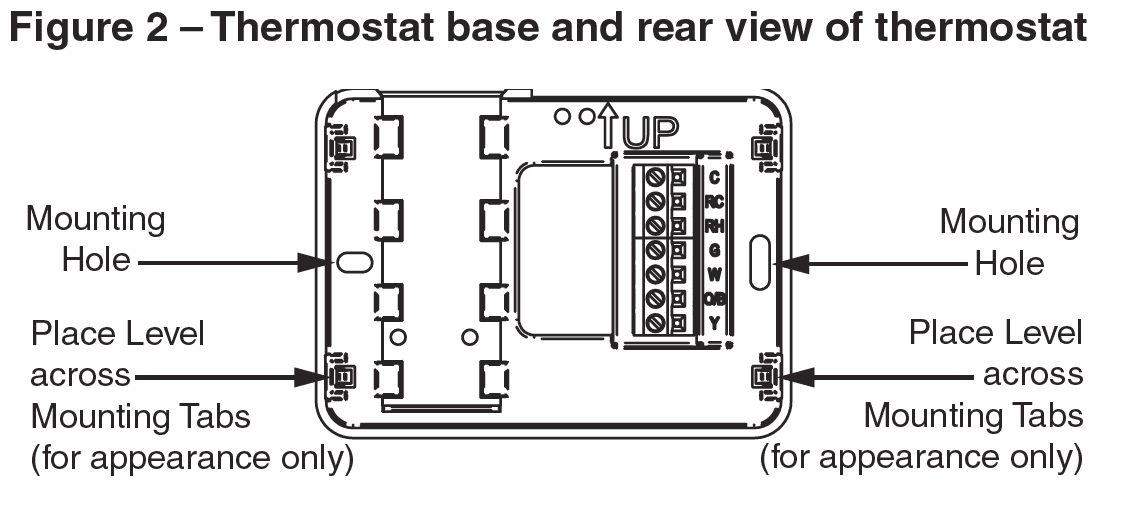

4. Fasten base snugly to wall using mounting holes shown in Figure 2 and two mounting screws. Leveling is for appearance only and will not affect thermostat operation.
5. Connect wires to terminal block on base.
6. Push excess wire into wall and plug hole with a fire resistant material (such as fiberglass insulation) to prevent drafts from affecting thermostat operation.
7. Carefully line the thermostat up with the base and snap into place.

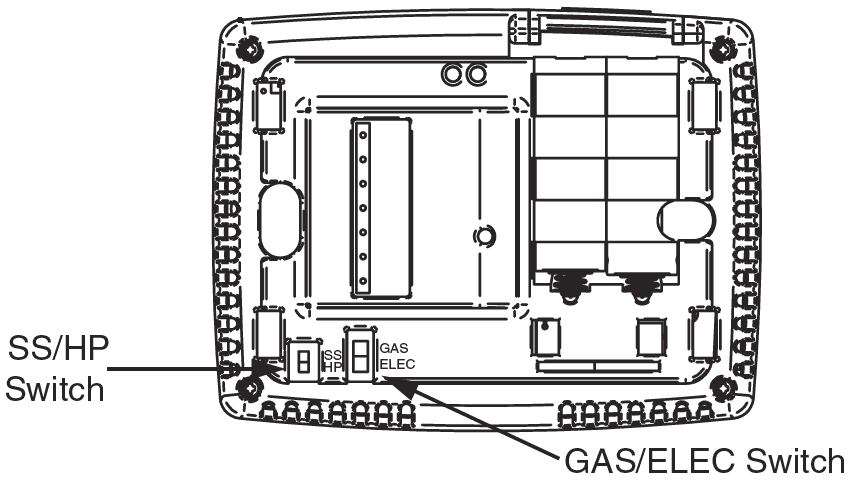

SS/HP Switch (Conventional or Heat Pump Selection)

• The SS/HP switch is factory set to the SS position. In this position, thermostat is configured as conventional single stage. If you have a single stage heat pump system, switch SS/HP to HP position (see figure 2).

Gas/Elec Switch (Fan Option)

• The GAS/ELEC switch is factory set to the GAS position. In this position, the thermostat will not power the circulator fan on a call for heat, but will power the circulator on a call for cool. If your system requires that the thermostat power the circulator fan on a call for heat, this switch should be set to the ELEC position. Typically, gas and oil heating systems do not require the thermostat to power the circulator fan during a call for heat.
• If your heat is gas or oil, the switch should be set to the GAS position. When the thermostat is configured for Heat Pump, the thermostat will always power the circulator fan on a call for heat in the HEAT mode.

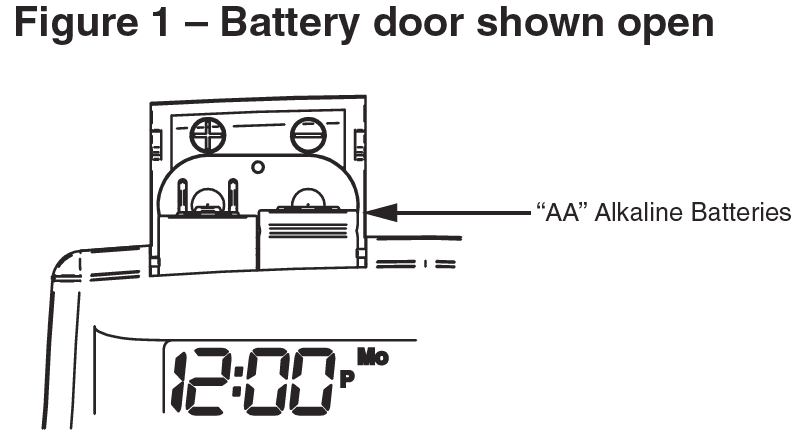

Batteries

• 2 “AA” alkaline batteries are included in the thermostat. To install the batteries, pull the battery door as shown by the arrow and lift open. Using the polarity indicated inside the battery door, insert the batteries. To close the battery door, swing the door down while pulling in the direction of arrow. Once fully down, snap the door back into position. To replace the batteries, set the system to OFF, following the instructions above.
• Thermostat can be powered by system AC power or a Battery. If is displayed, the thermostat is battery-powered. If is not displayed, thermostat is system powered with optional battery back-up. When battery power remaining is approximately half, the will be displayed. When “Change ” is displayed, install fresh “AA” alkaline batteries immediately.
• For best results, replace all batteries with a premium brand alkaline battery such as Duracell® or Energizer®. We recommend replacing batteries every 2 years. If the home is going to be unoccupied for an extended period (over 3 months) and is displayed, the batteries should be replaced before leaving. When less than two months of battery life remain, the setpoint temperature will offset by 10 degrees (10 degrees cooler in Heat mode / 10 degrees warmer in Cool mode).
• If offset occurs, the normal setpoint can be manually reset with or . Another offset will occur within two days if batteries are not replaced.

THERMOSTAT QUICK REFERENCE

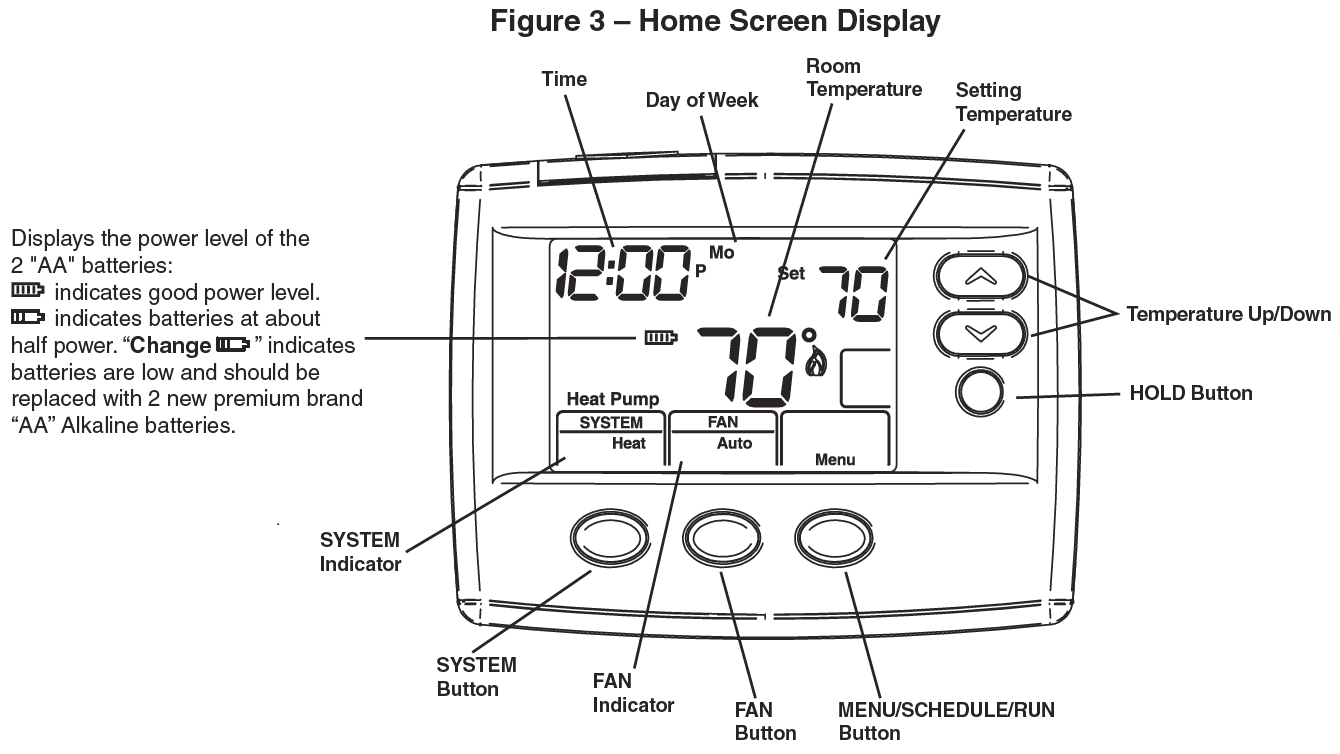

Home Screen Description

Programming and Configuration Items

1. Flame icon is displayed when the system is in HEAT mode. Snowflake icon ( ) is displayed when the system is in COOL mode.
2. The word “Hold” is displayed when the thermostat is in the HOLD mode. “Temp Hold” is displayed when the thermostat is in a Temporary HOLD mode.
3. Displays “Change Filter” when the system has run for the programmed filter time period as a reminder to change or clean your filter.
4. Displays “Set” for setpoint when in Run Program mode.
5. Displays System Mode (Heat, Cool, Auto, Off) or “Time” in menu mode.
6. Displays Fan Mode (On, Auto) or “Run” in Menu mode or “Saving” in Cool SavingsTM Mode
7. Displays “Run Schedule“, “Schedule”, or “Menu”.
8. Displays “Save” when Cool SavingsTM is working.
9. Displays “Heat Pump” when system is configured as Heat Pump thermostat.
10. Displays “Hold” in programmable mode when in “Hold” mode. Displays Light Bulb in nonprogrammable mode.
11. Alternates Time of Day and “LOC” when keypad lockout is enabled.
12. In Configuration Menu, shows screen number. If blank, thermostat is earlier model and requires instruction sheet 37-6749D

INSTALLER/CONFIGURATION MENU

• To enter the Configuration Menu, SYSTEM must be set to HEAT, COOL, Em or AUTO. Press the Menu button for at least 5 seconds. The display will show item #1 in the table below. Press Menu button to advance to the next menu item. Press or to change an item option. Shaded items are not available on 1F86.


  INSTALLER/CONFIGURATION MENU
  Menu Screen Number	SS	HP	Displayed (Factory Default)	Press or to select from listed options	Comments
  01			(OFF) Lk	L	Selects Keypad Lockout. (Not available on earlier models)
  02			(000) Lk	001 to 999	Selects Keypad lockout combination number
  03			(Cool O) On	Heat b On	Reversing Valve Output (SS/HP switch must be in the Heat Pump HP position)
  04			(2) P	P 3, P 0	Selectable Programs Per Week (For programmable thermostat only)
  05			(OFF) Cool Savings CS	Cool Savings CS On	Select Cool Savings On of OFF
  06			(3) CS	6, 5, 4, 3, 2, 1	Selects Cool Savings value 1 (low) to 6 (high)
  07			(On) E	E OFF	Selects Energy Management Recovery (EMR) On or OFF (For programmable thermostats only)
  08			(ME) CR Heat	SL, FA	Adjustable Anticipation (Heat) (only when SS/HP switch is at the SS position)
  09			(FA) CR Cool	SL	Adjustable Anticipation (Cool) (only when SS/HP switch is at the SS position)
  10			(FA) CR Heat Pump	SL	Adjustable Anticipation (Heat Pump) (only when SS/HP switch is at the HP position)
  11			(OFF) CL	CL On	Compressor Lockout Time
  12			Auto-Heat Cool-Off	Heat-Cool-Off, Heat-Off with Fan icon, Heat-Off without Fan icon, Cool-Off, Auto-Off	System Mode Configuration with Automatic Changeover
  13			(On) dL	OFF	Selects Display Light On or OFF
  14			0 HI	1 HI, 2 HI, 3 HI, 4 HI, 1 LO, 2 LO, 3 LO, 4 LO	Adjustable Ambient Temperature Display
  15			°F	°C	Selects Fahrenheit/Celsius Temperature Display
  16			L (90) Heat	L 62 to L 89	Selects Limited HEAT Range
  17			L (45) Cool	L 46 to L 82	Selects Limited COOL Range
  18			(OFF) Change Filter	Change Filter On	Selects Filter Change-out Indicator
  19			(200 h) Change Filter	25 h to 1975 h in 25-hour increment	When on, selects time in 25 hour increments 25-hour increment

• 1 & 2)Keypad Lockout – This menu selection will display “Lk” and “OFF” (default, keypad not locked out). The and are used to toggle the selection between OFF and “L” (keypad locked out). When the keypad lockout selection is enabled “L”, and the MENU button is pressed again, the display will indicate the number “0” (default, still disabled) in the time digits. The and are used to set the combination number from 0 to 999. If a combination of 0 is selected and the MENU button is pressed, the menu will be exited and keypad will not be locked. If 1 to 999 is selected and the MENU button is pressed, the combination is stored into memory and the menu is exited.
  • The “Lk” will display designating keypad locked with a valid combination. The SYSTEM button will operate for 10 seconds after the menu mode is exited to allow the user to change the mode from “OFF” to the desired SYSTEM mode. While the keypad is locked out, a press of MENU will enter the configuration menu. The first menu item displayed is the combination code “0”. The or keys are used to set the combination unlock number from 0 to
    999. If the unlock number matches exactly with the combination lock number stored in memory when the MENU button is pressed, the keypad is unlocked and the “Loc” is removed.
  • If the unlock number does not match when the MENU button is pressed, the combination returns to “0” for another attempt to set the unlock code. To exit the menu without unlocking the keypad, press RUN SCHED. To reset the combination code and unlock the keypad if the code is forgotten, see the troubleshooting section.
• 3) Select Reversing Valve Output (SS/HP switch must be set at HP, omitted if SS/HP switch is SS Position) – The O/B option is factory set at “O” position. This will accommodate the majority of heat pump applications, which require the changeover relay to be energized in COOL. If the thermostat you are replacing or the heat pump being installed with this thermostat requires a “B” terminal, to energize the changeover relay in HEAT, the O/B option should be set at “B” position.
  • To enter the Configuration Menu, SYSTEM must be set to HEAT, COOL, Em or AUTO. Press the Menu button for at least 5 seconds. The display will show item #1 in the table below. Press Menu button to advance to the next menu item. Press or to change an item option. Shaded items are not available on 1F86.
• 4) Program Options 1F80 only – This control can be configured for 5/2 day or 5/1/1 day programming or non-programming mode. The default setting is P2, indicating 5/2 day programming. The programs per week can be toggled to P3 or P0 by pressing the or keys. A selection of 0 Days for
  non-programmable will eliminate the need for EMR, and that step in the menu will be skipped.
• 5 & 6)Select Cool Savings™ and value – Selects the Cool Savings feature On or OFF. If selected On, press MENU to select the amount of adjustment for the feature in Cool mode with 1 (1°) being the least amount of adjustment and 6 (6°) being the most amount of adjustment. Default value is 3 (3°). In normal operation “Saving” will appear under “Fan”. Cool Savings is an optional energy-saving feature that can reduce your cooling costs. It is based on the principal that lower indoor humidity makes a slightly higher temperature feel more comfortable. Cool Savings operates during periods of high demand which normally occur on the hottest summer days when the cooling system may run for hours to reach the thermostat setting. Long cooling run times also lower the indoor humidity. Cool Savings very slowly adjusts the setpoint temperature to make the setpoint closer to the displayed temperature, to a maximum number of degrees selected.
  • Adjusting the setpoint temperature over a long cooling run time allows the system to reach your set temperature and turn off. The room temperature will actually be higher than the thermostat displays, but the reduction in humidity will allow comfort at a slightly higher temperature. When Cool Savings is making adjustments, “Save” will show next to the setpoint temperature and the room temperature may vary within the adjustment range selected.
  • If this feature is selected OFF, no change will occur when the cooling system is continually running during periods of high demand.
• 7) Energy Management Recovery: (this step is skipped if configured to be non-programmable). Energy Management Recovery (E) On enables the thermostat to start heating or cooling early to make the building temperature reach the program setpoint at the time you specify. Heating will start 5 minutes early for every 1° of temperature required to reach setpoint.
  • Example: If E On is selected and have your heating programmed to 65° at night and 70° at 7 AM. If the building temperature is 65°, the difference between 65° and 70° is 5°. Allowing 5 minutes per degree, the thermostat setpoint will change to 70° at 6:35 AM. Cooling allows more time per degree, because it takes longer to reach set temperature.

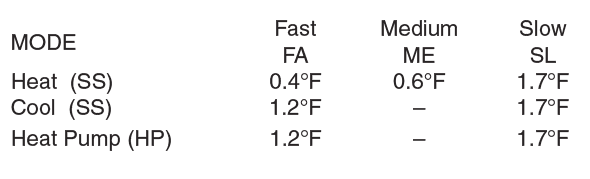

• 8, 9 & 10) Cycle Rate Selection – The factory default settings with SS/HP switch in SS position for Heat is medium cycle (ME) and Cool is fast cycle (FA). For Heat Pump (HP), the default setting is fast cycle (FA). To change cycle rate, press the or key. Cycle rate differentials for different settings are:
• 11) Select Compressor Lockout CL OFF or ON – Selecting CL ON will cause the thermostat to wait 5 minutes between cooling cycles. This is intended to help protect the compressor from short cycling. Some newer compressors already have a time delay built in and do not require this feature. Your compressor manufacturer can tell you if the lockout feature is already present in their system. When the thermostat compressor time delay occurs, it will flash the setpoint for up to five minutes.
• 12) System Mode Configuration – This thermostat is configured for Heat and Cool with Auto changeover (SYSTEM switch with Cool Off Heat Auto) default. It can also be configured for Heat and Cool (Cool Off Heat), Heat only with fan (Off Heat), Heat only without fan, Auto only (Auto Off),
  and Cool only (Cool Off).
• 13) Select Backlight Display – The display backlight improves display contrast in low lighting conditions. When the “C” terminal is powered, selecting backlight CdL ON will keep the light on continuously. Select backlight OFF will keep the light on momentarily after any key is pressed. When the “C”
  terminal is not powered, the light will be on momentarily after any key is pressed no matter whether the backlight is selected ON or OFF.
• 14) Select Temperature Display Adjustment 4 LO to 4 HI. Allows you to adjust the room temperature display up to 4° higher or lower. Your thermostat was accurately calibrated at the factory, but you have the option to change the display temperature to match your previous thermostat. The current or adjusted room temperature will be displayed on the left side of the display.
• 15) Select F° or C° Readout – Changes the display readout to Centigrade or Fahrenheit as required.
• 16 & 17) Temperature Limit Range Heat or Cool – This selection sets the maximum HEAT (16) or minimum COOL (17) temperature for the setpoint range. Select the limit temperature using the or keys. In the Run mode, the setpoint temperature will not adjust past the limit temperature selected. When the limit temperature is reached, trying to raise or lower the setpoint past the limit will cause “L” to be displayed in the times digits for about 6 seconds. This feature is not available on earlier models.
• 18 & 19)Select Filter Replacement Reminder and Set RunTime. Select the “Change Filter” reminder On or OFF. If selected On, press MENU to select the time period from 25 to 1975 hours in 25 hours increments. In a typical system, 200 hours (default) of run time is approximately 30 days. After the selected time of blower operation, the thermostat will display “Change Filter” as a reminder to change or clean your air filter. When “Change Filter” is displayed,
  press MENU button to clear the display and restart the time to the next filter change.

OPERATING YOUR THERMOSTAT

Choose the Fan Setting (Auto or On)

• Set the FAN Switch to Auto or On. Fan Auto is the most commonly selected setting and runs the fan only when the heating or cooling system is on. Fan On runs the fan continuously for increased air circulation or to allow additional air cleaning.

Choose the System Setting (Heat, Off, Cool, Auto)

Press the SYSTEM button to select:

• Heat: The thermostat controls only the heating system.
• Off: Heating and Cooling systems are off.
• Cool: The thermostat controls only the cooling system.
• Auto: Auto Changeover is used in areas where both heating and cooling may be required on the same day. AUTO allows the thermostat to automatically select heating or cooling depending on the indoor temperature and the selected heat and cool temperatures. When using AUTO, be sure to set the Cooling temperatures more than 1° Fahrenheit higher than the heating temperature.

Manual Operation for Non-Programmable Thermostats Mode

• Press the SYSTEM button to select Heat or Cool and use the or buttons to adjust the temperature to your desired setting. After selecting your desired settings you can also press the SYSTEM button to select AUTO to allow the thermostat to automatically change between Heat and Cool.

PROGRAMMING (For Programmable Model Only)

Set Current Time and Day

• 1) Press Menu and then Time button once. The display will show the hour only.
• 2) Press and hold either the or button until you reach the correct hour and AM/PM designation (AM begins at midnight, PM begins at noon).
• 3) Press Time once again. The display window will show the minutes only.
• 4) Press and hold either the or button until you reach the correct minutes.
• 5) Press Time once again. The display will show the day of the week.
• 6) Press the or button until you reach the current day of the week.
• 7) Press Run to exit the Time mode.

Enter the Heating Program

• 1) Press SYSTEM button to select “Heat” in the system switch area indicating the active mode being programmed.
• 2) Press the Menu button and then press Schedule.
• 3) The top of the display will show the day(s) being programmed. The time and temperature (flashing) are also displayed. “1” will also be displayed to indicate the period.
• 4) Press or button to change the temperature to your selected temperature for the 1st heating period.
• 5) Press Time button, time will flash.
• 6) Press or button to adjust the start time for the 1st period.
• 7) The time will change in 15 minute increments.
• 8) After you have set the time and the temperature for the period to begin, press Schedule to advance to the next program period.
• 9) Repeat steps 2 through 8 until all of the program times and temperatures are set for all program periods on that day.
• 10) Press Schedule to the next day and repeat steps 2 through 9.
• 11) When programming is complete and all of the times and temperatures match your desired heating schedule, press Run Schedule. The thermostat will now run your program.

Enter the Cooling Program

• 1) Press SYSTEM button to select “Cool” in the system switch area indicating the active mode being programmed.
• 2) Follow Enter Heating Program instructions for entering cooling times and temperatures.

Energy Saving Factory Pre-Program

• The 1F80-0471 thermostats are programmed with the energy saving settings shown in the table below for all days of the week. If this program suits your needs, simply set the thermostat clock and press the RUN button. The table below shows the factory set heating and cooling schedule for all days of the week.Energy Saving Factory Pre-Program

Planning Your Program – Important

• The Heating and Cooling Program schedules below allow you to pencil in your own program times and temperatures. The 1F80-0471 comes configured for 5/2 day programming and can also be configured for 5+1+1 programming (see configuration section). Factory settings are listed on Monday through Friday, Saturday and Sunday.
• If you are re-programming a 5/2 day schedule, pencil in your own times and temperatures directly below the factory times and temperatures.  If you are re-programming a 5+1+1 fill in all lines with the times and temperatures you want.
• Keep the following guidelines in mind when planning your program.
  • In Heating, lower temperatures will save energy.
  • In Cooling, higher temperatures will save energy.
  • If you plan on using Auto Changeover, do not program the heating higher than the cooling.

Worksheet for Re-Programming 5/2 Day and 5+1+1 Day Program

TROUBLESHOOTING

Reset Operation

• Note: When thermostat is reset, installer configuration menu settings and programming will reset to factory settings. If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation, you can reset the thermostat by removing the wires from terminals R and C (do not short them together) and removing batteries for 2 minutes. After resetting the thermostat, replace the wires and batteries. If the thermostat has been reset and still does not function correctly contact your heating/cooling service person or place of purchase.
