Hoover Power Scrub Deluxe User Manual

Hoover Power Scrub Deluxe

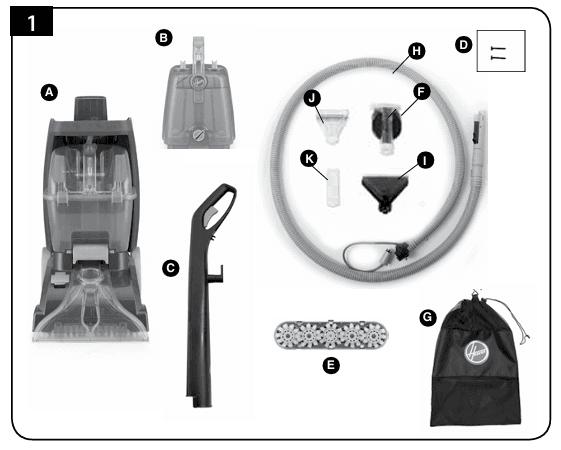

Carton Contents

REMOVE ALL PARTS FROM THE CARTON AND IDENTIFY EACH ITEM SHOWN. MAKE SURE ALL PARTS ARE LOCATED BEFORE DISPOSING OF PACKING MATERIALS. *Available on select models only. Accessories not included with your model may be purchased separately by visiting hoover.com.

•  a.Carpet Washer
• b. Water/Solution Tank
• C. Upper Handle
• d. Handle Screws
• e. SpinScrub Brush Assembly®(Pre-assembled in unit)
• F. SpinScrub Hand Tool*®
• G. Mesh Tool Storage Bag
• h. Accessory Hose
• I. Stair Tool*
• J. Upholstery Tool
• K. Crevice Tool

How to assemble

note: Phillips Screwdrivers are Needed For Assembly.

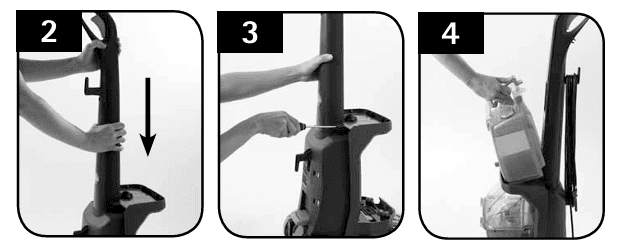

Attach HandLe

1. Position the upper handle and slide it down into the carpet washer base
2. Insert both screws and tighten them with a screwdriver
3. Position the bottom of the tank onto the Carpet Washer
4. Push the tank handle while supporting the back of the cleaner with the other hand until the Solution Tank clicks into place.
5. Check to make sure the  tank is securely latched
6. Place tools and hose into the Mesh Tool Storage bag provided.
7. Mesh Tool Storage Bag should not be hung on the Carpet Washer while the Carpet Washer is in use.
8. Mesh Tool Storage Bag can be conveniently stored either on the back of the unit or hung elsewhere by the provided hoo.k
9. Wrap cord around cord hooks for convenient storage. Attach the plug end to the cord.

How to use

CAUTION: Do not use this carpet washer and accessories on hard floors. Using this machine on hard floors may scratch or damage your floor.

ON-OFF pedal

1. To turn the cleaner on, step on the pedal.
2. To turn the cleaner off, step on the pedal again.

Handle release pedal

1. Grasp handle.
2. Step on the Handle Release Pedal to release the lower handle to the operating position.
3. Do not release the grip on the handle until the l handle is returned to the locked upright position

transporting.

1. To move your cleaner from room to room, put the handle in the upright and locked position.
2. Tilt cleaner back on wheels and push forward.

Carry Handles

The carpet washer may also be lifted by any of several carry handles as shown. Be sure tanks are properly latched in place before attempting to lift.

• A. Upper Handle
• B. Solution Tank Handle
• C. Dirty Water Tank Handle
• D. Solution Tank Shel

Clean Water/solution tank

The Clean Water / Solution Tank (Fig. 16) is divided into two sections. The Clean Water Tank (E) is for water only and the Solution Tank (F) is for cleaning solution only.
Note: Tanks are labeled above tank caps.

Note: There may be a small amount of water on the base when the tank is removed from the unit. This is a normal condition.

How to fill

CAUTION: Do not fill with water above 140°F (60°C).

Fill the Solution Tank (Fig. 19) with Hoover® Clean Plus 2x Solution or any other Hoover solution (see “Cleaning Solutions” for details). Replace container caps and tighten. Place Solution/Water Tank backontoo the unit using the method described.

Dirty Water tank

The Dirty Water Tank holds the dirty water that is picked up from the surface being cleaned. When the Dirty Water Tank is full, the automatic shut-off will engage, suction will stop and the tank must be emptied (see Automatic Shut-Off section).

How to empty

1. Turn the cleaner off and unplug from the electrical outlet.
2.  Release Dirty Water Tank Latch (Fig. 20).
3. Grab the Dirty Water Tank Handle and remove it from the carpet washer.
4. Unplug the Quick Spout Pour Cap (A), rotate it away from the drain hole, and empty the Tank.

IMPORTANT

Be sure to replace the Quick Spout Pour Cap to ensure proper suction.

1. Place Recovery Tank back on to cleaner making sure to do so with the retaining features pointing down to ensure proper sealing.
2. Latch the Recovery Tank back into place.

How to Clean

1. Empty Dirty Water Tank.
2. Place on a flat surface and unlatch the Dirty Water Tank lid latch located below the Quick Spout Pour Cap.
3. Pivot and lift off the Dirty Water Tank Lid.
4. Remove lint from the filter screen located on the bottom of the Dirty Water Tank Lid.
5. Rinse debris from the Dirty Water Tank Lid and Dirty Water Tank bottom.
6. Insert tabs on the Dirty Water Tank lid and reattach the lid to the Dirty Water Tank bottom.
7. Reattach the Recovery Tank Lid Latch.

Before you begin cleaning

• Vacuum thoroughly – For carpet, use a HOOVER® vacuum cleaner with an agitator for best results. Vacuum upholstery with a vacuum cleaner with cleaning tool attachments. Use a crevice tool to reach into tufts and folds. Do not use the carpet cleaner as a dry vacuum cleaner.
• For upholstery, check cleaning code – Use your HOOVER® carpet washer only if the upholstery fabric is marked with a “W” (for “wet” clean) or “S/W” (for “solvent/dry” or “wet” clean). Do not clean fabric marked “S” (“solvent/dry” clean only). If your upholstery does not have a code, seek professional assistance.
• Test for colorfastness – Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.
• When cleaning entire floor, move furniture out of area to be cleaned (may not be necessary if only high traffic areas are to be cleaned). For furniture too heavy to move, place aluminum foil or wax paper under legs. This will prevent wood finishes from staining carpet. Pin up furniture skirts and draperies.
• Pretreat spots and heavy traffic areas with an appropriate Hoover Cleaning Solutions, see “Cleaning Solutions” section. Follow Directions on bottle. *Available at additional cost if not included with your model.
• To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.
• To avoid wetting and possible damage to wood floors underneath area rugs/carpet, either move area rugs/ carpet to a non-wood hard floor surface or place waterproof material (e.g. plastic) underneath them before cleaning.

Washing Carpet

Read the “Before you Begin Cleaning” instructions.

1. Fill the Clean Water Tank according to instructions.
2. Fill the solution tank with Hoover® solution according to instructions.
3. Dry hands and plug the cord into a properly grounded outlet.

note: To avoid walking on damp carpet, start at the end of the room farthest from the door or path to sink where tanks will be emptied and filled. Step on handle release pedal and lower handle to operating position.

step 1

1. Set Wash/Rinse Selector to Wash. Turn cleaner ON.
2. Squeeze the trigger to apply the cleaning solution and slowly push the cleaner forward (equals one wet stroke).
3. Continue to squeeze the trigger and slowly pull cleaner back toward you (second wet stroke).

step 2

Release trigger and slowly push cleaner forward over area just sprayed with solution (dry stroke). Then slowly pull cleaner back toward you without squeezing trigger (dry stroke). Continue using dry strokes until little water is visible passing through the Dirty Water Tank lid (Pass over the same area a minimum of 4 times = 2 while squeezing the trigger and 2 without).

Note: For best results, use straight, parallel strokes. Overlap strokes by 1 inch to help prevent streaking.

Keep nozzle flat on floor for both forward and reverse strokes. For best cleaning results and to aid in faster drying of carpet, end with more dry strokes. (Continue using dry strokes until little water is visible passing through the Dirty Water Tank lid.) Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”). When finished cleaning, follow “After Cleaning” instructions.

Note: It is best to alternate wet and dry strokes- -as described above.

after use

Allow carpet or upholstery to dry. To help prevent matting and resoiling the carpet, keep children and pets away from surface until it is completely dry. If it is necessary to walk on damp carpet, place towels or white cloths on the traffic areas. If furniture must be replaced before the carpet is dry, place plastic or aluminum foil under legs of furniture so metal slides or wood finishes will not stain the carpet.

1. See “Dirty Water Tank: How to Empty”
2. See “Dirty Water Tank: How to Clean”
   NOTE: Let the Dirty Water Tank and Dirty Water Tank Lid air dry before the Carpet Washer is stored.
3.  See “Cleaning Nozzle”
4. See “Cleaning Brushes”
5. Remove lint from the filter screen located behind the nozzle.

IMPORTANT
When brushes seem to be rotating slowly, disconnect cleaner from electical outlet and check and clean the screen behind the nozzle (see arrow below).

CAUTION

Water will drip from the brushes and underside of the product after use and may puddle. To avoid damage to wood and laminate flooring and to avoid potential slip hazard, after use (a) do not leave the product on wood and laminate surfaces and remove to a hard surface and (b) place unit on absorbent material (such as a towel) to soak up drips.

Connect hose for tool use.

How to attach

1. Open Accessory Hose Suction Port. Insert the hose end, aligning the indicator with the unlock arrows.
2. Rotate clockwise to lock position.
3. Hold open the Accessory Hose Solution Port door.
4. Plug the Accessory Hose Solution Tube connector firmly into the Hose Solution Port.

How to remove

1. Disconnect Accessory Hose Solution Tube Connector from Accessory Hose Solution Port by pulling up firmly. Do not pull on tube, this may cause damage. Accessory port door will automatically close.
2. Rotate the accessory Hose end counterclockwise from the locked position to the unlocked position and remove it by pulling out.
3.  Snap the Accessory Hose Suction Port door back into place. Make sure to snap both sides to ensure proper suction, the unit may lose suction if not closed properly.

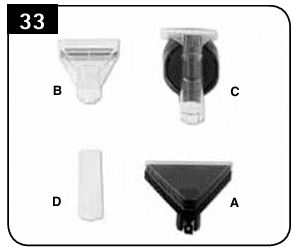

tools

1. stair tool*: 6 inches wide, 2 built-in rows of brushes to help provide the scrubbing action that some spots may need for removal on your carpeted stairs.
2. The upholstery tool has a built-in brush to help provide the scrubbing action some spots may need for removal.
3. spinscrub® hand tool* has rotating brush(s) for extra scrubbing action on small carpet areas, carpeted stairs, and upholstery. For some models, the brush(s) can be removed for converting to the scrub module.
4. Crevice tool*: Great for use around baseboards and those hard-to-reach areas.

Note: Tools are located and stored in a Mesh Bag.

How to attach tools

CAUTION

To reduce the risk of injury from moving parts – Unplug before connecting SpinScrub Hand tool. Not to be used for grooming pets.

1. To ensure maximum performance and to protect your carpet, be sure to place the handle in the upright position while using the accessory hose. Placing the handle in the upright position shuts off the SpinScrub brushes.
   Note: All tools attach to the hose in the same manner:
2. Connect the tool to the hose by sliding it onto the connector until the tab locks it securely.
3. Using your thumb, push forward and up on the latch to remove the tool.

After using tool

Drain the suction hose by turning the cleaner ON and holding the nozzle up for several minutes. Do not press the trigger.

CAUTION

Always turn off the appliance before connecting or disconnecting the hose.

1. Disconnect the hose and solution tube from the cleaner
2. Drain the solution tube by placing the round end in the sink and raising the trigger end at the hose nozzle above your head.
3. Press the trigger to release air and fluid.
4. Replace the Hose and tools in the Mesh Storage Bag.

Cleaning Carpeted stairs

1. Read the “Before you Begin Cleaning” instructions.
2. Attach the hose and solution tube as instructed.
3. Place the handle in an upright position. SpinScrub brushes will not rotate while the handle is in an upright position.
4. Fill the Clean Water Tank according to instructions.
5. Fill the Solution Tank with HOOVER® solution according to instructions.
6. Attach the tool to the end of the hose.

CAUTION

Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.

1. Dry hands and plug cleaner into a properly grounded outlet.
2. Set Wash/ Rinse Selection to WASH. Turn cleaner ON.
3. Pre-spray the carpeted stair by holding the tool about one inch above the carpet and pushing it forward while pressing the trigger (equals one wet stroke).
4. Position tool against the riser and slightly press it into carpet pile. Press the trigger and pull the tool slowly over the carpet (second wet stroke). Release trigger at end of stroke.
5. Lift tool, and position it against riser. Pull tool slowly over carpet without pressing trigger (dry stroke).
