HyperX Cloud II Wireless Gaming Headset

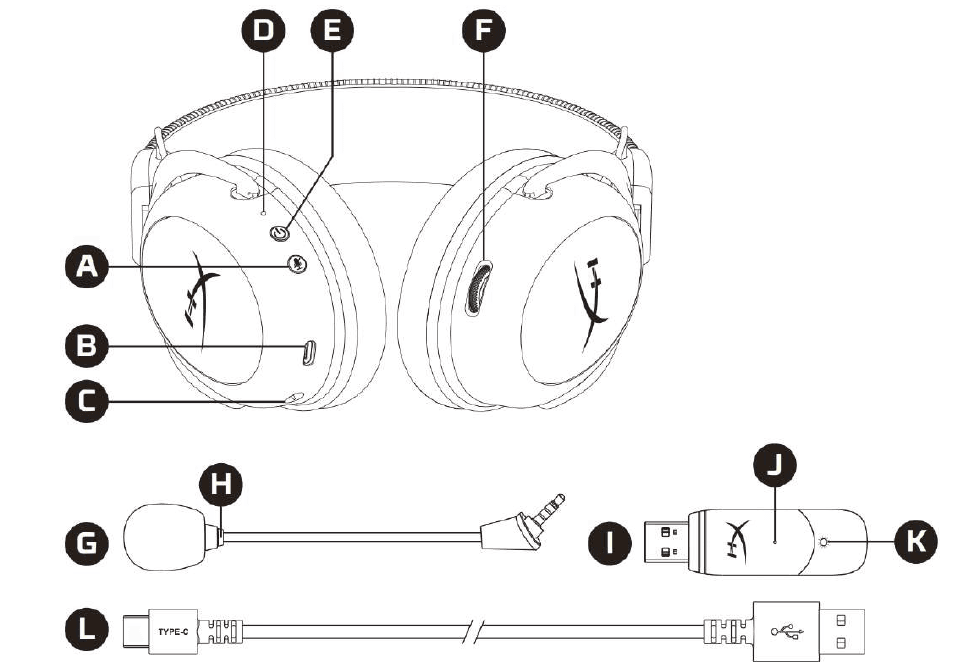

Overview
- A. Mic mute/mic monitoring button
- B. USB charge port
- C. Microphone port
- D. Status LED
- E. Power / 7.1 Surround Sound button

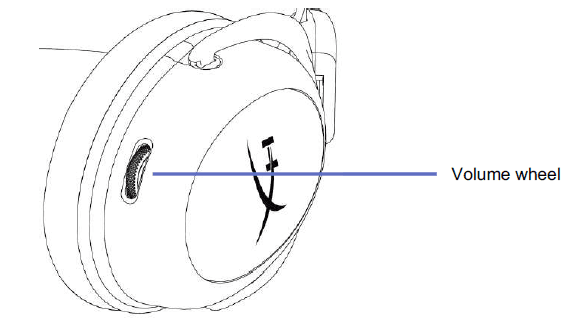

- F. Volume wheel
- G. Detachable microphone
- H. Microphone mute LED
- I. USB adapter
- J. Wireless pairing pin hole
- K. Wireless status LED
- L. USB charge cable
Specifications
Headphone
- Driver: Dynamic, 53mm with neodymium magnets
- Type: Circumaural, Closed back
- Frequency response: 15Hz–20kHz
- Impedance: 60 Ω
- Sound pressure level: 104dBSPL/mW at 1kHz
- T.H.D.: ≤ 1%
- Weight: 300g
- Weight with mic: 309g
- Cable length and type: USB charge cable (0.5m)
Microphone
- Element: Electret condenser microphone
- Polar pattern: Bi-directional, Noise-cancelling
- Frequency response: 50Hz-6.8kHz
- Sensitivity: -20dBV (1V/Pa at 1kHz)
- Battery life
- 30 hours
Setting up with PC

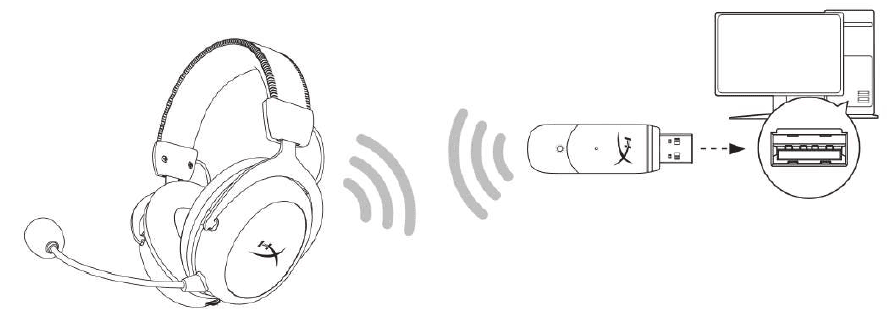

- Connect the wireless USB adapter to the PC.
- Power on the headset.

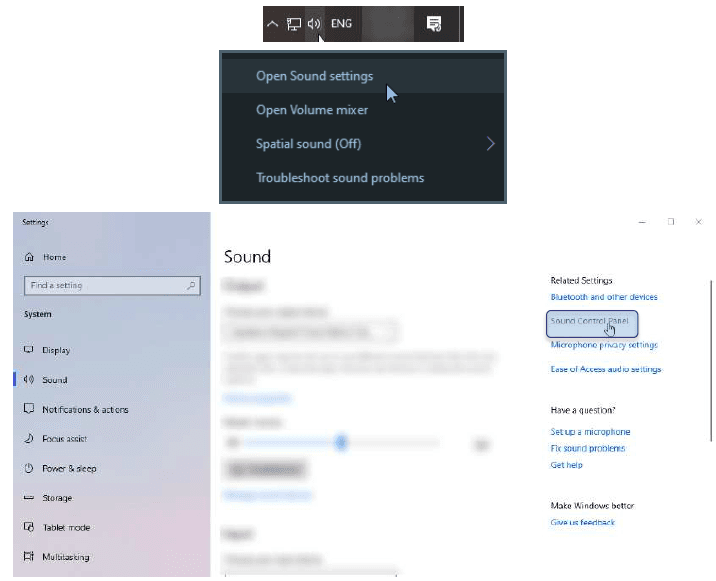

- Right click the speaker icon > Select Open Sound settings > Select Sound Control Panel

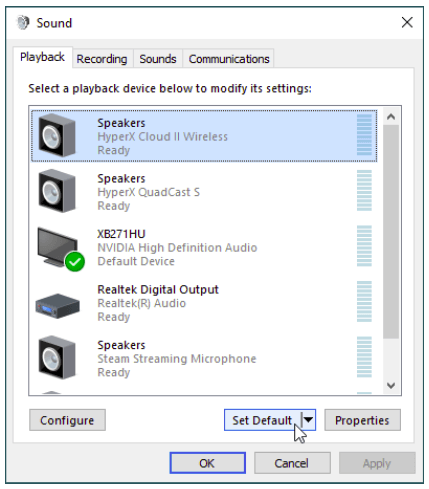

- Under the Playback tab, click on “HyperX Cloud II Wireless” and click on the Set Default button

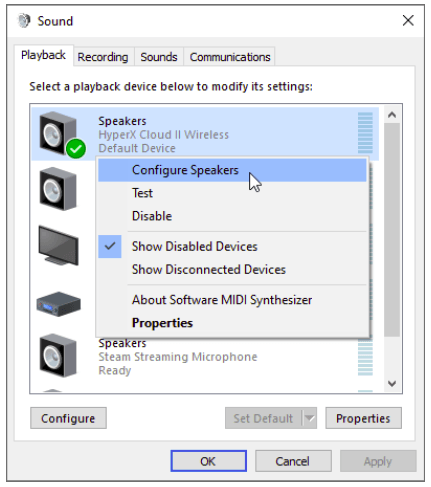

- Right-click on “HyperX Cloud II Wireless” and click on Configure Speakers

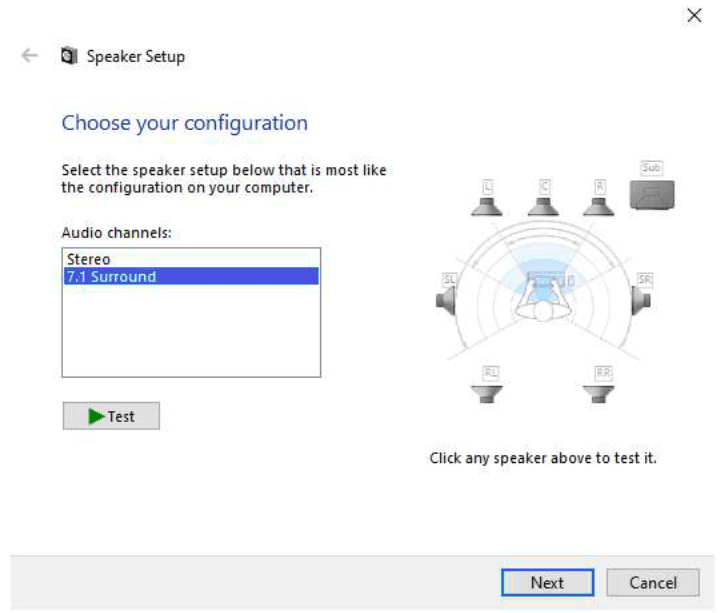

- Select 7.1 Surround as the speaker configuration and click Next.

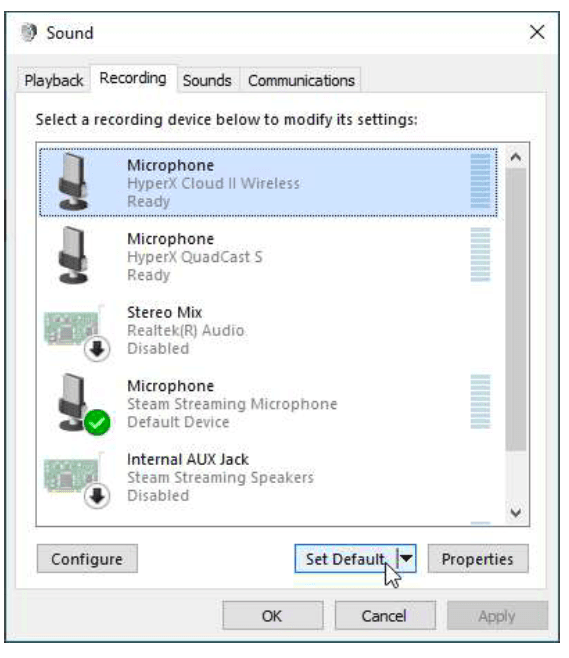

- Under the Recording tab, click on “HyperX Cloud II Wireless” and click on the Set Default button.

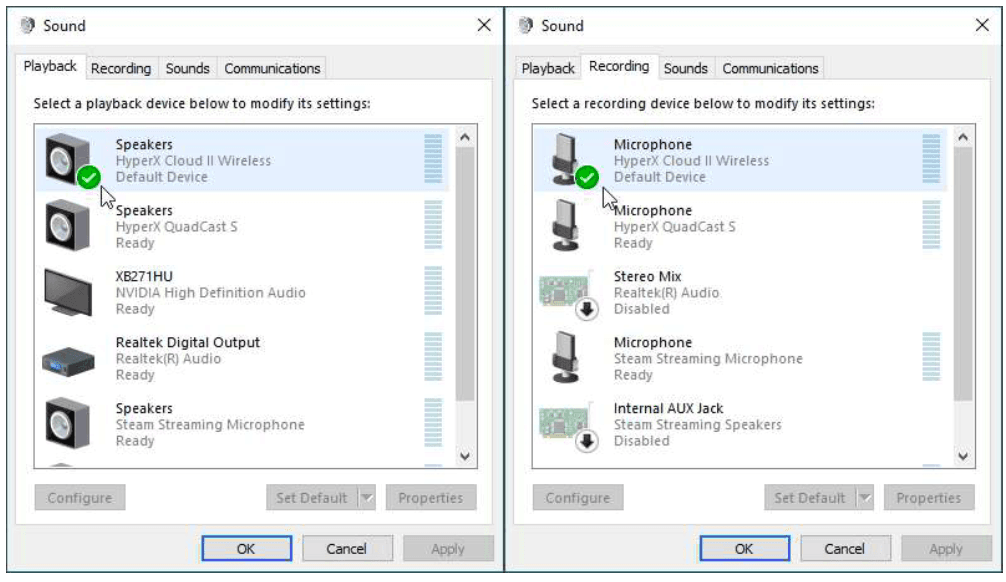

- Under the Playback tab, verify that “HyperX Cloud II Wireless” is set as the Default Device and the Default Communication Device. Under the Recording tab, verify that “HyperX Cloud II Wireless” is set as the Default Device.
Setting up with PlayStation 4

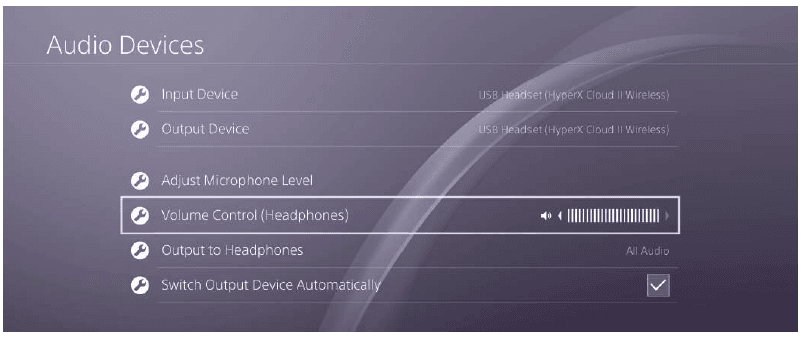

- Set Input Device to USB Headset (HyperX Cloud II Wireless)
- Set Output Device to USB Headset (HyperX Cloud II Wireless)
- Set Output to Headphones to All Audio
- Set Volume Control (Headphones) to maximum

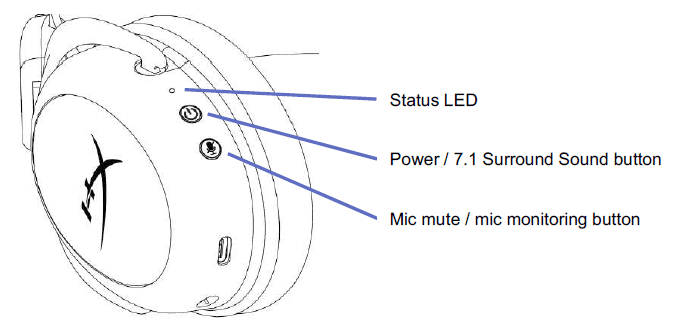

Controls
Status LED
| Status | Battery Level | LED |
| Pairing | Slow breathing green | |
| Connected | 90% – 100% | Solid green |
| 15% – 90% | Blinking green | |
| < 15% | Blinking red |
Power / 7.1 Surround Sound button
- Hold for 3 seconds to power the headset on/off
- Press to toggle 7.1 Surround Sound on/off
Mic mute/mic monitoring button
- Press to toggle mic mute on/off
- LED On – Mic muted
- LED Off – Mic active
- Hold for 3 seconds to toggle mic monitoring on/off
Charging the Headset
- It is recommended that your headset is fully charged before first use.
- When charging the headset, the headset status LED will indicate the current charge status.
Status LED Charge Status Solid green Fully charged Breathing green 15%-99 % battery level Breathing red < 15% battery level

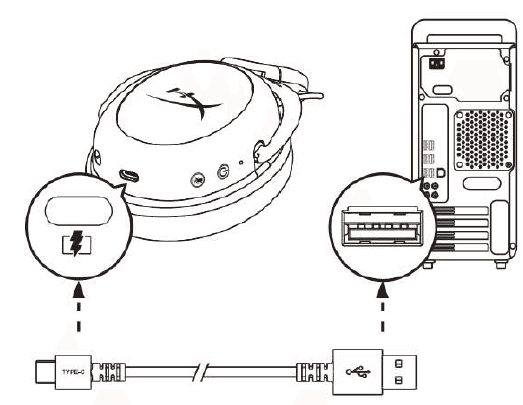

Wired charging
- To charge the headset via a wired connection, plug the headset into a USB port with the USB charge cable.
HyperX NGENUITY Software
- Download NGENUITY software at: hyperxgaming.com/ngenuity
Manually Pairing the Headset and USB Adapter
The headset and USB adapter are automatically paired together out of the box. But if manual pairing is needed, follow the steps below to pair the headset and USB adapter.

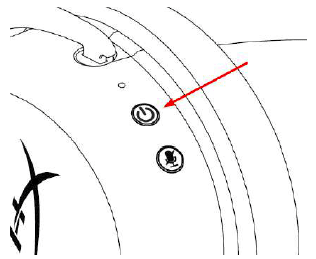

- While the headset is powered off, hold down the power button until the headset status LED starts blinking red/green rapidly. The headset is now in pairing mode.

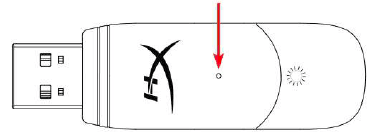

- While the USB adapter is plugged in, use a small tool (e.g., paper clip, SIM tray ejector, etc.) to hold down the button inside the pin hole until the USB adapter LED starts blinking rapidly. The USB adapter is now in pairing mode
- Wait until both the headset LED and the USB adapter LED are solid
