Instant Pot Vortex 2QT Mini Air Fryer User Manual

Instant Pot Vortex 2QT Mini Air Fryer

IMPORTANT SAFEGUARDS

1. READ ALL INSTRUCTIONS, SAFEGUARDS, AND WAR NINGS BEFORE OPERATING THE APPLIANCE. FAILURE TO FOLLOW THESE SAFEGUARDS AND INSTRUCTIONS MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE.
2. The appliance’s outer surfaces may become hot during use. DO NOT touch hot surfaces. Only use the air fryer basket handle to lift and carry the air fryer basket. Wear proper hand protection when handling hot components. Extreme caution must be used when moving the appliance. Let the appliance cool to room temperature before handling or moving
3. The cooking chamber contains electrical components. To avoid electrical shock, DO NOT put liquid of any kind into the cooking chamber.
4. This appliance is NOT to be used by children or by persons with reduced physical, sensory, or mental capabilities. Close supervision is necessary when this appliance is used near children and these individuals. Children should not use or play with this appliance.
5. Turn off and unplug when not in use, as well as before adding or removing parts or accessories and before cleaning. To turn off, press Cancel. To unplug,
   grasp the plug and pull from the outlet. NEVER pull from the power cord.
6. Avoid making contact with moving parts.

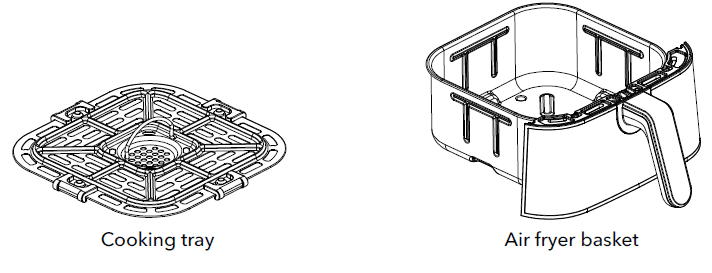

Product, parts, and accessories

• Before using your cute new air fryer, make sure that everything is present and accounted for.

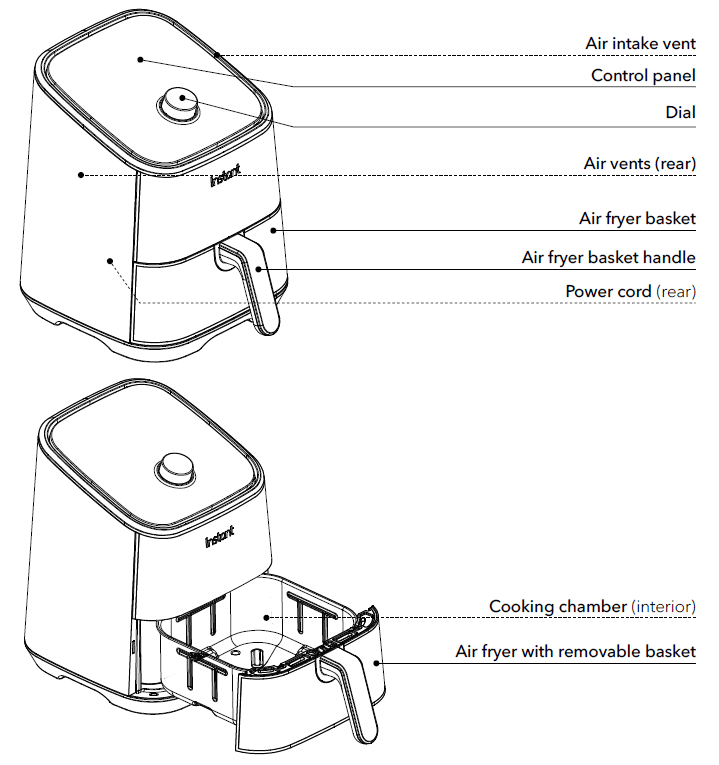

Air fryer

Get started

Initial setup

1. Pull that Vortex Mini out of the box!
2. Remove the air fryer basket and check the cooking chamber for loose packing material before first use. Don’t remove the silicone supports from the removable cooking tray.
3. You may be tempted to put the air fryer on your stovetop — but don’t do it! Place it on a stable, level surface, away from combustible material and external heat sources. Do not place your air fryer on top of another appliance. Make sure to leave at least 13 cm / 5″ of space above and around all sides of the appliance.
4. Follow the Care, cleaning, and storage instructions to wash your new air fryer before using it.

Initial test run

• Do you have to do the test run? No — but getting to know the ins and outs of your Vortex Mini prepares you for success in the kitchen! Take a few minutes to get to know how this little guy works.

Stage 1: Setting up the air fryer for cooking

1. Connect the power cord to a 120 V power source. The air fryer is in standby mode and the display shows OFF.
2. Remove the air fryer basket from the cooking chamber.
3. Place the cooking tray on the bottom of the air fryer basket (if it is not already installed).
4. Insert the air fryer basket back into the cooking chamber.
5. Touch Air Fry.
6. Touch Time, then turn the dial to adjust the cook time to 20 minutes (00:20).

Stage 2: “Cooking” (…but not really, this is just a test!)

1. When the air fryer is hot enough, the display shows Add Food. For this initial test, do not add food to the air fryer basket. Carefully remove and reinsert the air
   fryer basket. The display shows the cooking time and temperature, and the cooking status shows Cook.
2. Part way through cooking, the display shows turn Food. Wait 10 seconds for the program to resume automatically, or, remove and reinsert the air fryer basket to pause and resume the program manually.
3. When 1 minute remains, the display counts down the remaining cooking time in seconds. When the Smart Program is completed, the display shows End and the fan blows for a little while to help cool the air fryer.
4. Press the dial or remove and re-insert the air fryer basket to return to standby mode and start cooking for real!

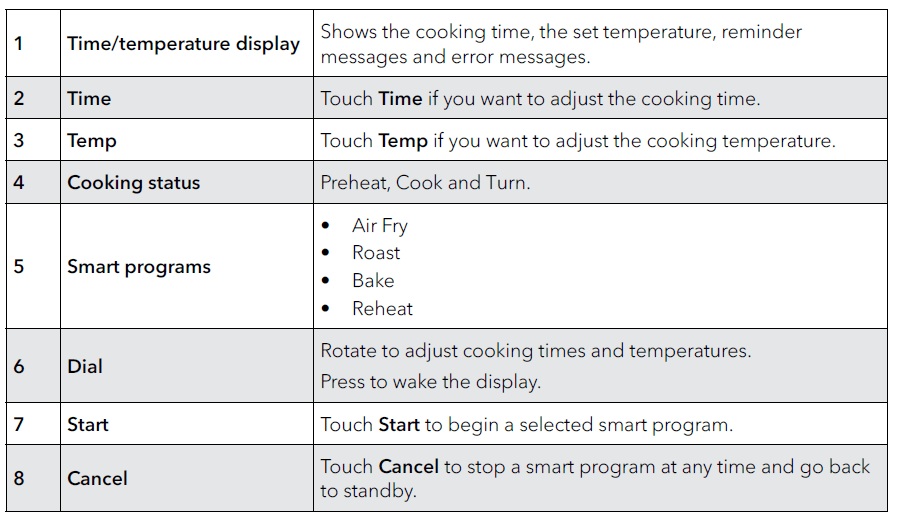

Control panel

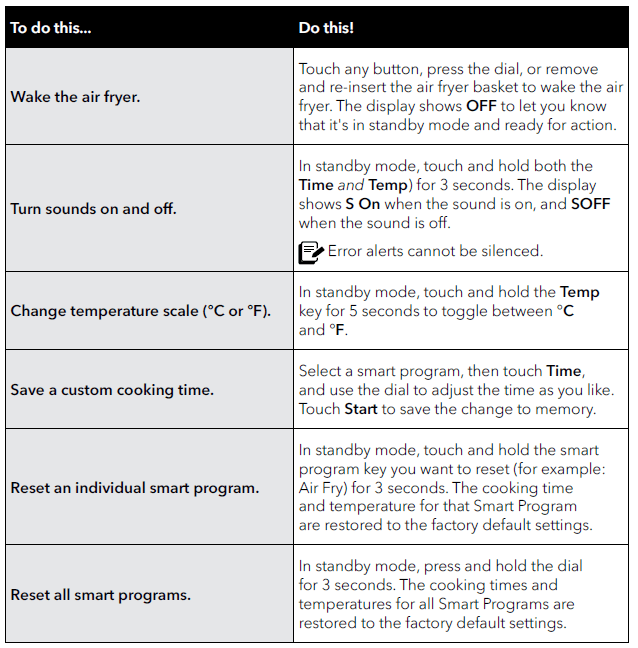

Settings

Cooking status

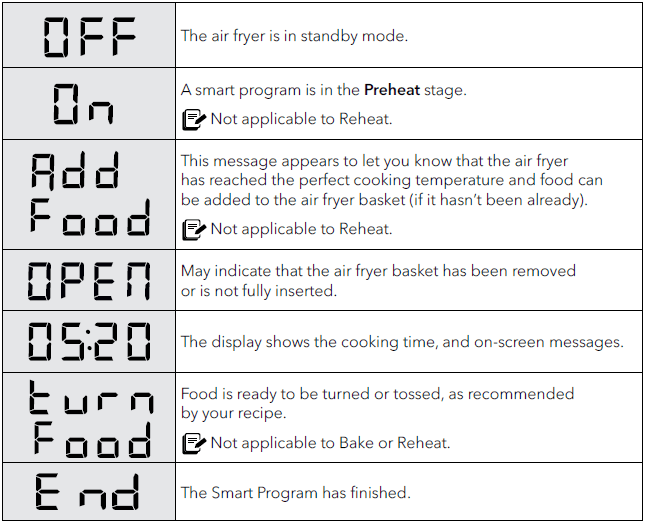

Status messages

Cooking

• Cooking in the Vortex is quick and easy — food goes in, and crispy deliciousness comes out! Check out the cooking timetables for guidance, or visit our recipe site for fun, easy-tofollow recipes with big crunch. You can also download the free Instant Pot app to search recipes, save favorites, make notes, and more!

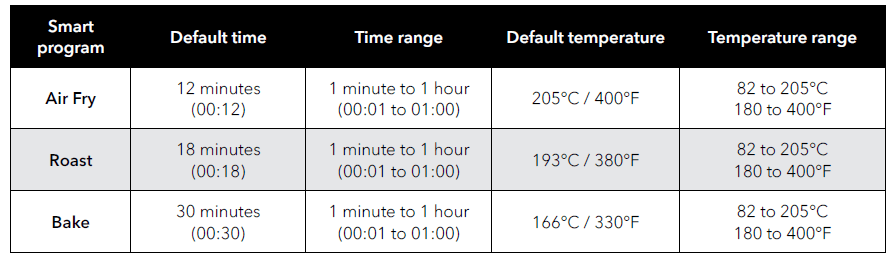

Air Fry, Roast, and Bake

• These programs give your meals all the rich, crispy flavor of deep frying with little to no oil, so you can say, “See ya!” to the greasy mess and extra calories! The presets are a starting point that you can experiment with to get the results you like best.

Stage 1: Setting up for cooking

1. Follow steps 01 to 04 in the Initial test Run: Stage 1 to set up the air fryer.
2. Touch the smart program you want to use: Air Fry, Roast or Bake.
3. Touch Temp, then turn the dial to adjust the temperature.

Reheat

1. Follow steps 01 to 04 in the Initial test run: Stage 1 to set up the air fryer.
2. Remove the air fryer basket and place your food items inside, then carefully reinsert it.
3. Touch Reheat.
4. Touch Temp, then turn the dial to adjust the temperature.

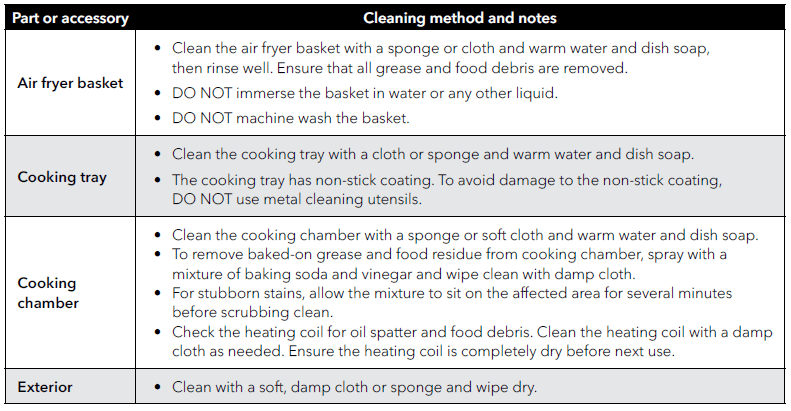

Care, cleaning, and storage

• Clean your air fryer and accessories after each use.
• Always unplug the air fryer and let it cool to room temperature before cleaning.
• Never use harsh chemical detergents, scouring pads, or powders on any of the parts or components.
• Let all surfaces dry thoroughly before use and storage.

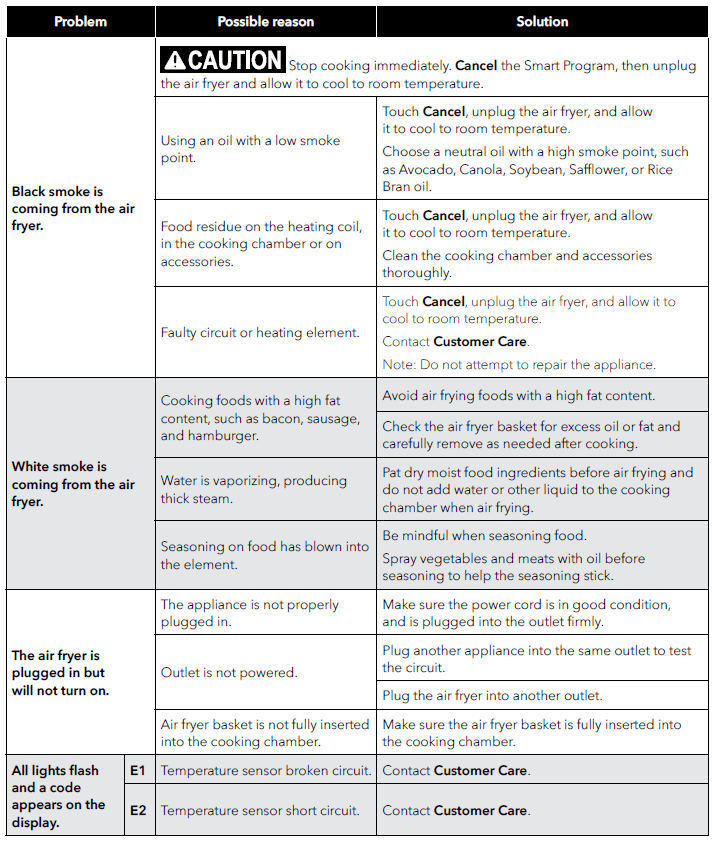

Troubleshooting

• Register your air fryer today!
• If your problem persists or if you have questions, get in touch with a Customer Care Advisor through our chat widget at instantappliances.com/#chat, by email at support@instantappliances.com or by phone at 1-800-828-7280.

Warranty

Limited Warranty

• This Limited Warranty is effective for one year from the date of original consumer purchase. Proof of original purchase date and, if requested by an authorized representative of Instant Brands Inc (“Instant Brands”), return of your appliance is required to obtain service under this Limited Warranty. Provided that this appliance is operated and maintained in accordance with written instructions attached to or furnished with the appliance, Instant Brands will, in its sole and exclusive discretion, either:
  • (i) repair defects in materials or workmanship or
  • (ii) Replace the appliance. In the event that your appliance is replaced, the Limited Warranty on the replacement appliance will expire 12 months from the date of original consumer purchase.
• This Limited Warranty extends only to the original purchaser and use of the appliance in the United States of America and Canada. This warranty does not cover units that are used outside of the United States of America and Canada. Any modification or attempted modification to your appliance may interfere with the safe operation of the appliance and will void this Limited Warranty.
• This Limited Warranty does not apply in respect of any appliance or any part thereof that has been altered or modified unless such alterations or modifications were expressly authorized by an Instant Brands representative.
• Limitation and Exclusions
• The liability of Instant Brands, if any, for any allegedly defective appliance or part shall in no circumstances exceed the purchase price of a comparable replacement appliance. This Limited Warranty does not cover:
  1. Damage resulting from accident, alteration, misuse, abuse, neglect, unreasonable use, use contrary to the operating instructions, normal wear and tear, commercial use, improper assembly, disassembly, failure to provide reasonable and necessary maintenance, fire, flood, acts of God or repair by anyone unless directed by an Instant Brands Representative;
  2. Repairs where your appliance is used for other than normal, personal use or when it is used in a manner that is contrary to published user or operator instructions; or
  3. Use of unauthorized parts and accessories or repairs to parts and systems resulting from unauthorized repairs or modifications made to this appliance
