iWorld IWWBTCK01 Bluetooth Audio Car Kit Instruction Manual

iWorld IWWBTCK01 Bluetooth Audio Car Kit

Bluetooth® Audio Car Kit

FEATURES

• Enjoy wireless streaming music and hands-free phone calls through any car or home stereo system with a 3.5 mm audio/auxiliary/line-in input jack
• Works with most Bluetooth* devices
• Integrated rechargeable lithium on battery provides hours of wireless playing time

SPECIFICATIONS

• Bluetooth Version: v3.0+EDR|
• Wireless Range: Up to 33 feet
• Battery: Rechargeable Li-lon

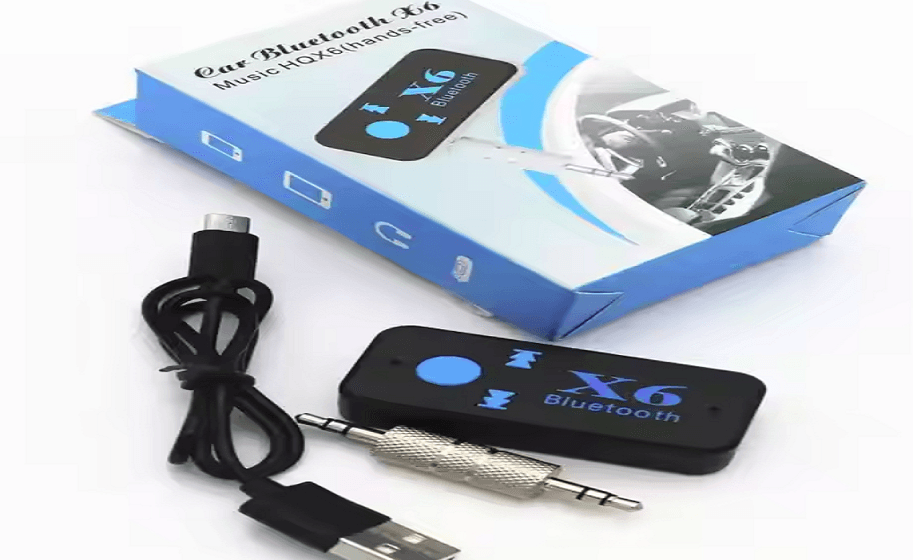

CONTENTS

• 1 Bluetooth Receiver Unit BUILT-AN MIC
• 1 3.5 mm Connector Plug
• 1 USB Charge Cable
• 1 User Manual|

CHARGING THE RECEIVER BATTERY

The internal battery must be fully charged before the first use of the wireless receiver. To charge, use the included USB charging cable:

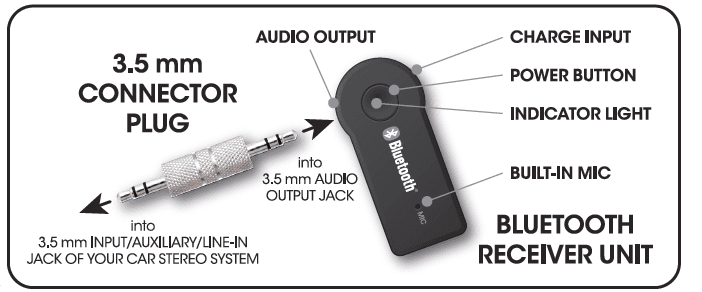

1. Insert the smaller micro-USB end of the cable into the CHARGE INPUT on the receiver unit.
2. Insert the larger USB end of the cable into the USB port of a computer OR into a compatible USB DC 5V wall charger (not included) to charge through a standard wall outlet. The indicator lights up red during charging and will turn blue when charging is complete. Unplug from the power source when charging is complete.
   NOTE: Low receiver power and/or low audio device power may cause poor operation and/or no Bluetooth connection. Pacharas as descried abova.”

BLUETOOTH WIRELESS RECEIVER OPERATION

1. Make sure the battery is charged as explained above.
2. Insert one end of the included 3.5 mm connector plug into the audio output jack on the receiver unit. Then, plug the other end into the 3.5 mm audio input/auxiliary/line-in jack of your car stereo system.
3. Turn on your car stereo system and be sure it is set to the audio input/auxiliary/line-in mode.
4. Press and hold the POWER BUTTON for several seconds until the indicator light flashes blue and red – this means the Bluetooth function is active and ready to connect to your smartphone/Bluetooth audio device.
5. Activate the Bluetooth function on your audio device – it should automatically recognize the receiver unit and allow you to select it using the name “World”. It required the password “0000” to complete the wireless connection. When the receiver is connected, the indicator light will flash blue, and you are now set to enjoy wireless audio from within a 3311 range of the audio device.
6. To disconnect and shut off the receiver unit, press and hold the POWER BUTTON for several seconds until the indicator light goes out.
   NOTE: If there is no connection or recognition of the receiver unit on your device and the red/blue indicator Lights have stopped flashing, shut off the receiver unit and then restart from step 4 to try again.
   NOTE: Low receiver power and/or low audio device power may cause poor operation and/or no Bluetooth
   • WARNING: Any changes or modifications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment.
   • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
   • However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
     • Reorient or relocate the receiving antenna.
     • Increase the separation between the equipment and receiver.
     • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
   • This device complies with part 15 of the FCC Rules. Operation is subject to the following to conditions:
     • (1) This device may not cause harmful interference, and
     • (2) This device must accept any interference received, including interference that may cause undesired operation.
   • The device has been evaluated to meet the general RF exposure requirement. The device can be used in portable exposure conditions without restriction.
   • TECHNICAL SUPPORT: Please do not attempt to fix the product yourself. If you are experiencing any problems with the product, please do not return it to the store you bought it from. You can contact our technical support representatives and they will assist you with any questions you may have. For assistance operating your product, please consult the User’s Manual or feel free to contact World.
