JVC KD-A735BT CD Receiver
WARNINGS
- Mounting and wiring this product requires skills and experience. For safety’s sake, leave this work to professionals. If you experience problems during installation, consult your JVC car audio dealer.
- The unit can only be installed in a car with a 12 DC power supply, and negative ground.
- Disconnect the battery’s negative terminal and make all electrical connections before installing the unit.
- Connect speakers with a maximum power of more than 50 W. (impedance of 4 to 8 0). Otherwise, change the <AMP GAIN> setting. (See page 24 of the INSTRUCTIONS.)
- Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
- If the fuse blows, first make sure the wires are not touching to cause a short circuit, then replace the old fuse with one that has the same rating.
- Install this unit in the console of your vehicle

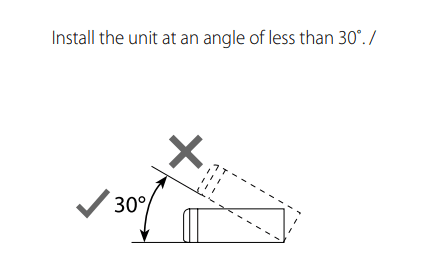

- Mount the unit so that the mounting angle is 30° or less.
- Be sure to ground this unit to the car’s chassis again after installation.
- After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
- Do not touch the metal part of this unit during and shortly after the use of the unit. Metal parts such as the heat sink and enclosure become hot.
PRECAUTIONS on power supply and speaker connections
- DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.
- BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.
INSTALLATION
Part list
- Hard case (x1)
- Control panel (x1)
- Sleeve (x1)
- Trim plate (x1)
- Power cord (x1)
- Handles (x2)
- Microphone (x1)
- KS-UBT1: USB Bluetooth adapter (x1)

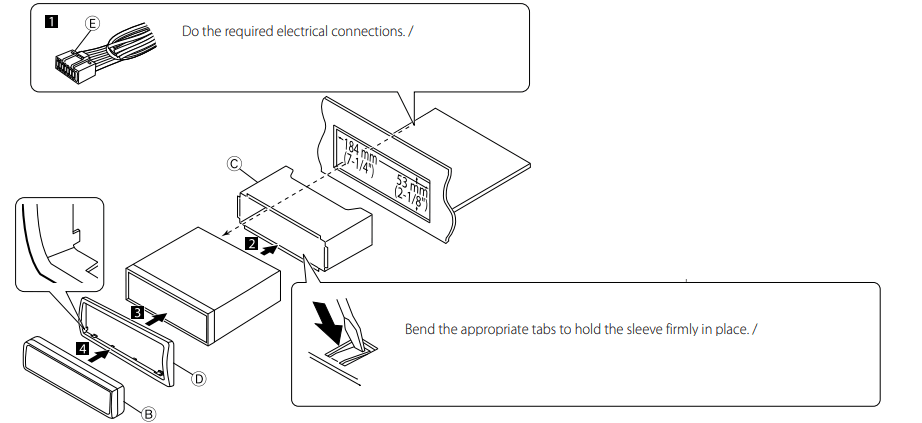

In-dash mounting

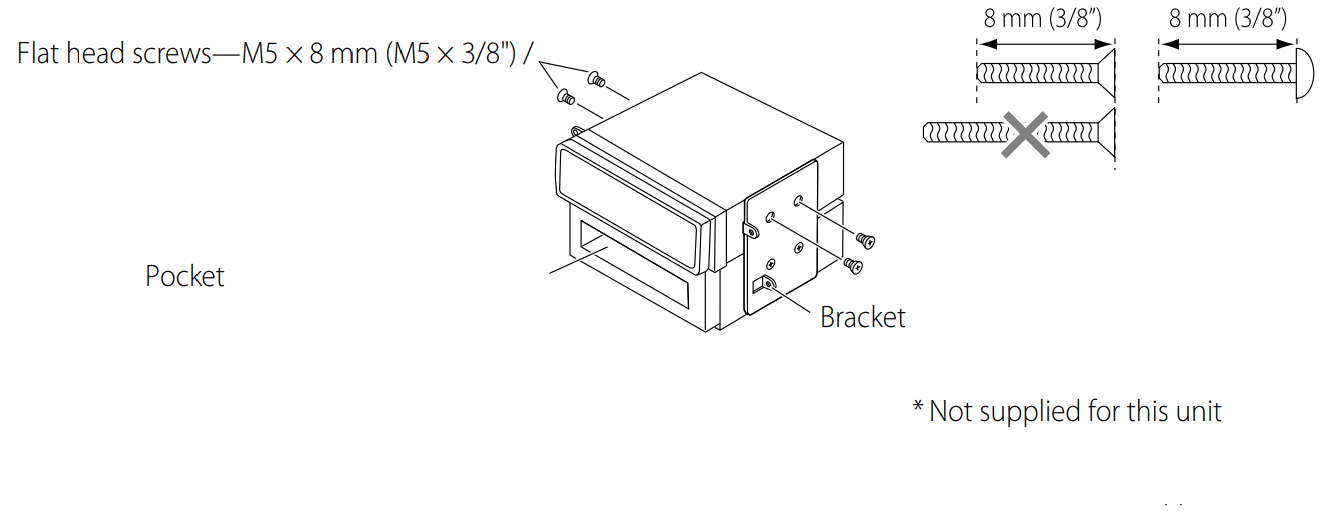

When installing the unit without using the sleeve

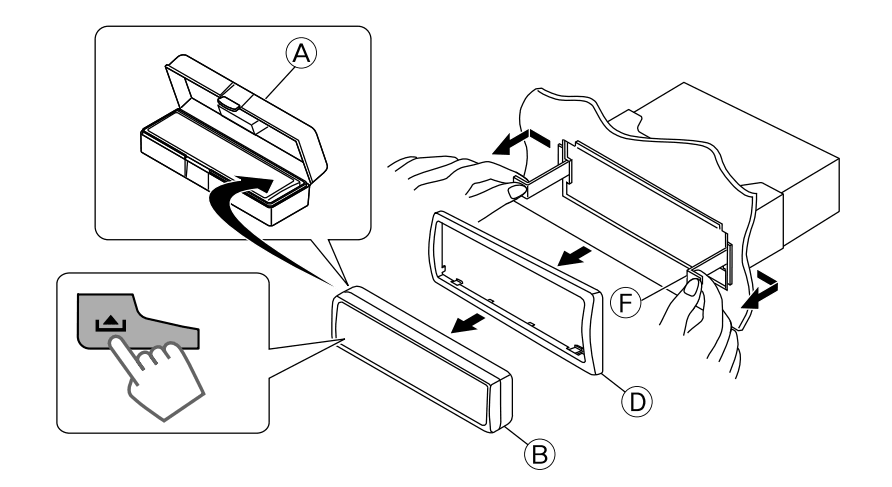

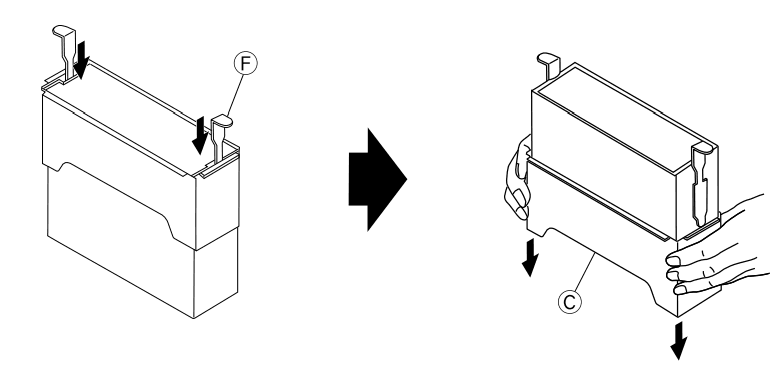

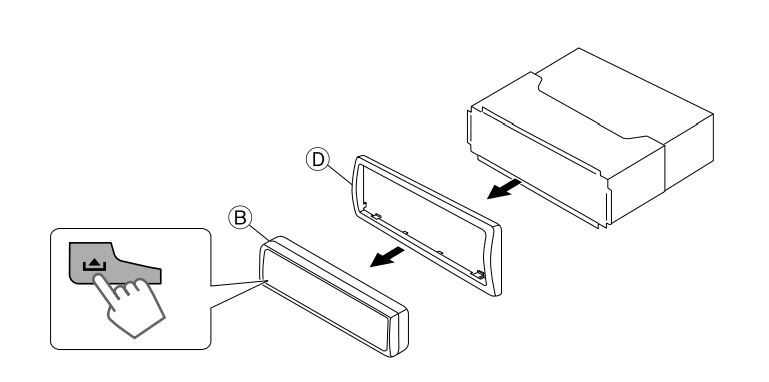

Removing the unit
TROUBLESHOOTING
- The fuse blows ⇒Are the red and black leads connected correctly?
- Power cannot be turned on ⇒Is the yellow lead connected?
- No sound from the speakers ⇒Is the speaker output lead short-circuited?
- “MISWIRING CHK WIRING THEN RESET UNIT” / “WARNING CHK WIRING THEN RESET UNIT” appears on the display and no operation can be done ⇒Is the speaker output lead short-circuited or touches the chassis of the car/head unit? ; Have you reset your unit?

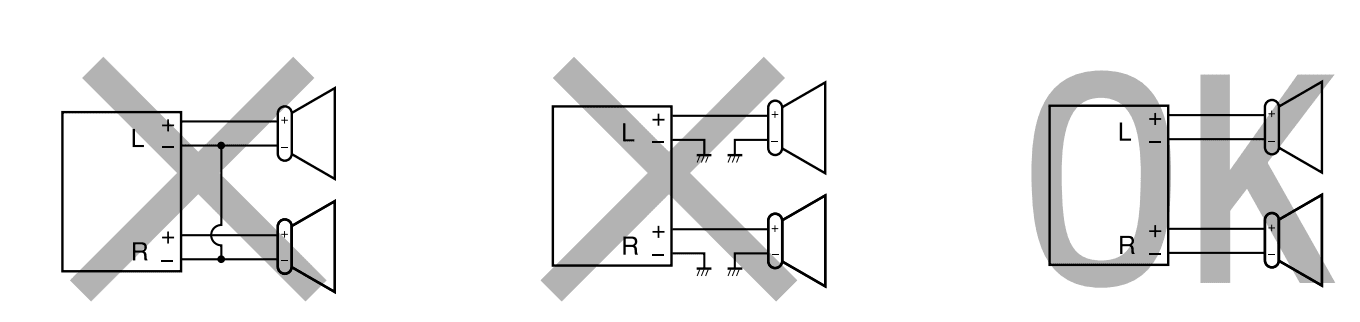

- Sound is distorted ⇒Is the speaker output lead grounded? ; Are the “-” terminals of L and R speakers grounded in common?
- Noise interferes with sounds ⇒Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?
- This unit becomes hot ⇒Is the speaker output lead grounded? ; Are the “-” terminals of L and R speakers grounded in common?
- This unit does not work at all ⇒Have you reset your unit?

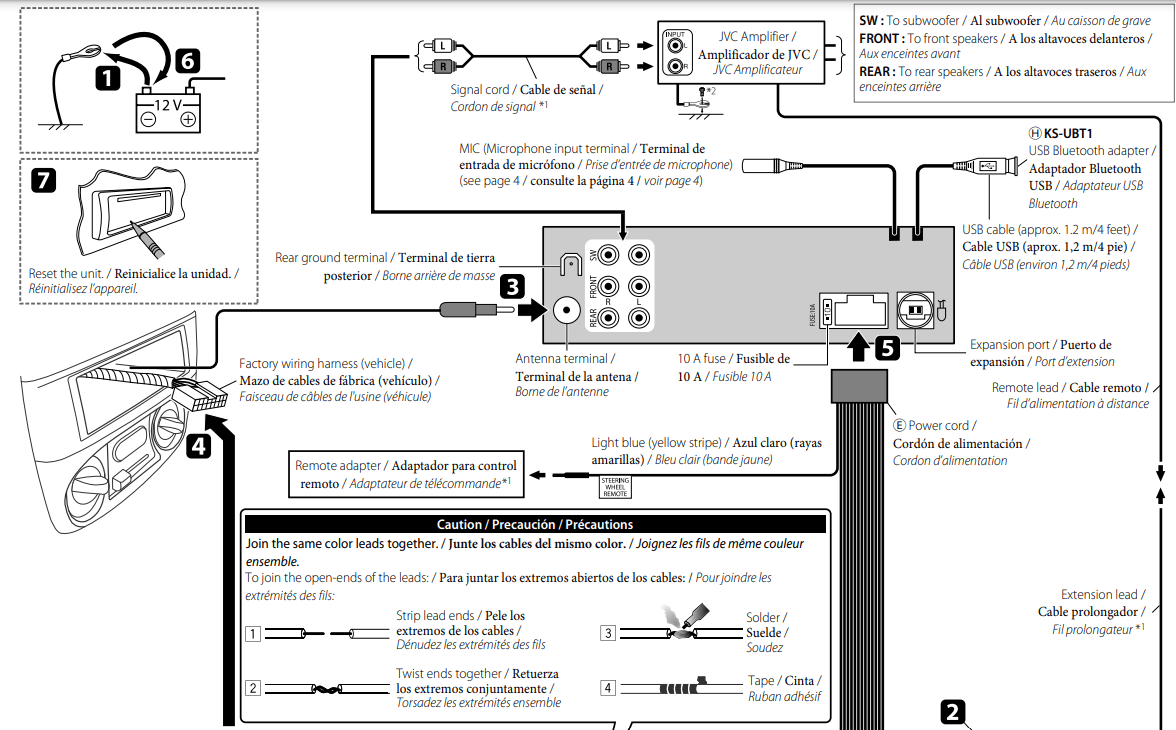

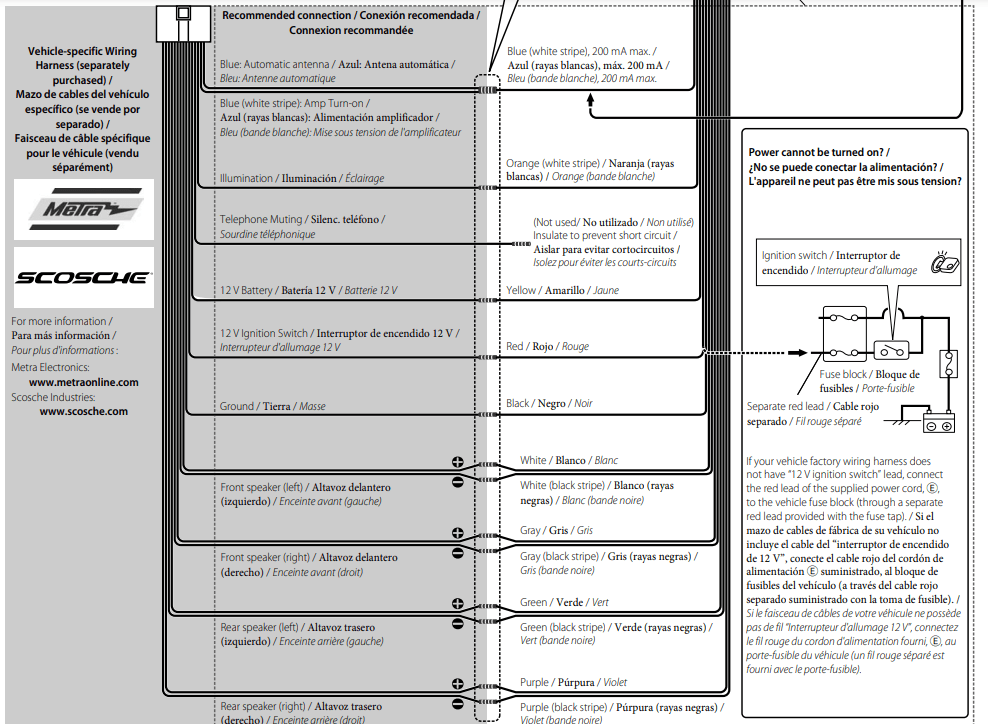

ELECTRICAL CONNECTIONS
- *1 Not supplied for this unit.
- *2 Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated with paint.

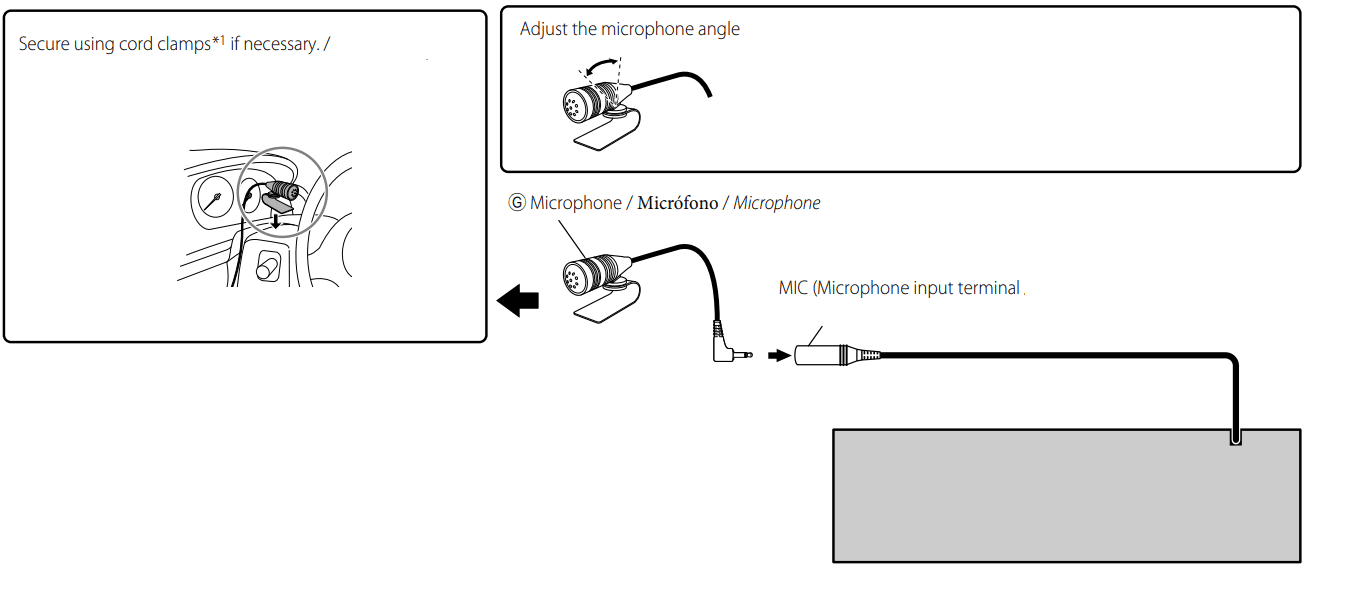

Connecting the microphone unit

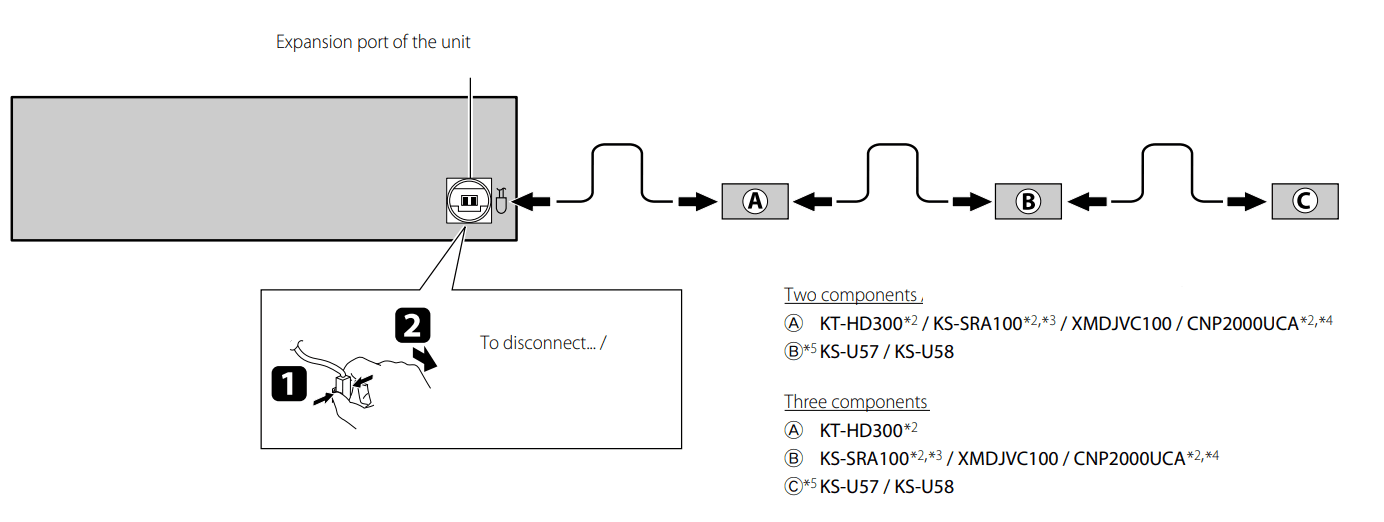

Connecting the external components in a series
When connecting the external components, refer also to the manuals supplied for the components and adapter.
Caution: Before connecting the external components, make sure that the unit is turned off.
You can connect the HD Radio™ tuner box (KT-HD300) or the following components through the various JVC adapters or systems to the expansion port.
- Connection cords may need to be purchased separately.
| Component | Adapter/System | Model name |
| XMDirect2 Tuner System | XM Satellite Radio System | CNP2000UCA, CNPJVC1 |
| SIRIUS Satellite Radio | SIRIUS Satellite Radio System | SCC1, KS-SRA100 |
| D&P, SCVDOC1, KS-SRA100 | ||
| Portable audio player with line output jacks | Line input adapter | KS-U57 |
| Portable audio player with 3.5 mm (1/8″) stereo mini jack | AUX input adapter / | KS-U58 |
- XM Radio and SIRIUS Satellite Radio cannot be used together.
- Not supplied for this unit.
- Connect the power cord supplied for the component separately for power supply.
- This model is a component of the SIRIUS Satellite Radio System.
- This model is a component of the XM Satellite Radio System.
- To use these components, set the external input setting correctly (see page 25 of the INSTRUCTIONS).
