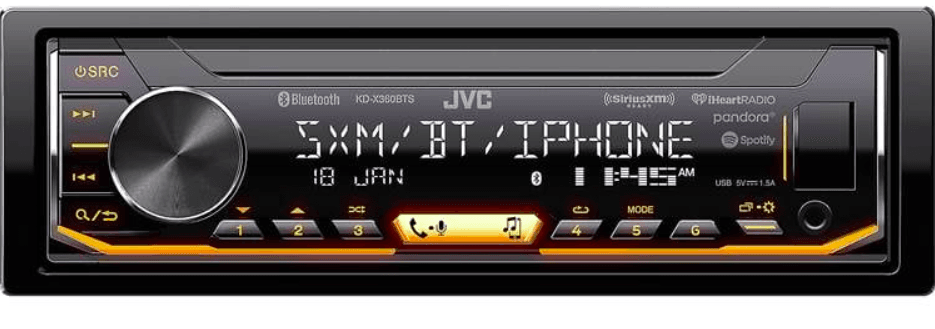

JVC KD-X360BTS Digital Car Media Receiver
BEFORE USE
IMPORTANT
- To ensure proper use, please read through this manual before using this product. You must read and observe Warnings and Cautions in this manual.
- Please keep the manual in a safe and accessible place for future reference.
Caution
Volume setting:
- Adjust the volume so that you can hear sounds outside the car to prevent accidents.
- Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.
General:
- Avoid using the external device if it might hinder safe driving.
- Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
- Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.
- Depending on the type of car, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (page 40). Turn off the unit when parking at a low-ceiling area.
- Remote control (RM-RK52):
- Do not leave the remote control in hot places such as on the dashboard.
- The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
- The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

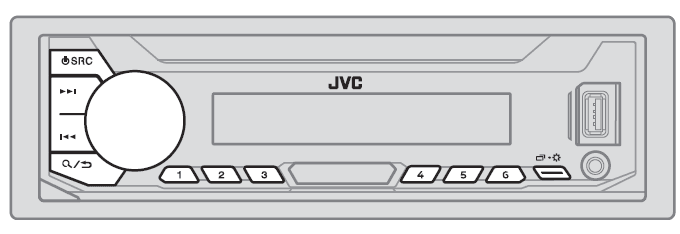

BASICS

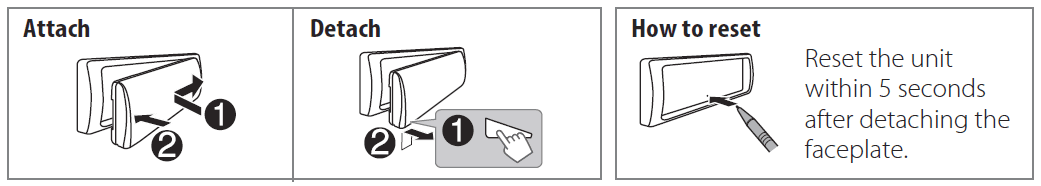

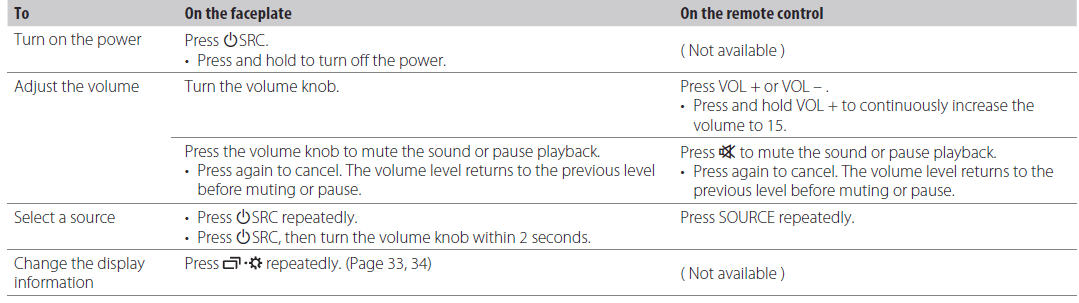

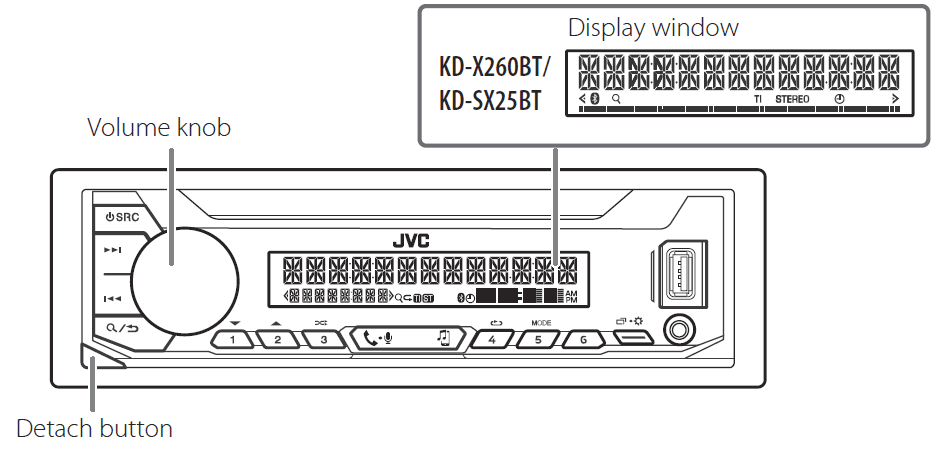

GETTING STARTED
| [F/W UPDATE] | |||
| [UPDATE SYSTEM] | |||
| [F/W UP xxxx] | [YES]: Starts upgrading the firmware. ; [NO]: Cancels (upgrading is not activated). For details on how to update the firmware, visit | ||
| [FACTORY RESET] | [YES]: Resets the settings to default (except the stored station). ; [NO]: Cancels. | ||
| [CLOCK] | |||
| [TIME SYNC] | [ON]: The clock time is automatically set using the Clock Time (CT) data in FM Radio Broadcast Data System signal. ; [OFF]: Cancels. | ||
| [CLOCK DISPLAY] | [ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels. | ||
| [ENGLISH] | Select the display language for menu and music information if applicable. By default, [ENGLISH] is selected. | ||
| [ESPANOL] | |||
RADIO
- “ST” or “STEREO” lights up when receiving an FM stereo broadcast with sufficient signal strength
Settings in memory
- You can store up to 18 stations for FM and 6 stations for AM.
Store a station
While listening to a station… Press and hold one of the number buttons (1 to 6). (or)
- Press and hold the volume knob until “PRESET MODE” flashes.
- Turn the volume knob to select a preset number, then press the knob. “MEMORY” appears once the station is stored.

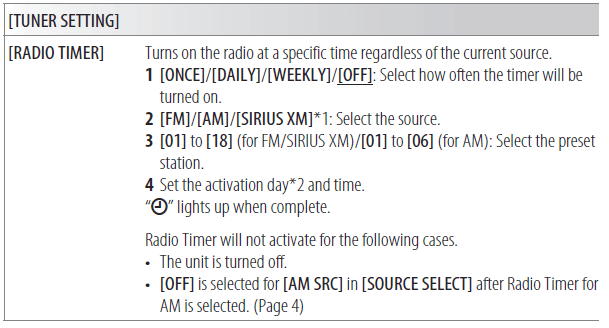

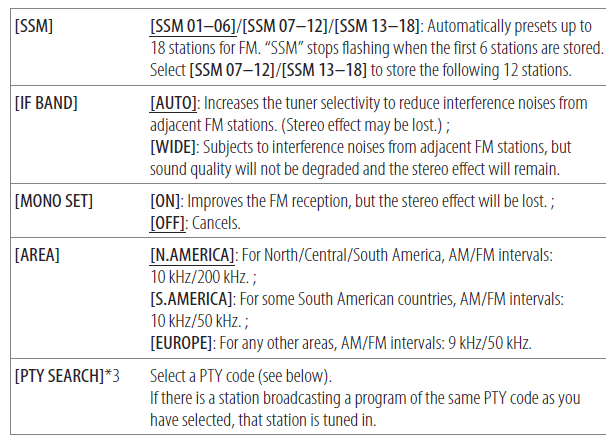

Other settings
- Press and hold.
- Turn the volume knob to select an item (see the following table), then press the knob.
- Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item
PTY code
- [NEWS], [INFORM] (information), [SPORTS], [TALK], [ROCK], [CLS ROCK] (classic rock), [ADLT HIT] (adult hits), [SOFT RCK] (soft rock), [TOP 40], [COUNTRY], [OLDIES], [SOFT], [NOSTALGA] (nostalgia), [JAZZ], [CLASSICL] (classical), [R & B] (rhythm and blues), [SOFT R&B] (soft rhythm and blues), [LANGUAGE], [REL MUSC] (religious music), [REL TALK] (religious talk), [PERSNLTY] (personality), [PUBLIC], [COLLEGE], [HABL ESP] (Spanish talk), [MUSC ESP] (Spanish music), [HIP HOP], [WEATHER]
Spotify
- You can listen to Spotify on the following devices via a USB input terminal (see the following) or via Bluetooth (page 23).
- KD-X360BTS: iPhone/iPod (via Bluetooth or via USB input terminal) or Android smartphone (via Bluetooth)
- KD-X260BT/KD-SX25BT: Android smartphone (via Bluetooth)
Start listening
- Start up the Spotify application on your device.

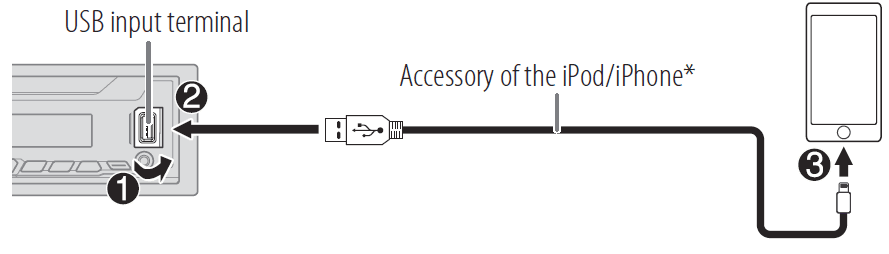

- Connect your device to the USB input terminal.
- Press B SRC repeatedly to select SPOTIFY. Broadcast starts automatically
Search for a song or station
- Press
- Turn the volume knob to select a list type, then press the knob. The list types displayed differ depending on the information sent from Spotify.
- Turn the volume knob to select the desired song or station, then press the knob. You can browse through the list quickly by turning the volume knob quickly.
SiriusXM® Radio (for KD-X360BTS)
Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscriptions are required. For more information, visit <www.siriusxm.com>
- Connect the optional SiriusXM Vehicle Tuner (commercially available).
- Check your Radio ID for activation. The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Vehicle Tuner and its packaging. The Radio ID does not include the letters I, O, S or F.
- Activate the subscription. For users in the U.S.A.: Online: Go to <www.siriusxm.com>
BLUETOOTH
A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page 21)
- Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.
- When the battery of the connected Bluetooth device runs low, “Device Name” and “LOW BATTERY” appear.
- Refer to the instruction manual of the Bluetooth device for more information.
- Auto Pairing (for KD-X360BTS)
- When you connect the iPhone/iPod touch to the USB input terminal, the pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name.
- Automatic pairing request is activated only if:
- The Bluetooth function of the connected device is turned on.
- [AUTO PAIRING] is set to [ON]. (Page 19)
BLUETOOTH — Mobile phone

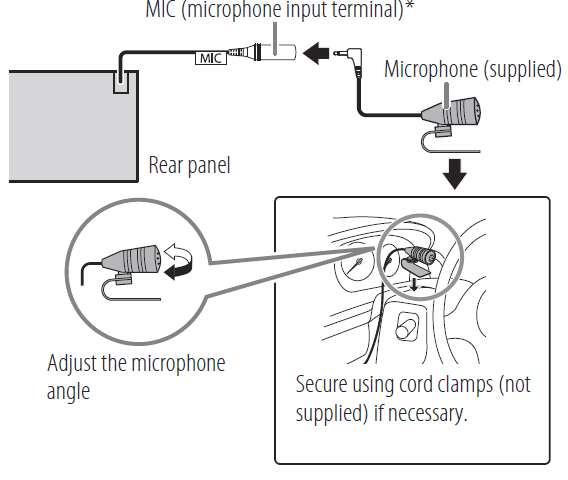

Connect the microphone
Settings in memory
Store a contact in memory
You can store up to 6 contacts into the number buttons (1 to 6).
- Press to enter Bluetooth mode.
- Turn the volume knob to select [RECENT CALL], [PHONEBOOK] or [DIAL NUMBER], then press the knob.
- Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number.
- Press and hold one of the number buttons (1 to 6). “MEMORY P(selected preset number)” appears when the contact is stored. To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.
Make a call from memory
- Press to enter Bluetooth mode.
- Press one of the number buttons (1 to 6).
- Press the volume knob to call. “NO PRESET” appears if there is no contact stored.

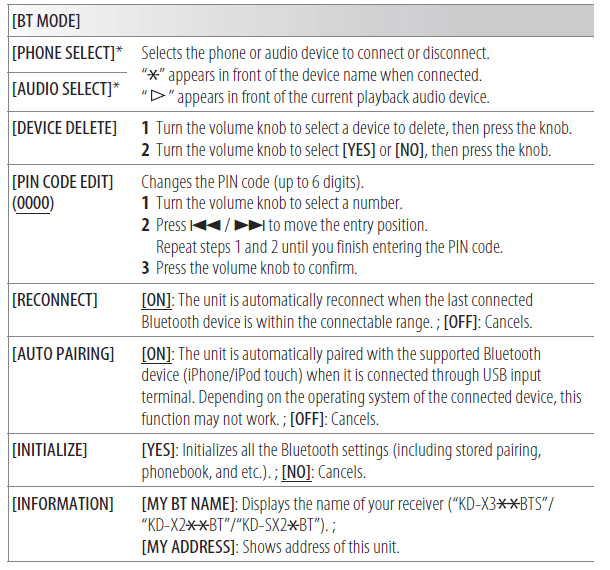

Bluetooth mode settings
Bluetooth compatibility check mode
The connectivity result flashes on the display. “PAIRING OK” and/or “HANDS-FREE OK”*1 and/or “AUD.STREAM OK”*2 and/ or “PBAP OK”*3: Compatible
- 1 Compatible with Hands-Free Profile (HFP)
- 2 Compatible with Advanced Audio Distribution Profile (A2DP)
- 3 Compatible with Phonebook Access Profile (PBAP) After 30 seconds, “PAIRING DELETED” appears to indicate that pairing has been deleted, and the unit exits check mode.
- To cancel, press and hold B SRC to turn off the power, then turn on the power again.
Internet radio via Bluetooth
You can listen to internet radio (Pandora, iHeartRadio, and Spotify) on the following devices via Bluetooth on this unit.
- Make sure the USB input terminal is not connected to any device

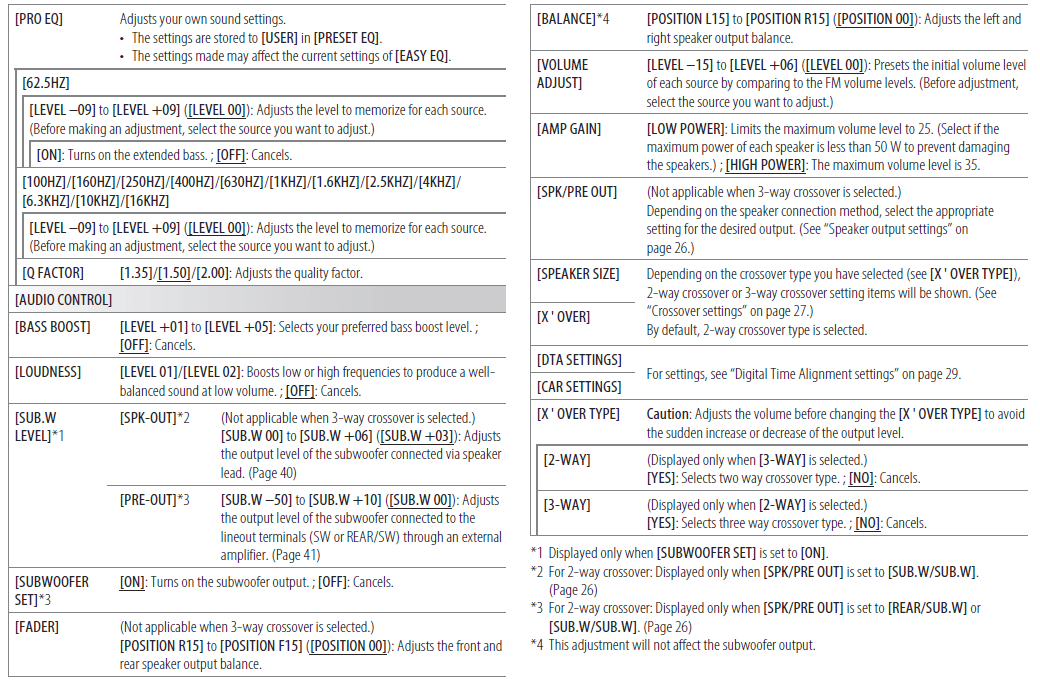

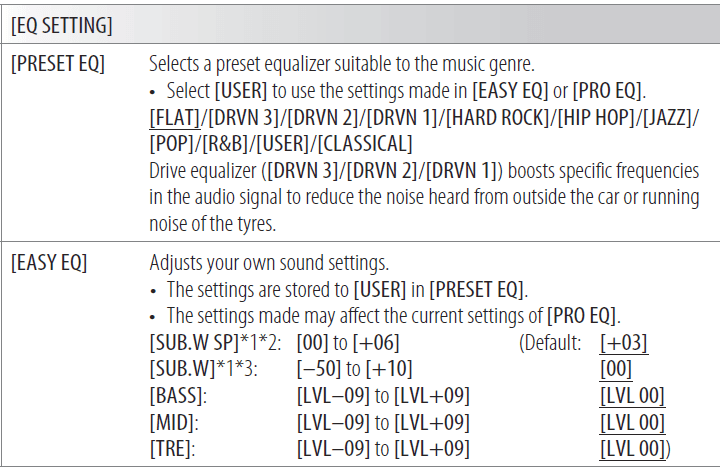

AUDIO SETTINGS
- Press and hold.
- Turn the volume knob to select an item (see the following table), then press the knob.
- Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
- Press to exit.
AUDIO SETTINGS

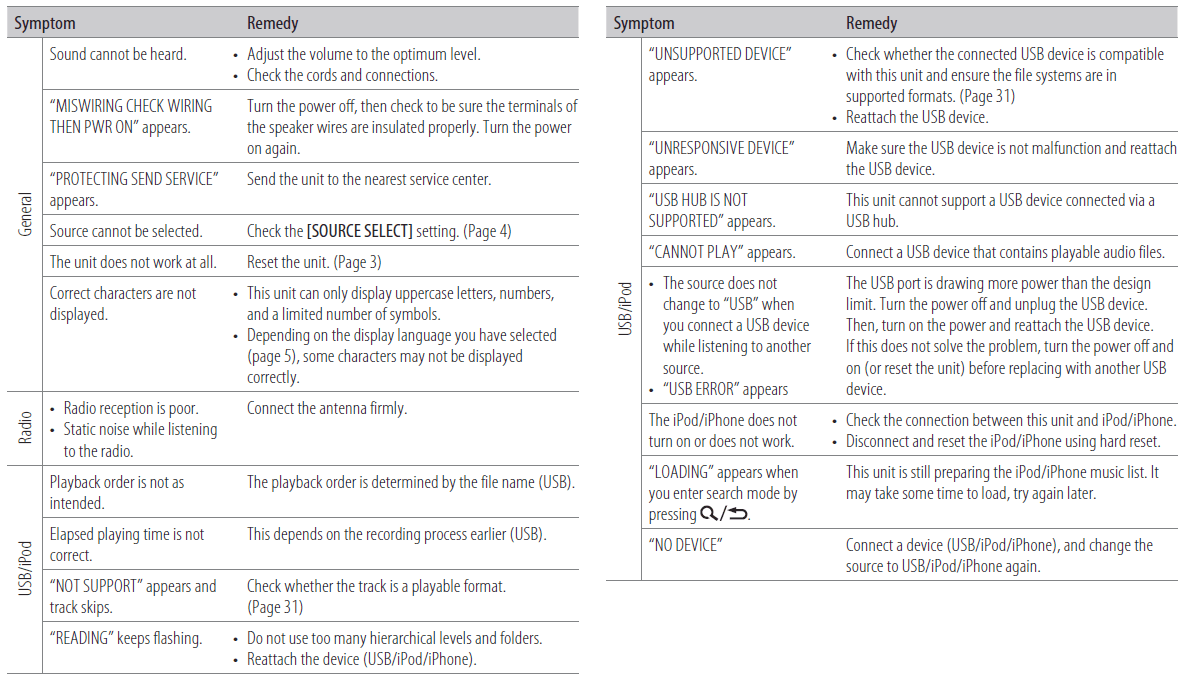

TROUBLESHOOTING
INSTALLATION/CONNECTION

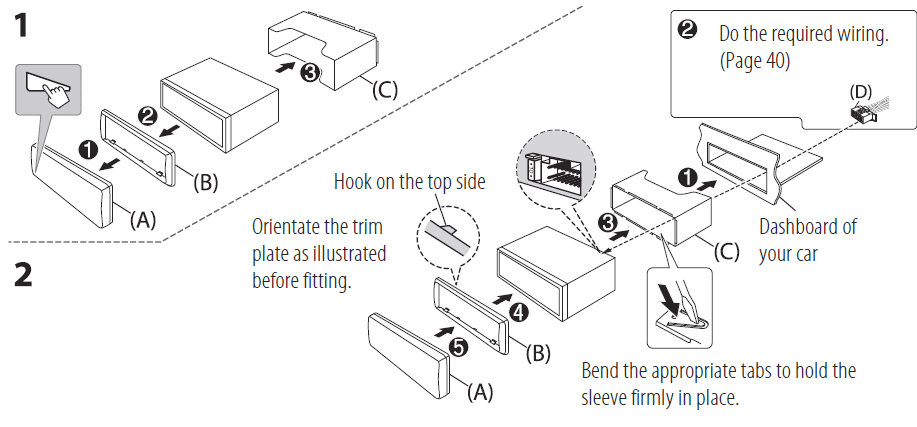

Installing the unit (in-dash mounting)

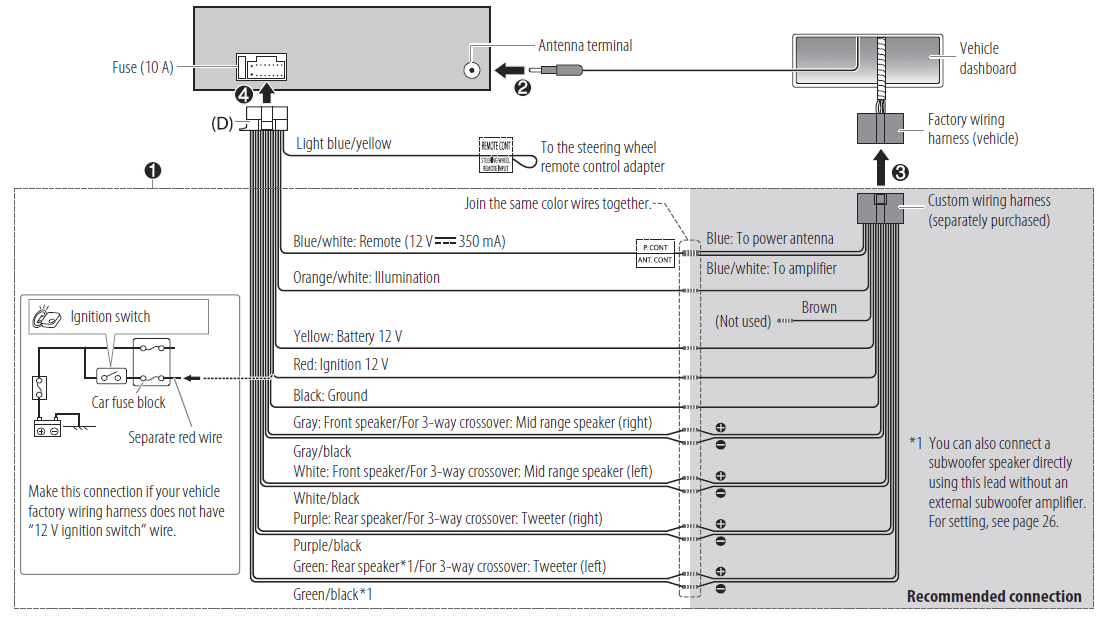

Wiring connection
