Kenmore 111 Bottom Freezer Refrigerator

IMPORTANT SAFETY INSTRUCTIONS

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or a similarly qualified person in order to avoid a hazard. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
• Do not modify or extend the power cord length. It could cause an electric shock or fire.
• When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.
• DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
• Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing doors when children are in the area.
• Unplug your refrigerator before cleaning or making any repairs.

NOTE: It is strongly recommended that any service be performed by a qualified technician.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer.
• Connect to a potable water supply only.

SAVE THESE INSTRUCTIONS

• When you are finished, reconnect the refrigerator to the electrical source and reset the controls (Thermostat, Refrigerator Control, and or Freezer Control, depending on the model) to the desired setting.
• This refrigerator must be properly installed in accordance with the Installation Instructions.
• After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment when your hands are damp or wet. Skin may adhere to extremely cold surfaces.
• Do not plug several appliances into the same wall outlet. – It can be a cause of overheating and/or fire. Use an exclusive grounding receptacle for the refrigerator.
• Never hold the power cord or plug with wet hands. There is a risk of electric shock.
• Never use a damaged power cord or plug, or a loose main socket. – There is a risk of fire, electric shock, or serious injury.

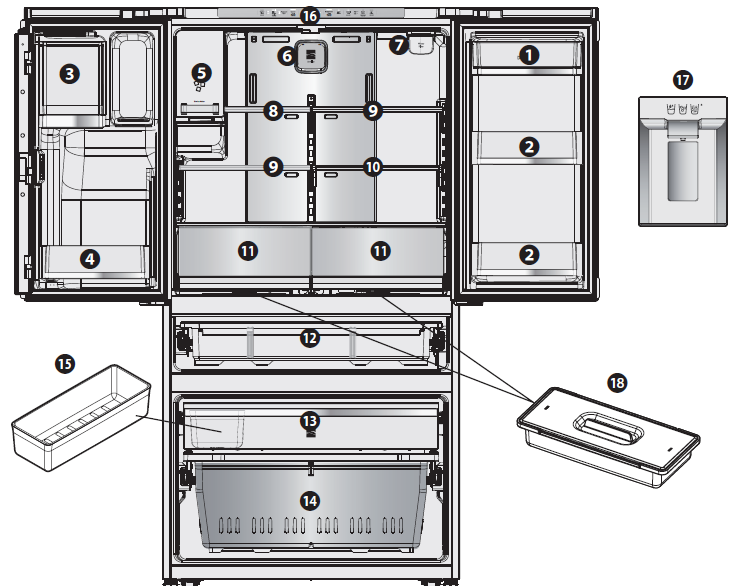

PARTS AND FEATURES

1. Covered Dairy Bin or Covered Storage Bin for storing butter and cheese.
2. Gallon door storage bin for items of medium to large size.
3. Multi storage bin or Covered Storage Bin for storing butter and cheese.
4. Narrow door storage bin for small items.
5. Icemaker/Ice cube bin for making and holding ice for the through-the-door dispenser.
6. Air filter.
7. Water filter.
8. Narrow Top Shelf.
9. Adjustable glass shelf.
10. Slide-in Shelf.
11. Humidity controlled crisper bin for storage of fruits and vegetables.
12. Temperature Control full-width pantry drawer for storage of meat and fresh vegetables.
13. Pull out freezer drawer.
14. Lower freezer basket for general freezer storage.
15. Freezer Ice Storage Bin.
16. Control and display panel.
17. Ice/Water Dispenser.
18. Removable Convenience Bin.

REFRIGERATOR INSTALLATION

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning-type labels, the model and serial number label, or the Tech Sheet that is located under the front of the refrigerator.

To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. Refrigerator shelves are installed in the shipping position. Please reinstall the shelves according to your individual storage needs.

Remove all cantilevered refrigerator compartment shelves and remove the protective shipping tape found on the attachment hooks at the back of the shelves. For shelf removal instructions, see Refrigerator Shelves in the USING YOUR REFRIGERATOR section of this Use & Care Guide.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all dust that accumulated during shipping.
2. Install accessories such as ice cube bins, drawers, shelves, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

INSTALLATION

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes. This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

1. To avoid noise and vibration, the unit must be leveled and installed on a solidly constructed floor. If required, adjust the leveling legs to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling legs can be turned easily by tipping the cabinet slightly. Turn the leveling legs to the left to raise the unit or to the right to lower it. NOTE: Installing on carpeting, soft tile surfaces, a platform, or a weakly supported structure is not recommended.
2. Install this appliance in an area where the temperature is between 55°F (13°C) and 110°F (43°C). If the temperature around the appliance is too low or too high, cooling ability may be adversely affected.
3. Select a place where a water supply can be easily connected for the automatic icemaker. NOTE: The water pressure must be from 30 to 125 psi or 207-862 kPa or 2.1-8.8 kgf/cm². If the refrigerator is installed in an area with low water pressure below 30 psi, you can install a booster pump to compensate for the low pressure.
4. For sufficient door opening clearance, allow at least 4 inches between the side of the refrigerator and an adjacent wall or surface that extends fully to or past the front door of the refrigerator. For complete door opening, allow at least 14.8 inches between the side of the refrigerator and a wall or surface that extends to or past the refrigerator front door.
5. Too small a distance from adjacent surfaces may result in lowered freezing capability and increased electricity consumption charges. Provide the following unobstructed clearance for sufficient air flow around the refrigerator:

• At least 2 inches between the refrigerator back and the wall.
• At least 2 inches between the refrigerator top and the overhead surface.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. If it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Removing Refrigerator Handle

Use the provided 2.5 mm hex key to loosen the 2 set screws located on the inside top ends of the handle. Remove the handle from the underlying handle mounting bolts on the door.

HOW TO REPLACE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Replacing Refrigerator Handle

Place the handle ends onto the handle mounting bolts on the door. Use the 2.5 mm hex key to tighten the 2 set screws to secure the handle in place.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. If it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE PANTRY DRAWER AND FREEZER DRAWER HANDLES

NOTE: Handle appearance may vary from the illustrations on this page.

Use the provided 2.5 mm hex key to loosen the 2 set screws located on the inside top ends of the handle. Remove the handle from the underlying handle mounting bolts on the drawer.

HOW TO REPLACE PANTRY DRAWER AND FREEZER DRAWER HANDLES

NOTE: Handle appearance may vary from the illustrations on this page.

Place the handle ends onto the handle mounting bolts on the drawer. Use the 2.5 mm hex key to tighten the 2 set screws to secure the handle in place.

WARNING

When assembling or disassembling the handles:

• Grasp the handle firmly to ensure it will not drop or cause injury.
• Prevent the handle from swinging toward nearby people or animals.
• Insert the handle footprints over the door mounting fasteners and tighten the hex screws to fix the handle in place.
• Check for any gap between the door and handle after the handle is fixed in place.

REMOVING AND REPLACING REFRIGERATOR DOORS

To remove the left refrigerator door:

1. Remove top hinge cover using a phillips screwdriver by removing 5 screws.
2. Remove the hinge grounding wire screw and pull the two grounding wire connections away from the hinge. Disconnect the two wire harnesses and the water tube. Push in the small first ring on the connection collar to remove the tube.
3. Using a 10mm box end or socket wrench, turn the top hinge fastener counterclockwise to remove the top hinge plate. CAUTION: After the hinge is removed, the door can fall down forward. Hold the door to prevent it from falling.
4. Lift the door from the middle hinge pin and remove the door. Place the door, inside facing up, on a nonscratch surface. NOTE: If necessary to be able to move the unit through a narrow door or hallway, remove the left and right door middle hinges. Use a 10mm wrench to loosen and remove the two bolts attaching the hinge to the cabinet.

To remove the right refrigerator door:

1. Remove top hinge cover using a phillips screwdriver by removing 5 screws.
2. Using a 10 mm box end or socket wrench, turn the top hinge fastener counterclockwise to remove the top hinge plate. Disconnect the wire harness. CAUTION: After the hinge is removed, the door can fall down forward. Hold the door to prevent it from falling.
3. Lift the door from the middle hinge pin and remove the door. Place the door, inside facing up, on a nonscratch surface.

USING YOUR REFRIGERATOR

Control Panel

Water Filter

When the Filter Change icon turns on, you need to change the water filter. After changing the water filter, press and hold the Water Filter button for three seconds to turn the indicator light off. You need to change the water filter approximately every six months.

Ice Maker

Press to turn the Ice maker on or off. (On is the default setting.)

Press and hold the Ice maker button for 3 seconds to turn the Accela Ice on.

This function increases ice-making capabilities for 24 hours.

Dispenser Display

With the Dispenser Display button off and one dispenser icon on (dim):

• Press button once: button reads ICON, three dispenser icons on (active function bright, two inactive functions dim), dispenser light off
• Press button twice: button reads LIGHT, one dispenser icon on (active function bright), dispenser light on
• Press button three times: button reads ICON and LIGHT; three dispenser icons on (active function bright, inactive functions dim), dispenser light on
• Press button four times: return to button light off, one dispenser icon on (dim).

Freezer Temp

Selection button for freezer compartment temperature.

Press and hold the Freezer Temp button for 3 seconds to turn the Accela Chill mode on.

Refrigerator Temp

Selection button for the Refrigerator compartment temperature.

Press and hold the Refrigerator Temp button for 3 seconds to turn the Accela Chill mode on.

Door Alarm

When power is connected to the refrigerator, the door alarm will always be functional. Pressing the Door Alarm button will not deactivate the alarm function. Any time that the refrigerator door or freezer drawer remains open for more than 60 seconds, the Door Alarm button LED illuminates and an alarm tone of 5 double beeps sounds to alert you of the open status.

The 5 double beeps will sound every 60 seconds while the door remains open. Pressing the Door Alarm button or closing the door, or drawer will turn the tone off. Pressing the Door Alarm button will not turn off the LED. The LED will remain lit until you close the door or drawer.

Control Lock

Press and hold the Control Lock button for 3 seconds to turn the Control Lock on.

Smart Grid

Press to turn the Smart Grid on or off.

Press and hold the Smart Grid button for 5 seconds to turn Wi-Fi on or off.

Air Filter

When the Air Change icon turns on, you need to change the Air filter.

After changing the Air filter, press and hold the Air Filter button for three seconds to turn the indicator light off. You need to change the Air Filter approximately every six months.

Temperature Mode Switch Function (°F↔°C)

If you want to convert °F to °C or vice Versa:

1. Press and hold the Control Lock button for 3 seconds. The lock icon will illuminate.
2. Press and hold the Freezer Temp and Refrigerator Temp buttons at the same time for 5 seconds until temperature mode changes.

NOTE: If the lock icon is illuminated after performing this function, press and hold the Lock button for 3 seconds to turn the control lock OFF.

TROUBLESHOOTING GUIDE

COOLING

Customer Care Hotline

To schedule in-home repair service or order replacement parts

1-844-553-6667

www.kenmore.com
