Kenmore DU4080 Featherlite Lift-Up Bagless Upright Vacuum Cleaner User Manual

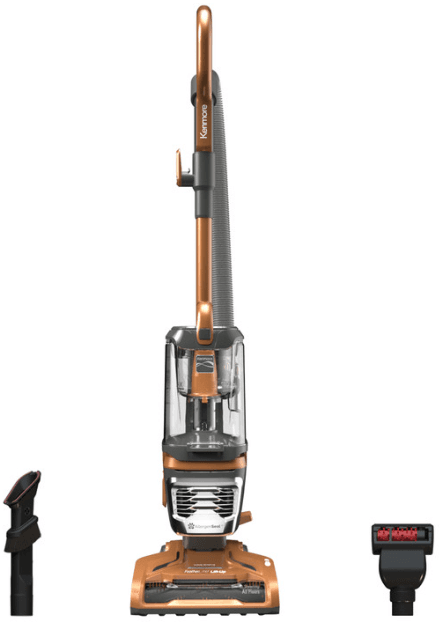

Kenmore DU4080 Featherlite Lift-Up Bagless Upright Vacuum Cleaner

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this guide before assembling or using your vacuum cleaner.

WARNING!

Your safety is important to us. To reduce the risk of fire, electrical shock, and injury to persons or damage when using your vacuum cleaner, follow basic safety precautions, including the following:

• Use your vacuum cleaner only as described in this Use & Care Guide. Use only with the manufacturer’s recommended attachments.
• Disconnect the electrical supply before servicing or cleaning out the brushroll area. Failure to do so could result in the brushroll unexpectedly starting, causing personal injury from moving parts.
• Do not leave the vacuum cleaner plugged in. Unplug from the outlet when not in use and before performing maintenance.
• To reduce the risk of electrical shock, do not use outdoors or on wet surfaces.
• Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
• Do not use with a damaged cord or plug. If the vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, immediately discontinue use and call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle the plug or vacuum cleaner with wet hands.
• Do not put any objects into openings.
• Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning stairs.
• Do not put on chairs, tables, etc. Keep on the floor.
• Do not use the vacuum cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use it in areas where they may be present. The fumes from these substances can create a fire hazard or an explosion.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use a vacuum cleaner without a dust cup and/or filters in place.
• Always clean the dust cup after vacuuming carpet cleaners or freshener, powders, and fine dust. These products clog the filters, reduce airflow, and can cause damage to the vacuum cleaner. Failure to clean the dust cup could cause permanent damage to the vacuum cleaner.
• Do not use the vacuum cleaner to pick up sharp, hard objects, small toys, pins, paper clips, etc. They may damage the vacuum cleaner or the dust cup.
• You are responsible for making sure that your vacuum cleaner is not used by anyone unable to operate it properly.

PACKING LIST

Your KENMORE BAGLESS UPRIGHT VACUUM CLEANER is packaged with the following parts and components assembled separately in the carton:

• 1 Upright Vacuum Cleaner (with Motorized Nozzle)
• 1 Handle
• 1 Flexible Hose
• 1 Wand
• 1 3-in-1 Combination Tool
• 1 Upholstery Tool
• 1 Use & Care Guide

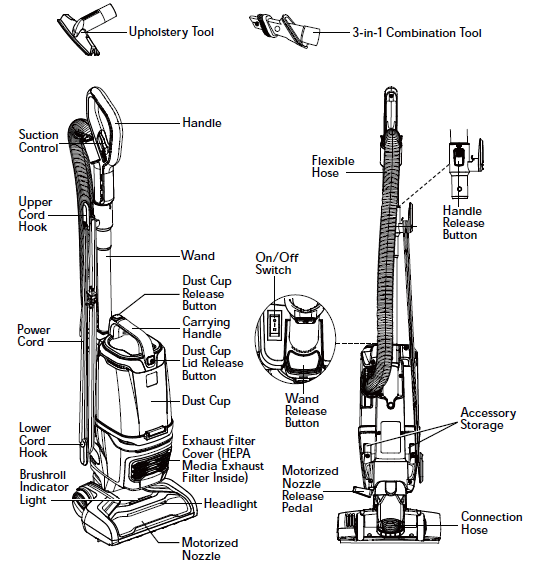

PARTS AND FEATURES

It is important to know your vacuum cleaner’s parts and features to ensure its proper and safe use. Review these before using your vacuum cleaner.

REPLACEMENT PARTS

ASSEMBLY INSTRUCTIONS

Before assembling the vacuum cleaner, check the PACKING LIST. Use this list to verify that you have received all the components of your new Kenmore Bagless Upright Vacuum Cleaner.

1. Insert the handle into the wand until you hear a ‘click’. To remove: Press the handle release button and pull up on the handle.
2. Insert the wand into the main body until you hear a ‘click’.
3. Insert one end of the flexible hose into the main body until you hear a ‘click’. Insert the other end of the hose into the handle until you hear a ‘click’.
4. Insert the combination tool and the upholstery tool onto the accessory storage posts located on the back of the main body.
5. Make sure the upper cord hook is in the proper position as shown. Wrap the power cord loosely around the upper and lower cord hooks. NOTE: Make sure to wrap the power cord around the upper cord hook first, and then around the lower cord hook to avoid damaging the power cord.
6. Lock the power cord plug onto the power cord.

WARNING

Electrical Shock and Personal Injury Hazard

Wrapping the cord too tightly with excessive stress on the cord may cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage.

CAUTION

Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll when the vacuum is on. Contacting the brushroll while it is rotating can cut, bruise, or cause other injuries. Always turn off after operation. Use caution when operating near children or pets.

POWER CORD – RELEASE & USE

1. Turn the upper cord hook to either side and down to release the power cord.
2. Detach the power cord plug from the power cord.
3. Be sure the power cord is locked into the upper locking notch as shown. This will help manage the power cord when operating the vacuum cleaner.
4. Plug the power cord into an outlet located near the floor. WARNING: Personal Injury and Product Damage Hazard. When any abnormality/failure occurs, stop using the product immediately and disconnect the power plug. DO NOT use outlets above counters. Damage from the cord to items in the surrounding area could occur.
5. Press the On/Off switch to turn the vacuum cleaner on.
6. Once you have completed vacuuming, press the On/Off switch; unplug the power cord from the outlet.
7. To restore the power cord after use, turn the upper cord hook to the upright position. Then wrap the cord loosely around the cord hooks.

OPERATION MODES

UPRIGHT MODE

NOTE: Make sure the vacuum cleaner is completely assembled and the dust cup is empty before using. Do not operate a vacuum cleaner without filters in place.

1. Release the handle by placing your foot on the nozzle and pulling back to change the handle position.
2. Turn on the vacuum cleaner by pressing the On/Off switch to the “I” position for cleaning bare floors and small area rugs. NOTE: The brushroll does not rotate when the vacuum cleaner is in the “I” position.
3. Press the switch to the “II” position for cleaning carpets or rugs. NOTE: The brushroll rotates when the vacuum cleaner is in the “II” position.
4. Once the vacuum is on, operate the vacuum cleaner by tilting the wand back towards you, and the nozzle is flush with the floor surface. NOTE: The Brushroll does not rotate in either mode when the handle is in the fully upright position.
5. Once you have completed vacuuming, switch to the “O” position and unplug the power cord from the power outlet. NOTE: Select the right mode when using this vacuum cleaner. Do not press the switch to the “II” position when cleaning the bare floor, otherwise it will damage the floor.

BRUSHROLL INDICATOR LIGHT

ABOVE FLOOR MODE

1. Place the vacuum cleaner in the upright locked position.
2. Press the wand release button and lift up the wand for above-floor cleaning.
3. Choose the desired attachment and insert it into the wand.
4. Turn on the vacuum cleaner by pressing the switch to the “I” position.
5. Once you have completed vacuuming, switch to the “O” position and unplug the power cord from the power outlet. NOTE: The attachment can also be inserted directly into the handle for above-floor cleaning.

EMPTYING DUST CUP

WARNING

Always unplug the power cord from the electrical outlet before performing any service on the vacuum cleaner.

NOTE: For best performance, empty the dust cup after every use. Never operate a vacuum cleaner without the dust cup and filters in place.

1. Press the dust cup release button to remove the dust cup from the main body.
2. Remove any clogs that might be located in the suction port.
3. Position the dust cup area of the vacuum over a waste receptacle. Press down on the dust release button to open the dust cup lid and allow contents to drop into the waste receptacle.
4. Shake the dust cup to release any debris that might hang in the pre-filter.
5. Reinstall and insert the dust cup into the slots on the bottom of the main body, then press the dust cup into the locked slot and click into place.

FOAM AND FELT FILTERS CLEANING

It is recommended to clean the foam and felt filters with cold water every three months.

NOTE: When the cleaning of filters no longer restores vacuum cleaner suction to full power, or the filters are worn or broken, replace the filters. To purchase filters, call 1-877-531-7321 (US) / 1 844 608 3081 (CA).

Regularly clean and replace the filters to keep the vacuum’s suction power optimal.

1. Remove the dust cup as outlined in the EMPTYING DUST CUP.
2. Remove the foam and felt filters.
3. Wash with cold water only. DO NOT use detergent or soap. Squeeze by hand and allow to air dry. Allow all filters to dry for 24 hours before putting them back into the vacuum cleaner. NOTE: DO NOT operate without foam and felt filters installed. DO NOT wash in the dishwasher. DO NOT install foam and felt filters if damp.
4. Replace the foam and felt filters in the vacuum cleaner.
5. Reinstall the dust cup.

BRUSHROLL CLEANING

WARNING

Always unplug the power cord from an electrical outlet before performing maintenance on the vacuum cleaner.

To maintain efficient cleaning, the brushroll must be kept free of carpet fiber, string, or hair buildup. If the brushroll is jammed, unplug and turn the vacuum cleaner over and check the brushroll for fiber and hair buildup. Use scissors to remove any buildup entangled around the brushroll. Cleaning the brushroll periodically is recommended for best performance.

TROUBLESHOOTING

Review this table to find do-it-yourself solutions for minor performance problems. Any service needed, other than maintenance described in this Use & Care Guide, should be performed by a qualified service agent.

WARNING

Disconnect the electrical supply before performing maintenance on the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.
