Kenmore 6952 Capacity Electric Dryer User Manual

Table of Contents

Kenmore 6952 Capacity Electric Dryer

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions, including the following:

Read all instructions before using the dryer.
Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.
Before the dryer is removed from service or discarded, remove the door to the drying compartment.
Do not reach into the dryer if the drum is moving.
Do not install or store the dryer where it will be exposed to the weather.
Do not tamper with controls.
Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.
Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
Clean lint screen before or after each load.
Keep the area around the exhaust opening and the adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.
See installation instructions for grounding requirements.

SAVE THESE INSTRUCTIONS

WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury, or death.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Clear the room, building, or area of all occupants.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

Checking your Vent

Your dryer must be properly installed and vented to achieve maximum drying efficiency and shorten drying times. Use the minimum recommended installation clearances found in the Installation Instructions. See the Installation Instructions for more information. If the dryer is not properly installed and vented, it will not be covered under the warranty. Proper venting of your dryer is important for satisfactory drying results. See the Installation Instructions for more details.

NOTE: Service calls caused by improper venting will be paid for by the customer, whether it was a paid installation or self-installed.

Do not use a plastic vent or a metal foil vent. Use a 4″ (10.2 cm) metal or flexible metal vent. Do not kink or crush the flexible metal vent. It must be completely extended to allow adequate exhaust air to flow. Check the vent after installation. Refer to the Installation Instructions for the proper length requirements of the vent.
Use a 4″ (10.2 cm) exhaust hood.

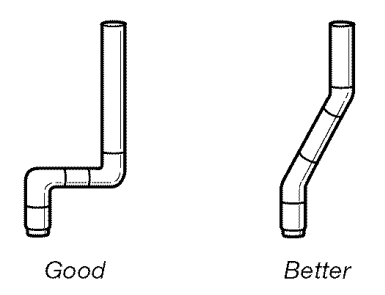

Use the straightest path possible when routing the vent.
Use clamps to seal all joints. Do not use duct tape, screws or other fastening devices that extend into the interior of the
vent to secure vent.
Clean the exhaust vent periodically, depending on use, but at least every 2 years, or when installing your dryer in a new location. When cleaning is complete, be sure to follow the Installation Instructions supplied with your dryer for a final product check.

DRYER USE

Starting Your Dryer

This booklet covers several different models. Your dryer may not have all of the cycles and features described. Before using your dryer, wipe the dryer drum with a damp cloth to remove dust from storing and shipping.

Clean lint screen before each load. See “Cleaning the Lint Screen.”
Load clothes loosely into the dryer and close the door. Do not pack the dryer. Allow space for clothes to tumble freely.
Turn the Cycle Selector Control to the recommended cycle for the type of load being dried. ENERGY PREFERRED automatic dry settings are indicated by an asterisk (*) on the timer dial, next to the words NORMAL DRY. Use this Normal Dry cycle to dry most heavy- to medium-weight fabrics.
Set the Temperature control to the recommended setting for the type of fabric being dried. See Dryer Cycle Descriptions (separate sheet) for temperature suggestions.
(OPTIONAL) Your dryer may have a WRINKLE GUARD ® feature selector. When you are unable to remove a load from the dryer as soon as it stops, wrinkles can form. This feature periodically tumbles, rearranges and fluffs the load without heat to help avoid wrinkling.
(OPTIONAL) If you want the dryer to sound a signal when the cycle is finished, set the END OF CYCLE SIGNAL control to ON, or to the volume level you prefer (on some models). The signal is helpful when you are drying permanent press, synthetics and other items that should be removed from the dryer as soon as it stops.
If desired, add a fabric softener sheet. Follow package instructions.
Press PUSH TO START.

Stopping and Restarting

You can stop your dryer anytime during a cycle.

To stop your dryer

Open the dryer door or turn the Cycle Selector Control to OFE
NOTE: The Cycle Selector Control should point to an Off area when the dryer is not in use.

To restart your dryer

Close the door.
Select a new cycle and temperature (if desired).
Press the PUSH TO START button.

How Automatic Drying Works

During the Automatic Drying Cycle, the exhaust temperature of the dryer determines the drying time and dryness levels. A thermostat signals the Cycle Control Knob when to move into Cool Down. The drying time for an Automatic Drying Cycle depends on load type and load size. When drying a large or heavy load, the Cycle Control Knob may take a long time before it begins to advance into Cool Down. Automatic Drying Cycle takes the guesswork out of drying time and enhances fabric care. The amount of time that is displayed is the estimated time remaining in the cycle.

Dryer Rack Option

Use the dryer rack to dry items such as sweaters and pillows without tumbling. The drum turns, but the rack does not move. If your model does not have a dryer rack, you may be able to purchase one. To find out whether your model allows dryer rack usage and to obtain information on ordering, please refer to the back page of this manual or contact the dealer from whom you purchased your dryer.

NOTE: You must remove the dryer rack for normal tumbling. Do not use automatic cycles with the dryer rack.

TUMBLE FREE™ Non-Heated Dryer Rack

Use with 29″ (73.7 cm) wide dryers. Air circulates in a concentrated pattern over and around clothes to allow efficient and uniform drying.

TUMBLE FREE™ Heated Dryer Rack

Use with 27″ (69 cm) wide dryers. Air circulates in a concentrated pattern over, under, and through clothes, significantly reducing drying time.

To use the dryer rack:

29″ (73.7 cm) Wide Dryer
Slide rear pegs into the dimples on the back wall of the dryer. Lower the front legs to rest on the dryer opening.
27″ (69 cm) Wide Dryer
Do not remove the lint screen. Slide the dryer rack over the bottom of the dryer door opening. Push down to secure it on the frame.
Put wet items on the rack. Leave space between items so air can reach all surfaces. Do not allow items to hang over the edge of the rack. Close the door.

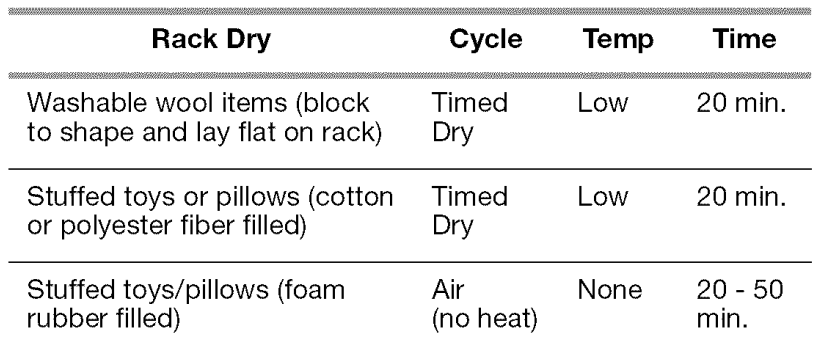

Select the cycle and temperature to match the fabrics in your load. Items containing foam, rubber, or plastic must be dried on a clothesline or by using an air cycle. Refer to the following table.
Start the dryer. Reset time to complete drying, if needed.

DRYER CARE

Cleaning the Dryer Location

Keep the dryer area clear and free from items that would obstruct the flow of combustion and ventilation air.

Cleaning the Lint Screen

Clean lint screen before each load. A screen blocked by lint can increase drying time.

IMPORTANT:

Do not run the dryer with the lint screen loose, damaged, blocked or missing. Doing so can cause overheating and
damage to both the dryer and fabrics.
If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint.

Every Load Cleaning

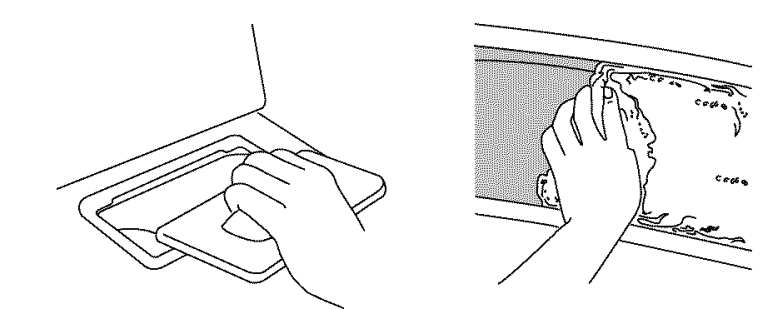

Style 1:

The lint screen is located on top of the dryer. Pull the lint screen toward you. Roll lint off the screen with your fingers. Do not rinse or wash the screen to remove lint. Wet lint is hard to remove.
Push the lint screen firmly back into place.

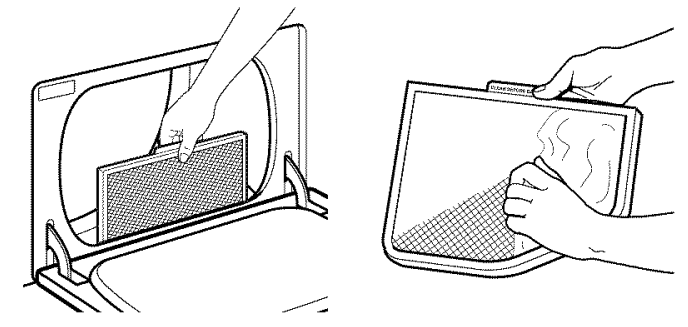

Style 2:

The lint screen is located in the door of the dryer. Pull the lint screen straight up. Roll lint off the screen with your fingers. Do not rinse or wash the screen to remove lint. Wet lint is hard to remove.
Push the lint screen firmly back into place.

As Needed Cleaning

Roll lint off the screen with your fingers.
Wet both sides of the lint screen with hot water.
Wet a nylon brush with hot water and liquid detergent. Scrub lint screen with the brush to remove residue buildup.
Rinse the screen with hot water.
Thoroughly dry the lint screen with a clean towel. Replace the screen in the dryer.

Cleaning the Dryer Interior

Apply a liquid, nonflammable household cleaner to the stained area of the drum and rub with a soft cloth until stain is removed.
Wipe the drum thoroughly with a damp cloth.
Tumble a load of clean clothes or towels to dry in the drum.
NOTE: Garments that contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry unstable dye items inside out to avoid the transfer of dye.

Removing Accumulated Lint

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualified person.

From Inside the Exhaust Vent

Lint should be removed every 2 years, or more often, depending on dryer usage.

Vacation and Moving Care

Vacation care

Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:

Unplug the dryer or disconnect the power.
If you have a gas dryer, close shut-off valve in the gas supply line.
Clean lint screen. See “Cleaning the Lint Screen.”

Moving care – Electric Dryers

For power supply cord-connected dryers:

Unplug the power supply cord.
Make sure leveling legs are secure in the dryer base.
Use masking tape to secure the dryer door.

For direct-wired dryers:

Disconnect power.
Disconnect wiring.
Make sure leveling legs are secure in the dryer base.
Use masking tape to secure the dryer door.

Moving care – Gas Dryers

Unplug the power supply cord.
Close the shutoff valve in the gas supply line.
Disconnect the gas supply line pipe and remove fittings attached to the dryer pipe.
Cap the open fuel supply line.
Make sure leveling legs are secure in the dryer base.
Use masking tape to secure the dryer door.

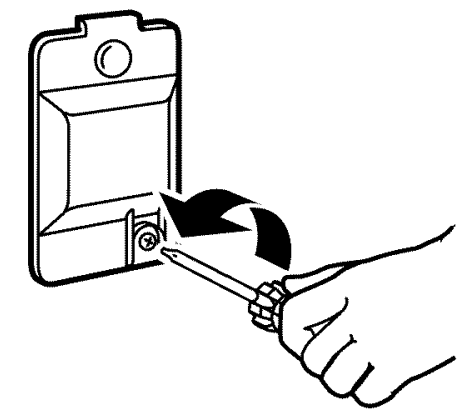

Changing the Drum Light

Unplug the dryer or disconnect the power.
Open the dryer door. Locate the light bulb cover on the back wall of the dryer. Remove the screw located in the lower right-hand corner of the cover. Remove the cover.
Turn the bulb counterclockwise. Replace the bulb with a 10-watt appliance bulb only. Replace the cover and secure with the screw.
Plug in the dryer or reconnect the power.

TROUBLESHOOTING

First, try the solutions suggested here and possibly avoid the cost of a service call…

The dryer will not run

Has a household fuse blown, or has a circuit breaker tripped?
There may be 2 fuses or circuit breakers for the dryer. Check that both fuses are intact and tight, or that both circuit breakers have not tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
Is the correct power supply available?
Electric dryers require a 240-volt power supply. Check with a qualified electrician.
Was a regular fuse used?
Use a time-delay fuse.
Is the dryer door firmly closed?
Was the Start button firmly pressed?
Is a cycle selected?
The dryer will not start in the Wrinkle Guard® position. Move the dial past OFF.

No heat

Has a household fuse blown, or has a circuit breaker tripped?
Electric dryers use 2 household fuses or circuit breakers. The drum may be turning, but you may not have heat. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
For gas dryers, is the valve open on the supply line?

Unusual sounds

Has the dryer had a period of non-use?
If the dryer hasn’t been used for a while, there may be a thumping sound during the first few minutes of operation.
Is a coin, button, or paper clip caught between the drum and the front or rear of the dryer?
Check the front and rear edges of the drum for small objects. Clean out pockets before laundering.
Is it a gas dryer?
The gas valve clicking is a normal operating sound.
Are the four legs installed, and is the dryer level front to back and side to side?
The dryer may vibrate if not properly installed. See the Installation Instructions.
Is the clothing knotted or balled up?
When balled up, the load will bounce, causing the dryer to vibrate. Separate the load items and restart the dryer.

Timer does not noticeably advance

Is the dryer set to Timed or Air Dry?
The timer moves slowly and continuously for the time setting.
Is the dryer set to Automatic Drying?
The timer moves only when the clothing is mostly dry. See “How Automatic Drying Works” in “Dryer Use.”

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore ®product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation. The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:

Parts and labor are needed to help keep products operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage– real protection.
Expert service by a force of more than 10,000 authorized Sears service technicians, who means someone you can trust will be working on your product.
Unlimited service calls and nationwide service, as often as you want us, whenever you want us.
“No-lemon” guarantee – replacement of your covered product if four or more product failures occur within twelve months.
Product replacement if your covered product can’t be fixed. Annual Preventive Maintenance Check at your request – no extra charge.
Fast help by phone – we call it Rapid Resolution – phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.”
Power surge protection against electrical damage due to power fluctuations.
$250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.
Rental reimbursement if repair of your covered product takes longer than promised.
10% discount off the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online. The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

KENMORE APPLIANCE WARRANTY

ONE-YEAR LIMITED WARRANTY

When installed, operated, and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ®to arrange for free repair. If this appliance is used foranything other than private family purposes, this warranty applies for only 90 days from the date of purchase. THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP. SEARS WILL NOT PAY FOR:

Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
A service technician to instruct the user in correct product installation, operation, or maintenance.
A service technician to clean or maintain this product.
Damage to or failure of this product if it is not installed, operated, or maintained according to all instructions supplied with the product.
Damage to or failure of this product resulting from accident, abuse, misuse, or use for other than its intended purpose.
Damage to or failure of this product caused by the use of detergents, cleaners, chemical,s or utensils other than those recommended in all instructions supplied with the product.
Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you. This warranty applies only while this appliance is used in the United States and Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
