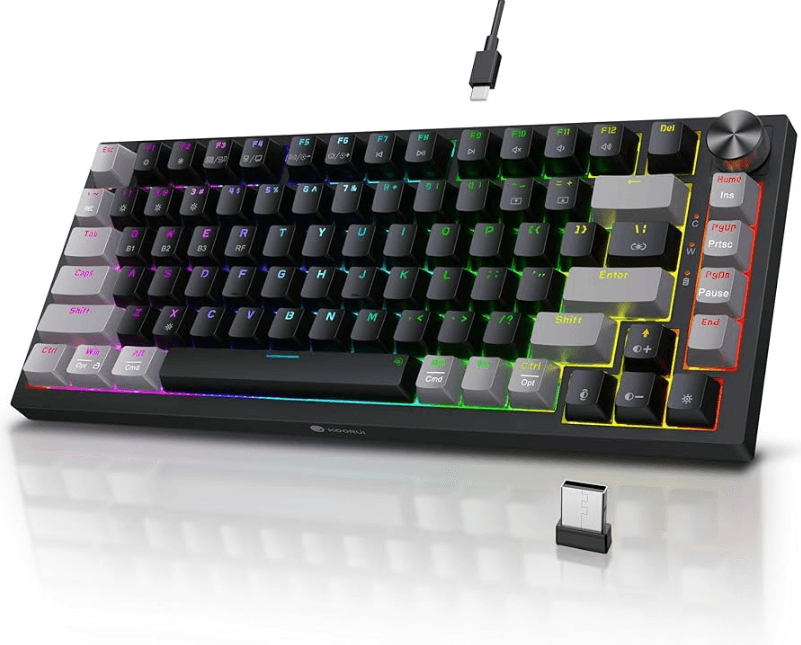

KOORUI MK082 Wireless RGB Gaming Keyboard
TECH SPECS
- Keys: 82
- Switch type: mechanical
- Switch rating:> 50 million presses
- Key mute: 3.8 ± 0.3 mm
- Backlight: 16 Million RGB
- Interface: USB 2.0
- Cable length: 1.8 m
- OS support: Windows XP/Vista/7/8/9/10/11、MAC OS、Linux

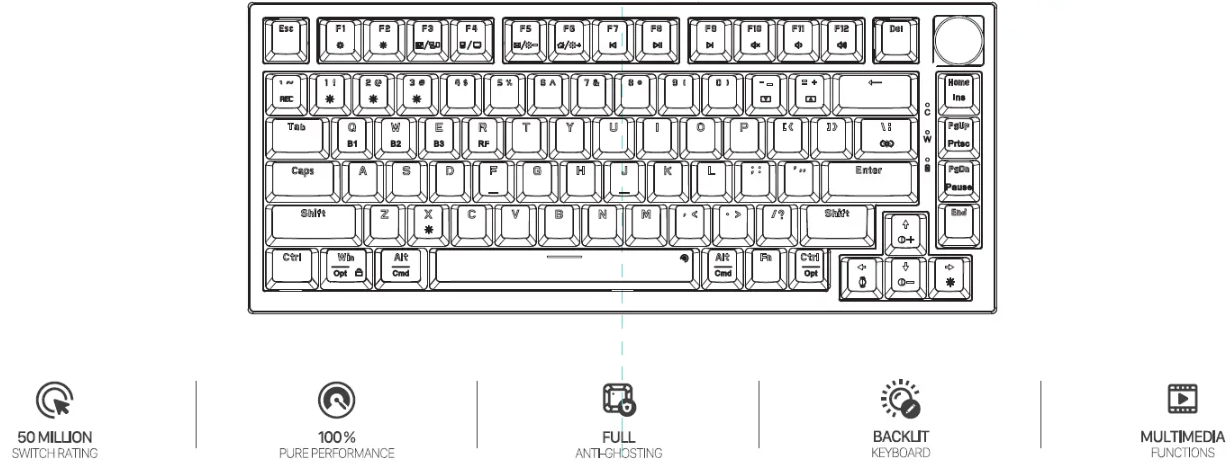

PRODUCT PRESENTATION
FEATURES
- Backlit gaming keyboard with a slim bezel design
- Advanced anti-ghosting with full-key rollover support
- Multimedia functions
- Rainbow backlight with mixed colors
- Waterproof design to quickly drain the liquids in case of accidental spillage
SYSTEM REQUIREMENTS
PC system or compatible with USB port available; OS support: Windows XP/Vista/7/8/9/10/11、MAC OS、Linux
SAFETY NOTES
- Keep the equipment dry. Keep away from precipitation, humidity, all types of liquids, and condensation.
- Do not use the product with wet hands.
- Do not use or store the equipment in dusty or dirty areas.
- Do not store the equipment under high-temperature or low-temperature conditions (this may damage it).
- Do not drop, knock, or shake the equipment (use may result in breakage).
INSTALLATION

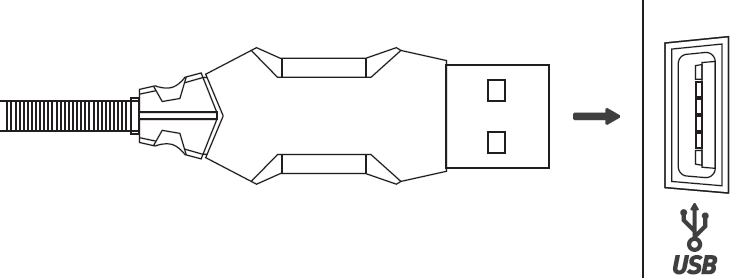

Connect the keyboard to an available USB port on your computer. If the keyboard is used for the first time wait approx. 15 seconds to install the generic driver.
USE

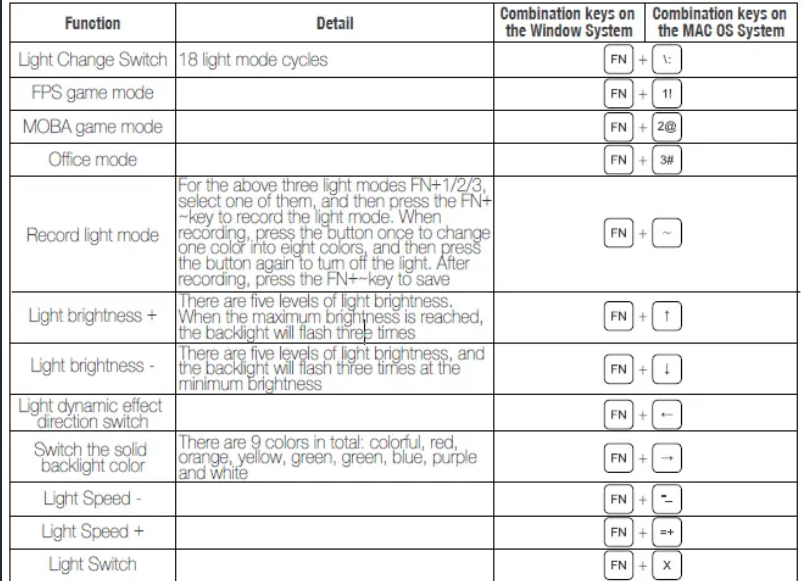

Configuring the keyboard and using the special functions is done by using the various key combinations detailed below.

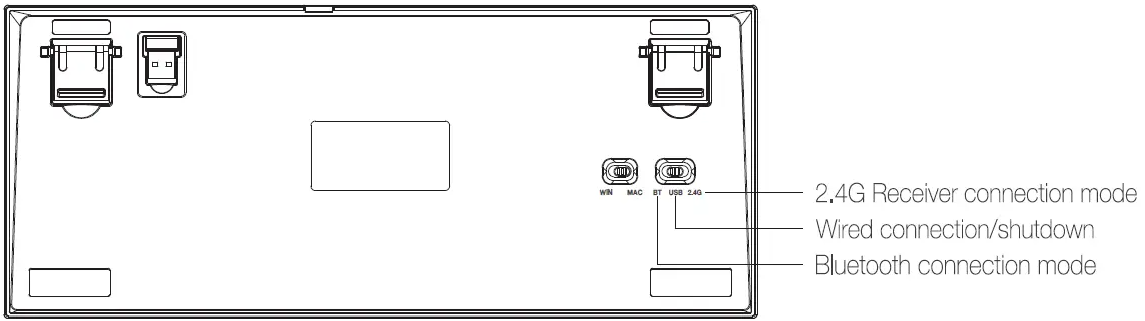

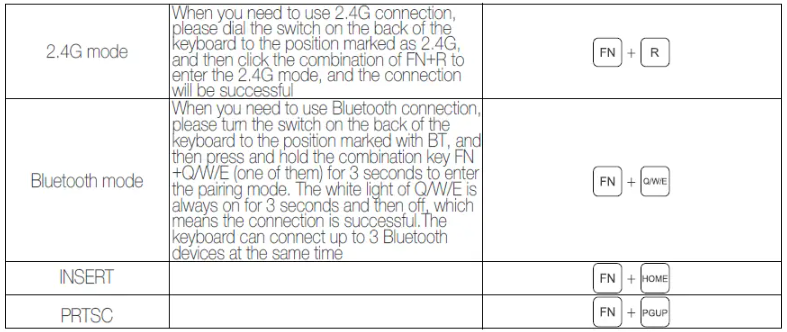

- Usage method: The function of the multi-function control knob is very useful. Press it to play/pause. Turn it counterclockwise to reduce the volume, and turn it clockwise to increase the volume. The keyboard has three connection modes: Bluetooth connection, 2.4G connection, and USB connection. Please select your keyboard connection mode first. If you choose Bluetooth connection, please refer to the Bluetooth mode connection method of the FN+Q/W/E key combination in the following table. If you choose 2.4G connection, please insert the receiver into the USB port of your computer, and then refer to the 2.4G connection method of FN+R key combination in the following table If you choose USB cable connection, please connect your computer’s USB hole with the power cable provided, and then toggle the switch on the back of the keyboard to USB to connect successfully If you want turn off the keyboard switch, Please turn the switch on the back of the keyboard to the middle position with the “USB” character.
- Multi-function control knob: The function of the multi-function control knob is very useful. Press it to play/pause. Turn it counterclockwise to reduce the volume, and turn it clockwise to increase the volume.
- Smart sleep mode Deep sleep: The keyboard enters deep sleep mode after 30 minutes of keyless operation. Bluetooth is disconnected. Press any key to wake up the keyboard backlight and reconnect the device. Smart sleep: The keyboard backlight will turn off after one minute of keyless operation. Press any key again to wake up the keyboard backlight and reconnect the device.

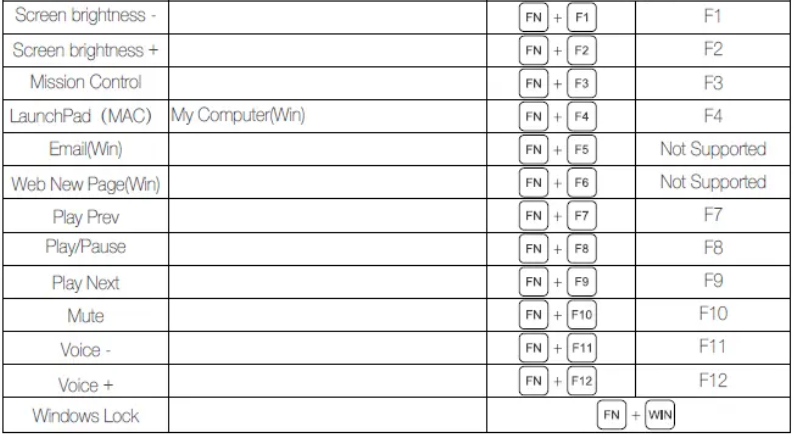

Multimedia and office functions
TROUBLESHOOTING
In case of incorrect operation, follow the steps below:
- Check the integrity of the connectors.
- Check the connection to the computer correctly.
- Check the correctness of your computer settings.
- Disconnect and reconnect the equipment; restart the computer.
- If the problem persists, please contact your local seller
GENERAL INFORMATION
- Unauthorized repairs or disassembly of the product will void the warranty and may cause damage.
- This product is safe and complies with EU requirements.
- This product is manufactured in accordance with the European RoHS standard. This standard was introduced to reduce the amount of electrical and electronic waste emitted into the atmosphere.
- Using the WEEE symbol (the crossed-out bin) indicates that this product is not household waste. When recycling waste properly, you protect the environment and people’s health. Segregated household waste collection aids in recycling materials and components used for the production of this device. For detailed information about recycling, please contact your retailer or a local authority.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet the general RF exposure requirements. The device can be used in portable exposure conditions without restriction. IC Caution: Radio Standards Specification RSS-Gen, issue 5. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. RF exposure statement: The device has been evaluated to meet the general RF exposure requirement. The device can be used in portable exposure conditions without restriction.
