KRAUSE BECKER 60600 Airless Paint Sprayer User Manual

Krause & Becker-logo

Table of Contents

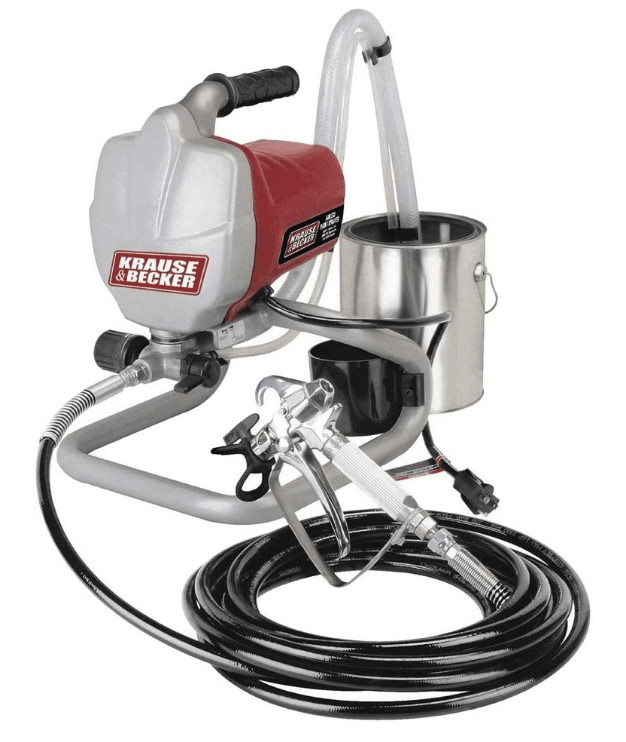

KRAUSE BECKER 60600 Airless Paint Sprayer

KRAUSE BECKER 60600 Airless Paint Sprayer-product

Safety Warnings

WARNING

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference.

Work area safety

  1. Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
  2. Operate only in a well-ventilated area. Paint thinners and solvents may be harmful if inhaled.
  3. Do not operate the sprayer in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. The sprayer can create sparks, resulting in the ignition of the dust or fumes.
  4. Keep children and bystanders away while operating a sprayer. Distractions can cause you to lose control.

Electrical safety

  1. Sprayer plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded sprayers. Unmodified plugs and matching outlets will reduce the risk of electric shock.
  2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.
  3. Do not expose sprayers to rain or wet conditions. Water entering a sprayer will increase the risk of electric shock.
  4. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the sprayer. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
  5. When operating a sprayer outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  6. If operating a sprayer in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

Personal safety

  1. Stay alert. Watch what you are doing and use common sense when operating the sprayer. Do not use the sprayer while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the sprayer increases the risk of injury to persons.
  2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair increase the risk of injury to persons as a result of being caught in moving parts.
  3. Avoid unintentional starting. Be sure the trigger is off before connecting to the power supply. Do not carry the sprayer with your finger on the trigger, or connect the sprayer to the power supply with the trigger on.
  4. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the sprayer in unexpected situations.
  5. Use safety equipment. Wear ANSI-approved safety goggles, a NIOSH-approved respirator, heavy-duty work gloves, and non-skid safety shoes when priming, painting, cleaning, or servicing.

Sprayer use and care

  1. Do not force the sprayer. Use the correct sprayer for your application. The correct sprayer will do the job better and safer at the rate for which it was designed.
  2. Do not use the sprayer if the switch does not turn it on and off. Any sprayer that cannot be controlled with the switch is dangerous and must be repaired.
  3. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing sprayers. Such preventive safety measures reduce the risk of starting the sprayer accidentally.
  4. Store idle sprayers out of the reach of children and do not allow persons unfamiliar with the sprayer or these instructions to operate the sprayer. Sprayers are dangerous in the hands of untrained users.
  5. Maintain the sprayer. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the sprayer’s operation. If damaged, have the sprayer repaired before use. Many accidents are caused by poorly maintained sprayers.
  6. Use the sprayer and accessories under these instructions, taking into account the working conditions and the work to be performed. Use of the sprayer for operations different from those intended could result in a hazardous situation.

Service

  1. Have your sprayer serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the sprayer is maintained.

Paint Sprayer Safety Warnings

  1. INJECTION HAZARD!
    Although this paint gun is airless, it still puts out paint at a very high pressure. Through improper use, paint can be injected through a person’s skin, leading to serious injury, possibly amputation. If paint is accidentally injected into someone’s skin, contact a doctor immediately. Do not treat an injection injury as a simple cut. Injection can lead to amputation and requires immediate surgical treatment.
  2. Do not point your sprayer at anyone, including yourself. Do not place your hand in front of the Spray Gun’s nozzle or attempt to deflect paint spray with your hand during use. Gloves and clothing don’t offer adequate protection from toxic paints, sealers, water-proofers, or stains.
  3. Do not come into contact with a fluid stream created by a leak in the paint hose.
  4. Do not leave the Paint Sprayer pressurized while unattended.
  5. Do not clean the Spray Gun tip while it is still connected to the paint hose.
  6. Keep the trigger and the electrical cord plug clean and paint-free.
  7. Do not run the Paint Sprayer while empty. Damage to the unit may occur.
  8. Do not use a Paint Sprayer to spray asbestos, metallic paints, glazes, red lead, cement, ground chalk, abrasive grainy paints containing lime, or bleach. These will damage the spray gun and void the warranty.
  9. Do not spray flammable materials in the vicinity of open flame or near ignition sources. Motors, electrical equipment, and controls can cause electrical arcs that will ignite a flammable gas or vapor. Do not store flammable liquids or gases in the vicinity of this unit.
  10. Keep fire-extinguishing equipment present and in good working order.
  11. Keep the pump away from the spray area to avoid contact with solvents and paint fumes.
  12. Use a Paint Sprayer with water-based or mineral spirit-type materials only.
  13. Do NOT use bleach, low-flash naphthalene, acetone, alcohol, or toluene when cleaning Paint Sprayer equipment.
  14. Do NOT use solvents with flash points less than 70°F (21 °C) to clean equipment. These may cause an explosion. Examples of acceptable cleaning solvents are water, mineral spirits, and lacquer thinner. Note that some of these solvents may be inappropriate for certain kinds of paint; follow the paint supplier’s recommendations. Contact Harbor Freight Tools to request a Material Safety Data Sheet (MSDS).
  15. Follow the material and solvent manufacturer’s safety precautions and warnings.
  16. Keep the paint hose away from sharp objects. Bursting hoses may cause injury. Examine hoses regularly and replace them if damaged.
  17. When flushing the Paint Sprayer system, use the lowest possible pressure setting.
  18. All hoses and spray gun accessories used with the Paint Sprayer must be pressure rated at or above 3000 PSI.
  19. The Paint Sprayer must be plugged into an outlet that is grounded by all local codes and ordinances.
  20. Use caution while spraying on windy days.
  21. Do not use the Paint Sprayer without the Spray Gun’s nozzle guard in place.
  22. Paint Sprayer’s housing may become hot during use. Do not touch the housing until it has completely cooled.
  23. Remove Spray Tip or turn to cleaning position BEFORE cleaning or flushing the Paint Sprayer system.
  24. Do not use pliers to tighten or loosen high-pressure connections.
  25. Maintain labels and nameplates on the sprayer. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
  26. Avoid unintentional starting. Prepare to begin work before turning on the sprayer.
  27. This product is not a toy. Keep it out of reach of children.
  28. People with pacemakers should consult their physician(s) before use. Electromagnetic fields close to a heart pacemaker could cause pacemaker interference or pacemaker failure.

Before You Begin

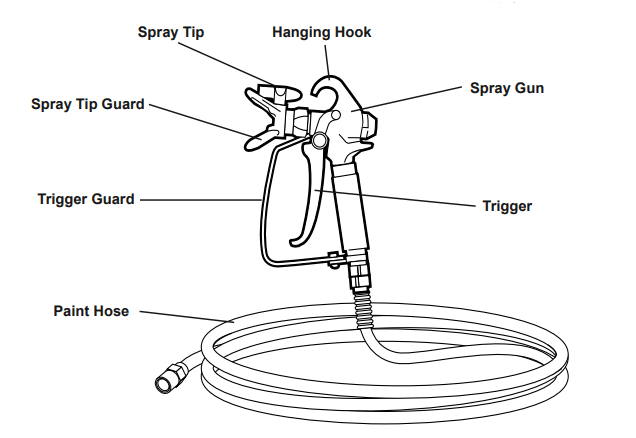

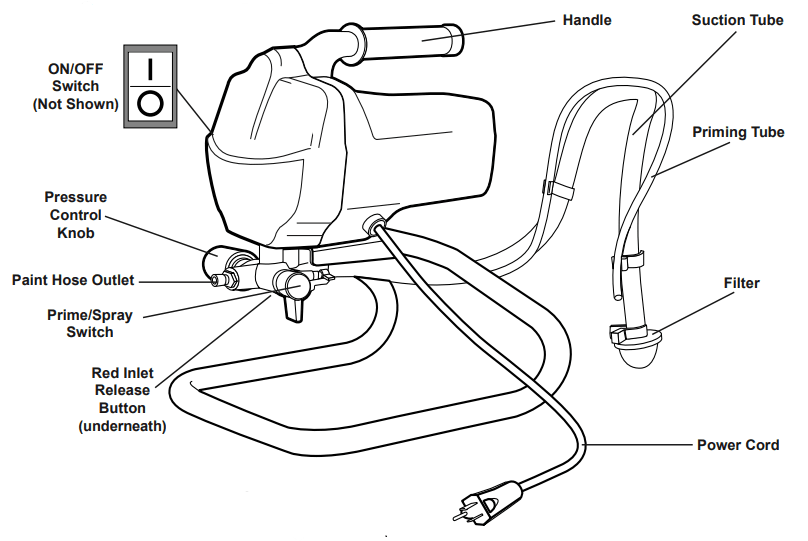

Familiarize yourself with the Paint Sprayer and its functions.

KRAUSE BECKER 60600 Airless Paint Sprayer-1

KRAUSE BECKER 60600 Airless Paint Sprayer-2

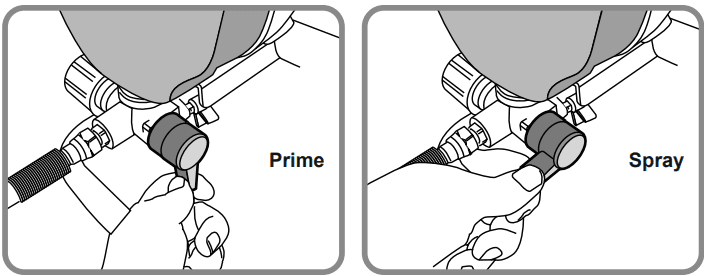

Prime/Spray Switch

This switch toggles the unit between priming mode and spraying mode.

KRAUSE BECKER 60600 Airless Paint Sprayer-3

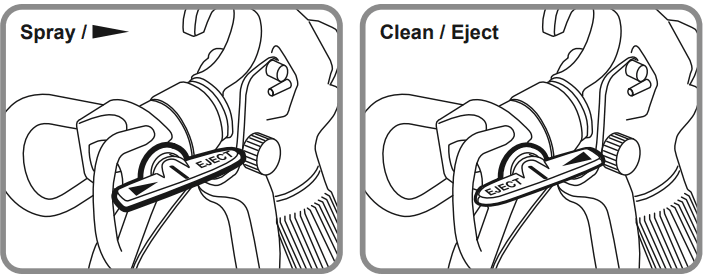

Nozzle

The nozzle is reversible and removable to make cleaning and unclogging easier. Turn to the Spray (KRAUSE BECKER 60600 Airless Paint Sprayer-60) position to use the spray gun. Turn to the Clean (Eject) position to clean the nozzle.

KRAUSE BECKER 60600 Airless Paint Sprayer-4

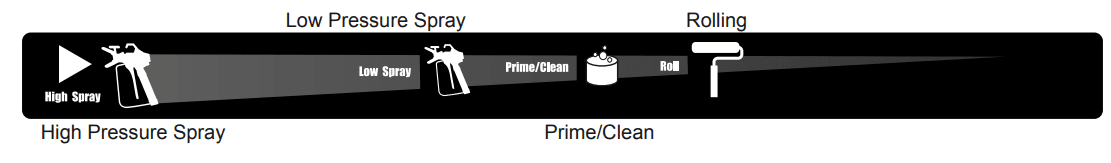

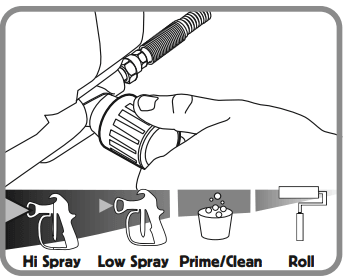

Pressure Control Knob

The Pressure Control Knob can be adjusted for High Pressure Spraying, ow Pressure Spraying, Priming/Cleaning, or Rolling. Align the Pressure ontrol Knob with indicator on the Sprayer Housing to set the function.

KRAUSE BECKER 60600 Airless Paint Sprayer-5

KRAUSE BECKER 60600 Airless Paint Sprayer-6

Setup

Note: Remove or cover objects that you want to protect from overspray (paint mist). Attach the Paint Hose to the Paint Hose Outlet and tighten with a wrench.

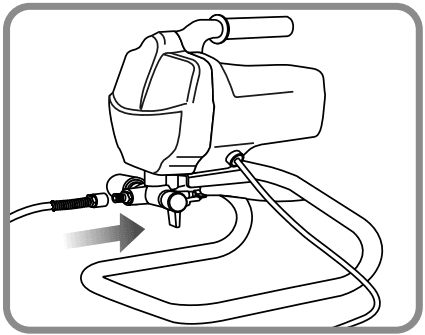

  1. KRAUSE BECKER 60600 Airless Paint Sprayer-7

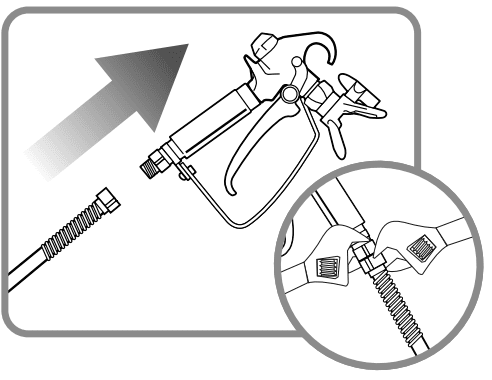

  2. Attach the Paint Hose to the Paint Gun and tighten with two wrenches.KRAUSE BECKER 60600 Airless Paint Sprayer-8

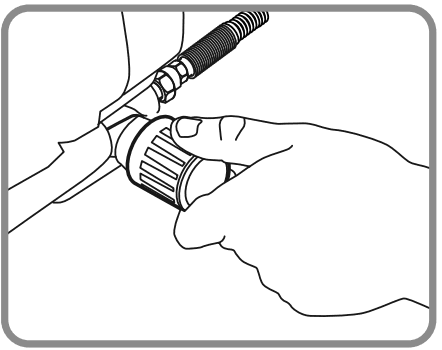

  3. Turn Pressure Control Knob to Low Pressure Spray setting.KRAUSE BECKER 60600 Airless Paint Sprayer-9

To Relieve Sprayer Pressure

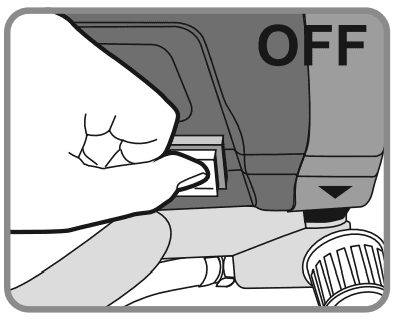

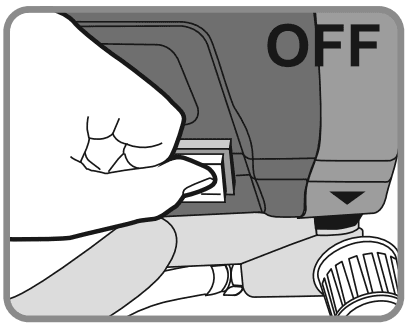

  1. Turn the Power Switch off and unplug the unit from the outlet.KRAUSE BECKER 60600 Airless Paint Sprayer-10
  2. Switch Prime/Spray switch to Prime mode to safely release most pressure.KRAUSE BECKER 60600 Airless Paint Sprayer-11
  3. Point the gun into the paint pail and activate the Sprayer Trigger to relieve any remaining pressure.KRAUSE BECKER 60600 Airless Paint Sprayer-12
  4. Note: Always set to Prime mode between uses.KRAUSE BECKER 60600 Airless Paint Sprayer-13

Priming Spray Gun

This procedure is used for the first time operation and also to flush storage fluids out of the Sprayer.

Priming Water-Based vs. Oil-Based Paints

Oil-based Paint

Flush with mineral spirits, followed by warm, clean water.

WARNING! TO PREVENT FIRE:

When using mineral spirits, ground the gun by holding it against a metal container while flushing.

Water-based (Latex) Paint

Flush with warm, clean water.

Priming and Startup Steps

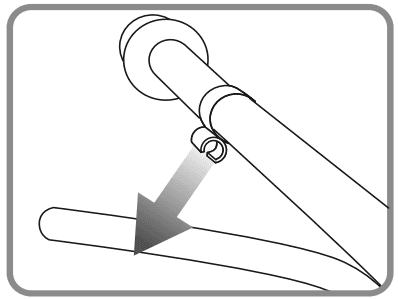

  1. Separate the smaller Priming Tube from the Suction Tube.KRAUSE BECKER 60600 Airless Paint Sprayer-14

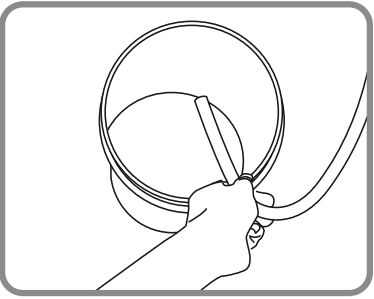

  2. Place the Priming Tube in the waste bucket.KRAUSE BECKER 60600 Airless Paint Sprayer-15

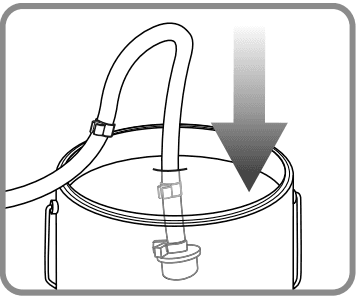

  3. Submerge the Suction Tube in water or flushing solvent.KRAUSE BECKER 60600 Airless Paint Sprayer-17
  4. Turn the Prime/Spray switch to Prime mode.KRAUSE BECKER 60600 Airless Paint Sprayer-18

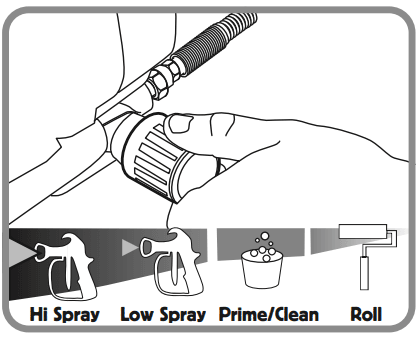

  5. Adjust Pressure Control Knob to Prime/Clean setting.KRAUSE BECKER 60600 Airless Paint Sprayer-19

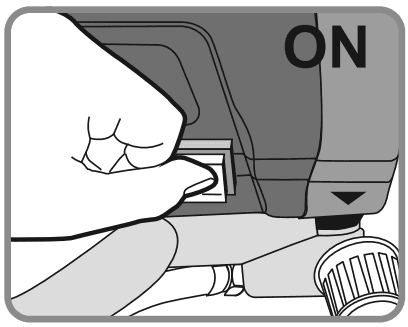

  6. Plug in the Sprayer and turn on the power.KRAUSE BECKER 60600 Airless Paint Sprayer-20
  7. Sprayer will start pumping, and water or flushing solvent, as well as air bubbles, will be purged from the system. Let fluids discharge from the Priming Tube into a waste bucket for 30 to 60 seconds, then switch Power to Off.KRAUSE BECKER 60600 Airless Paint Sprayer-21IMPORTANT: If the solvent does not flow through the hoses, try pressing the red inlet release button underneath the pump to loosen the inlet check ball.

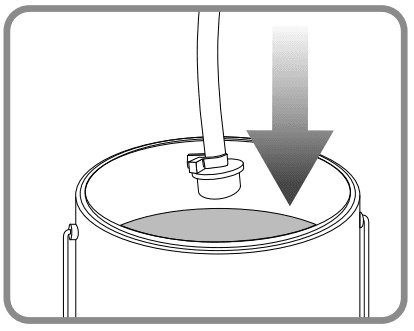

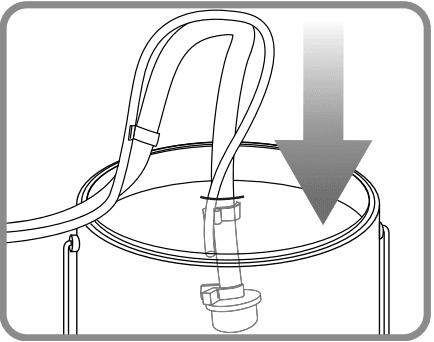

  8. Remove the Suction Tube from water or flushing solvent and submerge it in a paint pail.KRAUSE BECKER 60600 Airless Paint Sprayer-22

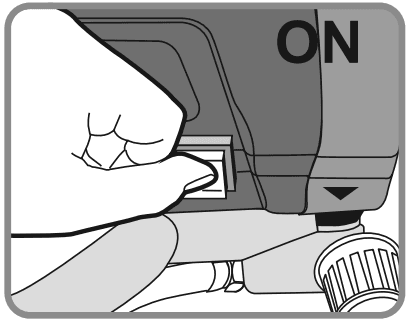

  9. Switch the power on.KRAUSE BECKER 60600 Airless Paint Sprayer-23
  10. Paint should work itself from the Suction Tube to the Sprayer to the Priming Tube until paint discharges from the Priming Tube.KRAUSE BECKER 60600 Airless Paint Sprayer-24
  11. Switch the power off. Remove the Priming Tube from the waste bucket and clip it to the Suction Tube, and submerge it in the paint pail.KRAUSE BECKER 60600 Airless Paint Sprayer-25

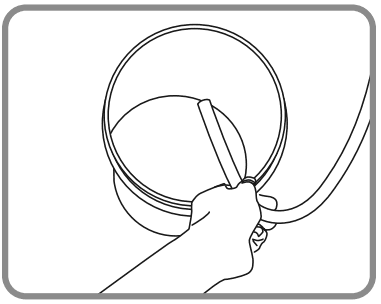

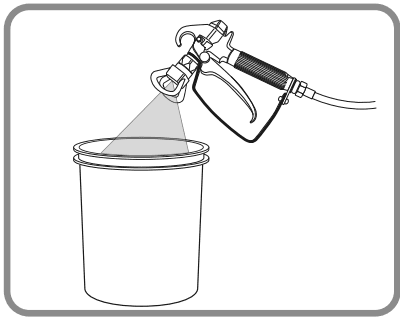

  12. Switch the power on. Point the gun into a waste bucket and pull the trigger.KRAUSE BECKER 60600 Airless Paint Sprayer-26
  13. Turn Spray/Prime Switch to Spray mode and continue to spray into the waste bucket.KRAUSE BECKER 60600 Airless Paint Sprayer-27
  14. Stop spraying. If the motor stops, the pump and tubes are primed. If it does not stop, repeat the priming steps.
  15. Start Painting.

Painting

Before painting, ensure the Sprayer has been primed (see Priming and Startup steps) and verify that the Nozzle Tip is aligned properly.

Note: Remove or cover objects that you want to protect from overspray and paint mist.

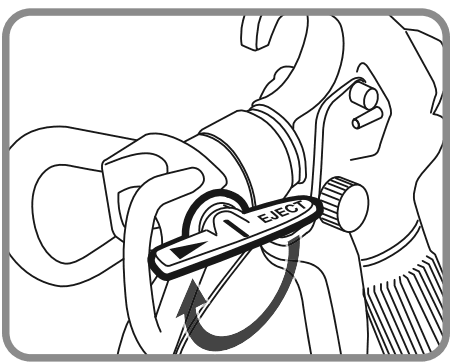

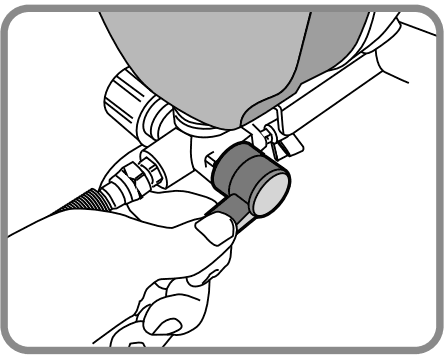

  1. Once primed, adjust nozzle to Spray setting.KRAUSE BECKER 60600 Airless Paint Sprayer-28

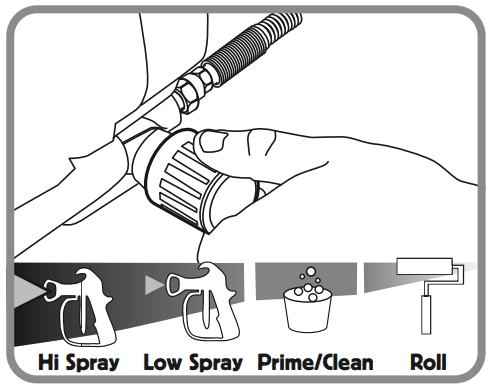

  2. Start spraying at the lowest setting on the Pressure Control Knob and increase pressure as needed by turning clockwise to create a good spray pattern.KRAUSE BECKER 60600 Airless Paint Sprayer-29
  3. Practice the Painting Techniques that follow on a scrap workpiece before painting your workpiece.

Painting Techniques

Before painting, ensure the Sprayer has been primed (see Priming and Startup steps) and verify that the Nozzle Tip is aligned properly. Keep the gun approximately 1 foot from the surface.

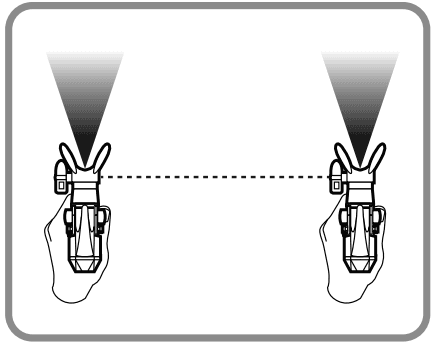

  1. Keep the gun straight and move the arm across at a steady rate while staying one foot from the surface.KRAUSE BECKER 60600 Airless Paint Sprayer-30

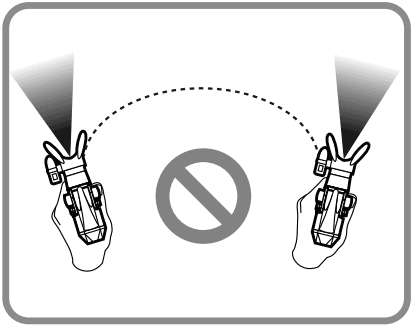

  2. Do not fan the gun, or the paint will be uneven.KRAUSE BECKER 60600 Airless Paint Sprayer-31

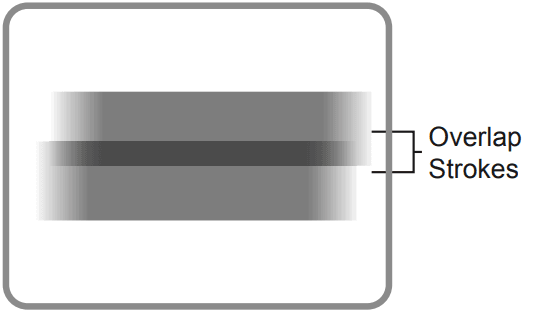

  3. Overlap strokes by half, always aim the stroke at the bottom edge of the last stroke.KRAUSE BECKER 60600 Airless Paint Sprayer-32

Clearing Spray Tip

Occasionally, the Spray Gun Tip will become clogged with paint. Follow these instructions to clear the Spray Gun Tip.

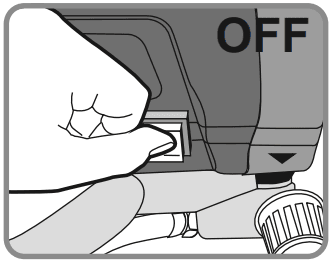

  1. Switch the power off.KRAUSE BECKER 60600 Airless Paint Sprayer-33

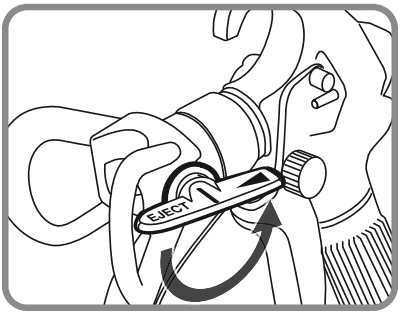

  2. Adjust the nozzle to the eject setting.KRAUSE BECKER 60600 Airless Paint Sprayer-34

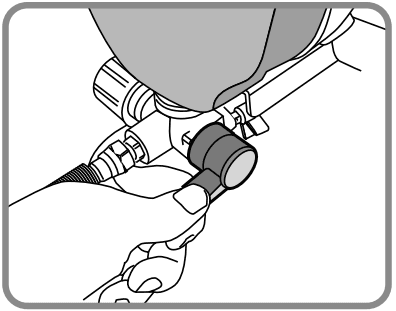

  3. Turn Spray/Prime Switch to Spray mode.KRAUSE BECKER 60600 Airless Paint Sprayer-35

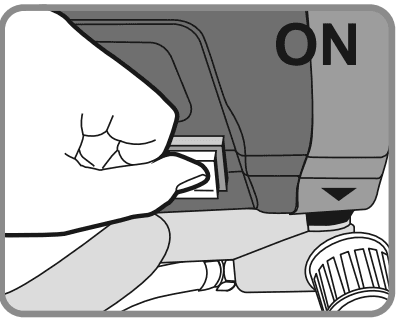

  4. Turn the power on.KRAUSE BECKER 60600 Airless Paint Sprayer-36

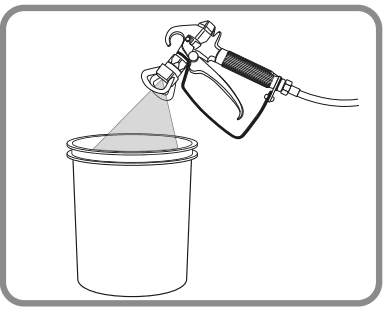

  5. Spray into a waste bucket until the clog clears.KRAUSE BECKER 60600 Airless Paint Sprayer-38
  6. Release Trigger.

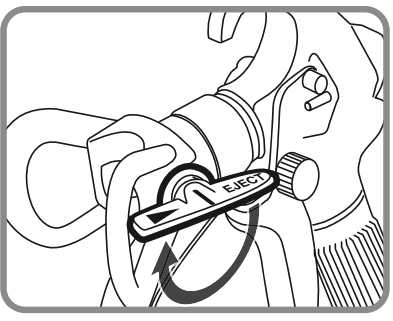

  7. Adjust the nozzle to Spray mode.

KRAUSE BECKER 60600 Airless Paint Sprayer-39

Cleaning

  1. Turn the power off and turn the Prime/Spray switch to Prime mode to relieve pressure.KRAUSE BECKER 60600 Airless Paint Sprayer-40

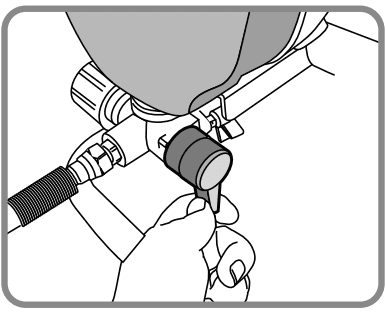

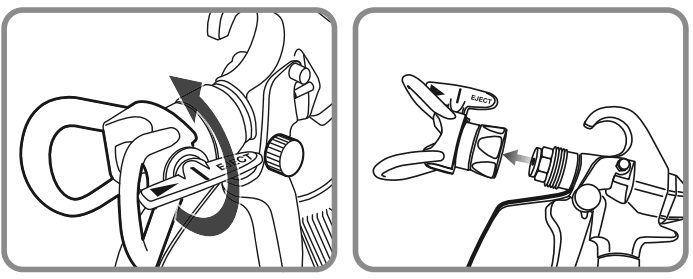

  2. Unthread the Spray Tip and remove.KRAUSE BECKER 60600 Airless Paint Sprayer-41

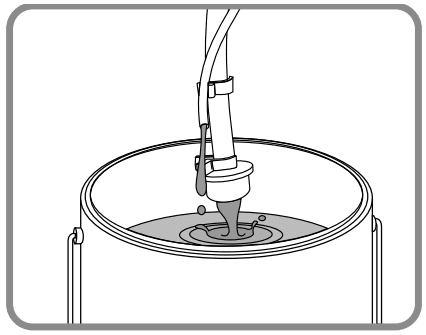

  3. Drain paint from the Tubes.KRAUSE BECKER 60600 Airless Paint Sprayer-42

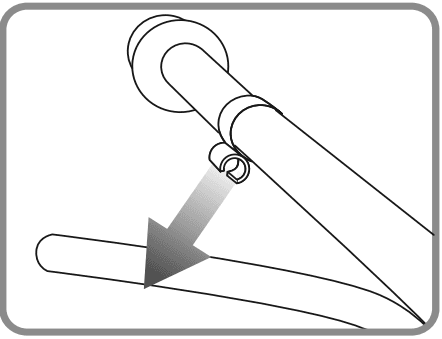

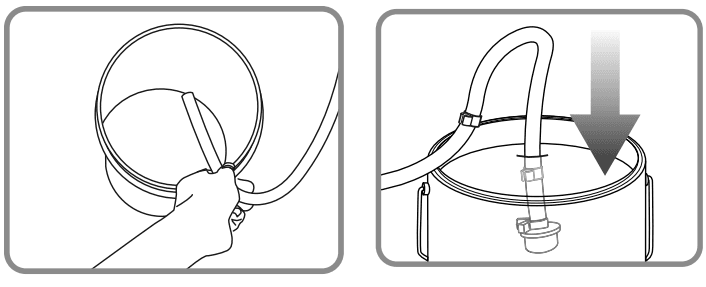

  4. Separate tubes.KRAUSE BECKER 60600 Airless Paint Sprayer-43
  5. Place the Priming Tube in an empty waste bucket and submerge the Suction Tube in water or flushing fluid.KRAUSE BECKER 60600 Airless Paint Sprayer-44
  6. Plug in the Sprayer and turn on the power.
    Sprayer will start pumping, and water or flushing solvent as well as air bubbleses will be purged from the system. Let fluids discharge from the Priming Tube into a waste bucket until the fluid is clear.KRAUSE BECKER 60600 Airless Paint Sprayer-45

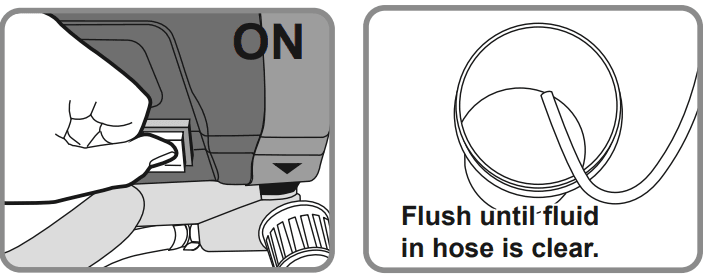

  7. After the fluid in the Priming Tube is clear, switch the Power to Off.KRAUSE BECKER 60600 Airless Paint Sprayer-46

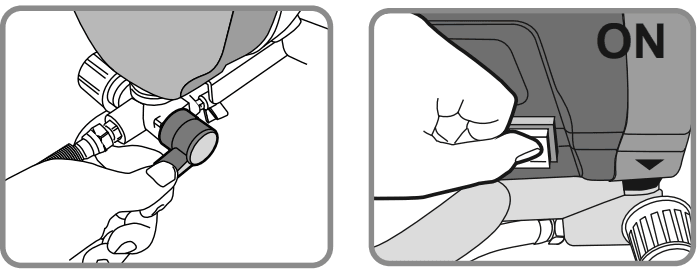

  8. Turn to Spray mode and switch power to on.KRAUSE BECKER 60600 Airless Paint Sprayer-47

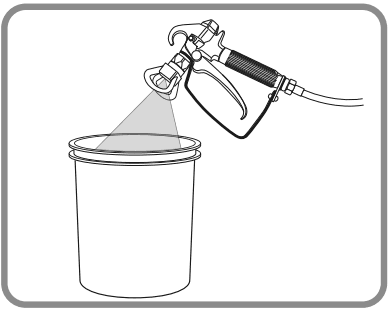

  9. Spray paint into the paint pail.KRAUSE BECKER 60600 Airless Paint Sprayer-26

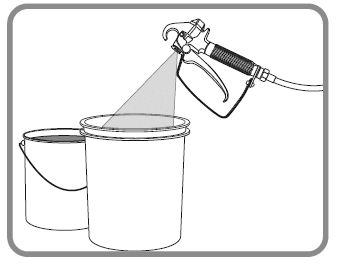

  10. Change to the waste bucket as paint thins.KRAUSE BECKER 60600 Airless Paint Sprayer-61

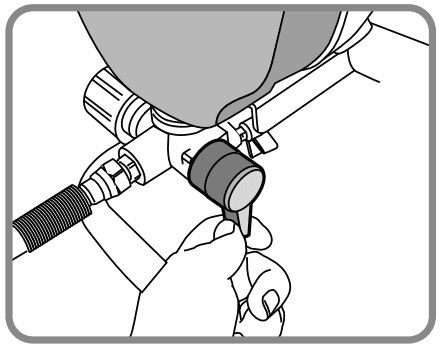

  11. Turn to Prime mode.KRAUSE BECKER 60600 Airless Paint Sprayer-13
  12. Continue to flush until clear.KRAUSE BECKER 60600 Airless Paint Sprayer-26
  13. Release the trigger, turn the power off, and turn the Prime/ Spray switch to Prime mode to relieve pressure.KRAUSE BECKER 60600 Airless Paint Sprayer-21

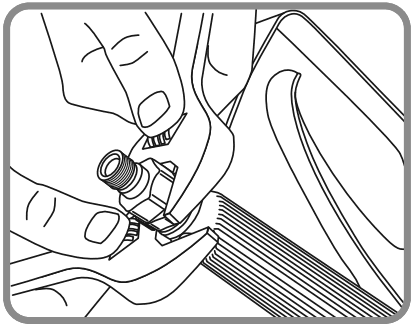

  14. Unscrew the nut from the housing, which is behind the swivel connector.KRAUSE BECKER 60600 Airless Paint Sprayer-48

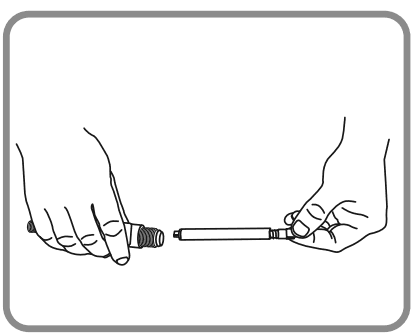

  15. Remove filter.KRAUSE BECKER 60600 Airless Paint Sprayer-49

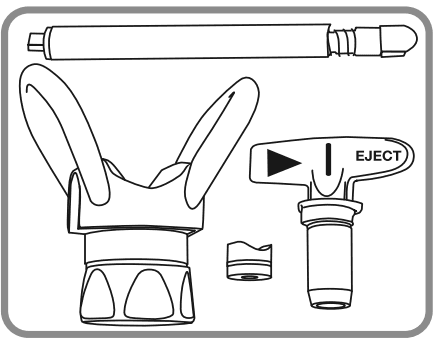

  16. Clean all parts in warm, soapy water or flushing fluid with a bristled brush.KRAUSE BECKER 60600 Airless Paint Sprayer-50

Troubleshooting

The pump will not prime.

Possible Causes

  • Insufficient cleaning left the input valve clogged.

Likely Solutions

  • Press the red inlet release button underneath the pump to loosen the inlet check ball.

Decreased output.

Possible Causes

  • Obstructed trigger.

 Likely Solutions

  • Clean around the trigger to ensure movement.

Inconsistent paint flow, blobs, and splatters.

Possible Causes

  1. Clogged Spray Tip or damaged/clogged Fluid Filter.
  2. Contaminated paint.

Likely Solutions

  1. Clean, adjust, or replace the Spray Tip or Fluid Filter.
  2. Remove paint and filter it.

The painted surface is bumpy or has an orange peel texture.

Possible Causes

  1. The paint is applied too thickly.
  2. Incorrect paint volume.
  3. The paint gun is too far from the paint surface during spraying.

Likely Solutions

  1. Paint must be thinned properly before spraying.
  2. Adjust Fluid Control Knob.
  3. Hold the spray gun closer to the surface during spraying.

Paint sags or runs.

Possible Causes

  1. Excess thinning of paint.
  2. The paint was applied too thickly.
  3. Paint gun too close to the work surface.
  4. Uneven or hesitant motion of the spray gun.
  5. Excess overlapping of each spray stroke.

Likely Solutions

  1. Recheck paint viscosity.
    Add unmixed paint to thicken the mixture.
  2. Apply thinner coats, allowing paint to get tacky between coats.
  3. Move the spray gun further back from the paint surface when applying paint.
  4. Keep the spray gun moving during painting. Hesitations can cause sags or runs.
  5. Overlap each stroke to keep the coverage even, but be aware that you are adding coat thickness by overlapping.

Blotchy surface (blushing) or uneven color.

Possible Causes

  1. The paint dries too slowly.
  2. Uneven paint application.
  3. Work material absorbs paint unevenly.

Likely Solutions

  1. Use less thinner or add a dryer.
  2. Start each stroke off the work material and overlap each stroke consistently.
  3. Use a conditioner or sealer coat before applying the finish coat.

Spots on the surface with a light center (fish eyes).

Possible Causes

  1. The paint mixture is too thin.
  2. Improper primer or incompatible surface.
  3. Surface contamination.

 Likely Solutions

  1. Add undiluted paint to thicken the mixture.
  2. Check the manufacturer’s recommendations for primer or compatible surfaces.
  3. Clean the surface thoroughly with thinner before applying paint.

Spots on the surface with a dark center (contamination).

Possible Causes

  1. Dust or dirt on the surface.
  2. Insufficiently sanded.
  3. Raised grain.

Likely Solutions

  1. Clean the surface with compressed air or a tack cloth before painting.
  2. Sand wood to a sufficiently fine grit before painting.
  3. Wipe wood surface with thinner to raise grain, then sand with fine grit to knock off “hairs”.

Limited 90-Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence, or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to a lack of maintenance.

We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY INSTEADOFF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our discretion, or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement.

We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.

THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Specifications

  • Electrical Input: 120VAC / 60Hz / 7A
  • Motor: 5/8 HP
  • Max. Working Pressure: 3000 PSI
  • Outlet: 1/4″-NPS M
  • Paint Hose: 25′ Long

For more manuals by KRAUSE BECKER, visit ManualsLibraryy

KRAUSE BECKER 60600 Airless Paint Sprayer- FAQs

What is the purpose of an airless paint sprayer?

An airless paint sprayer delivers paint at high pressure through a small nozzle to achieve an even coat quickly and efficiently, without using compressed air.

How does an airless sprayer work?

It pumps paint at high pressure (up to 3300 psi) through a spray tip. The pressure atomizes the paint into a fine mist for smooth and consistent coverage.

What types of spray tips should I use?

Use RAC-X Fine Finish or Low Pressure Switch Tips for precision. For large jobs, WideRAC tips create a wider spray pattern to cover more surface area quickly.

What pressure setting is ideal?

Typically, between 500 psi and 3300 psi. Lower pressure may cause uneven spray, while too much can lead to overspray and premature wear.

Do I need to thin the paint before spraying?

Not usually. Most airless sprayers can handle unthinned oil-based or latex paints. However, check your paint type and manufacturer’s guidance.

When should I use a paint sprayer instead of a roller or brush?

Paint sprayers are ideal for large or detailed projects like walls, fences, cabinets, trim, or furniture—where speed and smooth finish matter.

Is an airless paint sprayer easy to use?

Yes, with a bit of practice. It’s faster than traditional methods and can produce professional results once you understand the technique.

Does using a sprayer waste more paint?

Not necessarily. Airless sprayers are efficient, but using the correct tip size and pressure helps minimize overspray and paint waste.

Can I leave paint in the sprayer overnight?

It’s best to clean it after each use. However, for short breaks (like overnight), you may leave paint inside if stored in a cool, dry place and cleaned soon after.

How do I clean and maintain the sprayer?

Flush the system with water or solvent after each use. Clean filters, tips, and guards thoroughly. Use Pump Armor for corrosion prevention during storage.

Leave a comment

Your email address will not be published. Required fields are marked *
