LEVOIT LAP-C161 Core Mini-P Air Purifier User Manual

LEVOIT LAP-C161 Core Mini-P Air Purifier

Package Contents (1-Pack)

• 1 × Core Mini-P Air Purifier
• 1 × Pre-installed Original Filter
• 1 × Pre-installed Aroma Pad
• 1 × AC Power Adapter
• 1 × User Manual

Package Contents (2-Pack)

• 2 × Core Mini-P Air Purifier
• 2 × Pre-installed Original Filter
• 2 × Pre-installed Aroma Pad
• 2 × AC Power Adapter
• 1 × User Manual

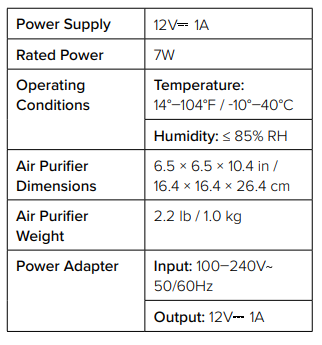

Specifications

SAFETY INFORMATION

To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety

• Only use your air purifier as described in this manual.
• Do not use without removing the plastic wrap from the filter. The air purifier will not filter air, and may overheat, causing a fire hazard.
• Do not use the air purifier outdoors.
• Keep the air purifier away from water, and wet or damp areas. Never place in water or liquid.
• Do not use in excessively humid areas.
• Keep the air purifier away from heat sources.
• Do not use where combustible gases, vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present.
• Keep 5 ft / 1.5 m away from where oxygen is being administered.
• Supervise children when they are near the air purifier. Do not allow children to play with the air purifier.
• Do not place anything into any opening in the air purifier.
• Do not sit on or place heavy objects on the air purifier.
• Keep the inside of the air purifier dry. To prevent moisture buildup, avoid placing in rooms with major temperature changes or underneath air conditioners.
• Always unplug the air purifier before servicing (such as changing the filter).
• Do not add essential oils to the filter. The filter will be damaged by the oil and will eventually release an unpleasant smell. Only add essential oils (not included) to the aroma box near the top of the air purifier.
• Do not use the air purifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer Support (see page 11).
• WARNING: To reduce the risk of fire or electric shock, do not use this air purifier with any solid-state speed controls (such as a dimmer switch).
• Children should not clean or perform maintenance on the air purifier without supervision.
• This air purifier is not to be used by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Not for commercial use. Household use only.

Power Adapter & Cord

• Keep the air purifier near the outlet it is plugged into.
• Never place the cord near any heat source.
• Do not cover the cord with a rug, carpet, or other covering. Do not place the cord under furniture
  or appliances.
• Keep the cord out of areas where people walk often. Place the cord where it will not be tripped over.
• This air purifier uses standard North American 120V, 60Hz outlets. If using outside the US or Canada, check for compatibility.
• If the power adapter cord is damaged, it must be replaced by Arovast Corporation or similarly qualified persons to avoid an electric or fire hazard. Please contact Customer Support (page 11).

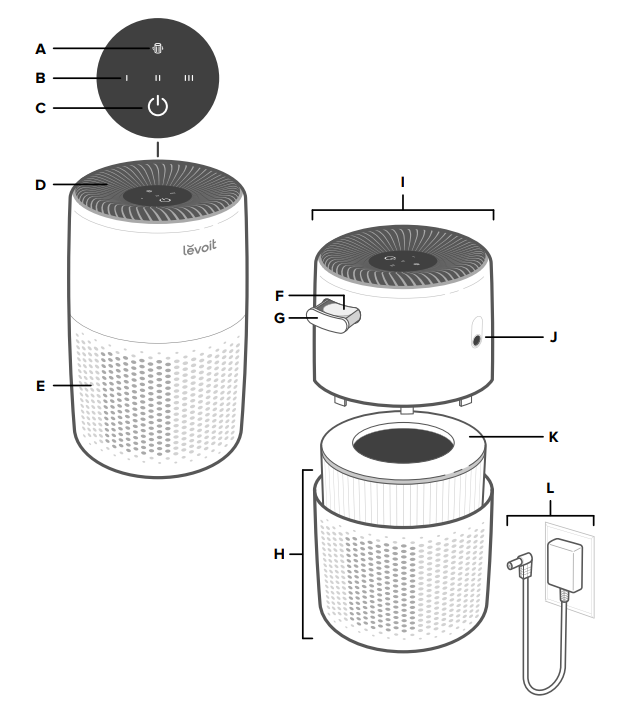

GETTING TO KNOW YOUR AIR PURIFIER

• A. Check Filter Indicator
• B. Fan Speed Indicators
• C. Control Button
• D. Air Outlet
• E. Air Inlets
• F. Aroma Pad
• G. Aroma Box
• H. Air Purifier Bottom
• I. Air Purifier Top
• J. AC Power Adapter Input
• K. Original Filter
• L. AC Power Adapter

GETTING STARTED

IMPORTANT:

• The AC power adapter comes stored inside the air purifier.
• You must remove the plastic from the filter before using.

1. Remove all packaging, including any tape on the aroma box (see page 8).

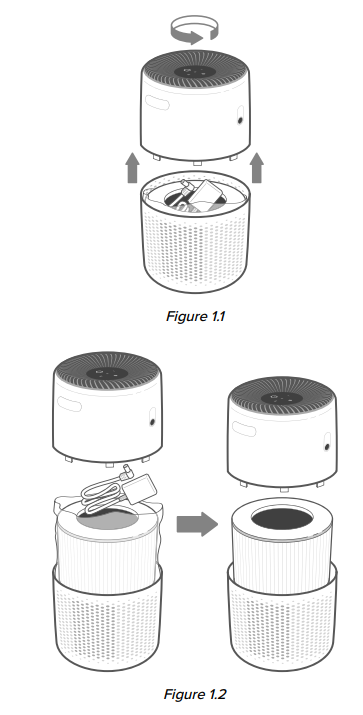

2. Rotate the top half of the air purifier counterclockwise and remove it from the bottom half. [Figure 1.1]
3. Remove the filter and AC power adapter from inside the air purifier. Remove all plastic packaging from the filter. Place the filter back into the air purifier. [Figure 1.2]

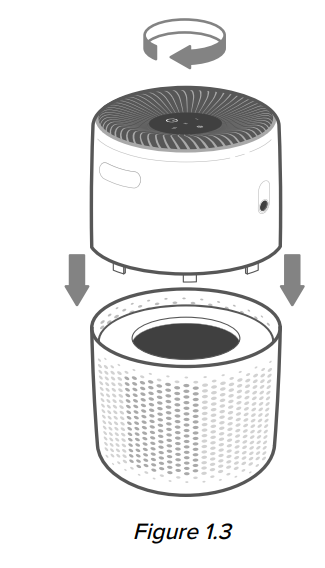

4. Place the top half of the air purifier directly back onto the bottom half of the air purifier. Rotate clockwise to secure both halves in place. [Figure 1.3]
5. Connect the AC power adapter to the air purifier. Plug into an outlet.

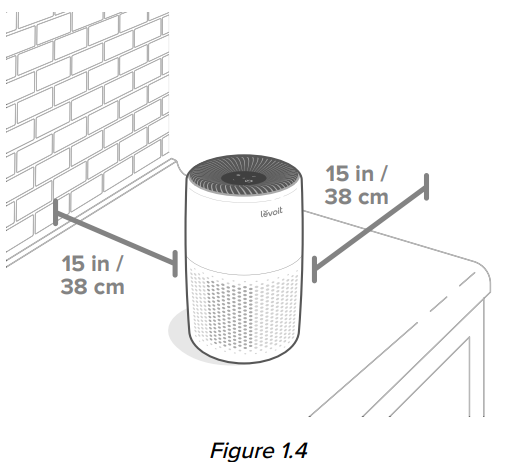

6. To allow air to circulate freely in and out of the air purifier, there should ideally be 15 inches / 38 cm of clearance on all sides of the air purifier. [Figure 1.4]

USING YOUR AIR PURIFIER

WARNING: Make sure the air outlet and the air inlets are not blocked. This may cause the air purifier to overheat and stop working.

1. Tap the Control Button to turn on the air purifier.
2. Optionally, press the Control Button repeatedly to change fan speed between I, II, and III, and to turn the air purifier off.

Note: The display lights will automatically turn off after 60 seconds of inactivity.

Essential Oils

Do not add essential oils to the filter or the fan. The filter will be damaged by the oil and will eventually release an unpleasant smell. Only add essential oils to the aroma pad, located in the aroma box near the top of the air purifier.

Note: Essential oils are not included.

Adding Essential Oils

1. Push in the aroma box and pull it out.
2. Add 5–7 drops of essential oil to the aroma pad.
3. Place the aroma box back into the air purifier.

Note: Do not mix essential oil blends. Clean the aroma pad before using a new essential oil blend (see Cleaning the Aroma Pad, page 8).

Humidity

Moisture may damage the filter. This air purifier should be used in an area with a humidity level below 85% RH. If you use the air purifier in excessively humid areas, the surface of the filter may become moldy.

Note: Water or moisture will allow mold to grow. To solve a mold problem, get rid of the source of the moisture and clean up the mold.

CARE & MAINTENANCE

Cleaning the Air Purifier

1. Unplug before cleaning.
2. Wipe the outside of the air purifier with a soft, dry cloth. If necessary, wipe with a damp cloth, then immediately dry.
3. Vacuum the inside of the air purifier using a vacuum hose with a crevice attachment. [Figure 2.1]

Cleaning the Filter

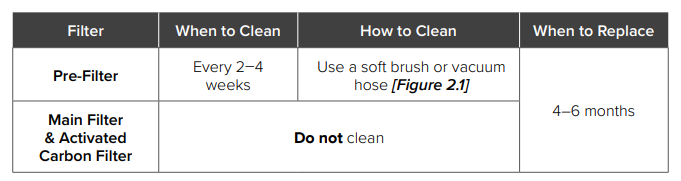

The outer pre-filter should be cleaned every 2–4 weeks to increase efficiency and extend the life of your filter. Clean the pre-filter using a soft brush or vacuum hose to remove hair, dust, and large particles. Do not clean the filter with water or other liquids.

Check Filter Indicator

will light up as a reminder to check the filter. Depending on how often you use the air purifier, the indicator should turn on after about 4–6 months. You may not need to change your filter yet, but you should check it whenturns on.

Resetting the Check Filter Indicator

Reset the Check Filter Indicator when:

• lights up red.
  1. Replace the filter (see page 8).
  2. With the air purifier plugged in and the fan turned off, press and hold the Control Button for 3 seconds.
  3. will blink 3 times and turn off when successfully reset.
• The filter was changed beforelit up.
  1. With the air purifier plugged in and the fan turned off, press and hold the Control Button for 3 seconds. This will turn on.
  2. Press and hold the Control Button again for 3 seconds.
  3. will blink 3 times and turn off when successfully reset.

When Should I Replace the Filter?

The filter should be replaced every 4–6 months. You may need to replace your filter earlier or later, depending on how often you use your air purifier. Using your air purifier in an environment with relatively high pollution may mean you will need to replace the filter more often, even if itis off. You may need to replace your filter if you notice:

• Increased noise when the air purifier is on
• Decreased airflow
• Unusual odors
• A visibly clogged filter

Note:

• To maintain the performance of your air purifier, only use official Levoit filters. For more information, contact Customer Support (see page 11).
• Remember to resetafter changing the filter (see page 7).

Replacing the Filter

1. Unplug and pick up the air purifier. Separate the two halves of the air purifier (see Getting Started, page 5).
2. Remove the old filters.
3. Clean out any remaining dust or hair inside the air purifier using a vacuum hose.
   Note: If you remove and set aside the top half of the air purifier, you can use water to clean the bottom half of the air purifier. Do not use water or liquids to clean the top half of the air purifier. [Figure 2.2]
4. Unwrap the new filter and place it into the bottom half of the air purifier (see Getting Started, page 5).
5. Put the two halves of the air purifier securely back together. Plug in the air purifier.
6. Reset the Check Filter Indicator (see page 7).

Cleaning the Aroma Pad

For effective aromatherapy, the aroma pad should always be cleaned before using a new essential oil blend. Do not mix essential oil blends. To clean:

1. Remove the aroma box by pressing it in, then pulling it out.
2. Remove the aroma pad and rinse under warm, running water.
3. Dry with a clean cloth and place it back into the aroma box.
4. Place the aroma box back inside the air purifier.

Note: Do not pour liquid cleaners or detergents into the aroma pad or box.

Replacing the Aroma Pad

If the aroma pad becomes deformed or damaged after repeated washing, it may need to be replaced. To maintain the performance of your air purifier, only use official Levoit aroma pads. For more information, contact Customer Support (see page 11).

Storage

If not using the air purifier for an extended period of time, wrap both the air purifier and the filter in plastic packaging and store in a dry place to avoid moisture damage.

TROUBLESHOOTING

If your problem is not listed, please contact Customer Support (see page 11).

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT – PART 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

WARRANTY INFORMATION

Terms & Policy

Arovast Corporation (“Arovast”) warrants this product to the original purchaser to be free from defects in material and workmanship, under normal use and conditions, for a period of 2 years from the date of original purchase. Arovast agrees, at our option during the warranty period, to repair any defect in material or workmanship or furnish an equal product in exchange without charge, subject to verification of the defect or malfunction and proof of the date of purchase. There is no other express warranty. This warranty does not apply:

• If the product has been modified from its original condition;
• If the product has not been used in accordance with directions and instructions in the user manual;
• To damages or defects caused by accident, abuse, misuse or improper or inadequate maintenance;
• To damages or defects caused by service or repair of the product performed by an unauthorized service provider or by anyone other than Arovast;
• To damages or defects occurring during commercial use, rental use, or any use for which the product is not intended;
• To damages or defects exceeding the cost of the product.

Arovast will not be liable for indirect, incidental, or consequential damages in connection with the use of the product covered by this warranty. This warranty extends only to the original consumer purchaser of the product and is not transferable to any subsequent owner of the product, regardless of whether the product is transferred during the specified term of the warranty. This warranty does not extend to products purchased from unauthorized sellers. Arovast’s warranty extends only to products purchased from authorized sellers that are subject to Arovast’s quality controls and have agreed to follow its quality controls. All implied warranties are limited to the period of this limited warranty. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. If you discover that your product is defective within the specified warranty period, please contact Customer Support via support@levoit.com. DO NOT dispose of your product before contacting us. Once our Customer Support Team has approved your request, please return the product with a copy of the invoice and order ID. Every Levoit product automatically includes a 2-year limited warranty. To make the customer support process quick and easy, register your product online at www.levoit.com/warranty.

CUSTOMER SUPPORT

If you have any questions or concerns about your new product, please contact our helpful Customer Support Team.

• Distributed by Arovast Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806, USA
• Email: support@levoit.com
• Toll-Free: 1-888-726-8520
