Levoit Vital 100S Smart True HEPA Air Purifier User Manual

Levoit Vital 100S Smart True HEPA Air Purifier

Package Contents

1 x Smart Air Purifier
1 x Washable Pre-Filter (Pre-Installed)
1 x True HEPA / Activated Carbon Filter (Pre-Installed)
1 x User Manual
1 x Quick Start Guide
1 x AC Power Adapter

Specifications

Model	LAP-V102S-WUS
Power Supply	24V 1.5A
Rated Power	35W
Ideal Room Size	219 ft² / 20 m² • This Ideal Room Size is based on 5 air changes per hour (ACH). 548 ft² / 50 m² • This Ideal Room Size is based on 2 air changes per hour (ACH). Note: Effective for larger rooms but purification will take longer.
CADR (CFM)	141 CFM / 240 m3/h
Operating Conditions	Temperature: 14°–104°F / -10°–40°C
Operating Conditions	Humidity: ≤ 85% RH
Noise Level	23–52dB
Dimensions	12.8 x 6.4 x 16.1 in / 32.5 x 16.3 x 41 cm
Weight	7 lb / 3.4 kg
Power Adapter	Input: 100–240V~ 50/60Hz Output: 24V 1.5A

Note: To access additional smart functions, download the free VeSync app (see page 9).

SAFETY INFORMATION

To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety

Only use your air purifier as described in this manual.
Do not use without removing the plastic wrap from the filter. The air purifier will not filter air and may overheat, causing a fire hazard.
Do not use your air purifier outdoors.
Keep your air purifier away from water, and wet or damp areas. Never place in water or liquid.
Do not use in excessively humid areas.
Keep your air purifier away from heat sources.
Do not use where combustible gases, vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present.
Keep 5 ft / 1.5 m away from where oxygen is being administered.
Children should be supervised to ensure that they do not play with the air purifier.
Do not allow children to play with the plastic packaging. Immediately discard the plastic after unwrapping the filter.
Do not place anything into any opening on the air purifier.
Children should be supervised to ensure they do not insert fingers or objects into the vent openings.
Do not sit or place heavy objects on the air purifier.
Keep the inside of the air purifier dry. To prevent moisture buildup, avoid placing in rooms with major temperature changes.
Always unplug your air purifier before servicing (such as changing the filter).
Do not use your air purifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer Support (see page 26).
WARNING: To reduce the risk of fire or electric shock, do not use this air purifier with any solid-state speed controls (such as a dimmer switch).
Children should not clean or perform maintenance on the air purifier without supervision.
This air purifier is not to be used by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Not for commercial use. Household use only.

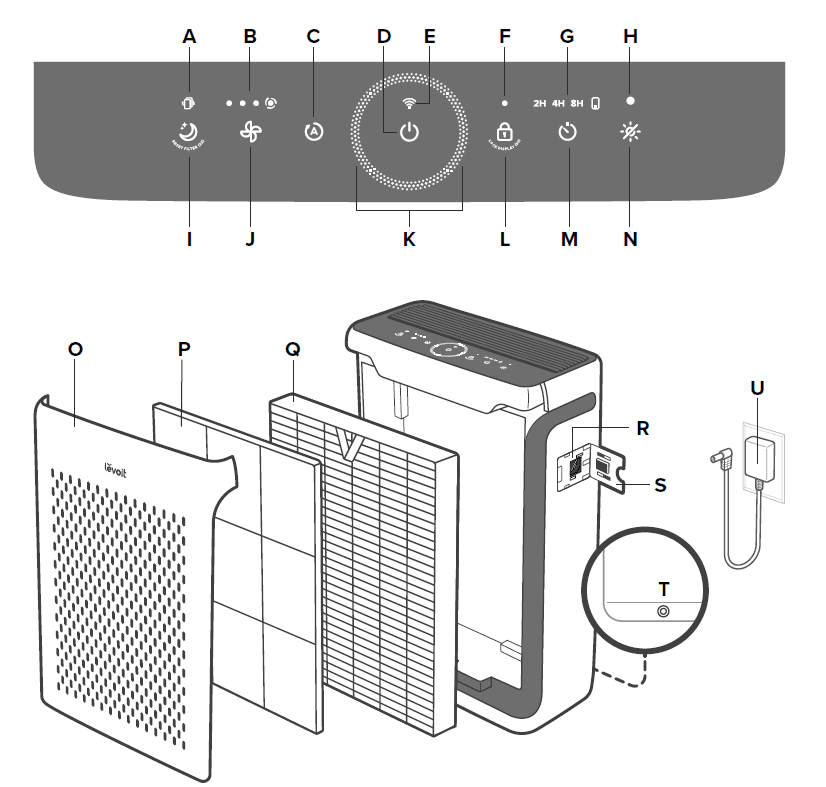

GETTING TO KNOW YOUR SMART AIR PURIFIER

A. Check Filter Indicator
B. Fan Speed Indicators
C. Auto Mode Button
D. On/Off Button
E. Wi-Fi® Indicator
F. Display Lock Indicator
G. Timer Indicators
H. Light Sensor
I. Sleep Mode Button
J. Fan Speed Button
K. Air Quality Indicator
L. Display Lock Button
M. Timer Button
N. Display Off Button
O. Front Cover
P. Washable Pre-Filter
Q. True HEPA / Activated Carbon Filter
R. AirSight™ Infrared Dust Sensor
S. Dust Sensor Cover
T. Power Adapter Input
U. Power Adapter

GETTING STARTED

Place the air purifier on a flat, stable surface such as the floor.
Pull both sides of the front cover to remove it. [Figure 1.1]

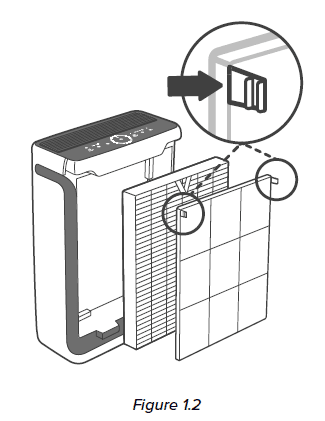

Push the pre-filter’s tabs inward and pull to remove the pre-filter from the air purifier. [Figure 1.2]

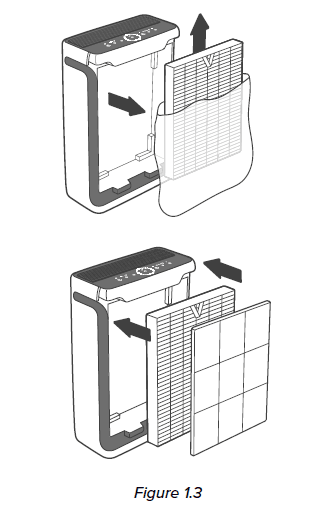

Remove the True HEPA / Activated Carbon Filter from inside the air purifier.
Remove the plastic packaging from the filter and place the filter and the pre-filter back into the air purifier. [Figure 1.3]Note: Make sure the True HEPA filter (the side with the ribbon handle) is facing outward when you insert the filter. [Figure 1.4]

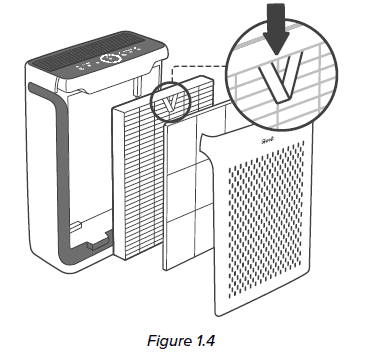

Place the front cover on the air purifier. Make sure to align the tabs on the cover with the slots on the bottom of the air purifier. [Figure 1.5]
Insert the power adapter plug into the back of the air purifier. [Figure 1.6]

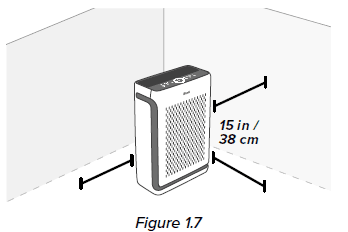

When using the air purifier, allow at least 15 inches / 38 cm of clearance from the front of the air purifier. Keep away from anything that would block air flow, such as curtains. [Figure 1.7]

VeSync App Setup

Note: The VeSync app is continually being improved and may change over time. If there are any differences, follow the in-app instructions.

To download the VeSync app, scan the QR code or search “VeSync” in the Apple App Store® or Google Play Store.Note: For Android™ users, choose “Allow” to use VeSync.
Open the VeSync app. Log In or Sign Up.
Follow the in-app instructions to set up your smart air purifier.

Wi-Fi® Connection

To disconnect Wi-Fi, press and holdfor 15 seconds until the Wi-Fi indicator turns off. This will restore the smart air purifier’s default settings and disconnect it from the VeSync app.
To reconnect, please follow the instructions in the VeSync app for adding a device.

Connect with Amazon Alexa or Google Assistant™

You can use the VeSync app to connect your smart air purifier to Amazon Alexa or Google Assistant™. Please follow the in-app instructions to set up your voice assistant.

Note: You must create your own VeSync account to access voice assistants.

USING YOUR SMART AIR PURIFIER

Note: Using the VeSync app allows you to control your air purifier remotely and access additional functions and features (see page 13).

Plug in and tapto turn on the air purifier. The fan will start on low.
Tapto change fan speed between low, medium, high, and turbo.

Note:

The fan speed indicators are not buttons and only display the fan speed setting.
The fan speed indicators will light up when active, 1 indicator will light up for low, 2 for medium, 3 for high, and 4 for turbo.
Turbo fan speed (4 indicator lights) is the loudest, but cleans air the quickest.
For best results, or to address a specific air quality issue such as smoke, run the air purifier on turbo for 15–20 minutes before using a lower speed.
To effectively clean air, keep windows and doors closed while the air purifier is on.

Sleep Mode

Sleep Mode operates quietly by using a fan speed lower than low speed.

Tapto turn Sleep Mode on.
Sleep Mode will turn off the display after 6 seconds if no other buttons are tapped.
To switch from Sleep Mode, tap Auto Mode or select a fan speed on the air purifier’s display or in the VeSync app.

Note:

When the display is turned off, tap any button to turn the display back on. If you don’t tap another button, the display will turn off again after 6 seconds.
will still turn on and stay on if it’s time to check your filter (see page 17).

Auto Mode

Auto Mode uses AirSight™, an infrared dust sensor inside the air purifier, to adjust the fan speed automatically based on air quality. For example, if the air quality is bad, the fan will automatically be set to high speed.

Tapto turn Auto Mode on.
will light up while Auto Mode is on.
To switch from Auto Mode, tap Sleep Mode or select a fan speed on the air purifier’s display or in the VeSync app.

Air Quality Indicator Chart
Indicator Color	Air Quality	Auto Mode Fan Speed
Blue	Very Good	Sleep Mode
Green	Good	Low
Orange	Moderate	Medium
Red	Bad	High

Note:

Auto Mode does not use the turbo fan speed.
The VeSync app also supports Efficient Auto Mode and Quiet Auto Mode (see page 14).

Light Detection

You can turn on/off Light Detection in the VeSync app. When this mode is turned on, the light sensor will automatically adjust air purifier settings based on the amount of light in the room.

The display will automatically turn off when the room gets dark. If the air purifier is in Auto Mode or Pet Mode, it will not use the high or turbo fan speeds, even if the air quality is poor, to avoid making too much noise.
When the room becomes light again, the air purifier will return to its previous settings. The display will automatically turn back on, and Auto Mode will no longer be limited.

Timer

You can manually set the timer for 2, 4, or 8 hours using thebutton. You can also set the timer for 1–24 hours through the VeSync app.

Taprepeatedly to select a time. The timer will start automatically.
To cancel the timer, tapuntil all timer indicators are off. You can also turn the timer off in the VeSync app.

Note:

You can change the fan speed at any time while the timer is on.
The timer will restart if the time is changed.

Display Off

This turns off the display lights on the air purifier, including button lights and indicator lights (except the Check Filter Indicator).

Tapto turn off the display.
Tap any button to temporarily turn the display back on. If you don’t tap another button, the display will turn back off after 6 seconds.
Tapto turn the display back on. The display will stay on.

Note: The Check Filter Indicator will still turn on and stay on if it’s time to check your filter (see page 17).

Display Lock

When the air purifier is on, you can lock the display to prevent settings from being accidentally changed. Buttons will not respond to being tapped.

Press and holdfor 3 seconds to lock the display. The Display Lock Indicator will light up above thebutton.
The Display Lock Indicator will blink when any other button is tapped to indicate that Display Lock is on.
Press and holdagain for 3 seconds to unlock the display. The Display Lock Indicator will turn off.

Standby Mode

The air purifier is in Standby Mode when it is turned off, but plugged in.

Note:

In Standby Mode, the infrared dust sensor will still detect the surrounding air quality and give you updates in the VeSync app.
Display Lock (available in the VeSync app) can be used while the air purifier is in Standby Mode to keep the air purifier from being turned back on.

Memory Function

When the air purifier is in standby or turned off and unplugged, it will remember its previous fan speed, Sleep Mode, Auto Mode, Pet Mode, and in-app Display and Light Detection settings.

Note: The air purifier will not remember timers.

ABOUT THE FILTER

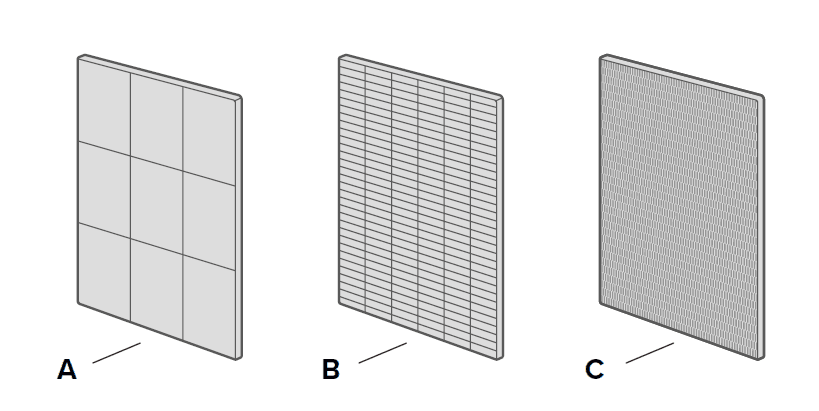

The air purifier uses a 3-stage filtration system to purify the air.

A. Washable Pre-Filter

Captures large particles such as dust, lint, fibers, hair, and pet fur.
Maximizes the filter’s life by protecting it.
Removable and washable to increase filtering efficiency (see Cleaning the Pre-Filter, page 18).

B. H13 True HEPA Filter

HEPASmart™ Technology uses statically charged fibers to capture viruses and bacteria with greater efficiency.
Traps at least 99.97% of airborne particles 0.3 microns in size.
Filters small particles such as fine dust, smoke particles, and allergens such as pollen and pet dander.

C. High-Efficiency Activated Carbon Filter

Physically adsorbs smoke, odors, and fumes.
Filters compounds such as formaldehyde, benzene, ammonia, hydrogen sulfide, and volatile organic compounds (VOCs).

COVID-19 Disclaimer

According to the CDC, portable HEPA filtration units that combine a HEPA filter with a powered fan system are effective at cleaning air within spaces to reduce the concentration of airborne particulates, including SARS-CoV-2 (COVID-19) viral particles.

CARE & MAINTENANCE

Cleaning the Smart Air Purifier

Unplug before cleaning.
Wipe the outside of the air purifier with a soft, dry cloth. If necessary, wipe the housing with a damp cloth, then immediately dry.
Vacuum the inside of the air purifier.
Do not clean with abrasive chemicals or flammable cleaning agents.

Check Filter Indicator

will light up as a reminder to check the filter. Depending on how often you use the air purifier, the indicator should turn on after about 9 months. You may not need to change your filter yet, but you should check it whenlights up.

When your air purifier is set up with the VeSync app, you can also check the app to see the remaining filter life. You will also receive a notification from VeSync when it’s time to check your filter.

Note: The VeSync app uses a scientific algorithm to determine your filter life based on air quality, amount of use, and other factors. The filter life percentage is based on 12 hours of daily use.

Cleaning the Pre-Filter

The Washable Pre-Filter should be cleaned every 2–4 weeks to increase efficiency and extend the life of your filter. You can set a reminder in the VeSync app to clean the pre-filter every 2, 3, or 4 weeks. Clean the pre-filter using a soft brush or vacuum hose to remove hair, dust, and large particles. Optionally, you can wash the pre-filter with water and a mild detergent to remove dirt and dust.

Note: Avoid scrubbing, scraping, or vigorously brushing the pre-filter. Do not use abrasive cleaning materials.

To wash the pre-filter:

Turn off the air purifier.
Open the front cover
Push the pre-filter’s tabs inward and pull to remove the pre-filter.

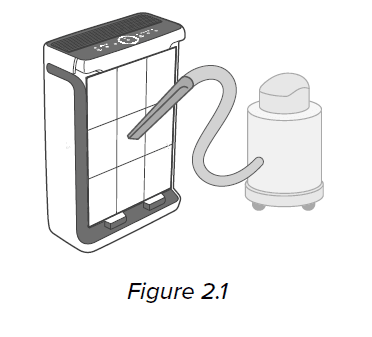

Clean the surface of the pre-filter with a vacuum. [Figure 2.1]
Rinse the pre-filter with water under a faucet.

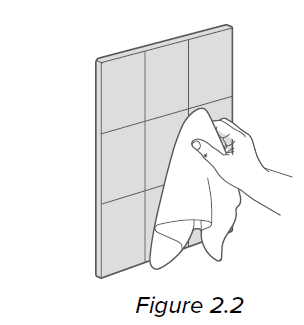

Wash the pre-filter with mild detergent and a soft cloth. [Figure 2.2]

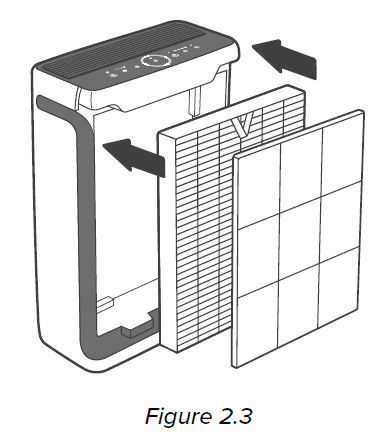

Allow the pre-filter to air-dry. Once completely dry, place the pre-filter back into the air purifier. [Figure 2.3]

Filter	When to Clean	How to Clean	When to Replace
Washable Pre-Filter	Every 2–4 weeks	Use a soft cloth or vacuum hose	Does not need to be replaced
		Wash with water and mild detergent
True HEPA / Activated Carbon Filter	Do not clean		9–12 months

Cleaning the Dust Sensor

It is recommended to clean the AirSight™ Infrared Dust Sensor lens every 2 months to help maintain the efficiency of the sensor. If the Air Quality Indicator is red (indicating “Bad” air quality) more than usual, you may need to clean your dust sensor.

Note: How often you clean the dust sensor will depend on the air quality of your environment. If your air is often polluted with dust, dander, smoke, and other particles, you may need to clean your dust sensor more often.

Unplug the air purifier.

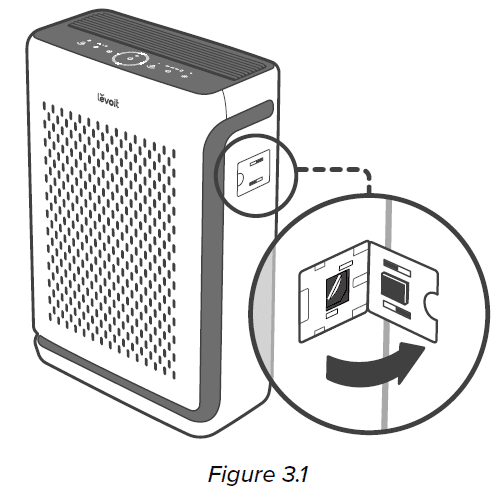

Open the dust sensor cover. [Figure 3.1]

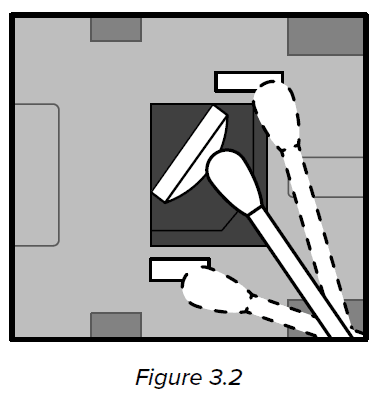

Use a cotton swab dipped in water to clean the dust sensor lens. [Figure 3.2]
Wipe the lens dry with a dry cotton swab.
Replace the dust sensor cover.

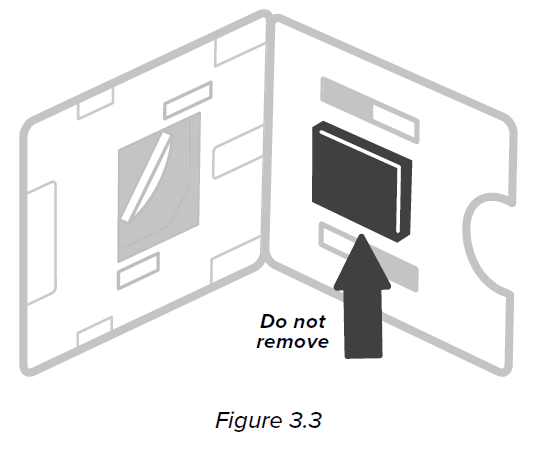

Note: Do not remove the foam piece attached to the dust sensor cover unless instructed by Customer Support. [Figure 3.3]

Storage

If not using the air purifier for an extended period of time, wrap both the air purifier and the filter in plastic packaging and store in a dry place to avoid moisture damage.

TROUBLESHOOTING

Problem	Possible Solution
Air purifier will not turn on or respond to button controls.	Plug in the air purifier.
	Check to see if the power cord is damaged. If it is, stop using the air purifier and contact Customer Support (see page 26).
	Plug the air purifier into a different outlet.
	The air purifier may be malfunctioning. Contact Customer Support (see page 26).
Airflow is significantly reduced.	Make sure the filter is removed from its packaging and properly in place (see page 7).
	Tap to increase the fan speed.
	Leave 15 inches / 38 cm of clearance from the front of the air purifier.
	The pre-filter may be clogged by large particles, such as hair or lint, blocking airflow. Clean the pre-filter (see page 18).
	Replace the filter (see page 19).
Air purifier makes an unusual noise while the fan is on.	Make sure the filter is properly in place with plastic packaging removed (see page 7).
	Make sure the air purifier is operating on a hard, flat, level surface.
	Replace the filter (see page 19).
	The air purifier may be damaged, or a foreign object may be inside. Stop using the air purifier and contact Customer Support (see page 26). Do not try to repair the air purifier.
Poor air purification quality.	Tapto increase the fan speed.
	Make sure no objects are blocking the front, sides, or top of the air purifier (the inlet or outlet).
	Make sure the filter is removed from its packaging and properly in place (see page 7).
	Close doors and windows while using the air purifier.
	If the room is larger than 219 ft² / 20 m², air purification will take longer.
	Replace the filter (see page 19).

Problem	Possible Solution
Strange smell coming from the air purifier.	Clean the filter, or replace if necessary.
	Contact Customer Support (see page 26).
	Make sure not to use your air purifier in an area with high humidity or while diffusing essential oils.
Air Quality Indicator always stays blue, even when the air quality is poor.	Clean the dust sensor lens (see page 20).
	The dust sensor detects airborne particles, but it cannot detect gas. Make sure there aren’t gasses polluting the air.
Air Quality Indicator always stays red.	Clean the dust sensor lens (see page 20).
Air Quality Indicator always stays red.	If you’re using an ultrasonic humidifier near the air purifier, the mist may affect the accuracy of the dust sensor. The dust sensor will detect the large mist particles, and the Air Quality Indicator may turn red. Avoid using an ultrasonic humidifier near the air purifier, or avoid using Auto Mode.
Air purifier randomly turns off.	Air purifier is malfunctioning. Stop using the air purifier and contact Customer Support (see page 26).
is still on after replacing the filter.	Reset the Check Filter Indicator (see page 17).
has not turned on after 9 months.	is a reminder for you to check the filter and will light up based on how much the air purifier has been used, as well as other factors (see page 17). If you don’t use your air purifier often,will take longer to turn on.
turned on before 9 months.	is a reminder for you to check the filter and will light up based on how much the air purifier has been used, as well as other factors (see page 17). If you run your air purifier frequently, will turn on sooner.

If your problem is not listed, please contact Customer Support (see page 26).

For more manuals by Levoit, visit ManualsLibraryy

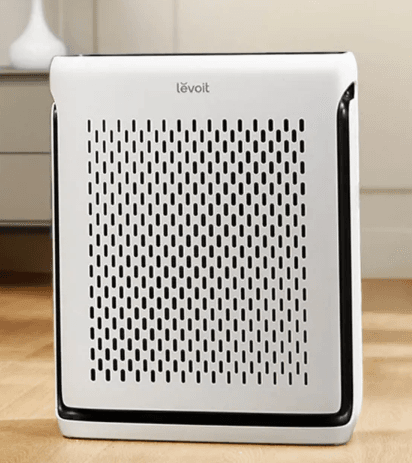

Levoit Vital 100S Smart True HEPA Air Purifier User Manual
