LG 55LF6100 LED TV Setup Guide

LG 55LF6100 LED TV

Important Safety Instructions

Grounding

• (Except for devices which are not grounded.)
• Ensure that you connect the earth-ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightning rods, or gas pipes
• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.
• Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product

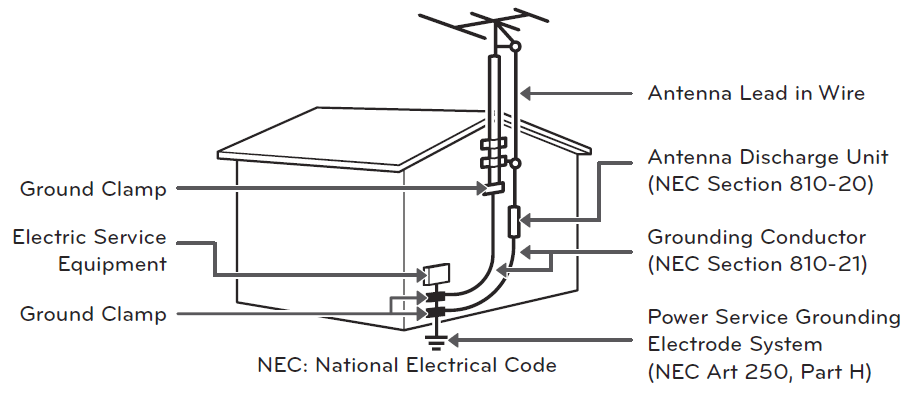

• Outdoor Antenna Grounding (Can differ by country):
• If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded to provide some protection against voltage surges and built-up static charges.
• Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to the proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode. Antenna grounding according to the National Electrical Code, ANSI/NFPA 70
• Cleaning
• When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners, or benzene.
• Moving
• Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.
• Ventilation
• Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places
• If you smell smoke or other odors coming from the TV, unplug the power cord and contact an authorized service center.
• Keep the product away from direct sunlight.
• Never touch this apparatus or antenna during a lightning storm.

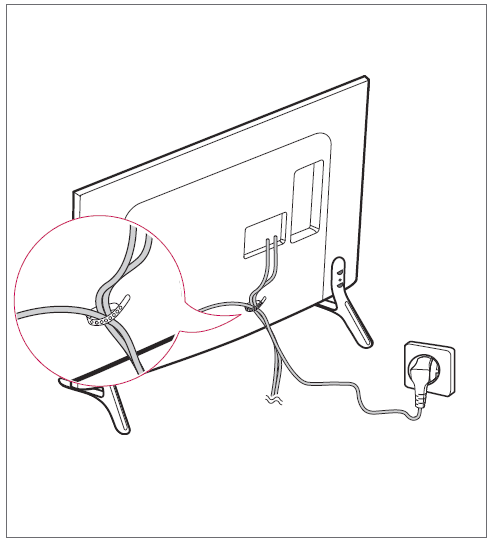

• When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.
• Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen.

Preventing image burn or burn-in on your TV screen

• If a fixed image is displayed on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is an image burn or burn-in and is not covered by the warranty.

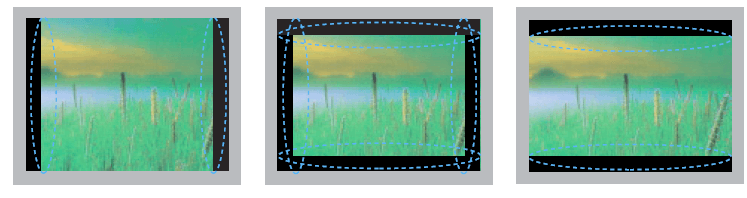

• If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV screen for long period (2 or more hours for LCD, 1 or more hours for the Plasma TV) to prevent image burn

Note to Cable/TV Installer (For USA and Canada)

• This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines
  for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical

Preparing

• Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.

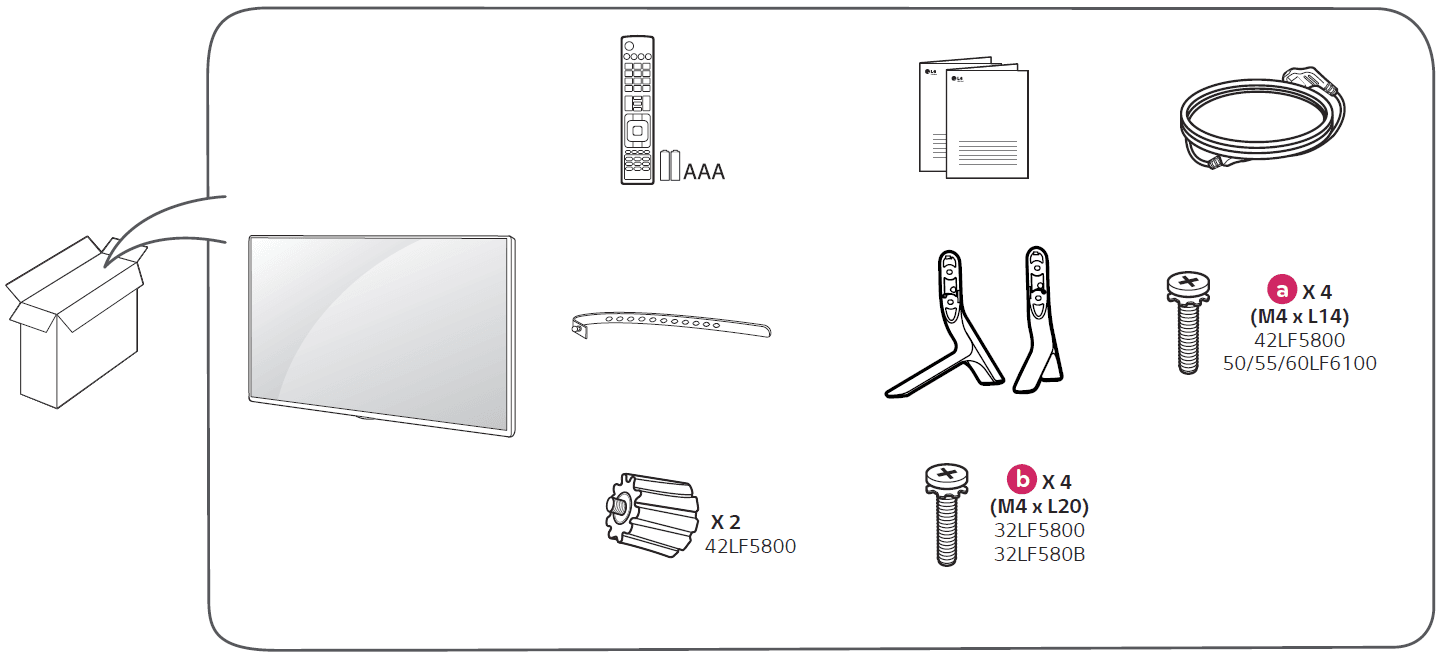

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to the upgrade of product functions.

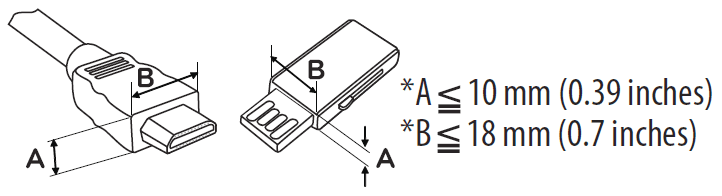

• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick and 18 mm (0.7 inches) wide.
• Use an extension cable that supports USB 2.0 if the USB cable or USB flash drive does not fit into your TV’s USB port.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types (3m or less)
  • High-Speed HDMI®/TM cable
  • High-Speed HDMI®/TM cable with Ethernet
• Any damages or injuries by using unapproved items are not covered by the warranty.
• Some models appear to have a thin film on the screen. It is actually part of the screen; do not remove it.

Optional Extras

• Optional extras can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed manufacturer’s circumstances or policies.


  AN-MR500 Magic Remote	AN-VC500 Smart Camera
  LG Audio Device	AN-WF500 Wi-Fi/Bluetooth DONGLE

Maintenance

Cleaning Your TV

• Clean your TV regularly to keep it at peak performance and to extend the product lifespan.
• CAUTION
• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges

Screen, Frame, Cabinet, and Stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth

• Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.
• Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, or lubricants, as these may damage the screen’s finish and cause discoloration.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Lifting and Moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV to the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.

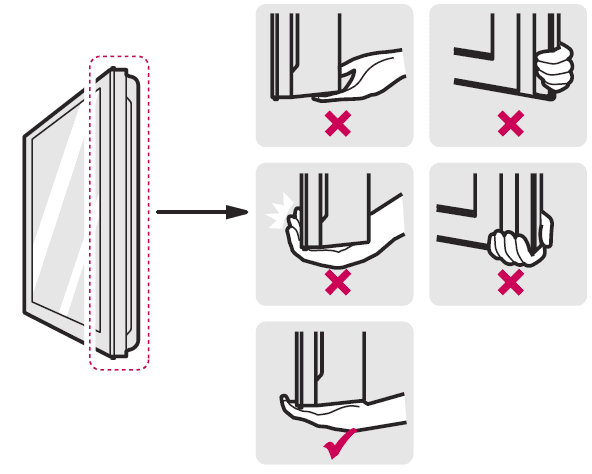

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grille area.
• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright; never turn the TV on its side or tilt it towards the left or right.
• When handling the TV, be careful not to damage the protruding joystick button.

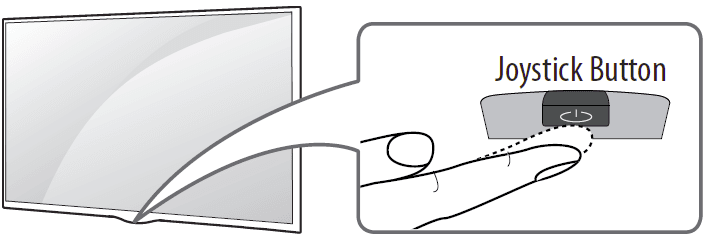

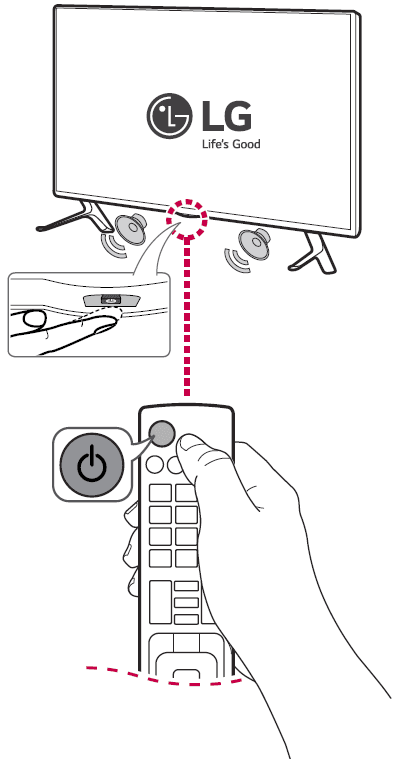

Using the Joystick Button (Image shown may differ from your TV.)

• You can operate the TV by pressing the button or moving the joystick left, right, up, or down.

Basic functions

Power On	When the TV is turned off, place your finger on the joystick button, press it once and release it.
Power Off	When the TV is turned on, place your finger on the joystick button, press it once for a few seconds, and release it. (However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
Volume Control	Place your finger on the joystick button and move it left or right to adjust the volume level.
Channels Control	Place your finger on the joystick button and move it up or down to adjust the channel.

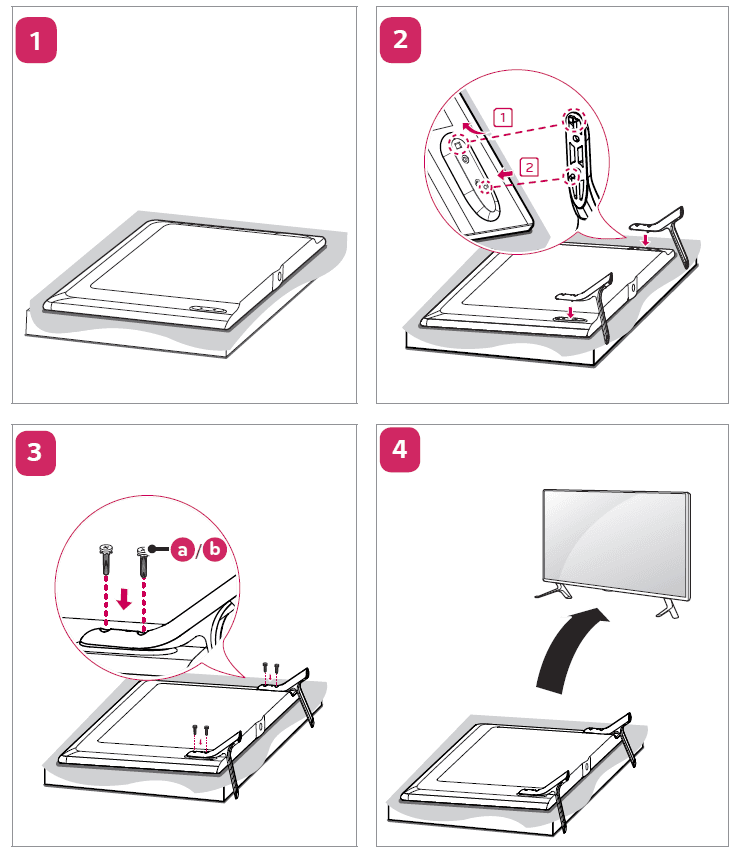

Mounting on a Table

(The image shown may differ from your TV.)

1. Lift and tilt the TV into its upright position on a table.

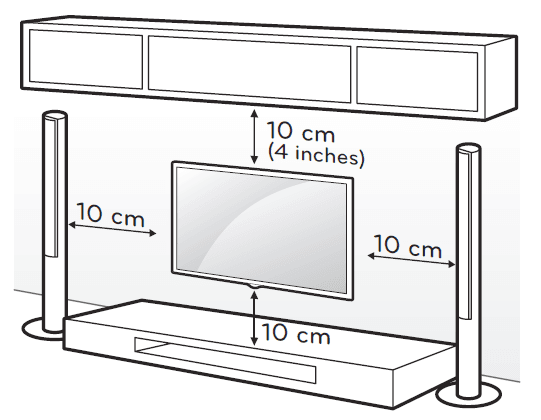

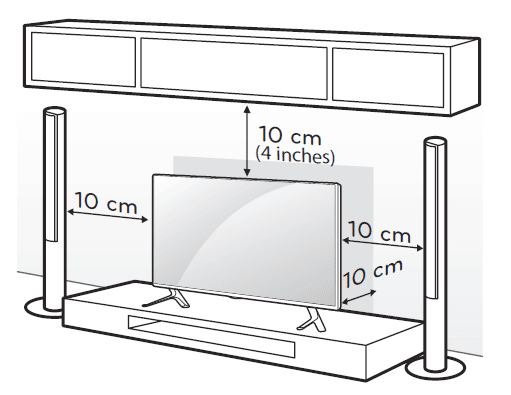

   • Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation

Mounting on a Wall

• An optional wall mount can be used with your LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. When you do not use LG’s wall mount bracket, use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.


  Model	32LF580B 32LF5800	42LF5800 50/55LF6100
  VESA (A x B)	200 x 200	400 x 400
  Standard screw	M6	M6
  Number of screws	4	4
  Wall mount bracket (optional)	LSW240B MSW240	LSW440B MSW240
  Model	60LF6100
  VESA (A x B)	400 x 400
  Standard screw	M6
  Number of screws	4
  Wall mount bracket (optional)	LSW440B

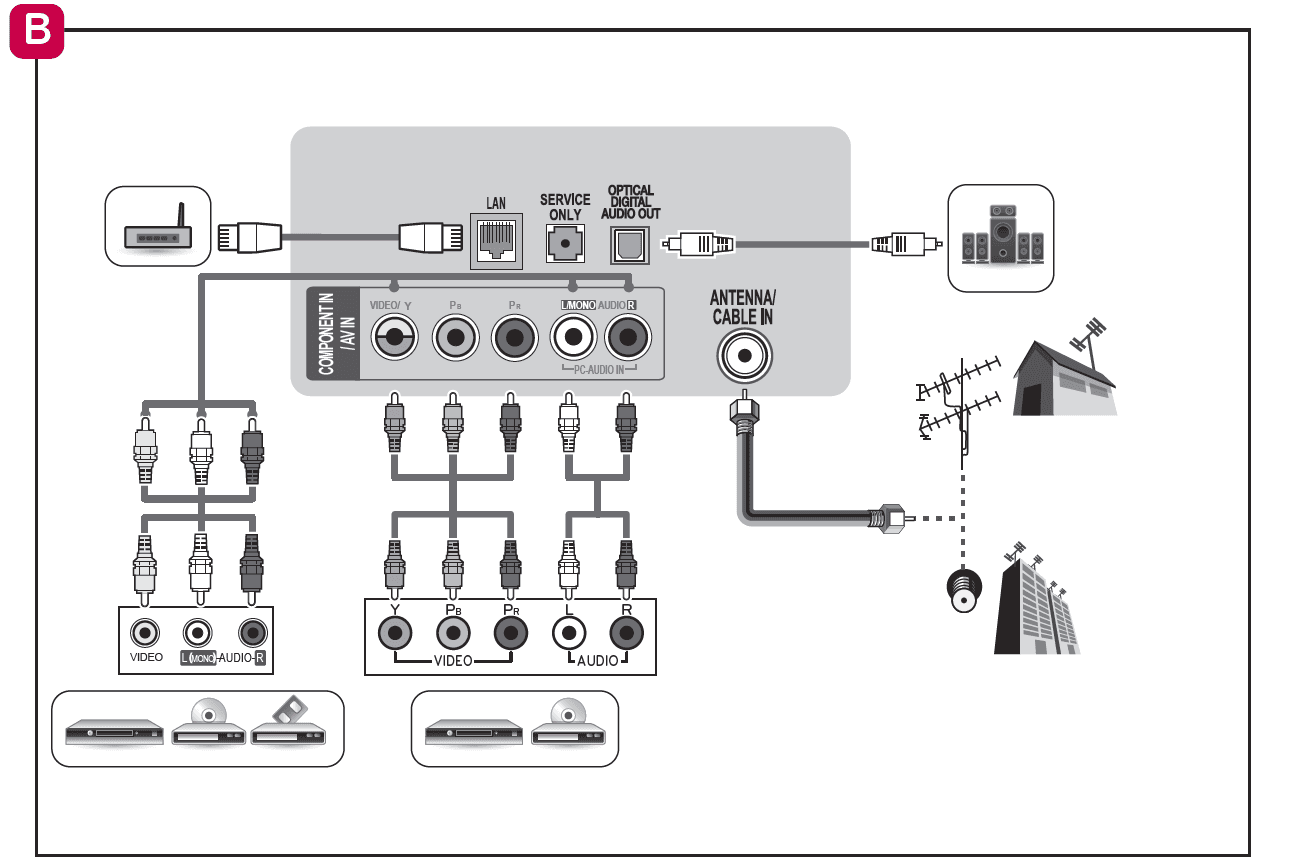

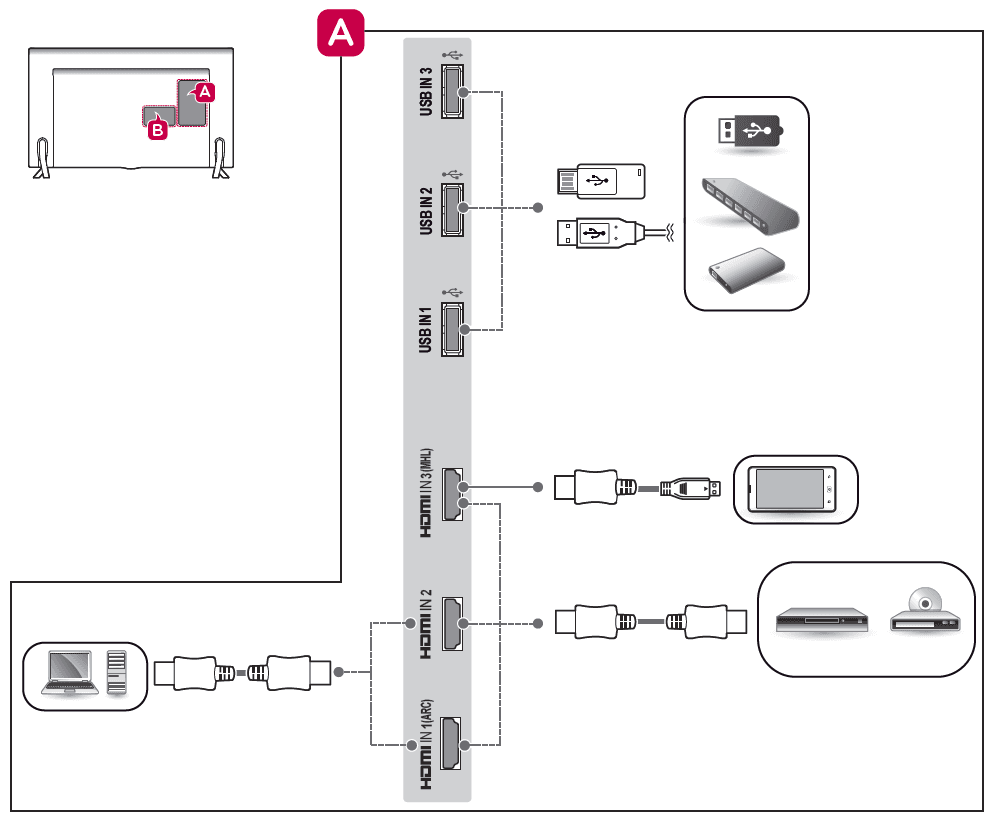

Other Connections

• Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Depending upon the model, a cable may not be provided.

Remote Control

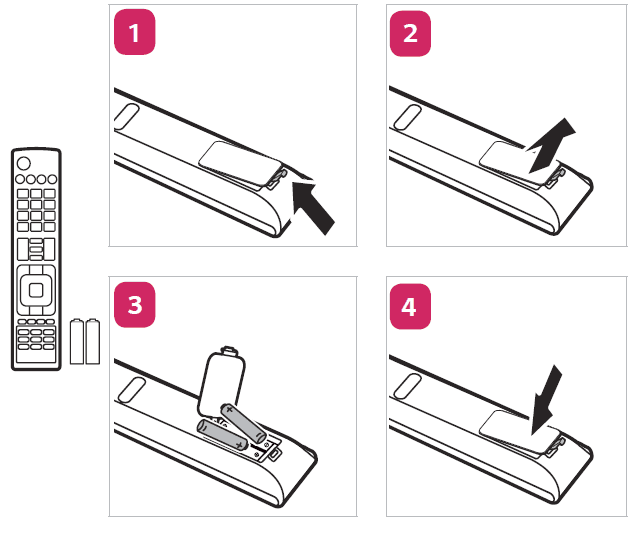

• The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover. Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution.
• To remove the batteries, perform the installation actions in reverse. This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor

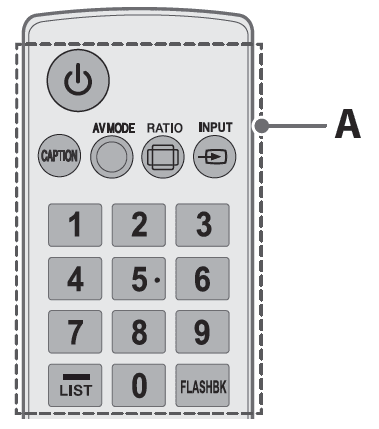

A

• (POWER) Turns the TV on or off.
• CAPTION Activates or deactivates the subtitles.
• AV MODE Selects an AV mode.
• RATIO Resizes an image.
• INPUT Changes the input source.
• The number button Enters numbers.
• – (Dash) Inserts a dash between numbers such as 2-1 and 2-2.
• LIST Accesses the saved channel list.
• FLASHBK Alternates between the two last channels selected (pressing repeatedly).

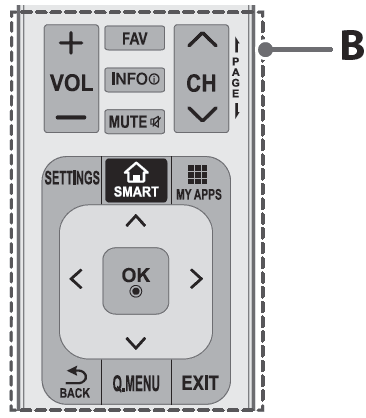

B

• +VOL- Adjusts the volume level.
• FAV Accesses your favorite channel list.
• INFO Shows information on the current program.
• MUTE Mutes all sounds.
• CH Scrolls through the saved channels.
• PAGE Moves to the previous or next screen.
• SETTING Accesses the main menu.
• SMART Accesses the Home menu.
• MY APPS Shows the list of Apps.
• Navigation buttons Scroll through menus or options. (up/down/left/right)
• OK Select menus or options and confirm your input.
• BACK Returns to the previous screen.

External Control Device

• Setup
• To obtain the external control device setup information, please visit www.lg.com

Troubleshooting

• Cannot control the TV with the remote control.
• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed (+ to +, – to – )
• No image display and no sound is produced.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other products.

Specifications

Wireless Module

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped over, pulled, or grabbed

MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be taken in the placement of older CRT televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

Easy Setup Guide

• Please read this manual carefully before operating your set and retain it for future
