Logitech G Pro X Wired Gaming Headset

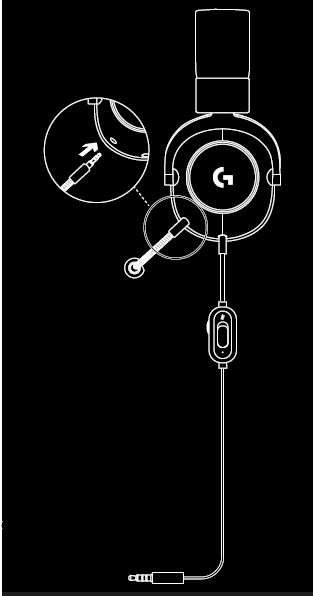

PC SETUP
- Plug in the microphone
- Plug the console/PC cable into the headset

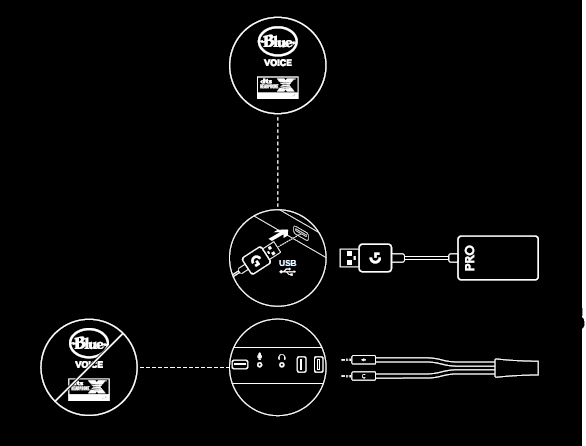

- Using USB DAC:
- Plug the console/PC cable into the USB DAC
- Plug the USB DAC into PC1
- Using a PC sound card:
- Plug the console/PC cable into the PC splitter
- Plug the PC splitter into the PC’s headphone and mic ports
1 Included USB DAC enables 5-band EQ tuning, DTS Headphone:X 2.0 and Blue VO!CE microphone filters on PC. Requires Logitech G HUB software download. 5-band EQ tuning, DTS Headphone:X 2.0 and Blue VO!CE are not available while using PC sound card.

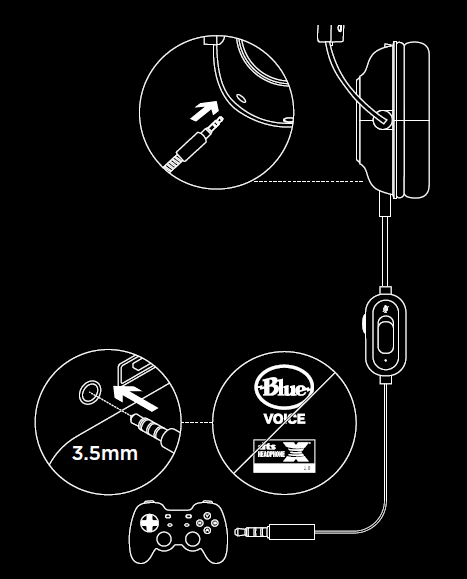

CONSOLE SETUP
(XBOX ONE™, PLAYSTATION®4)
- Plug in the microphone
- Plug the console/PC cable into the headset
- Plug the other end into controller 2
Instructions may vary based on your system version.
Please check your console manual for additional guidance. Xbox One and PlayStation 4 operate in stereo mode only via analog cable. Some Xbox One controllers may require the Xbox One Stereo Headset Adapter, sold separately. 5-band EQ tuning, DTS Headphone X 2.0, and Blue VO!CE is not available while connected to the console controller.

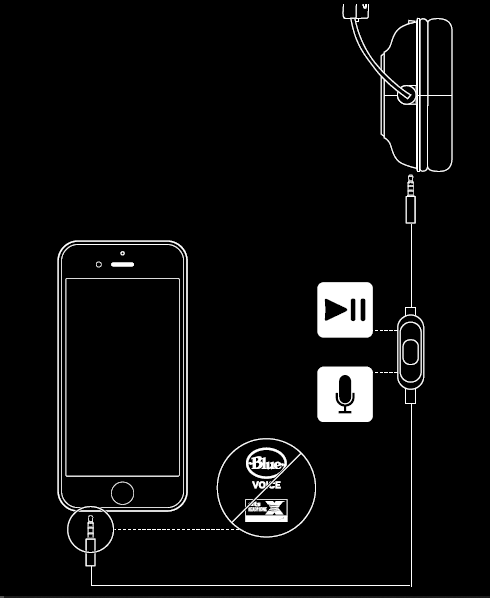

MICROPHONE POSITION SETUP
- Remove microphone
- Plug in mobile cable into the headset
- Plug the mobile cable into the phone 3
3 5-band EQ tuning, DTS Headphone X 2.0, and Blue VO!CE is not available on mobile devices.

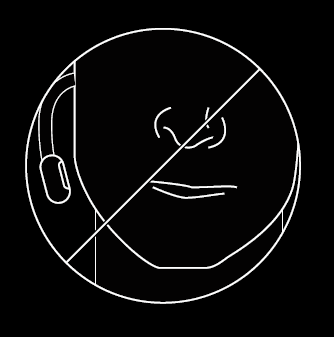

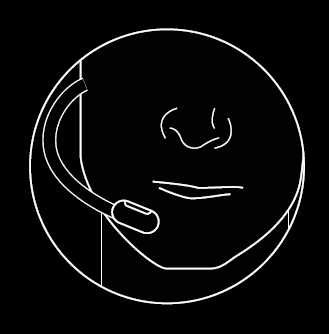

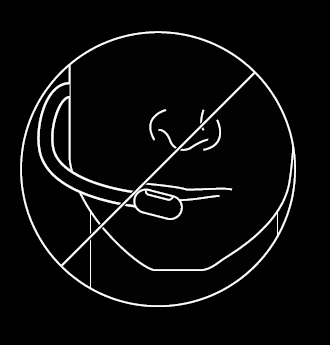

MICROPHONE PLACEMENT
The ideal placement of the microphone is at the corner of your mouth. In this position, your voice can be heard clearly without the microphone picking up breathing sounds.
FREQUENTLY ASKED QUESTIONS
Q: How do I save a custom EQ to the USB DAC?
A: Connect the USB DAC to a PC’s USB port and use G HUB software to download a pre-configured EQ from your favorite pro gamer, or to configure your own custom EQ settings. After using G HUB to save your EQ to the DAC, you can then enjoy your custom settings even on tournament PCs with no G HUB software installed.
Q: Can I save Blue VO!CE settings to the USB DAC?
A: No, Blue VO!CE technology is only available while using the G HUB software and the USB DAC on a PC.
Q: Can I save DTS Headphone X 2.0 settings to the USB DAC?
A: No, DTS Headphone X 2.0 is only available while using the G HUB software and the USB DAC on a PC.
Help and Support
www.logitechG.com/GHUB
www.logitechG.com/support/proxheadset
