Lumie Bodyclock Spark 100 SAD Wake-up Light Alarm User Manual

Lumie Bodyclock Spark 100 SAD Wake-up Light Alarm

Safety

• If the unit is damaged, contact Lumie before use.
• Keep away from water and damp.
• For indoor use only.
• The unit gets warm when the light is on, so make sure that it is not covered.
• Use only the mains power adaptor supplied.
• Keep the mains power adaptor and cable away from heated surfaces. If either is damaged, it should be replaced with an approved Lumie product.
• This appliance does not have an on/off switch. To power down or reset, remove the mains power adaptor from the wall socket. You should therefore ensure the socket is easily accessible.
• Only to be used by adults and by children when supervised.
• Do not attempt to service or modify any part of the unit.
• If the unit has been stored outside the recommended operating temperature range (5 °C to 35 °C), allow it to stand for at least 1 hour before applying power to avoid condensation or overheating.
• Not to be used by or on individuals who are unconscious, anaesthetised or incapacitated,e.g. under the influence of alcohol.

Electromagnetic compatibility

This product conforms to the electromagnetic compatibility (EMC) standard for medical devices and is unlikely to cause interference affecting other electrical and electronic products in its vicinity. However, radio transmitting equipment, mobile phones and other electrical/electronic equipment can interfere with this product; if this happens, simply move the product away from the source of interference. In rare cases where product function is lost due to EMC effects, disconnect the product from the power source for 5 seconds and then restart. If the problem persists, please contact Lumie. For further detailed information on the electromagnetic environment in which the device can be operated, refer to the website: www.lumie.com/pages/e-m-c.

Disposal

Do not throw out the mains power adaptor or the unit with normal domestic waste. Take them to an official recycling point to be disposed of responsibly.

Getting started

The ideal place for Lumie Bodyclock is on a bedside table near a mains socket.

• Connect the mains power adaptor to the socket in the base of the unit.
• Plug into a mains power supply and switch on.

The display will flash until the current time is set:

Bodyclock Spark 100 is preset with a 07:00 alarm time, 30-minute sunrise and 30-minute sunset.

To change the alarm time or any other settings, see Alarm time and sunrise options, page 5, and Sunset options, page 7.

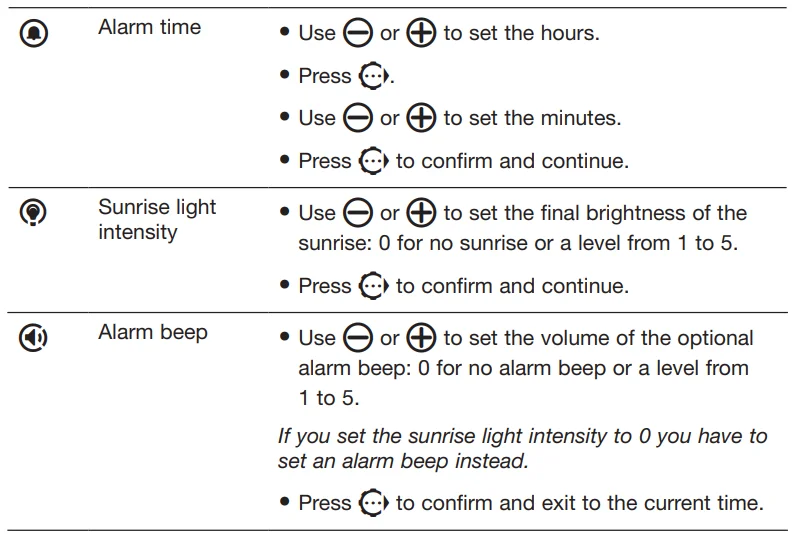

Alarm time and sunrise options

• Press and hold .

A symbol on the display shows which option you’re setting. Continue through the following sequence to set the alarm time and sunrise options:

Using the sunrise alarm

You must activate the alarm before you go to sleep each time.

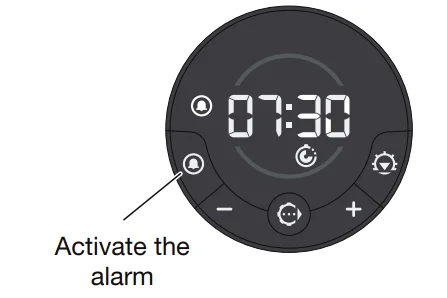

To wake with a sunrise alarm

• Press .
  The display confirms the alarm time and shows that the alarm is activated; for example, you’ll wake with a gradual sunrise and any other sunrise options you have set. See also Alarm time and sunrise options, page 5.

To deactivate the sunrise alarm

• Press .
  Disappears from the display.

To snooze

• Tap the top of the lamp cover.
  The sunrise, and alarm beep if set, will repeat after 9 minutes.

To turn off the sunrise and alarm beep

• Press any button.
  Disappears from the display.
• Press and hold to turn off the light.
  Timeout: If the light and alarm beep are not turned off manually, they will turn off automatically after 90 minutes.

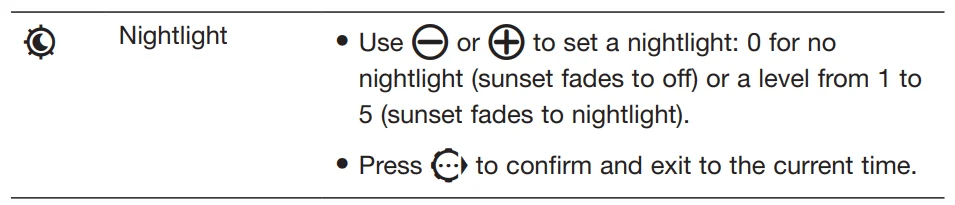

Sunset options

• Press and hold .

A symbol on the display shows which option you’re setting. Continue through the following sequence to set the sunset options:

Using the fading sunset

When you’re ready to sleep, a fading sunset can help you relax and unwind. See also Sunset options above.

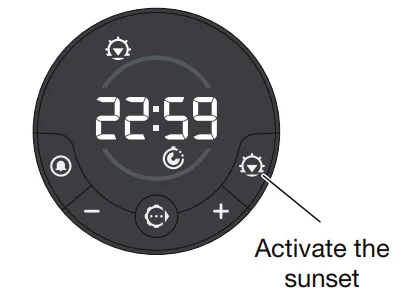

To activate the sunset

• Use or to set the light level.
• Press .

The display shows that the sunset is activated:

The light will start to fade,, and any other sunset options you have set will be activated.

To deactivate the sunset

• Press .
  Disappears from the display.

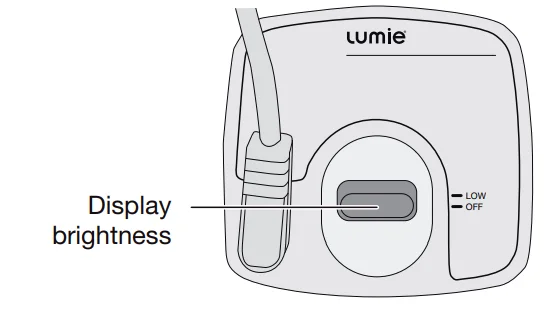

Display brightness

The display automatically adjusts to match the light level in your room when the room is dark, and drops to LOW brightness,s as you’re ready to sleep.

You can change this setting if you prefer the display to turn OFF completely when the room is dark:

• Use the switch in the base of the unit to set OFF or LOW:

To check the time when the display is off

• Tap the top of the lamp cover.
• The display will change to low brightness for a few seconds.

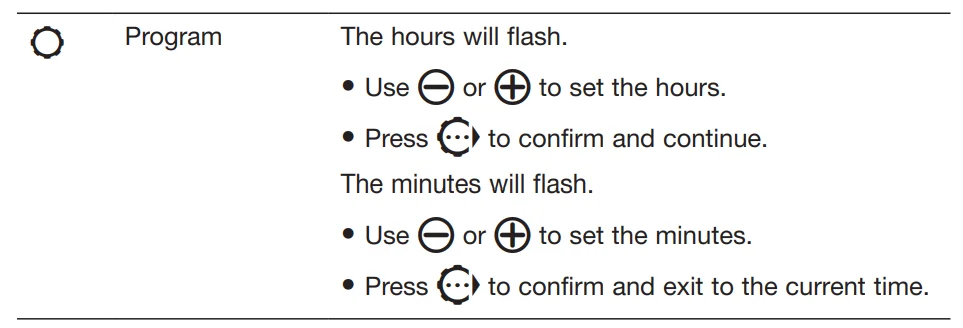

Changing the current time

Bodyclock Spark 100 will keep time for 30 minutes without power. All other settings are permanently saved.

• Press and hold until it appears.

Continue through the following sequence to set the time:

Bedside light

Lumie Bodyclock can be used as a fully dimmable bedside light.

• Use or to set the light level.
• Press and hold to turn off the light.
  Timeout: If the bedside light is not turned off manually, the light will turn off automatically after 12 hours.

Maintenance

Clean only with a dry or lightly moistened cloth. Always unplug the unit first and let it cool if necessary.

Replacement mains power adaptors are available from Lumie.

To restore the default factory settings

• Turn off the power at the mains.
• Press and hold , and turn the power back on.
• Release the button when the software version number shows.

LED lifetime

The LEDs in this product will typically last for many years, even with several hoof urs of use each day. Although it’s unlikely, individual LEDs can fail. If this happens, contact Lumie; do not attempt to replace them.

Warranty

This unit is covered under warranty against any manufacturing defect for 3 years from the date of purchase. This is in addition to your statutory rights. If you need to return the product for servicing, use the original packaging (including internal packing) if possible. Make sure the mains power adaptor is prevented from moving in transit and damaging the unit. If the unit is received damaged, through misuse or accidental damage, then we may have to charge to repair it; we will contact you first. Please contact Lumie for further advice.

Note: Any serious incident relating to the unit should be reported to Lumie and to the competent authority in the country where you live.

Technical description

Subject to change without notice.

Bodyclock Spark 100

• Detachable accessory: Mains power adaptor (supplied)
• Input: 100–240 Vac, 50/60 Hz, 0.4 A max.; Output: 12 V ⎓ 1 A (12 W)
• Operating conditions:
  • Temperature: 5 °C to 35 °C
  • Relative humidity: 15% to 93% (non-condensing)
  • Atmospheric pressure: 70 kPa to 106 kPa
• Storage/transport conditions:
  • Temperature: -25 °C to +70 °C
  • Relative humidity: 15% to 93% (non-condensing)
  • Atmospheric pressure: 25 kPa to 106 kPa
• Medical Device Class 1

Contact us

If you have any questions or problems regarding this product, or have suggestions that you feel could help us improve our products or servic,e please email [email protected].

 Outside In (Cambridge) Limited, 3 The Links, Trafalgar Way, Bar Hill, Cambridge, CB23 8UD, UK.

Lumie is a registered trademark of:
Outside In (Cambridge) Limited, incorporated in England and Wales.

Registered Number: 2647359. VAT No: GB 880 9837 71.
Advena Ltd, Tower Business Centre, 2nd Floor, Tower Street, Swatar, BKR 4013 Malta.
