Powermate Coleman Electric Generator Product
MAJOR GENERATOR FEATURES
- 10 HP Tecumseh engine
- Cast-iron cylinder sleeve
- Low oil sensor
- Receptacles on endbell
- 5-gallon plastic fuel tank

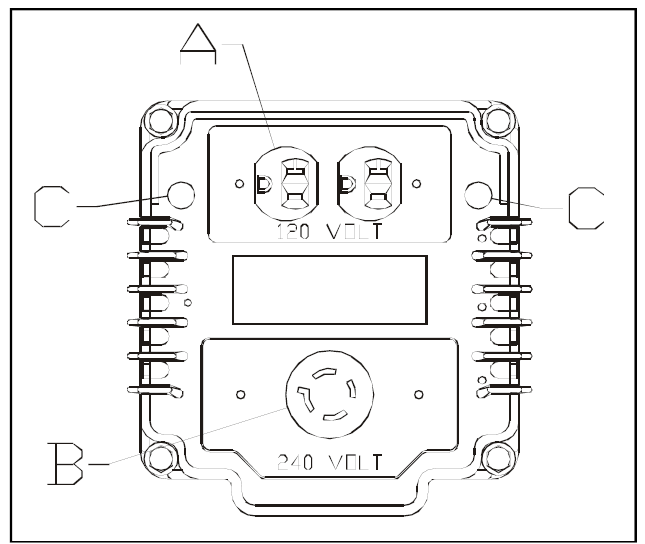

ENDBELL
A. 120 V, 20 20-ampere duplex Receptacle
This duplex is split so that 20 amps of current may be drawn from each half of the receptacle. However, the total power drawn must be kept within the nameplate ratings. These receptacles may be used along with the twistlock receptacle
provided the generator is not overloaded.
B. 120/240 V, 20 Ampere Twistlock Receptacle
A maximum of 20 amps may be drawn from the 120/240-volt receptacle, provided it is the only receptacle used. However, the current must be limited to the nameplate rating. If the 120/240-volt receptacle is used along with the 120-volt receptacle, the total load drawn must not exceed the nameplate ratings.
C. Circuit Breakers
The receptacles are protected by an AC circuit breaker. If the generator is overloaded or an external short circuit occurs, the circuit breaker will trip. If this occurs, disconnect all electrical loads and try to determine the cause of the problem before attempting to use the generator again. If overloading causes the circuit breaker to trip, reduce the load.
NOTE: Continuous tripping of the circuit breaker may cause damage to the generator or equipment. The circuit breaker may be reset by pushing the button on the breaker.
LIMITED WARRANTY (NOT VALID IN MEXICO)
This product is warranted by Coleman Powermate, Inc. to the original retail consumer against defects in material and workmanship for a period of one year from the date of retail purchase and is not transferable. This one-year warranty applies only to products used in consumer applications. If this generator is used in a commercial application, then the period of warranty coverage is limited to ninety (90) days from the date of purchase. Please complete and return the enclosed Customer Information Card so that we can reach you in the unlikely event a safety recall is needed. Return of this card is not required to validate this warranty.
WHAT IS COVERED: Replacement parts and labor.
WHAT IS NOT COVERED: Transportation charges to Coleman Powermate, Inc. for defective products. Transportation charges to the consumer for repaired products. Brushes, fuses, rubber feet, and receptacles. Damages caused by abuse, accident, improper repair, or failure to perform normal maintenance. Power units or engines that are covered exclusively by the warranties of their manufacturer. Sales outside of the United States or Canada. Any other expense, including consequential damages, incidental damages, or incidental expenses, including property damage. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
IMPLIED WARRANTIES: Any implied warranties, including the Implied Warranties of Merchantability and Fitness For A Particular Purpose, are limited in duration to one (1) year from the date of retail purchase. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
HOW TO OBTAIN WARRANTY PERFORMANCE:
Replacement parts and service are available from Coleman Powermate, Inc. Service Centers. Locate your nearest Service Center by calling TOLL FREE 1-800-445-1805. In the unlikely event that a Service Center can not be located, you may call
Coleman Powermate, Inc. for a return authorization number. Any unit returned WITHOUT an authorization number will
be refused. To the extent any provision of this warranty is prohibited by federal, state, or municipal law and cannot be preempted, it shall not be applicable. This warranty gives you specific rights, and you may also have other rights which vary from state to state.

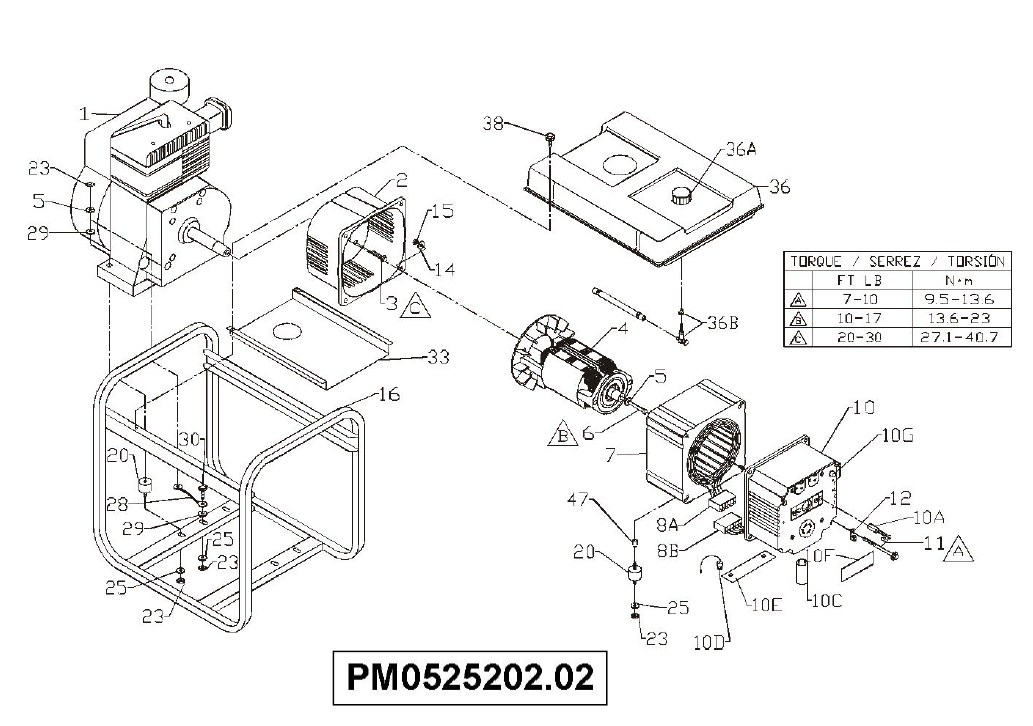

PARTS DRAWING
PARTS DRAWING

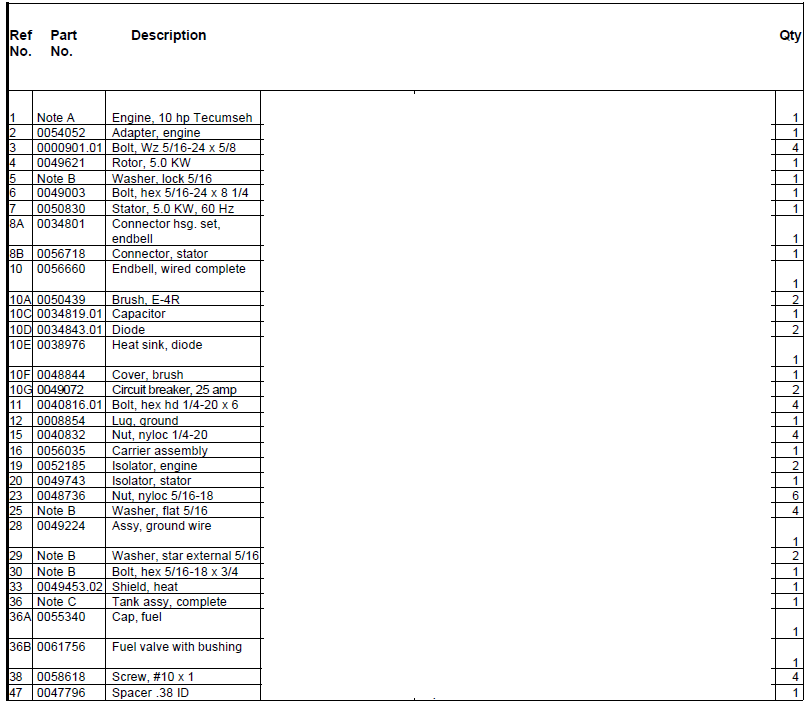

PARTS LIST
- Note A: Coleman Powermate will not provide engines as replacement parts. Engines are covered through the engine manufacturer’s warranty. Consult the accompanying Engine manual or contact our service department for assistance.
- Note B: These are standard parts available at your local hardware store.
- Note C: Contact your nearest Coleman Powermate Service Center for replacement fuel tanks.
WARNING: To avoid possible personal injury or equipment damage, a registered electrician or an authorized service representative should perform installation and all service. Under no circumstances should an unqualified person attempt to wire into a utility circuit.
Electrical: For models approved for the City of Los Angeles (PL’s), the ampacity of the phase conductors from the generator terminals to the first overcurrent device shall not be less than 115 percent of the nameplate rating of the generator.
