Magic MiXiES 14650 Magic Cauldron Instruction Manual

Magic MiXiES 14650 Magic Cauldron

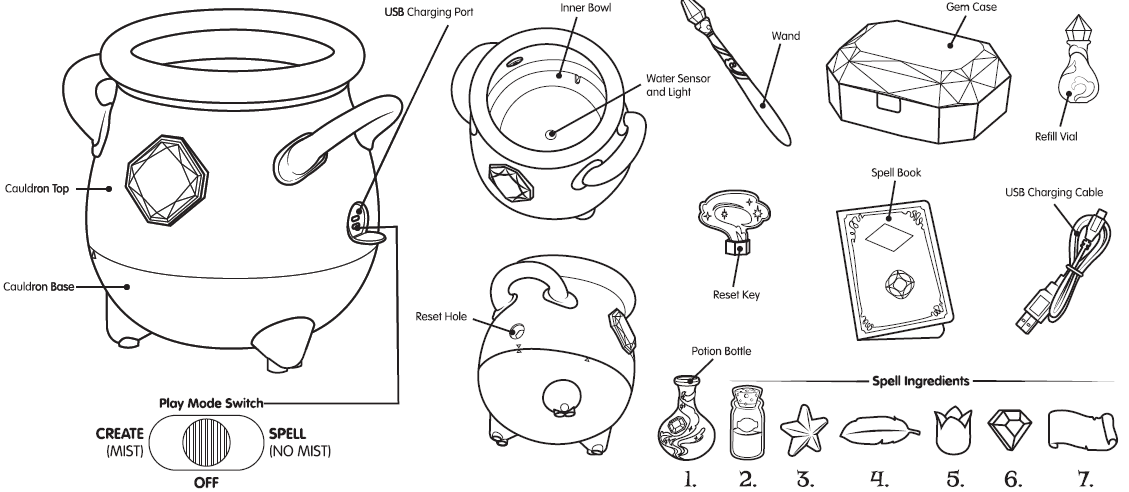

YOUR MAGIC CAULDRON

CHARGING YOUR CAULDRON

Your Cauldron is equipped with a Lithium Polymer battery that is non-replaceable.

When the Cauldron battery is low, the red light next to the charging port will flash, and a ‘low battery’ sound will play. All play functions will be disabled until the battery is charged. Use the USB Charging Cable to charge your Cauldron. Open the side cover on the Cauldron and plug the Micro-USB end into the charger port. Plug the USB-A end into a USB 2.0-compatable port. For best results, use a USB 2.0 charger that plugs into a wall socket. The red light next to the charger port will stay on until the battery is fully charged. Charge time is approximately 60-90 minutes. When the light turns off, take the charger out, close the side cover, and continue playing with your Cauldron.

USB Charging Cable included. Works with all standard USB Charging Adapters (not included).

BATTERY INSTRUCTIONS:

The rechargeable batteries are only to be charged by an adult or by children at least 8 years old.
Never leave Cauldron unattended while charging the battery.
Charge the battery in an isolated area, away from flammable materials.
Disconnect the USB Charging Cable when the unit is fully charged.
There is a risk of the batteries exploding, overheating, or igniting. Do not disassemble, modify, heat, or short-circuit the battery. Do not place the unit or battery in fires or leave them in hot places or in direct sunlight.
Do not drop or subject to strong impacts.
Only charge the battery with the supplied USB cable.
Only use the battery in the device supplied with the product.
Carefully read all instructions and use the unit as directed.
In the unlikely event of leakage or explosion, use sand or a chemical fire extinguisher.
The battery should be recycled or disposed of as per state and local guidelines.
Charging is only supported via a Micro-USB cable connected to a 5V, 500mA Max charging current, DC voltage.
The battery charger used with the electric toy should be regularly examined for damage to the supply cord, plug, enclosure or other parts, and in the event of damage, it should not be used until the damage has been repaired.

BATTERY REMOVAL CONSIDERATIONS:

The Lithium Polymer battery is factory-installed, and is not intended to be removed for the usable life of the product. The battery should only be removed by an adult when you intend to dispose of the product, and recycle the battery.
Removal must only be performed by an adult.
Use care to avoid cutting, puncturing, tearing, deforming, or otherwise damaging the battery housing during removal.
The product must be turned off before attempting to remove the battery.
Once the battery is removed, place tape over the exposed wire/contact points to avoid accidental short circuits.

For information on how to remove the battery, visit https://www.moosetoys.com/battery-disposal

2 Ways To Play!

Use the Play mode switch to choose how to play!

Create Mode (Mist):

This mode will allow you to create your own Magic Mixie! Select this mode if you want to reveal your Magic Mixie again or other items placed in the Gem Case.

Spell Mode (No Mist):

Make additional spells in your Cauldron without the magical reveal.

When purchased, the unit will be set to “Create Mode”.

Create Mode (Mist)

Only add 1 Spell Ingredient for each set

Prompting

The Cauldron will prompt you when the light glows green and you hear “tap, tap, tap”. This means you’re ready to move to the next step by tapping the rim of the Cauldron 3 times with your Wand. You can’t proceed to the next step without doing this.
When done correctly, you’ll hear a celebratory sound and see the light flash quickly, indicating the Cauldron has moved to the next step of your spell.

Note: Only use approved Magic Mixie-supplied materials.

ADD WATER #1

Fill the Potion Bottle once to the Fill Line and pour info the top of your Cauldron. The Cauldron will come to life with bubbling and boiling sounds.

Only apply one full Potion Bottle of water. When you hear the “tap tap tap” prompt, tap the rim of the Cauldron 3 times with your Wand.

SOUND DUST #2

The orchestral sound indicates it’s time to add the Sound Dust.

Pour this into the Cauldron and stir with your Wand to dissolve. Tap Cauldron 3 times with your Wand when prompted.

GLIMMER STAR #3

The glimmer sound and white light indicate it’s time to add the Glimmer Star.

Drop the Star into the Cauldron and stir with your Wand to dissolve. Tap Cauldron 3 times with your Wand when prompted.

MAGIC FEATHER #4

The fluttering sound and yellow/white light indicate it’s time to add the Feather.

Drop this into the Cauldron and stir with your Wand to dissolve. Tap Cauldron 3 times with your Wand when prompted.

FIZZ FLOWER #5

The springtime sound and pink/blue light indicate it’s time to add the Fizz Flower.

Add the Flower into the Cauldron and stir with your Wand to dissolve. Tap Cauldron 3 times with your Wand when prompted.

CRYSTAL GEM #6

The crystal sound and purple light indicate it’s time to add the Crystal Gem. Drop this into the Cauldron and stir with your Wand to break up. Tap Cauldron 3 times with your Wand when prompted.

NAMING SCROLL #7

The paper rustling sound and orange light indicate it’s time to add the Naming Scroll. Name your Magic Mixie by writing their name on the paper before dropping this into the Cauldron and stirring with your Wand to dissolve. Tap Cauldron 3 times with your Wand when prompted.

The Magic Reveal!

CAUTION: Do not place your hands or Wand inside the Cauldron during this step.

A large volume of real mist will emanate from the Cauldron (this is normal). You might even hear your Magic Mixie start to make noises! After around half a minute, your Magic Mixie will miraculously appear in the Cauldron! Congratulations!

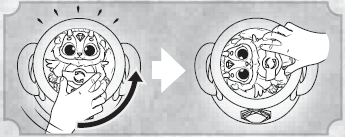

Once the sounds have stopped and the mist has cleared, you may remove your Magic Mixie from the Cauldron by rotating it anticlockwise, then pulling it out.

EMPTYING YOUR CAULDRON

Before playing with your Cauldron again, empty all liquid from the previous spell.

UNSCREWING BASE

Unscrew the bottom half of the Cauldron to pour out liquid, remove any larger items, or wash thoroughly.

Do not use any chemicals or detergents.
Do not immerse the product in water. To clean the Inner Bowl, wipe it with a damp cloth.
We recommend this is done before starting a new spell or placing the item in storage.
Reassemble the Cauldron by aligning the triangle indicators.

MIST REFILL

After using your Cauldron a few times, the mist effect will be reduced. You can create more mist by refilling with liquid found in the Refill Vial.

Ensure all water/liquids have been drained from the Cauldron and it is in the reset position (refer to the Emptying Your Cauldron and Resetting Your Cauldron sections of this manual).
Unscrew the bottom half of the Cauldron and set aside. Place the top half of the Cauldron upside-down.
Undo the lid on the Refill Vial and locate the cross-shaped hole in the Cauldron.
Place the end of the Refill Vial in the hole until it stops and firmly squeeze 3 times. Do not overfill. Wipe up spills with a damp cloth.

TROUBLESHOOTING-CAULDRON

For safety and to avoid any potential malfunction, do not restrict movement of the Inner Bowl of the Cauldron.

I don’t want my child to be exposed to the mist emitted by the Cauldron:

Please follow these steps:

Switch the unit to the “OFF” position.
Invert the Cauldron and unscrew the base.
Manually retrieve the Magic Mixie.
Reaftach base.
Switch Cauldron to “Spel Mode” for play.

Adding water to the Cauldron does not trigger bubbling and boiling sounds:

Ensure water is being poured into the correct side of the Inner Bow. Refer to the “Resefing your Cauldron” page of this manual.
Make sure that the Inner Bowl surface is properly wiped clean of any previous spell ingredients, particularly the Water Sensors;

Tapping the Wand on the Cauldron does not advance play to the next stage:

Make sure the Wand hits the rim of the Cauldon 3 or more times. If you are topping softly, then increase the force of the tap.
Only tap the Cauldron directly after the “tap, tap, tap” prompt (when there is no Cauldron sound playing).
Try to match the rhythm of the Prompt sound.
The battery may be low on the Cauldron. Low battery may not allow full function. Charge the battery using the USB Charging Cable.

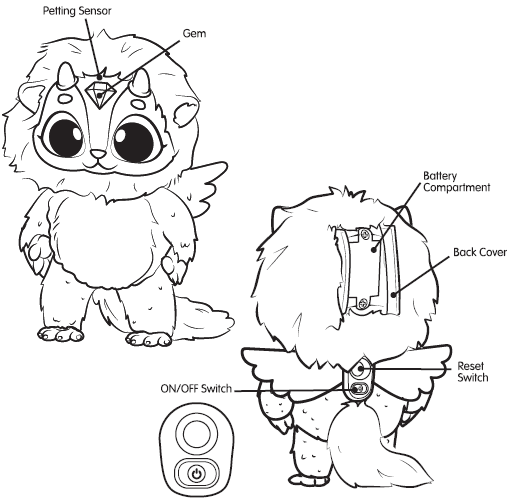

YOUR MAGIC MIXIE

www.magicmixies.com
